Commercial
Insulated
Pin Terminals

Filter
1106-52-04410
1106-52-04410
1106-52-04410
0.276" - - Press Fit 3/32 0.086 Brass Bright Tin - - PTFE Black YES
1106R-23-0516
1106R-23-0516
1106R-23-0516
0.375" - - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Blue NO

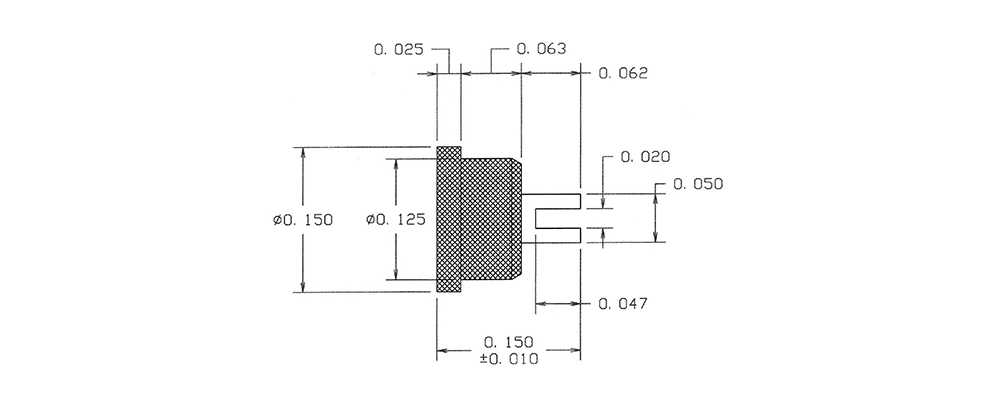

1106R-51-0112
1106R-51-0112
1106R-51-0112
0.150" - - Press Fit 1/32 0.113 Brass Silver - - PTFE Red NO
1107-03-0318
1107-03-0318
1107-03-0318
0.819" 0.040 Pin/Pin Press Fit Up to 3/16 0.136 Brass Gold - - PTFE Gray NO
1107-08-04414
1107-08-04414
1107-08-04414
0.696" 0.040 Pin/Pin Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Yellow NO
1108-01-08810
1108-01-08810
1108-01-08810
1.687" - Double Turret/Double Turret Press Fit 9/16 0.205 Brass Bright Tin-Lead - - PTFE Black NO
1108-06-0116
1108-06-0116
1108-06-0116
0.819" - Double Turret/Double Turret Press Fit Up to 3/16 0.174 Brass Silver - - PTFE Blue YES
1110-02-0412
1110-02-0412
1110-02-0412
0.438" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Red NO
1110-06-04418
1110-06-04418
1110-06-04418
0.987" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Gray NO
1110-10-08814
1110-10-08814
1110-10-08814
0.453" 0.030 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Yellow NO

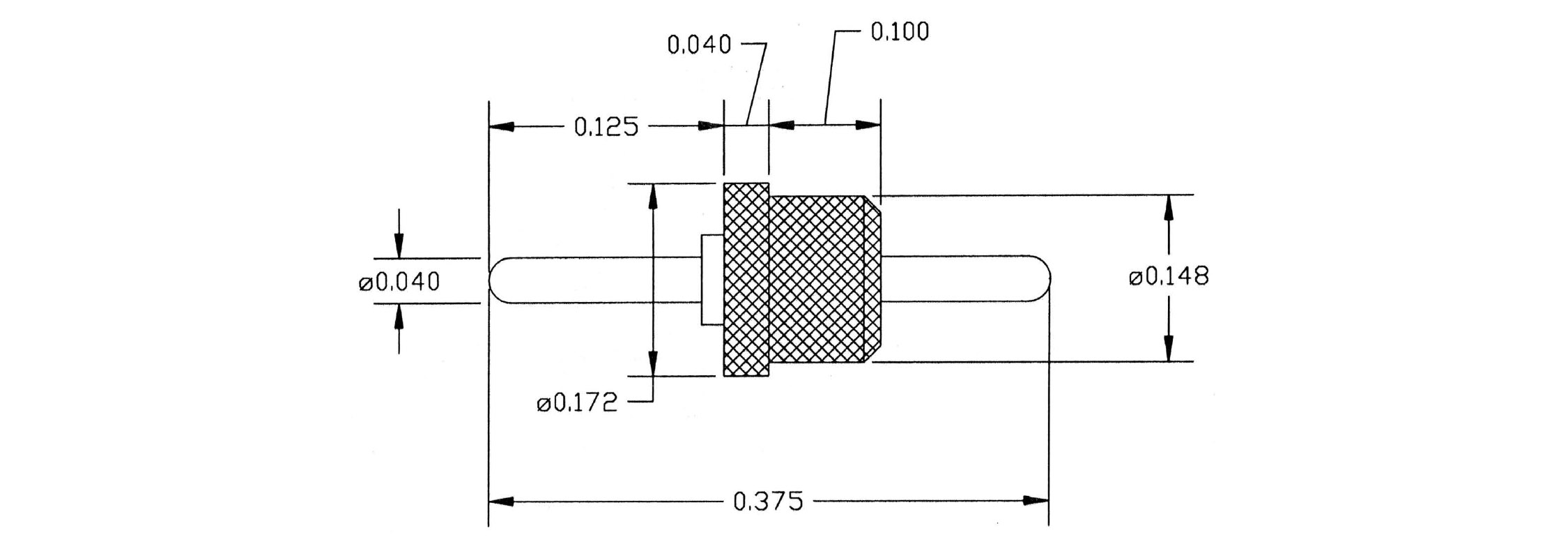

1110-16-0310
1110-16-0310
1110-16-0310
0.375" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Gold - - PTFE Black YES
1110-20-0416
1110-20-0416
1110-20-0416
0.443" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Blue YES
1110-24-0512
1110-24-0512
1110-24-0512
0.535" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Red NO
1110-28-08818
1110-28-08818
1110-28-08818
0.562" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Gray NO
1110-33-0314
1110-33-0314
1110-33-0314
0.725" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Gold - - PTFE Yellow NO
1110-40-04410
1110-40-04410
1110-40-04410
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Bright Tin - - PTFE Black YES
1110-44-0516
1110-44-0516
1110-44-0516
2.500" 0.049 Pin/Pin Press Fit 1/16 0.156 Brass Electro Solder - - PTFE Blue NO

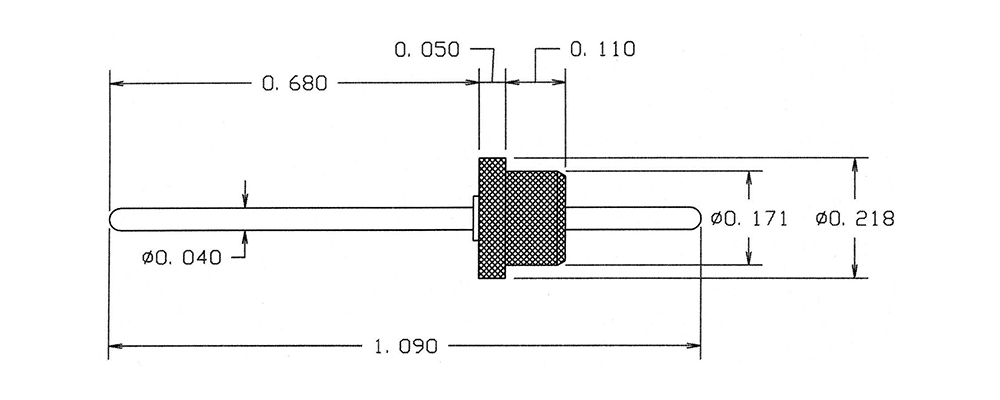

1110-49-0112
1110-49-0112
1110-49-0112
1.090" 0.040 Pin/Pin Press Fit 1/16 0.158 Brass Silver - - PTFE Red NO
1110-55-0318
1110-55-0318
1110-55-0318
0.515" 0.040 Pin/Pin Press Fit 1/16 0.166 Brass Gold - - PTFE Gray NO
1110-61-04414
1110-61-04414
1110-61-04414
0.410" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Yellow NO
