Commercial
Insulated
Pin Terminals

Filter
1175-491-08817
1175-491-08817
1175-491-08817
0.800" - Double Turret/Double Turret PRESS LOCK 1/32 0.188 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Violet NO
1175-601-0313
1175-601-0313
1175-601-0313
0.424" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Gold - - PTFE Orange NO
1175-702-0419
1175-702-0419
1175-702-0419
0.474" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro-Tin - - PTFE White YES
1175-712-0515
1175-712-0515
1175-712-0515
0.579" - DOUBLE Turret/Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro Solder - - PTFE Green NO
1175-723-0111
1175-723-0111
1175-723-0111
0.725" - Double Turret/Double Turret PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Silver - - PTFE Brown NO

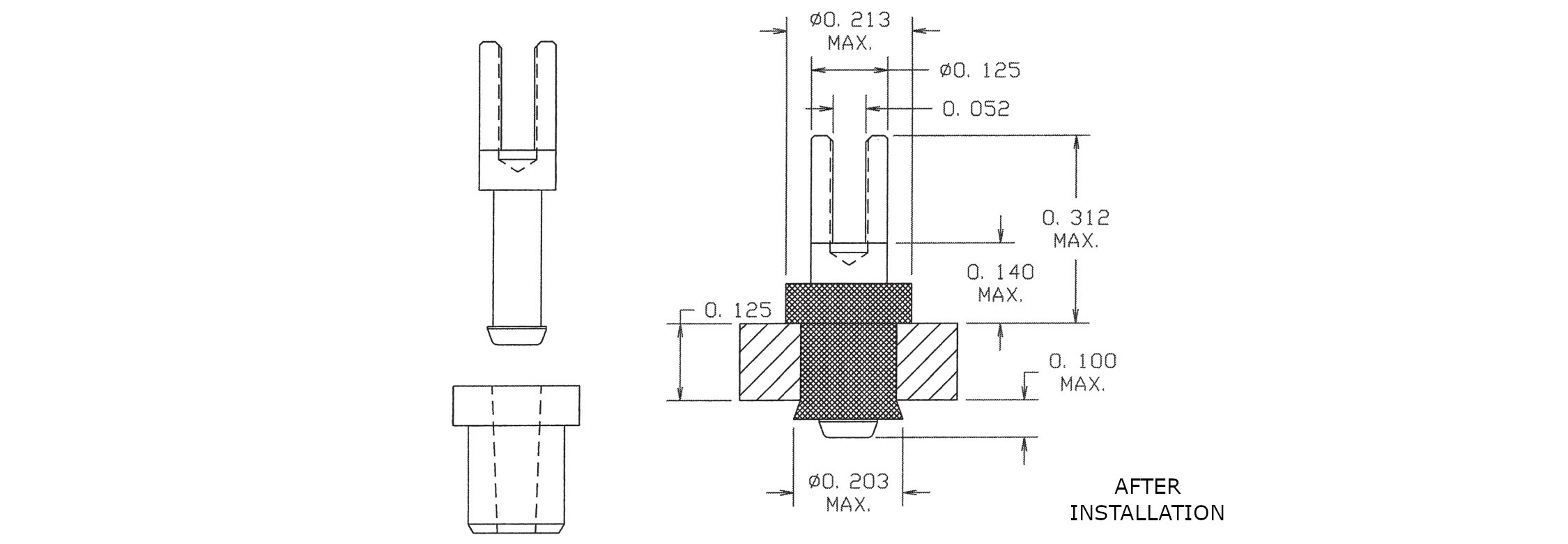

1175-734-0317
1175-734-0317
1175-734-0317
0.537" - - PRESS LOCK 1/8 0.154 (+0.003/-0.001) Brass Gold - - PTFE Violet YES
1175-751-04413
1175-751-04413
1175-751-04413
0.655" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Bright Tin - - PTFE Orange NO
1175-762-0519
1175-762-0519
1175-762-0519
0.387" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro Solder - - PTFE White NO
1175-822-0115
1175-822-0115
1175-822-0115
0.433" - - PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Silver - - PTFE Green YES
1175-842-0411
1175-842-0411
1175-842-0411
0.433" - - PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Electro-Tin - - PTFE Brown NO
1175-872-04417
1175-872-04417
1175-872-04417
0.591" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Bright Tin - - PTFE Violet YES
1177-02-08813
1177-02-08813
1177-02-08813
0.272" 0.040 - PRESS LOCK 1/32 - 1/16 0.093 Brass Bright Tin-Lead - - PTFE Orange NO
1177-13-0119
1177-13-0119
1177-13-0119
0.495" - - PRESS LOCK 1/32 - 1/16 0.136 Brass Silver - - PTFE White YES

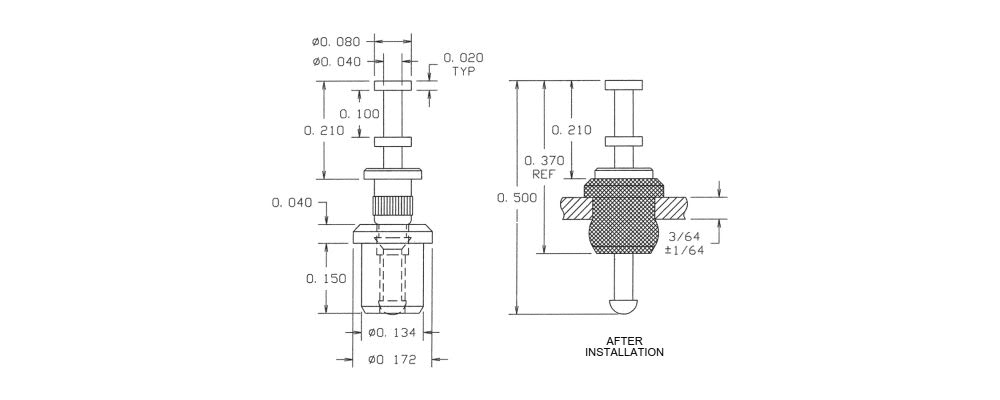

1177-32-0415
1177-32-0415
1177-32-0415
0.500" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 - 1/16 0.136 Brass Electro-Tin - - PTFE Green YES

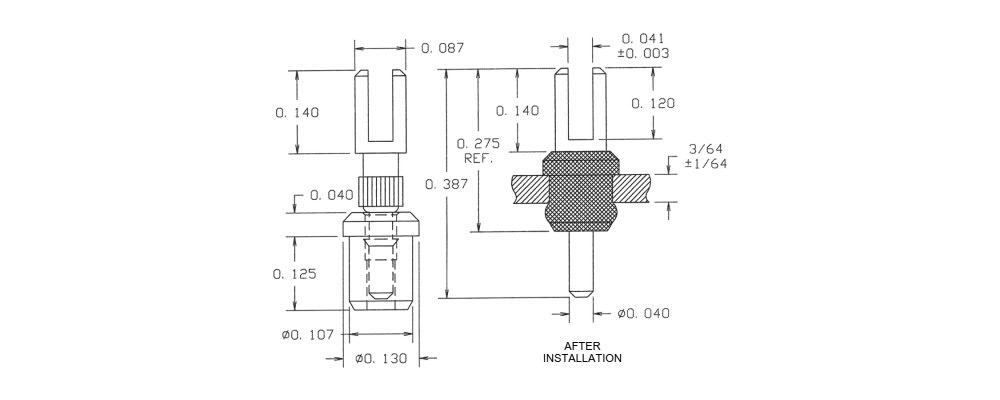

1177-41-0511
1177-41-0511
1177-41-0511
0.387" 0.040 Pin/Slotted PRESS LOCK 1/32 - 1/16 0.109 Brass Electro Solder - - PTFE Brown NO
1177-52-08817
1177-52-08817
1177-52-08817
0.515" 0.040 Pin/Pin PRESS LOCK 1/32 - 1/16 0.086 Brass Bright Tin-Lead - - PTFE Violet NO

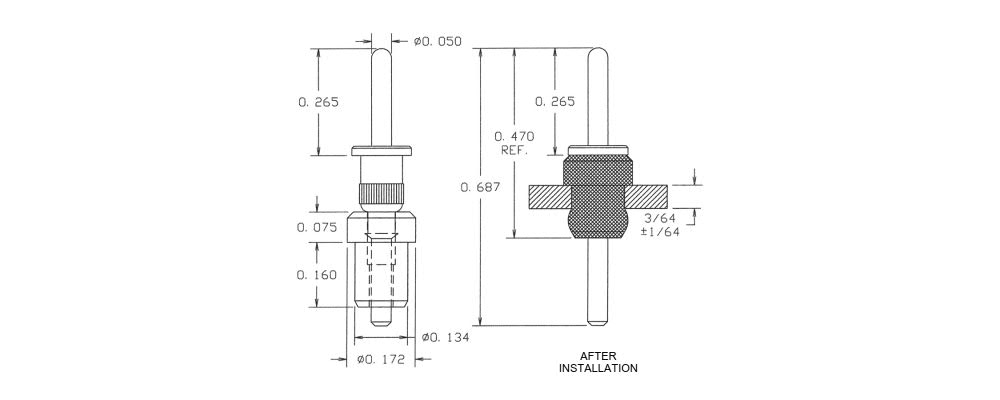

1177-57-0313
1177-57-0313
1177-57-0313
0.687" 0.050 Pin/Pin PRESS LOCK 1/32 - 1/16 0.136 Brass Gold - - PTFE Orange NO

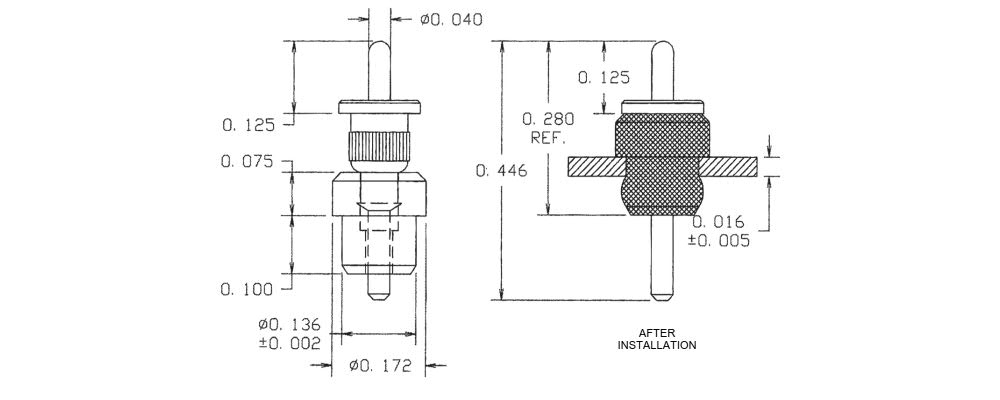

1177-61-0419
1177-61-0419
1177-61-0419
0.446" 0.040 Pin/Pin PRESS LOCK 1/64 0.138 Brass Electro-Tin - - PTFE White YES

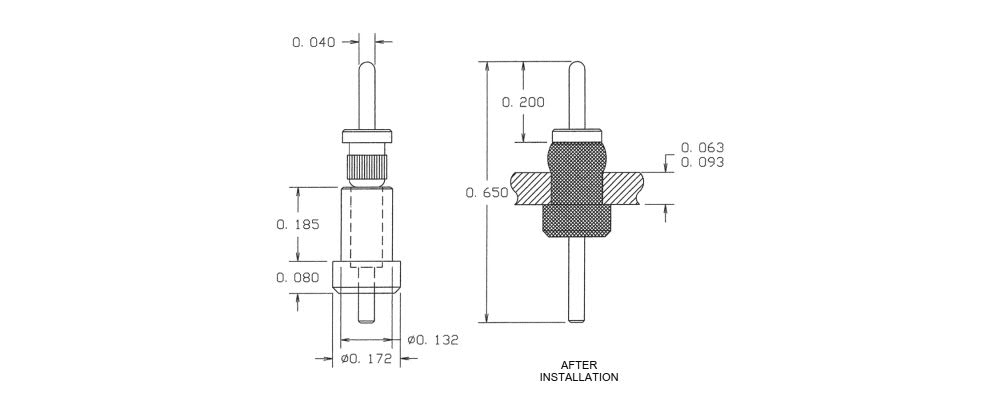

1178R-03-0515
1178R-03-0515
1178R-03-0515
0.650" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.134 Brass Electro Solder - - PTFE Green NO
1178R-11-0111
1178R-11-0111
1178R-11-0111
0.340" - - PRESS LOCK 1/32 - 5/64 0.134 Brass Silver - - PTFE Brown NO
