Commercial
Insulated
Pin Terminals

Filter
1112R-62-0310
1112R-62-0310
1112R-62-0310
0.260" - - Press Fit 3/32 0.086 Brass Gold - - PTFE Black YES
1113-03-0416
1113-03-0416
1113-03-0416
0.333" - - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Blue YES
1113-57-0512
1113-57-0512
1113-57-0512
0.407" 0.040 PIN/Solder CUP Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Red NO
1114-03-08818
1114-03-08818
1114-03-08818
0.215" 0.040 - Press Fit 1/64 0.086 Brass Bright Tin-Lead - - PTFE Gray NO

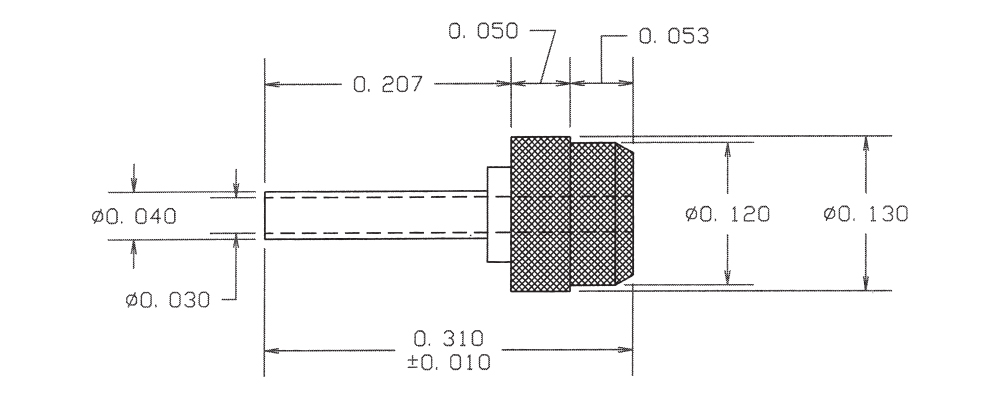

1114-08-0314
1114-08-0314
1114-08-0314
0.310" 0.040 - Press Fit 3/32 0.108 Brass Gold - - PTFE Yellow NO
1114-50-04410
1114-50-04410
1114-50-04410
0.270" 0.060 - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Black YES
1114-74-0516
1114-74-0516
1114-74-0516
0.367" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Blue NO

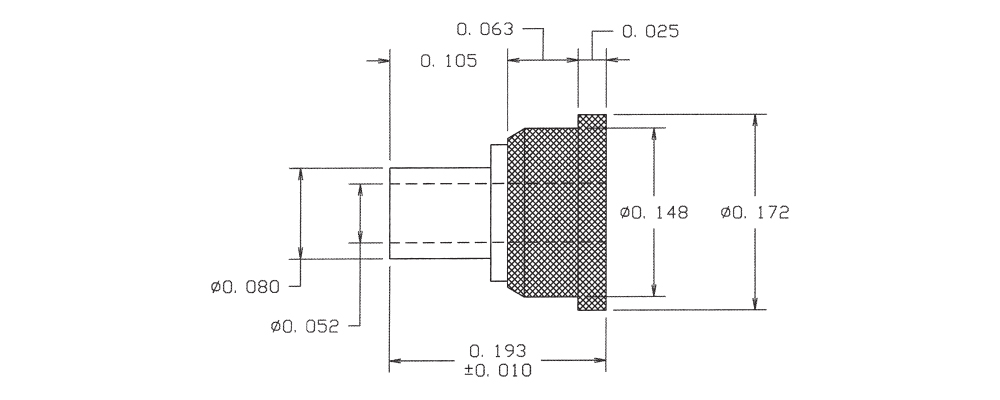

1114R-14-0112
1114R-14-0112
1114R-14-0112
0.193" 0.080 - Press Fit 1/32 0.136 Brass Silver - - PTFE Red NO
1114R-20-0318
1114R-20-0318
1114R-20-0318
0.310" 0.040 - Press Fit 1/64 0.136 Brass Gold - - PTFE Gray NO
1114R-80-04414
1114R-80-04414
1114R-80-04414
0.380" 0.055 - Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Yellow NO
1115-06-08810
1115-06-08810
1115-06-08810
0.367" 0.040 - Press Fit 1/16 0.187 Brass Bright Tin-Lead - - PTFE Black NO
1115-51-0116
1115-51-0116
1115-51-0116
0.453" - - Press Fit 1/16 0.187 Brass Silver - - PTFE Blue YES
1115R-02-0412
1115R-02-0412
1115R-02-0412
0.282" 0.040 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Red NO
1116-26-04418
1116-26-04418
1116-26-04418
0.281" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Gray NO
1117-15-08814
1117-15-08814
1117-15-08814
0.990" - Double Turret/Double Turret 10-32 Nut 1/8 0.196 Brass Bright Tin-Lead Nickel Brass PTFE Yellow NO
1117-50-0310
1117-50-0310
1117-50-0310
0.640" 0.029 Pin/Pin 4-40 Nut 1/8 0.120 Brass Gold Nickel Brass PTFE Black YES
1117-54-0416
1117-54-0416
1117-54-0416
0.785" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Electro-Tin Nickel Brass PTFE Blue YES
1118-32-0512
1118-32-0512
1118-32-0512
0.346" - TURRET/SLOTTED Press Fit 3/32 0.093 Brass Electro Solder - - PTFE Red NO
1119-22-08818
1119-22-08818
1119-22-08818
1.500" 0.030 TURRET/PIN Press Fit 3/32 0.070 Brass Bright Tin-Lead - - PTFE Gray NO
1119R-20-0314
1119R-20-0314
1119R-20-0314
0.500" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Gold - - PTFE Yellow NO
