Commercial
Insulated
Pin Terminals

Filter
1126-27-08817
1126-27-08817
1126-27-08817
0.484" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin-Lead ZINC Brass PTFE Violet NO
1126-34-0313
1126-34-0313
1126-34-0313
0.766" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Gold ZINC Brass PTFE Orange NO
1126-38-0419
1126-38-0419
1126-38-0419
1.469" - - 4-40 Nut 1/8 0.120 Brass Electro-Tin ZINC Brass PTFE White YES
1126-42-0515
1126-42-0515
1126-42-0515
0.766" - - 6-32 Nut 1/8 0.144 Brass Electro Solder ZINC Brass PTFE Green NO

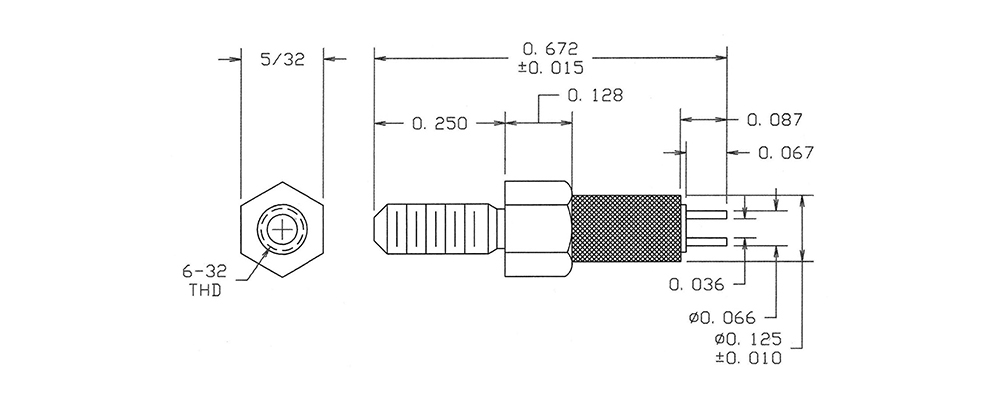

1126-47-0111
1126-47-0111
1126-47-0111
0.672" - - 6-32 Nut 1/8 0.144 Brass Silver ZINC Brass PTFE Brown NO
1127-04-0317
1127-04-0317
1127-04-0317
0.719" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Gold Electro-Tin Brass DIALLYL PHTHALATE Violet YES
1127-08-04413
1127-08-04413
1127-08-04413
0.884" 0.070 - 4-40 Nut 3/32 0.120 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Orange YES
1127-12-0519
1127-12-0519
1127-12-0519
0.821" 0.070 - Swage Mount 1/8 0.104 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE White NO

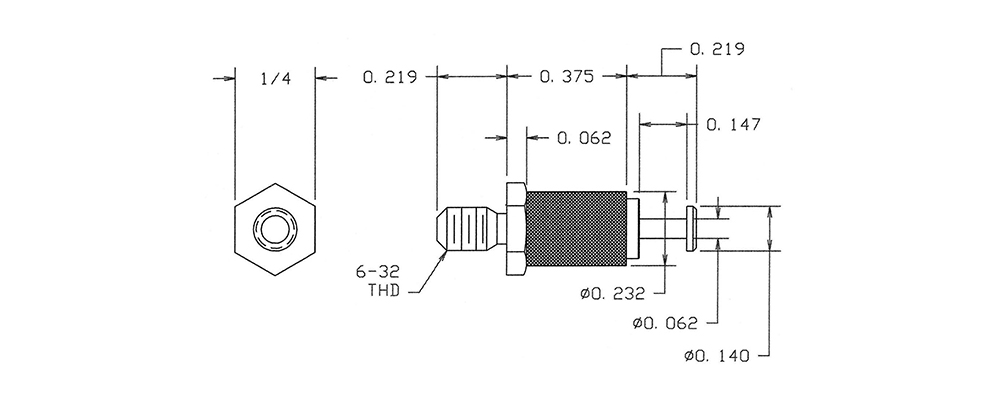

1127-17-0115
1127-17-0115
1127-17-0115
0.813" - - 6-32 Nut 3/32 0.144 Brass Silver ZINC Brass DIALLYL PHTHALATE Green YES
1127-21-0411
1127-21-0411
1127-21-0411
0.938" - - Swage Mount 3/32 0.104 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Brown YES
1127-25-04417
1127-25-04417
1127-25-04417
0.938" - - Swage Mount 3/32 0.147 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Violet YES
1127-30-08813
1127-30-08813
1127-30-08813
0.813" - - 4-40 Nut 3/32 0.120 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Orange NO

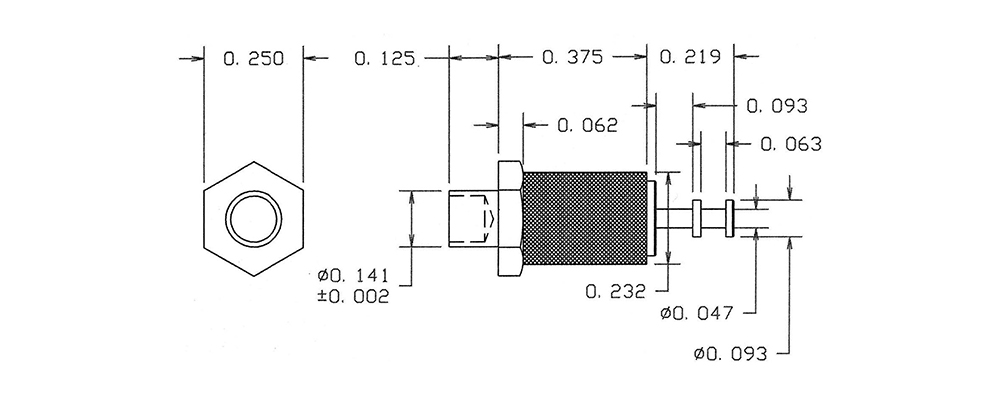

1127-35-0119
1127-35-0119
1127-35-0119
0.719" - - Swage Mount 3/32 0.147 Brass Silver ZINC Brass DIALLYL PHTHALATE White YES
1127-39-0415
1127-39-0415
1127-39-0415
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Green YES
1127-43-0511
1127-43-0511
1127-43-0511
0.969" - - 6-32 Nut 1/8 0.144 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Brown NO
1127-47-08817
1127-47-08817
1127-47-08817
0.844" - - Swage Mount 3/32 0.104 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Violet NO
1127-52-0313
1127-52-0313
1127-52-0313
0.875" - - Swage Mount 1/8 0.147 Brass Gold ZINC Brass DIALLYL PHTHALATE Orange YES
1127-57-0419
1127-57-0419
1127-57-0419
0.579" - - 2-56 Nut 1/16 0.094 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE White YES
1127-61-0515
1127-61-0515
1127-61-0515
0.704" - - 2-56 Nut 1/8 0.094 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Green NO

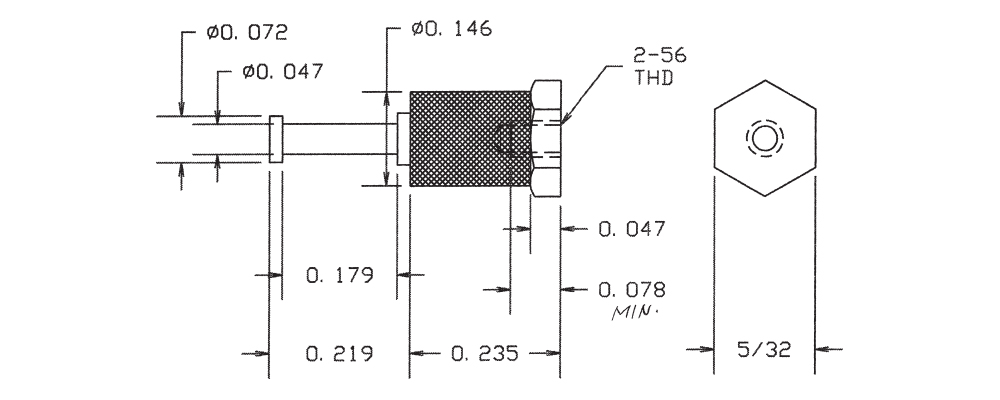

1127-66-0111
1127-66-0111
1127-66-0111
0.454" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Silver ZINC Brass DIALLYL PHTHALATE Brown YES
