Commercial
Insulated
Pin Terminals

Filter
1114R-20-0317
1114R-20-0317
1114R-20-0317
0.310" 0.040 - Press Fit 1/64 0.136 Brass Gold - - PTFE Violet YES
1114R-80-04413
1114R-80-04413
1114R-80-04413
0.380" 0.055 - Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Orange NO
1115-06-0519
1115-06-0519
1115-06-0519
0.367" 0.040 - Press Fit 1/16 0.187 Brass Electro Solder - - PTFE White NO
1115-51-0115
1115-51-0115
1115-51-0115
0.453" - - Press Fit 1/16 0.187 Brass Silver - - PTFE Green YES
1115R-02-0411
1115R-02-0411
1115R-02-0411
0.282" 0.040 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Brown NO
1116-26-04417
1116-26-04417
1116-26-04417
0.281" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Violet YES
1117-15-08813
1117-15-08813
1117-15-08813
0.990" - Double Turret/Double Turret 10-32 Nut 1/8 0.196 Brass Bright Tin-Lead Nickel Brass PTFE Orange NO
1117-50-0119
1117-50-0119
1117-50-0119
0.640" 0.029 Pin/Pin 4-40 Nut 1/8 0.120 Brass Silver Nickel Brass PTFE White YES
1117-54-0415
1117-54-0415
1117-54-0415
0.785" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Electro-Tin Nickel Brass PTFE Green YES
1118-32-0511
1118-32-0511
1118-32-0511
0.346" - TURRET/SLOTTED Press Fit 3/32 0.093 Brass Electro Solder - - PTFE Brown NO
1119-22-08817
1119-22-08817
1119-22-08817
1.500" 0.030 TURRET/PIN Press Fit 3/32 0.070 Brass Bright Tin-Lead - - PTFE Violet NO
1119R-20-0313
1119R-20-0313
1119R-20-0313
0.500" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Gold - - PTFE Orange NO
1121-02-0419
1121-02-0419
1121-02-0419
0.350" 0.040 Turret/Tip Press Fit 1/32 0.113 Brass Electro-Tin - - PTFE White YES
1121-06-0515
1121-06-0515
1121-06-0515
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Green NO

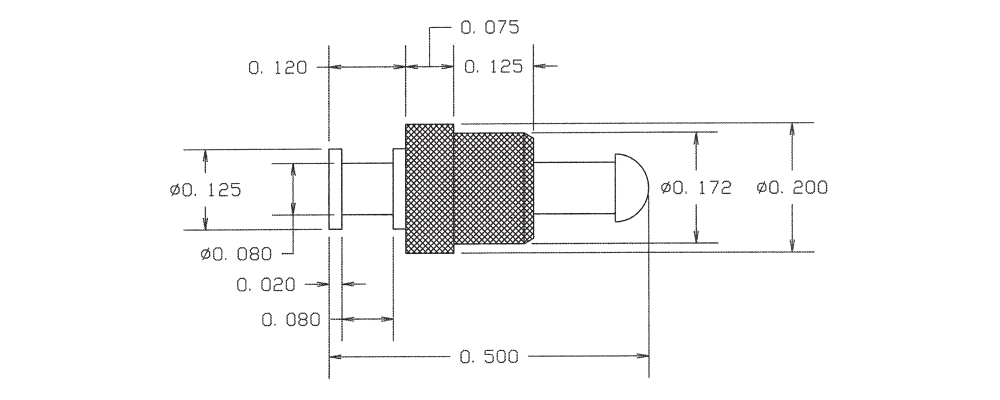

1121-12-0111
1121-12-0111
1121-12-0111
0.500" 0.080 Turret/Tip Press Fit 3/32 0.158 Brass Silver - - PTFE Brown NO
1121-16-0317
1121-16-0317
1121-16-0317
0.740" 0.050 Turret/Tip Press Fit Up to 3/16 0.158 Brass Gold - - PTFE Violet YES
1121-20-04413
1121-20-04413
1121-20-04413
1.115" 0.050 Turret/Tip Press Fit 9/32 0.158 Brass Bright Tin - - PTFE Orange NO
1121-24-0519
1121-24-0519
1121-24-0519
0.640" 0.046 Turret/Tip Press Fit Up to 3/16 0.172 Brass Electro Solder - - PTFE White NO

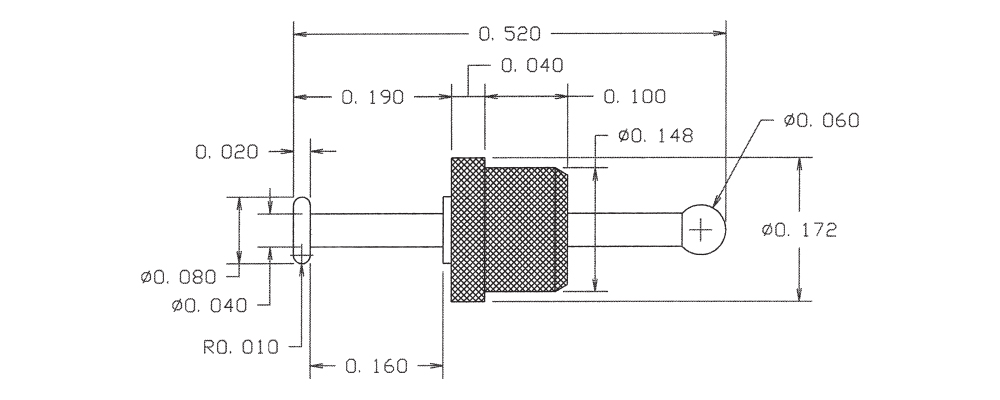

1121-31-0115
1121-31-0115
1121-31-0115
0.520" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Silver - - PTFE Green YES
1121-52-0411
1121-52-0411
1121-52-0411
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Electro-Tin - - PTFE Brown NO
