Commercial
Insulated
Pin Terminals

Filter
1102R-28-0317
1102R-28-0317
1102R-28-0317
0.361" - - Press Fit 1/8 0.140 Brass Gold - - PTFE Violet YES
1102R-74-04413
1102R-74-04413
1102R-74-04413
0.375" - - Press Fit 3/32 0.172 Brass Bright Tin - - PTFE Orange NO
1102R-92-0519
1102R-92-0519
1102R-92-0519
0.460" - - Press Fit 3/32 0.172 Brass Electro Solder - - PTFE White NO

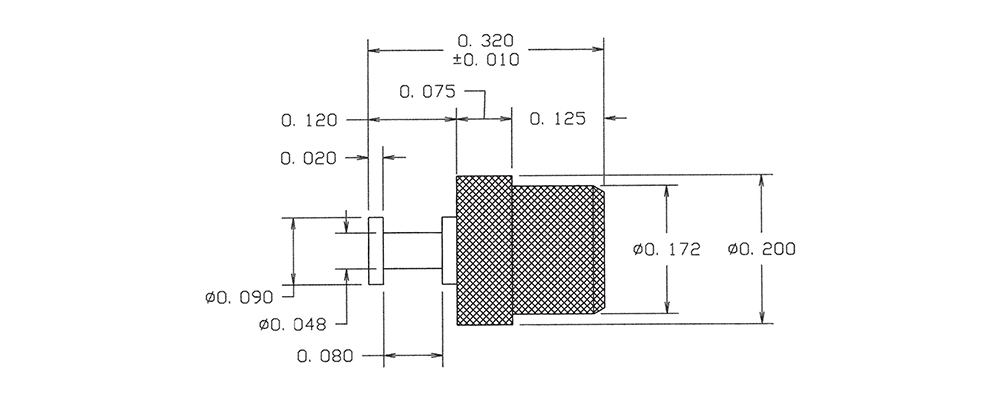

1103-08-0115
1103-08-0115
1103-08-0115
0.320" - - Press Fit 3/32 0.152 Brass Silver - - PTFE Green YES
1103R-08-0411
1103R-08-0411
1103R-08-0411
0.320" - - Press Fit 3/32 0.158 Brass Electro-Tin - - PTFE Brown NO
1104-04-04417
1104-04-04417
1104-04-04417
0.392" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Violet YES
1105-01-08813
1105-01-08813
1105-01-08813
1.187" - Double Turret/Double Turret Press Fit Up to 5/16 0.205 Brass Bright Tin-Lead - - PTFE Orange NO
1106-03-0119
1106-03-0119
1106-03-0119
0.478" - - Press Fit 1/8 0.158 Brass Silver - - PTFE White YES
1106-07-0415
1106-07-0415
1106-07-0415
0.602" - - Press Fit Up to 3/16 0.158 Brass Electro-Tin - - PTFE Green YES
1106-11-0511
1106-11-0511
1106-11-0511
0.703" - - Press Fit 1/16 0.158 Brass Electro Solder - - PTFE Brown NO
1106-15-08817
1106-15-08817
1106-15-08817
1.190" - - Press Fit 5/32 0.158 Brass Bright Tin-Lead - - PTFE Violet NO

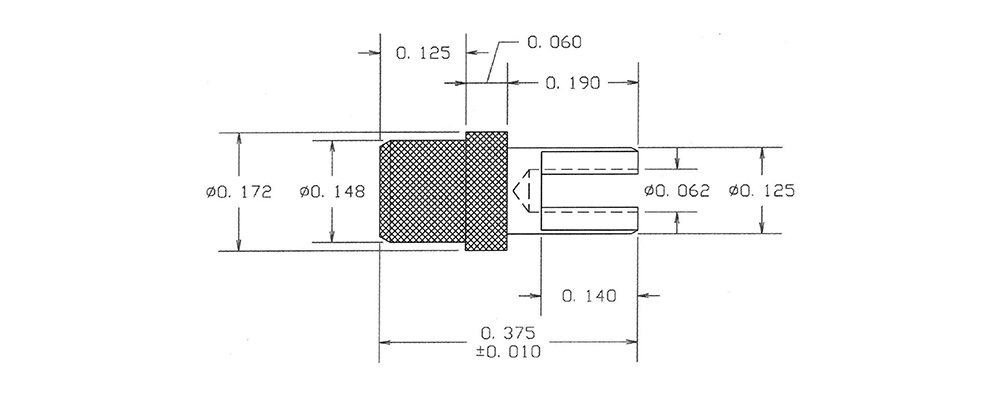

1106-22-0313
1106-22-0313
1106-22-0313
0.375" - - Press Fit 3/32 0.136 Brass Gold - - PTFE Orange NO
1106-52-0419
1106-52-0419
1106-52-0419
0.276" - - Press Fit 3/32 0.086 Brass Electro-Tin - - PTFE White YES
1106R-23-0515
1106R-23-0515
1106R-23-0515
0.375" - - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Green NO

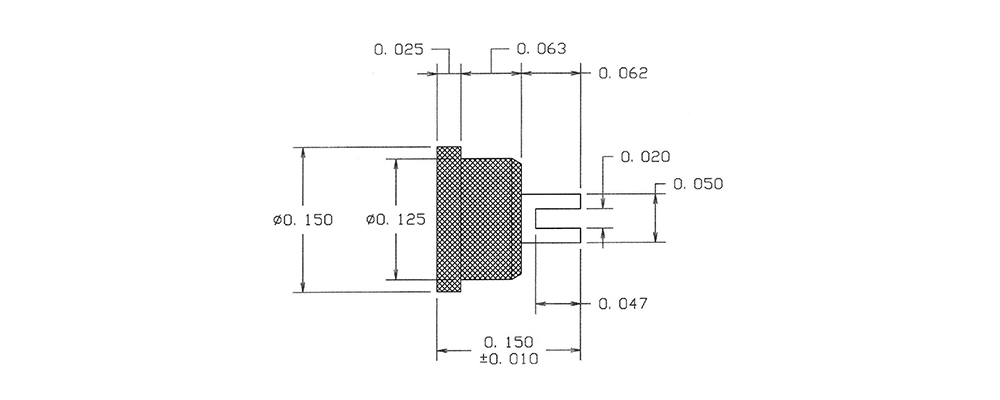

1106R-51-0111
1106R-51-0111
1106R-51-0111
0.150" - - Press Fit 1/32 0.113 Brass Silver - - PTFE Brown NO
1107-03-0317
1107-03-0317
1107-03-0317
0.819" 0.040 Pin/Pin Press Fit Up to 3/16 0.136 Brass Gold - - PTFE Violet YES
1107-08-04413
1107-08-04413
1107-08-04413
0.696" 0.040 Pin/Pin Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Orange NO
1108-01-0519
1108-01-0519
1108-01-0519
1.687" - Double Turret/Double Turret Press Fit 9/16 0.205 Brass Electro Solder - - PTFE White NO

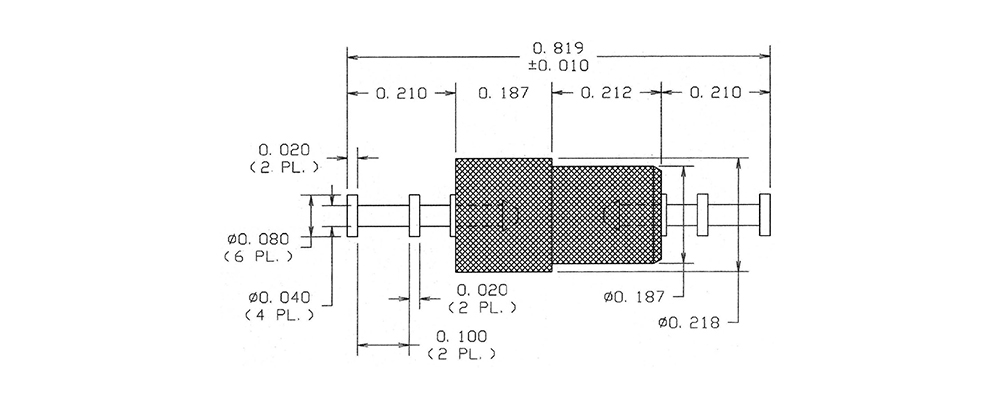

1108-06-0115
1108-06-0115
1108-06-0115
0.819" - Double Turret/Double Turret Press Fit Up to 3/16 0.174 Brass Silver - - PTFE Green YES
1110-02-0411
1110-02-0411
1110-02-0411
0.438" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Brown NO
