Commercial
Insulated
Pin Terminals

Filter

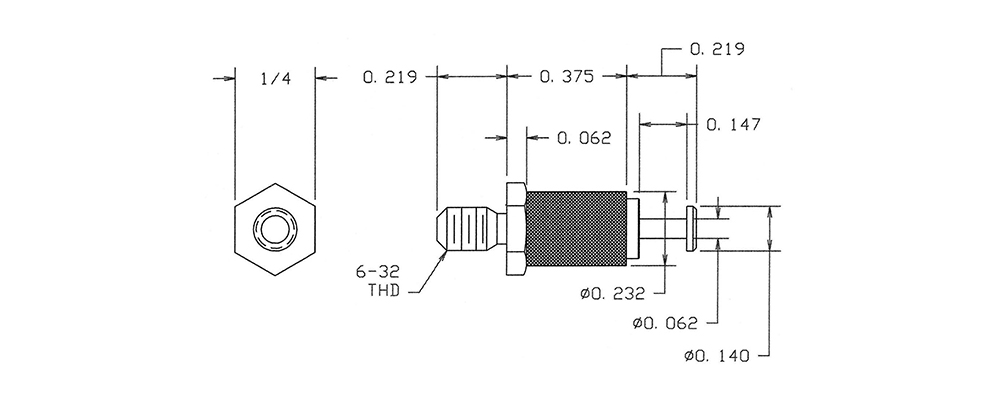

1127-17-0114
1127-17-0114
1127-17-0114
0.813" - - 6-32 Nut 3/32 0.144 Brass Silver ZINC Brass DIALLYL PHTHALATE Yellow YES
1127-21-0410
1127-21-0410
1127-21-0410
0.938" - - Swage Mount 3/32 0.104 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Black YES
1127-25-04416
1127-25-04416
1127-25-04416
0.938" - - Swage Mount 3/32 0.147 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Blue YES
1127-30-08812
1127-30-08812
1127-30-08812
0.813" - - 4-40 Nut 3/32 0.120 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Red NO

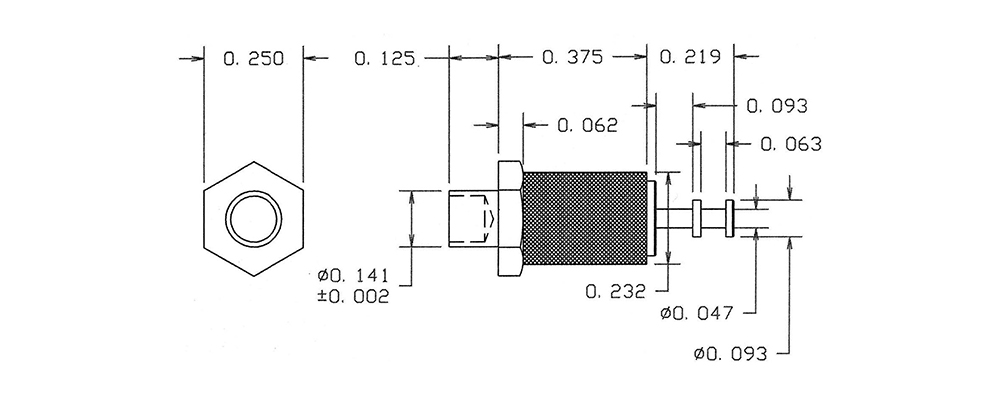

1127-35-0118
1127-35-0118
1127-35-0118
0.719" - - Swage Mount 3/32 0.147 Brass Silver ZINC Brass DIALLYL PHTHALATE Gray YES
1127-39-0414
1127-39-0414
1127-39-0414
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Yellow YES
1127-43-0510
1127-43-0510
1127-43-0510
0.969" - - 6-32 Nut 1/8 0.144 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Black NO
1127-47-08816
1127-47-08816
1127-47-08816
0.844" - - Swage Mount 3/32 0.104 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Blue NO
1127-52-0312
1127-52-0312
1127-52-0312
0.875" - - Swage Mount 1/8 0.147 Brass Gold ZINC Brass DIALLYL PHTHALATE Red YES

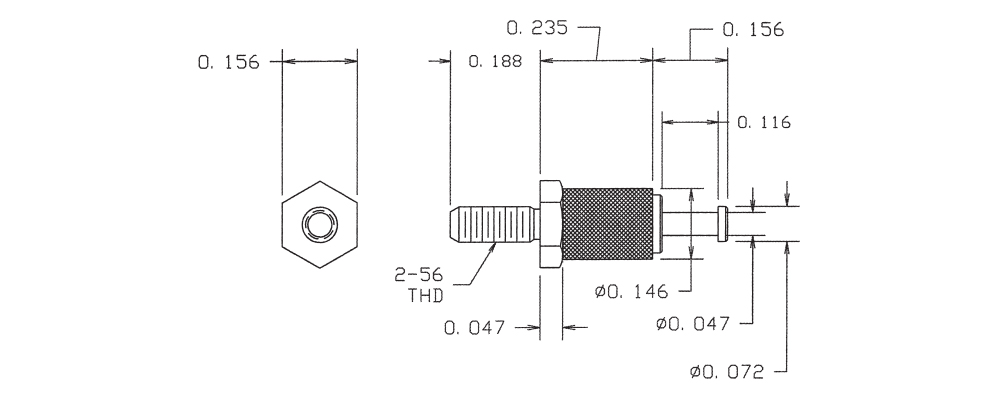

1127-57-0418
1127-57-0418
1127-57-0418
0.579" - - 2-56 Nut 1/16 0.094 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Gray YES
1127-61-0514
1127-61-0514
1127-61-0514
0.704" - - 2-56 Nut 1/8 0.094 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Yellow NO

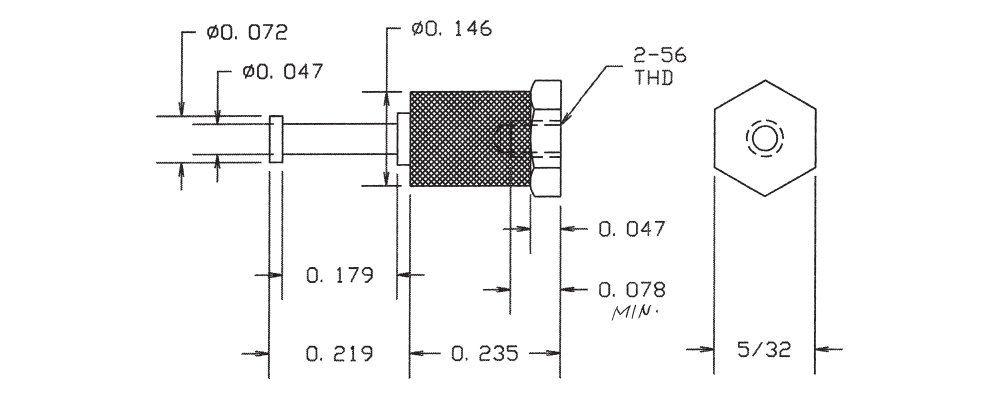

1127-66-0110
1127-66-0110
1127-66-0110
0.454" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Silver ZINC Brass DIALLYL PHTHALATE Black YES
1127-70-0316
1127-70-0316
1127-70-0316
0.844" - - 4-40 Nut 3/32 0.120 Brass Gold ZINC Brass DIALLYL PHTHALATE Blue YES

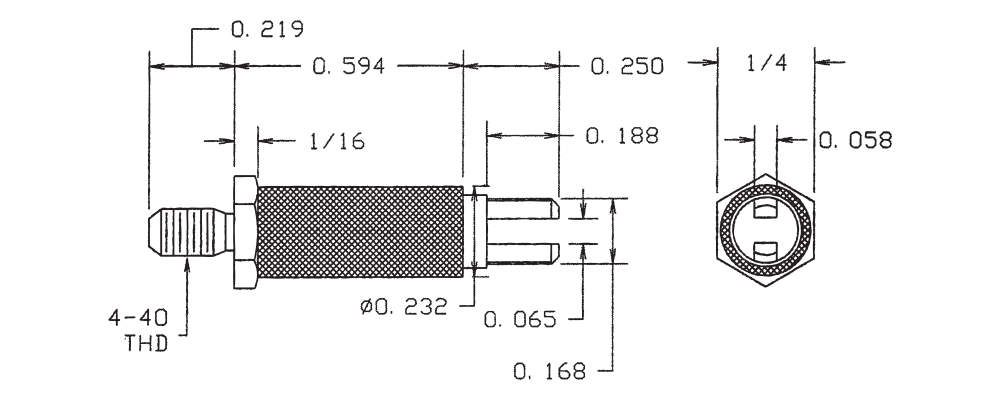

1127-74-04412
1127-74-04412
1127-74-04412
1.000" - - 4-40 Nut 3/32 0.120 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Red YES
1127-78-0518
1127-78-0518
1127-78-0518
0.859" - - Swage Mount 3/16 0.104 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Gray NO

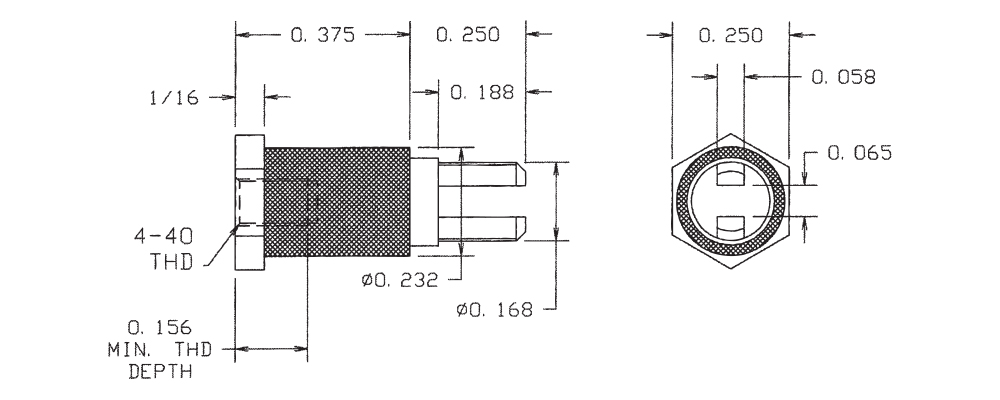

1127-83-0114
1127-83-0114
1127-83-0114
0.625" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Silver ZINC Brass DIALLYL PHTHALATE Yellow YES

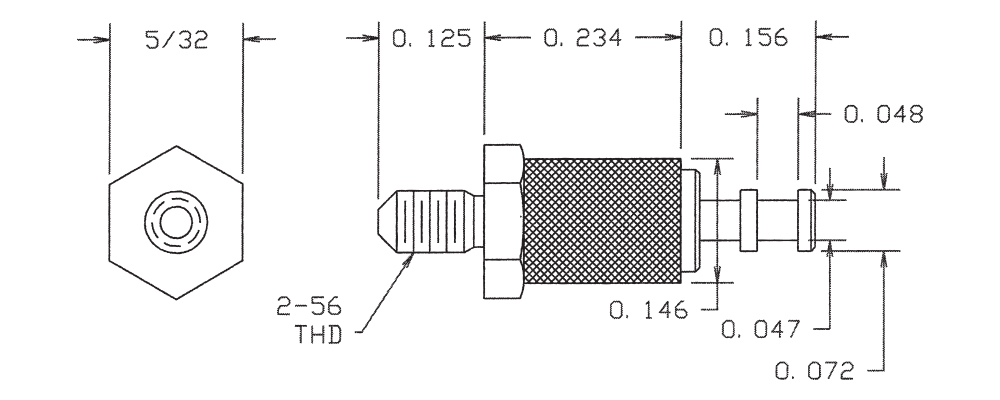

1127-87-0410
1127-87-0410
1127-87-0410
0.515" - - 2-56 Nut 1/32 0.094 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Black YES

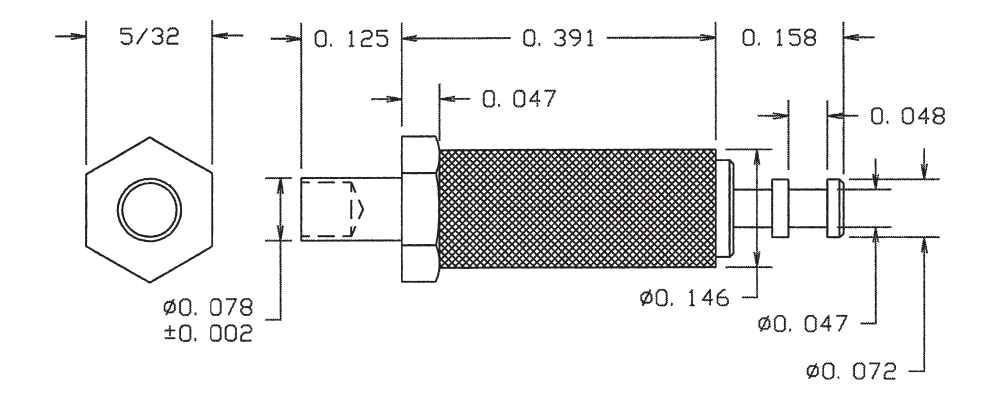

1127-91-04416
1127-91-04416
1127-91-04416
0.674" - - Swage Mount 3/32 0.082 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Blue YES
1127-95-08812
1127-95-08812
1127-95-08812
0.704" 0.060 - Swage Mount 3/32 0.082 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Red NO

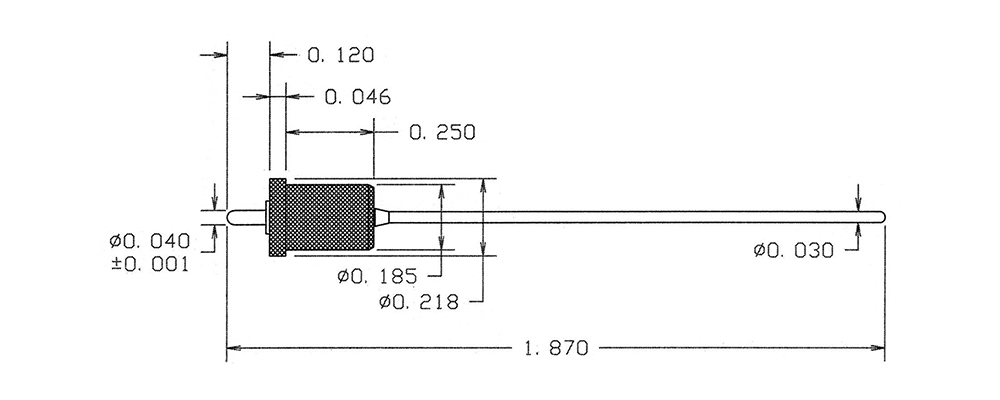

1130-02-0118
1130-02-0118
1130-02-0118
1.870" (0.030)/(0.040) Pin/Pin Press Fit 7/32 0.172 Brass Silver - - PTFE Gray NO
