Commercial
Insulated
Pin Terminals

Filter
1117-54-0414
1117-54-0414
1117-54-0414
0.785" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Electro-Tin Nickel Brass PTFE Yellow NO
1118-32-0510
1118-32-0510
1118-32-0510
0.346" - TURRET/SLOTTED Press Fit 3/32 0.093 Brass Electro Solder - - PTFE Black NO
1119-22-08816
1119-22-08816
1119-22-08816
1.500" 0.030 TURRET/PIN Press Fit 3/32 0.070 Brass Bright Tin-Lead - - PTFE Blue NO
1119R-20-0312
1119R-20-0312
1119R-20-0312
0.500" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Gold - - PTFE Red NO
1121-02-0418
1121-02-0418
1121-02-0418
0.350" 0.040 Turret/Tip Press Fit 1/32 0.113 Brass Electro-Tin - - PTFE Gray NO
1121-06-0514
1121-06-0514
1121-06-0514
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Yellow NO
1121-12-0110
1121-12-0110
1121-12-0110
0.500" 0.080 Turret/Tip Press Fit 3/32 0.158 Brass Silver - - PTFE Black YES
1121-16-0316
1121-16-0316
1121-16-0316
0.740" 0.050 Turret/Tip Press Fit Up to 3/16 0.158 Brass Gold - - PTFE Blue YES
1121-20-04412
1121-20-04412
1121-20-04412
1.115" 0.050 Turret/Tip Press Fit 9/32 0.158 Brass Bright Tin - - PTFE Red NO
1121-24-0518
1121-24-0518
1121-24-0518
0.640" 0.046 Turret/Tip Press Fit Up to 3/16 0.172 Brass Electro Solder - - PTFE Gray NO

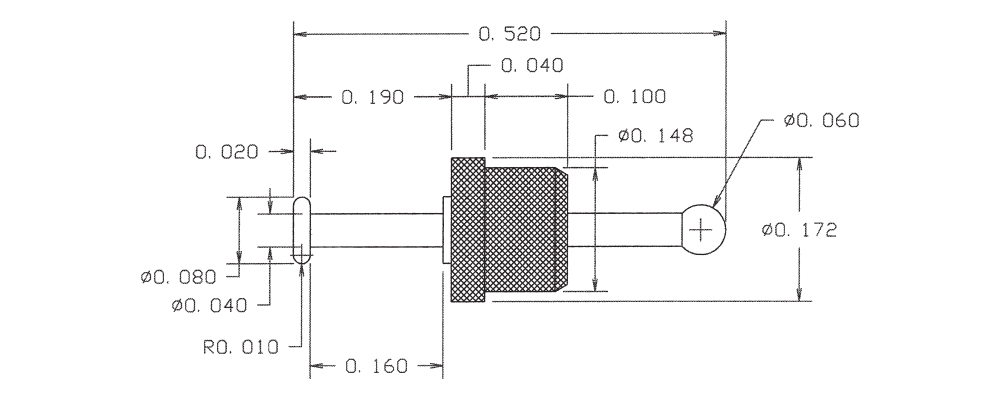

1121-31-0114
1121-31-0114
1121-31-0114
0.520" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Silver - - PTFE Yellow NO
1121-52-0410
1121-52-0410
1121-52-0410
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Electro-Tin - - PTFE Black YES
1121R-06-04416
1121R-06-04416
1121R-06-04416
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Blue YES
1121R-50-08812
1121R-50-08812
1121R-50-08812
0.433" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Red NO

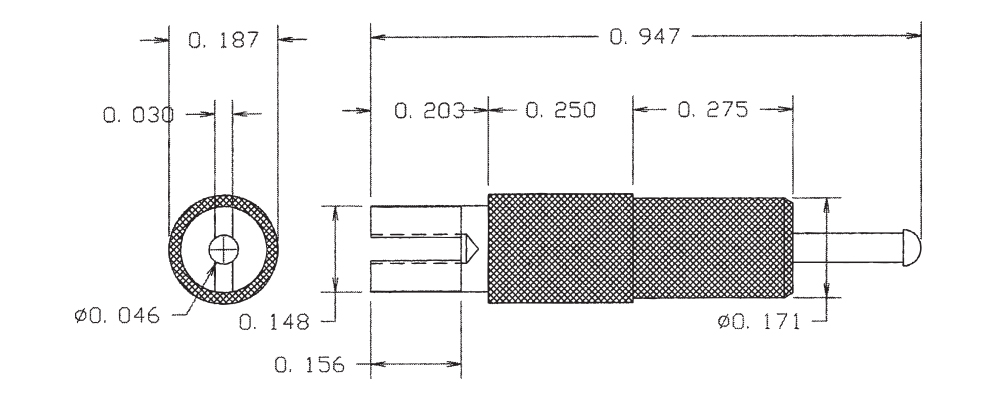

1123-04-0118
1123-04-0118
1123-04-0118
0.947" 0.050 TIP/SLOTTED Press Fit Up to 3/16 0.158 Brass Silver - - PTFE Gray NO
1123-08-0414
1123-08-0414
1123-08-0414
1.197" 0.050 TIP/SLOTTED Press Fit 15/32 0.158 Brass Electro-Tin - - PTFE Yellow NO
1123-72-0510
1123-72-0510
1123-72-0510
0.495" 0.040 TIP/SLOTTED Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Black NO
1123R-05-08816
1123R-05-08816
1123R-05-08816
0.947" 0.050 TIP/SLOTTED Press Fit 7/32 0.158 Brass Bright Tin-Lead - - PTFE Blue NO
1123R-70-0312
1123R-70-0312
1123R-70-0312
0.495" 0.040 Pin/Slotted Press Fit 1/16 0.136 Brass Gold - - PTFE Red NO
1125-35-0418
1125-35-0418
1125-35-0418
0.850" - - 6-32 Nut 1/8 0.144 Brass Electro-Tin Electro-Tin Brass PTFE Gray NO
