Commercial
Insulated
Pin Terminals

Filter
1115R-02-0318
1115R-02-0318
1115R-02-0318
0.282" 0.040 - Press Fit 1/32 0.136 Brass Gold - - PTFE Gray NO
1116-26-04414
1116-26-04414
1116-26-04414
0.281" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Yellow NO
1117-15-08810
1117-15-08810
1117-15-08810
0.990" - Double Turret/Double Turret 10-32 Nut 1/8 0.196 Brass Bright Tin-Lead Nickel Brass PTFE Black NO
1117-50-0116
1117-50-0116
1117-50-0116
0.640" 0.029 Pin/Pin 4-40 Nut 1/8 0.120 Brass Silver Nickel Brass PTFE Blue YES
1117-54-0412
1117-54-0412
1117-54-0412
0.785" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Electro-Tin Nickel Brass PTFE Red NO
1118-32-04418
1118-32-04418
1118-32-04418
0.346" - TURRET/SLOTTED Press Fit 3/32 0.093 Brass Bright Tin - - PTFE Gray NO
1119-22-08814
1119-22-08814
1119-22-08814
1.500" 0.030 TURRET/PIN Press Fit 3/32 0.070 Brass Bright Tin-Lead - - PTFE Yellow NO
1119R-20-0310
1119R-20-0310
1119R-20-0310
0.500" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Gold - - PTFE Black YES
1121-02-0416
1121-02-0416
1121-02-0416
0.350" 0.040 Turret/Tip Press Fit 1/32 0.113 Brass Electro-Tin - - PTFE Blue YES
1121-06-0512
1121-06-0512
1121-06-0512
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Red NO
1121-11-08818
1121-11-08818
1121-11-08818
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Bright Tin-Lead - - PTFE Gray NO
1121-16-0314
1121-16-0314
1121-16-0314
0.740" 0.050 Turret/Tip Press Fit Up to 3/16 0.158 Brass Gold - - PTFE Yellow NO
1121-20-04410
1121-20-04410
1121-20-04410
1.115" 0.050 Turret/Tip Press Fit 9/32 0.158 Brass Bright Tin - - PTFE Black YES
1121-24-0516
1121-24-0516
1121-24-0516
0.640" 0.046 Turret/Tip Press Fit Up to 3/16 0.172 Brass Electro Solder - - PTFE Blue NO

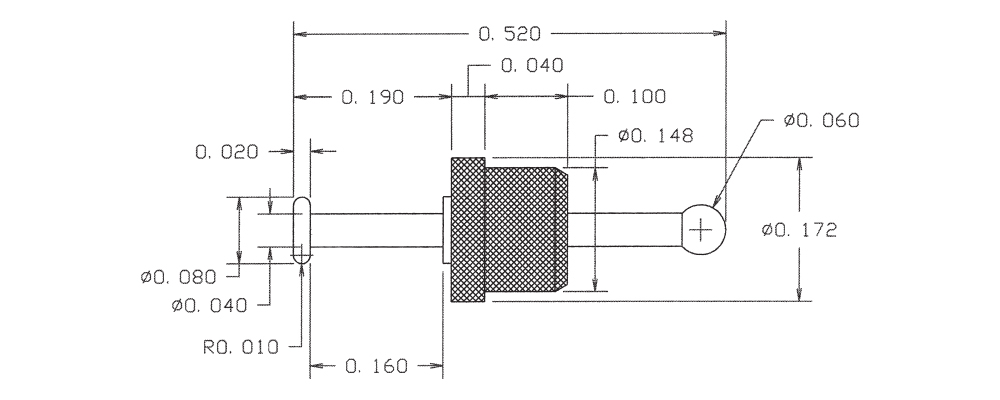

1121-31-0112
1121-31-0112
1121-31-0112
0.520" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Silver - - PTFE Red NO
1121-52-0318
1121-52-0318
1121-52-0318
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Gold - - PTFE Gray NO
1121R-06-04414
1121R-06-04414
1121R-06-04414
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Yellow NO
1121R-50-08810
1121R-50-08810
1121R-50-08810
0.433" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Black NO

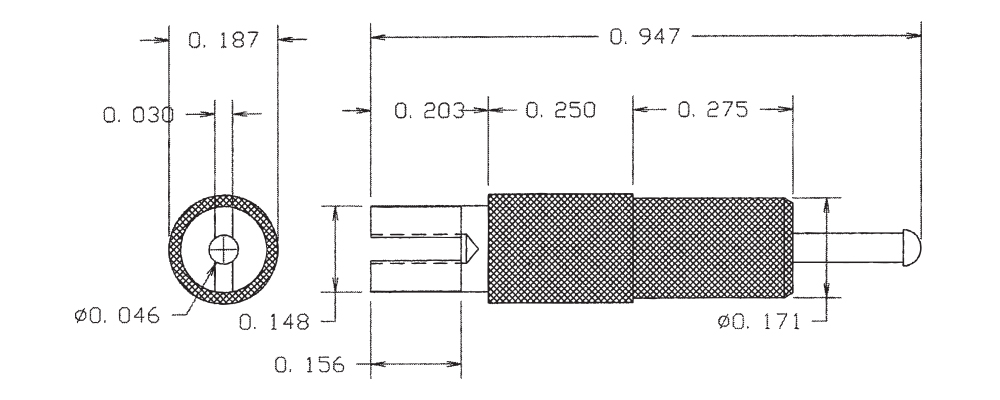

1123-04-0116
1123-04-0116
1123-04-0116
0.947" 0.050 TIP/SLOTTED Press Fit Up to 3/16 0.158 Brass Silver - - PTFE Blue YES
1123-08-0412
1123-08-0412
1123-08-0412
1.197" 0.050 TIP/SLOTTED Press Fit 15/32 0.158 Brass Electro-Tin - - PTFE Red NO
