Commercial
Insulated
Pin Terminals

Filter
1127-87-0318
1127-87-0318
1127-87-0318
0.515" - - 2-56 Nut 1/32 0.094 Brass Gold ZINC Brass DIALLYL PHTHALATE Gray YES
1127-91-04414
1127-91-04414
1127-91-04414
0.674" - - Swage Mount 3/32 0.082 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Yellow YES
1127-95-08810
1127-95-08810
1127-95-08810
0.704" 0.060 - Swage Mount 3/32 0.082 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Black NO

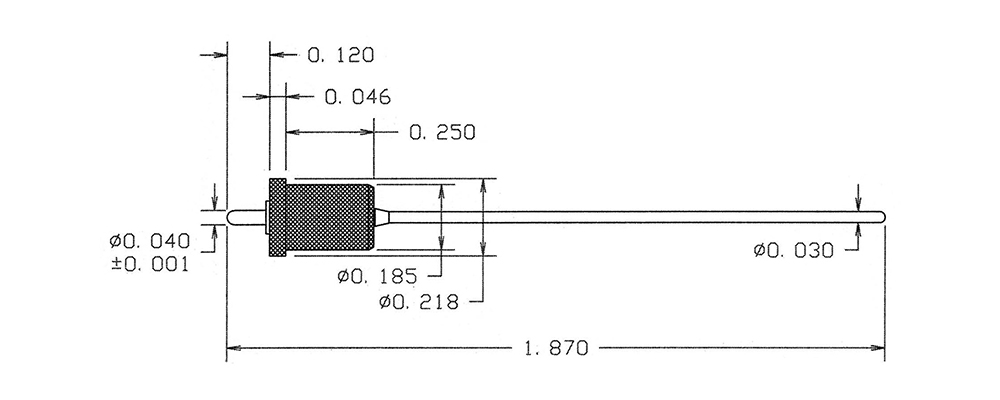

1130-02-0116
1130-02-0116
1130-02-0116
1.870" (0.030)/(0.040) Pin/Pin Press Fit 7/32 0.172 Brass Silver - - PTFE Blue YES
1130-07-0412
1130-07-0412
1130-07-0412
2.083" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Electro-Tin - - PTFE Red NO
1130R-05-04418
1130R-05-04418
1130R-05-04418
1.531" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Bright Tin - - PTFE Gray NO
1131-02-08814
1131-02-08814
1131-02-08814
0.648" (0.040)/(0.090) Pin/Tip Press Fit Up to 1/4 0.172 Brass Bright Tin-Lead - - PTFE Yellow NO

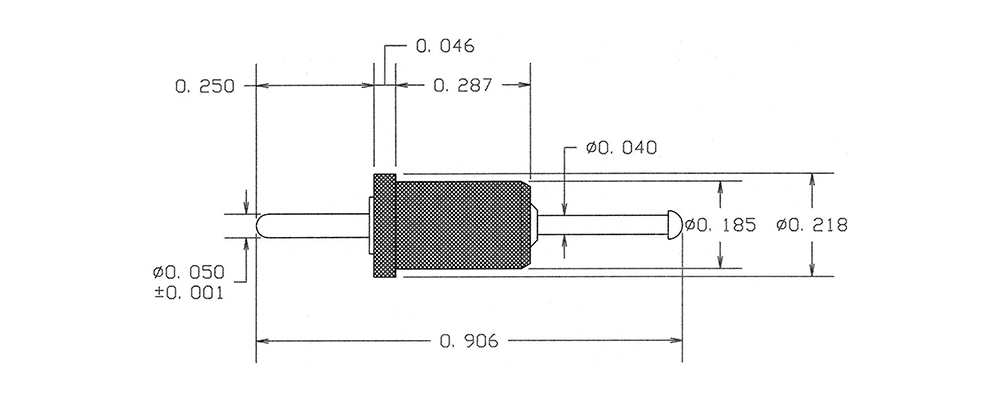

1131-07-0310
1131-07-0310
1131-07-0310
0.906" (0.040)/(0.050) Pin/Tip Press Fit Up to 1/4 0.172 Brass Gold - - PTFE Black YES
1132-01-0416
1132-01-0416
1132-01-0416
0.645" 0.090 - Solder 7/32 0.0935 Brass Electro-Tin - - PTFE Blue YES
1133-02-0512
1133-02-0512
1133-02-0512
0.836" 0.040 DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 Brass Electro Solder - - PTFE Red NO
1133R-05-08818
1133R-05-08818
1133R-05-08818
0.450" 0.040 TURRET/PIN Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Gray NO
1135-05-0314
1135-05-0314
1135-05-0314
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Gold - - PTFE Yellow NO
1135-09-04410
1135-09-04410
1135-09-04410
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Black YES
1137-02-0516
1137-02-0516
1137-02-0516
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Electro Solder - - PTFE Blue NO

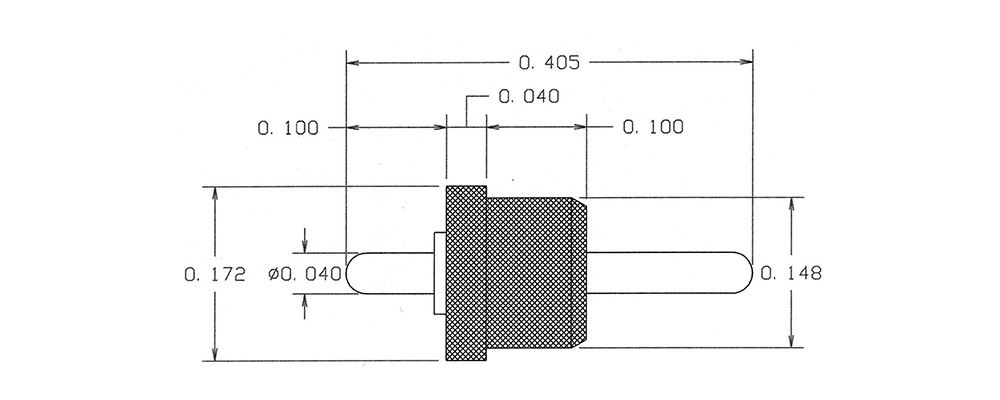

1139-04-0112
1139-04-0112
1139-04-0112
0.405" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Silver - - PTFE Red NO
1151-05-0318
1151-05-0318
1151-05-0318
0.350" - - Press Fit 1/16 0.136 Brass Gold - - PTFE Gray NO
1151-11-04414
1151-11-04414
1151-11-04414
0.455" - - Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Yellow NO
1151-19-08810
1151-19-08810
1151-19-08810
0.444" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Black NO

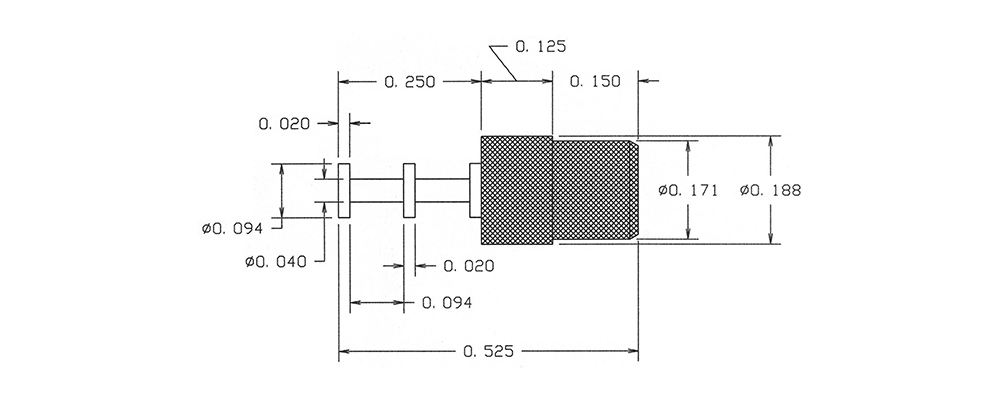

1151-39-0116
1151-39-0116
1151-39-0116
0.525" - - Press Fit 1/8 0.158 Brass Silver - - PTFE Blue YES

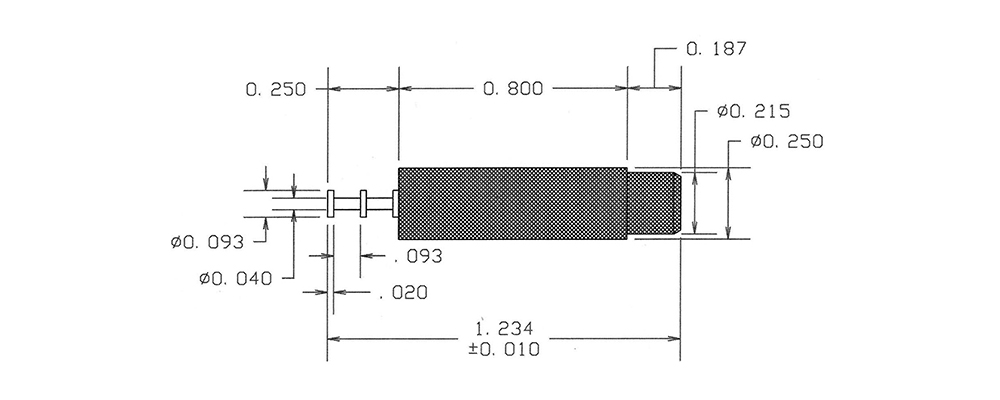

1151-51-0412
1151-51-0412
1151-51-0412
1.234" - - Press Fit 5/32 0.203 Brass Electro-Tin - - PTFE Red NO
