Commercial
Insulated
Pin Terminals

Filter
1106R-20-04410
1106R-20-04410
1106R-20-04410
0.478" - - Press Fit 1/8 0.152 Brass Bright Tin - - PTFE Black YES
1151-20-08810
1151-20-08810
1151-20-08810
0.469" - - Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Black NO
1156-20-0119
1156-20-0119
1156-20-0119
0.705" - Double Turret/Double Turret Press Fit Up to 3/16 0.204 Brass Silver - - PTFE White YES
1156-20-0110
1156-20-0110
1156-20-0110
0.705" - Double Turret/Double Turret Press Fit Up to 3/16 0.204 Brass Silver - - PTFE Black YES
1106R-20-04416
1106R-20-04416
1106R-20-04416
0.478" - - Press Fit 1/8 0.152 Brass Bright Tin - - PTFE Blue YES
1119-20-0116
1119-20-0116
1119-20-0116
0.500" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Silver - - PTFE Blue YES
1106R-20-0312
1106R-20-0312
1106R-20-0312
0.478" - - Press Fit 1/8 0.152 Brass Gold - - PTFE Red NO
1127-20-04411
1127-20-04411
1127-20-04411
0.907" - - Swage Mount 1/16 0.104 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Brown YES
1127-20-04415
1127-20-04415
1127-20-04415
0.907" - - Swage Mount 1/16 0.104 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Green YES
1127-20-08815
1127-20-08815
1127-20-08815
0.907" - - Swage Mount 1/16 0.104 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Green NO
1156-20-0516
1156-20-0516
1156-20-0516
0.705" - Double Turret/Double Turret Press Fit Up to 3/16 0.204 Brass Electro Solder - - PTFE Blue NO
1170-19-07510
1170-19-07510
1170-19-07510
0.625" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass ZINC ZINC Brass DIALLYL PHTHALATE Black YES
1114R-19-0417
1114R-19-0417
1114R-19-0417
0.310" 0.085 - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Violet YES
1117-19-0410
1117-19-0410
1117-19-0410
1.000" - Double Turret/Double Turret 1/4-28 Nut 1/8 0.257 Brass Electro-Tin Nickel Brass PTFE Black YES
1117-19-0414
1117-19-0414
1117-19-0414
1.000" - Double Turret/Double Turret 1/4-28 Nut 1/8 0.257 Brass Electro-Tin Nickel Brass PTFE Yellow NO
1117-19-08817
1117-19-08817
1117-19-08817
1.000" - Double Turret/Double Turret 1/4-28 Nut 1/8 0.257 Brass Bright Tin-Lead Nickel Brass PTFE Violet NO
1117-19-08819
1117-19-08819
1117-19-08819
1.000" - Double Turret/Double Turret 1/4-28 Nut 1/8 0.257 Brass Bright Tin-Lead Nickel Brass PTFE White NO

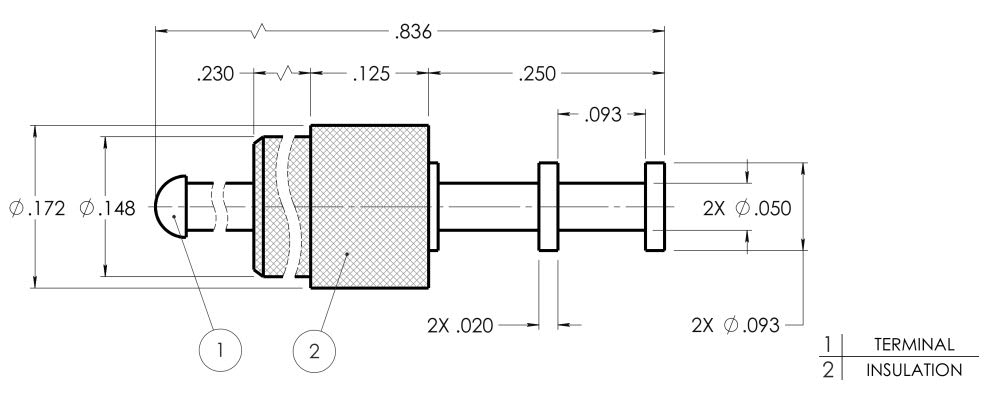

1111-19-0412
1111-19-0412
1111-19-0412
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.136 Brass Electro-Tin - - PTFE Red NO
1111-19-0414
1111-19-0414
1111-19-0414
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.136 Brass Electro-Tin - - PTFE Yellow NO
1111-19-0418
1111-19-0418
1111-19-0418
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.136 Brass Electro-Tin - - PTFE Gray NO
