Commercial
Insulated
Pin Terminals

Filter

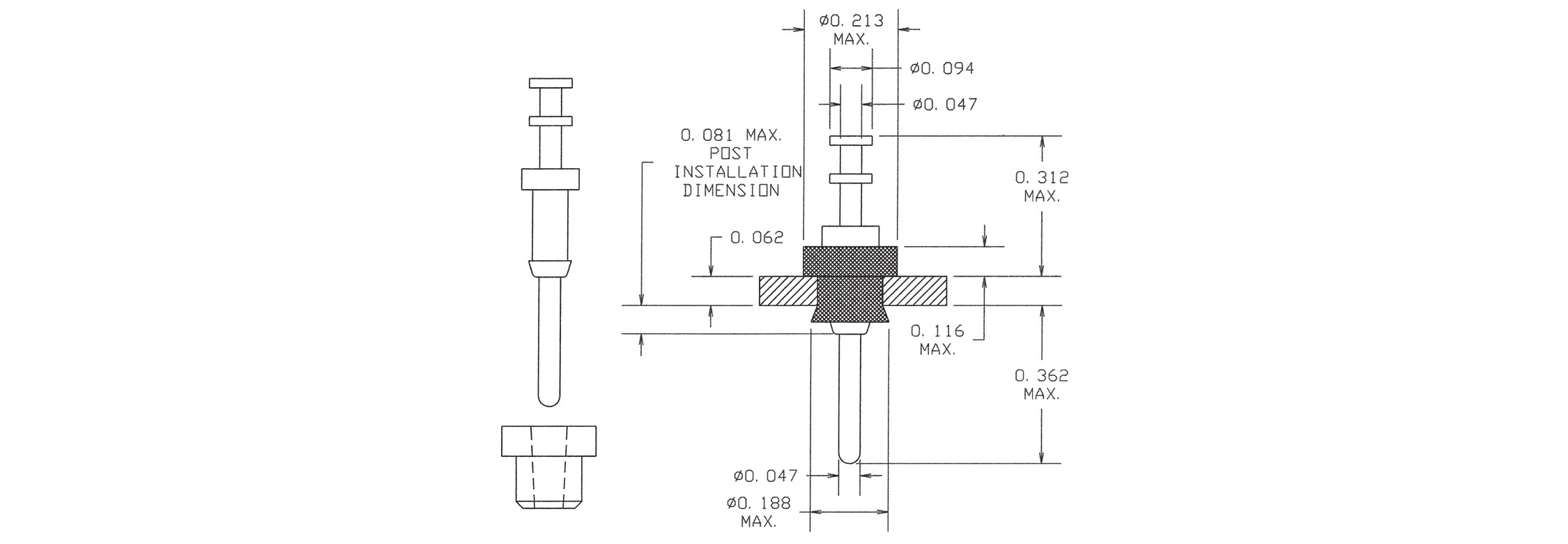

1175-372-0515
1175-372-0515
1175-372-0515
0.736" 0.040 DOUBLE TURRET/PIN PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Green NO

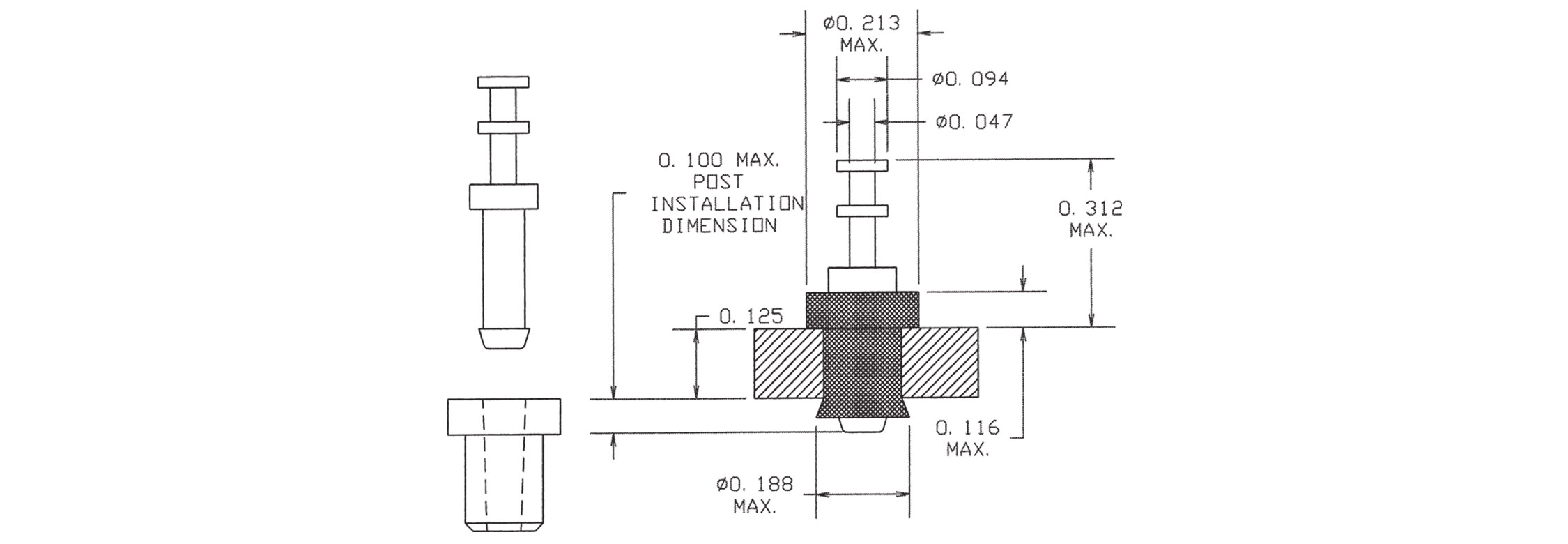

1175-404-0111
1175-404-0111
1175-404-0111
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Silver - - PTFE Brown NO
1175-414-0317
1175-414-0317
1175-414-0317
0.642" - DOUBLE Turret/Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Gold - - PTFE Violet YES
1175-424-04413
1175-424-04413
1175-424-04413
0.756" - Double Turret/Double Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Orange NO
1175-434-0519
1175-434-0519
1175-434-0519
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE White NO

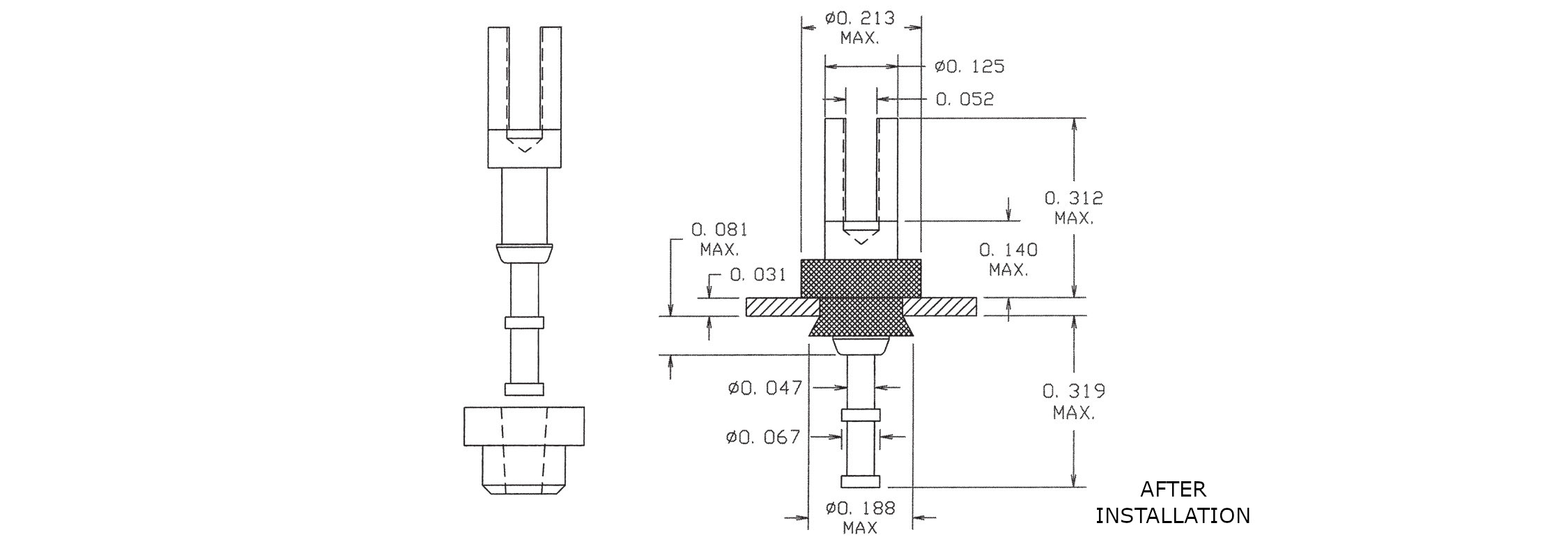

1175-451-0115
1175-451-0115
1175-451-0115
0.662" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Silver - - PTFE Green YES
1175-462-0411
1175-462-0411
1175-462-0411
0.392" - - PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Brown NO
1175-473-04417
1175-473-04417
1175-473-04417
0.575" - - PRESS LOCK 3/32 0.188 (+0.003/-0.001) Brass Bright Tin - - PTFE Violet YES
1175-491-08813
1175-491-08813
1175-491-08813
0.800" - Double Turret/Double Turret PRESS LOCK 1/32 0.188 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Orange NO
1175-601-0119
1175-601-0119
1175-601-0119
0.424" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Silver - - PTFE White YES
1175-702-0415
1175-702-0415
1175-702-0415
0.474" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro-Tin - - PTFE Green YES
1175-712-0511
1175-712-0511
1175-712-0511
0.579" - DOUBLE Turret/Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro Solder - - PTFE Brown NO
1175-722-08817
1175-722-08817
1175-722-08817
0.693" - Double Turret/Double Turret PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Violet NO
1175-734-0313
1175-734-0313
1175-734-0313
0.537" - - PRESS LOCK 1/8 0.154 (+0.003/-0.001) Brass Gold - - PTFE Orange NO
1175-751-0419
1175-751-0419
1175-751-0419
0.655" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Electro-Tin - - PTFE White YES
1175-762-0515
1175-762-0515
1175-762-0515
0.387" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro Solder - - PTFE Green NO
1175-822-0111
1175-822-0111
1175-822-0111
0.433" - - PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Silver - - PTFE Brown NO
1175-842-0317
1175-842-0317
1175-842-0317
0.433" - - PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Gold - - PTFE Violet YES
1175-872-04413
1175-872-04413
1175-872-04413
0.591" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Bright Tin - - PTFE Orange NO
1177-02-0519
1177-02-0519
1177-02-0519
0.272" 0.040 - PRESS LOCK 1/32 - 1/16 0.093 Brass Electro Solder - - PTFE White NO
