Commercial
Insulated
Pin Terminals

Filter
1132-01-0415
1132-01-0415
1132-01-0415
0.645" 0.090 - Solder 7/32 0.0935 Brass Electro-Tin - - PTFE Green YES

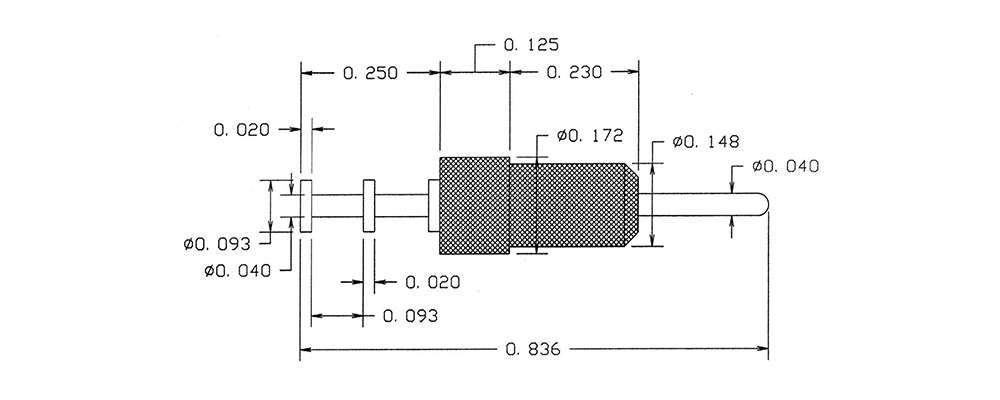

1133-02-0511
1133-02-0511
1133-02-0511
0.836" 0.040 DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 Brass Electro Solder - - PTFE Brown NO

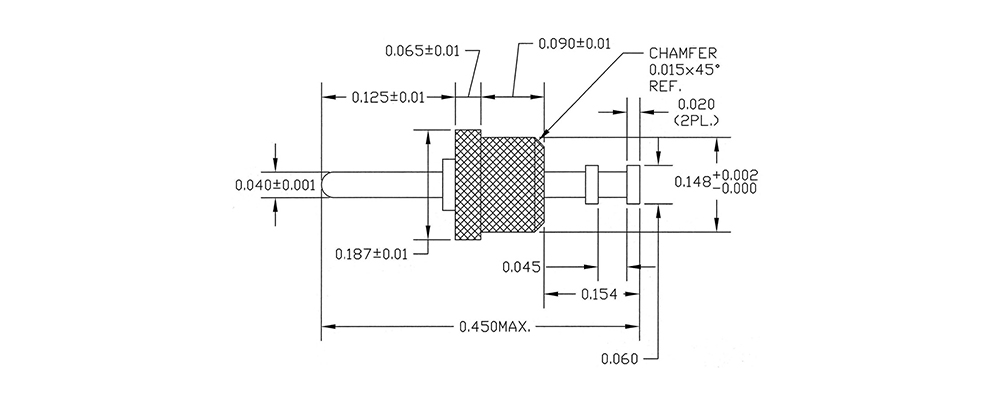

1133R-05-08817
1133R-05-08817
1133R-05-08817
0.450" 0.040 TURRET/PIN Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Violet NO

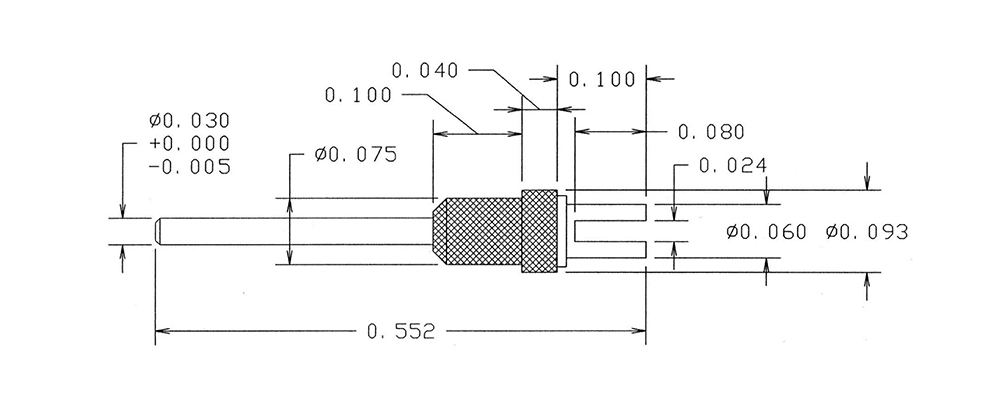

1135-05-0313
1135-05-0313
1135-05-0313
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Gold - - PTFE Orange NO
1135-09-0419
1135-09-0419
1135-09-0419
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE White YES

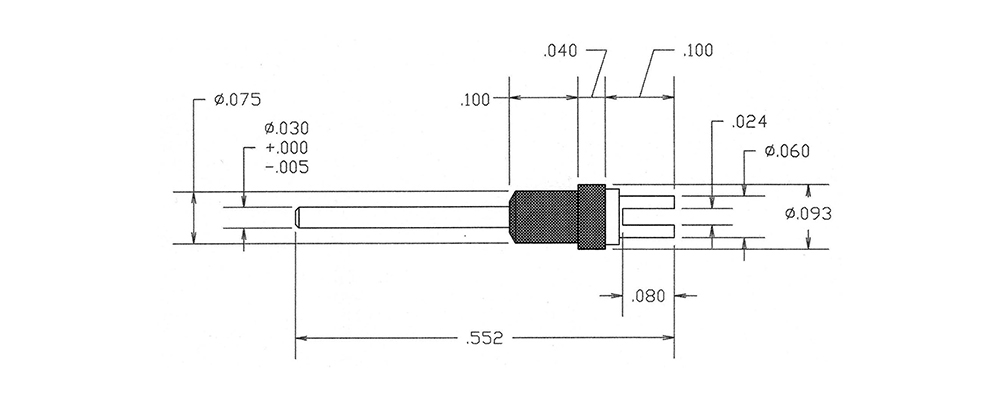

1137-02-0515
1137-02-0515
1137-02-0515
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Electro Solder - - PTFE Green NO

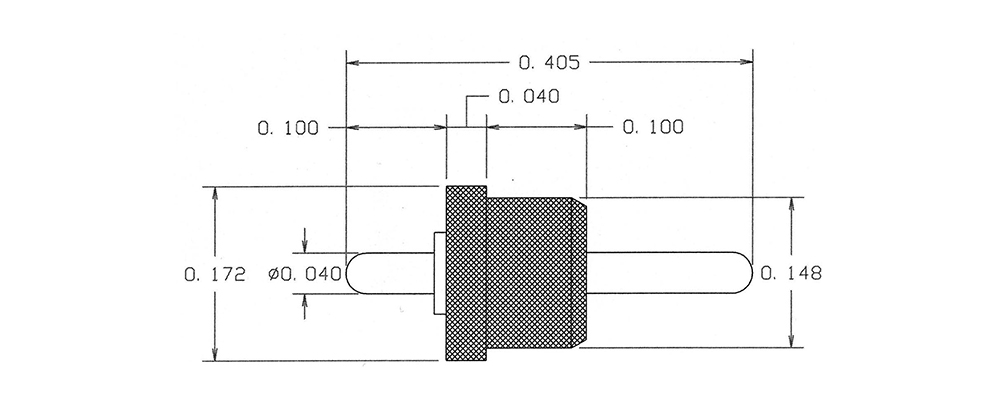

1139-04-0111
1139-04-0111
1139-04-0111
0.405" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Silver - - PTFE Brown NO
1151-05-0317
1151-05-0317
1151-05-0317
0.350" - - Press Fit 1/16 0.136 Brass Gold - - PTFE Violet YES
1151-11-04413
1151-11-04413
1151-11-04413
0.455" - - Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Orange NO
1151-19-0519
1151-19-0519
1151-19-0519
0.444" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE White NO

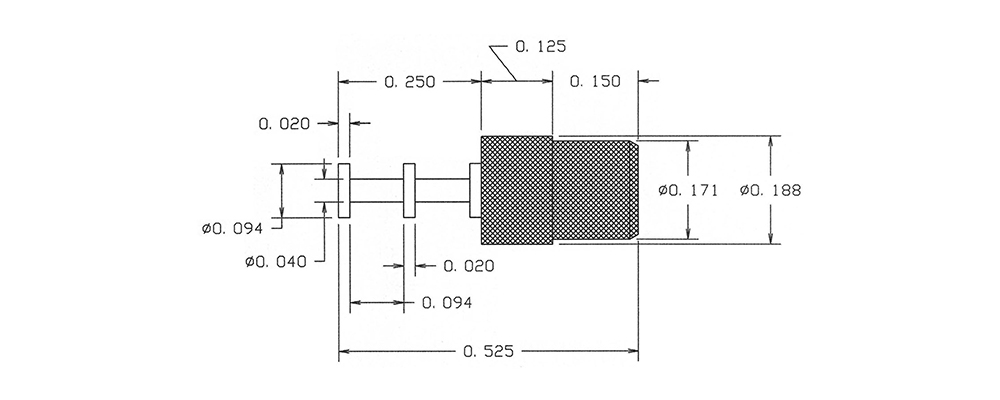

1151-39-0115
1151-39-0115
1151-39-0115
0.525" - - Press Fit 1/8 0.158 Brass Silver - - PTFE Green YES
1151-51-0411
1151-51-0411
1151-51-0411
1.234" - - Press Fit 5/32 0.203 Brass Electro-Tin - - PTFE Brown NO
1151R-09-04417
1151R-09-04417
1151R-09-04417
0.390" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Violet YES
1151R-38-08813
1151R-38-08813
1151R-38-08813
0.390" - - Press Fit 1/16 0.158 Brass Bright Tin-Lead - - PTFE Orange NO
1152-31-0119
1152-31-0119
1152-31-0119
0.750" 0.040 - Press Fit 1/16 0.203 Brass Silver - - PTFE White YES
1152R-17-0415
1152R-17-0415
1152R-17-0415
0.615" 0.040 - Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Green YES

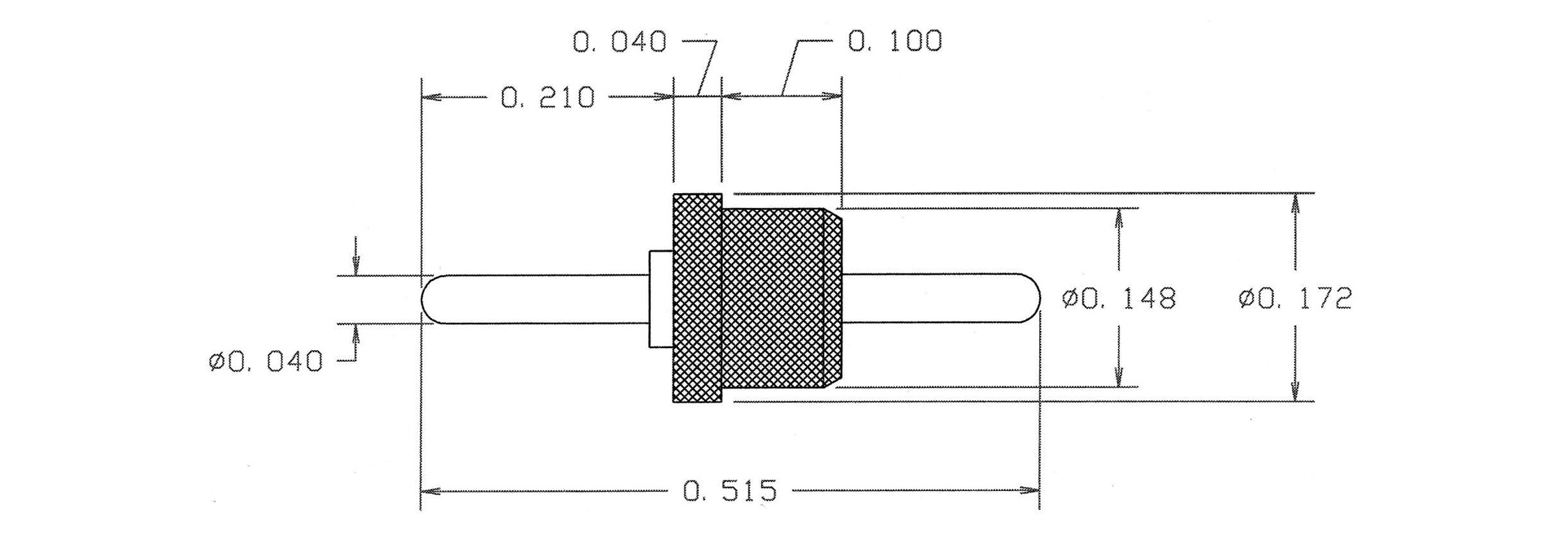

1153-06-0511
1153-06-0511
1153-06-0511
0.515" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Brown NO
1153-31-08817
1153-31-08817
1153-31-08817
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Bright Tin-Lead - - PTFE Violet NO
1154-10-0313
1154-10-0313
1154-10-0313
0.753" - - Press Fit 1/8 0.158 Brass Gold - - PTFE Orange NO
1154-44-0419
1154-44-0419
1154-44-0419
0.821" 0.050 Pin/Slotted Press Fit Up to 3/16 0.158 Brass Electro-Tin - - PTFE White YES
