Commercial
Insulated
Pin Terminals

Filter
1155-01-0515
1155-01-0515
1155-01-0515
0.427" - - Press Fit Up to 3/16 0.204 Brass Electro Solder - - PTFE Green NO

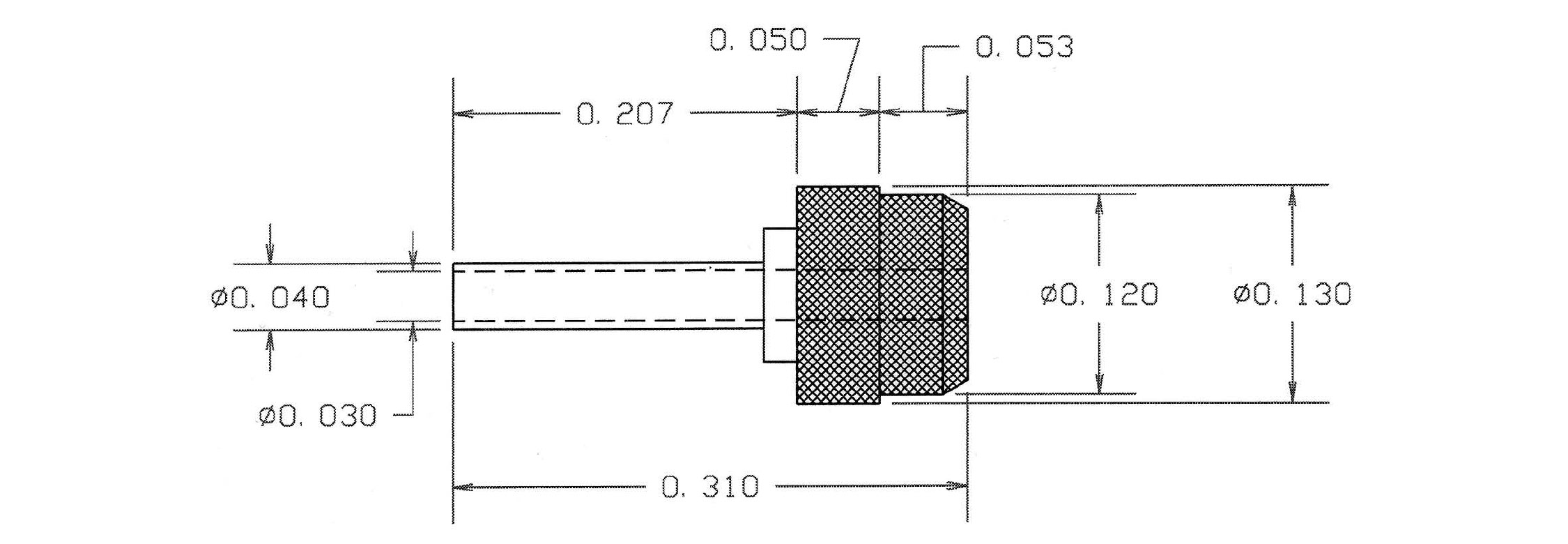

1155-13-0111
1155-13-0111
1155-13-0111
0.310" 0.040 - Press Fit 1/64 0.108 Brass Silver - - PTFE Brown NO
1156-02-0317
1156-02-0317
1156-02-0317
0.500" 0.035 DOUBLE Turret/Tip Press Fit 1/16 0.086 Brass Gold - - PTFE Violet YES

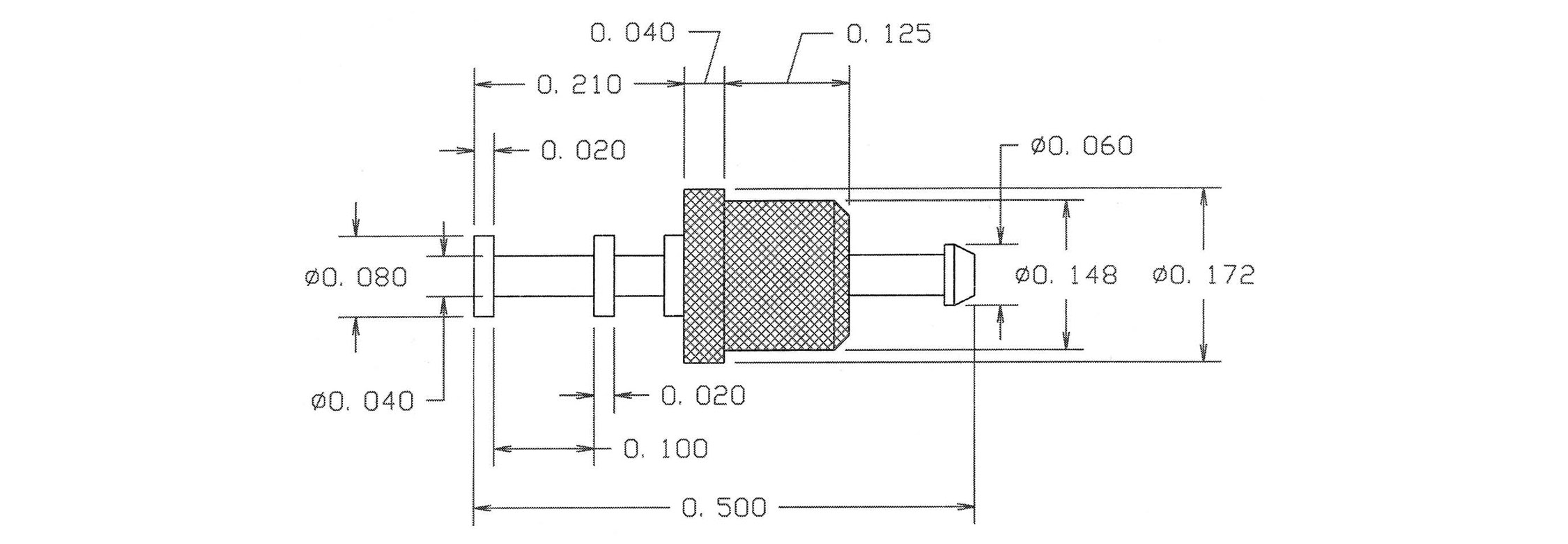

1156-07-04413
1156-07-04413
1156-07-04413
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Orange NO

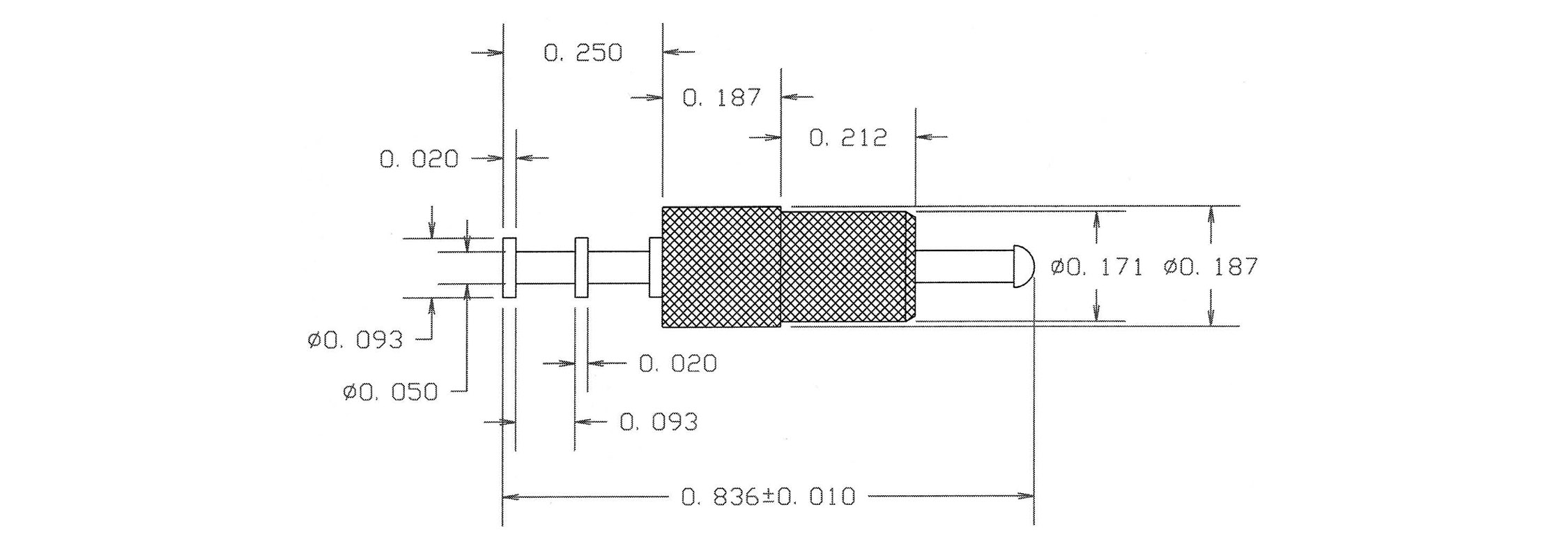

1156-14-0519
1156-14-0519
1156-14-0519
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE White NO
1156-19-0115
1156-19-0115
1156-19-0115
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.203 Brass Silver - - PTFE Green YES
1156R-01-0411
1156R-01-0411
1156R-01-0411
0.460" 0.040 DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Electro-Tin - - PTFE Brown NO
1157-01-04417
1157-01-04417
1157-01-04417
0.350" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Violet YES
1157-06-08813
1157-06-08813
1157-06-08813
1.115" 0.050 TURRET/PIN Press Fit 11/32 0.158 Brass Bright Tin-Lead - - PTFE Orange NO

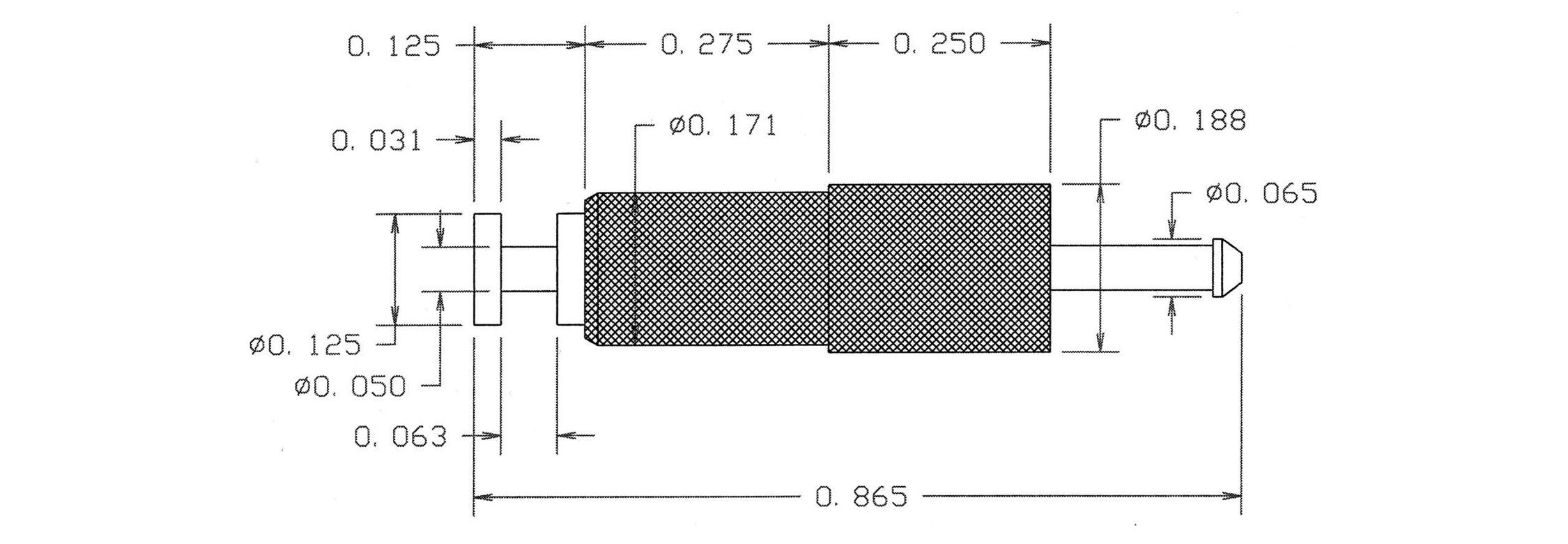

1157R-05-0119
1157R-05-0119
1157R-05-0119
0.865" 0.050 TURRET/PIN Press Fit 7/32 0.158 Brass Silver - - PTFE White YES

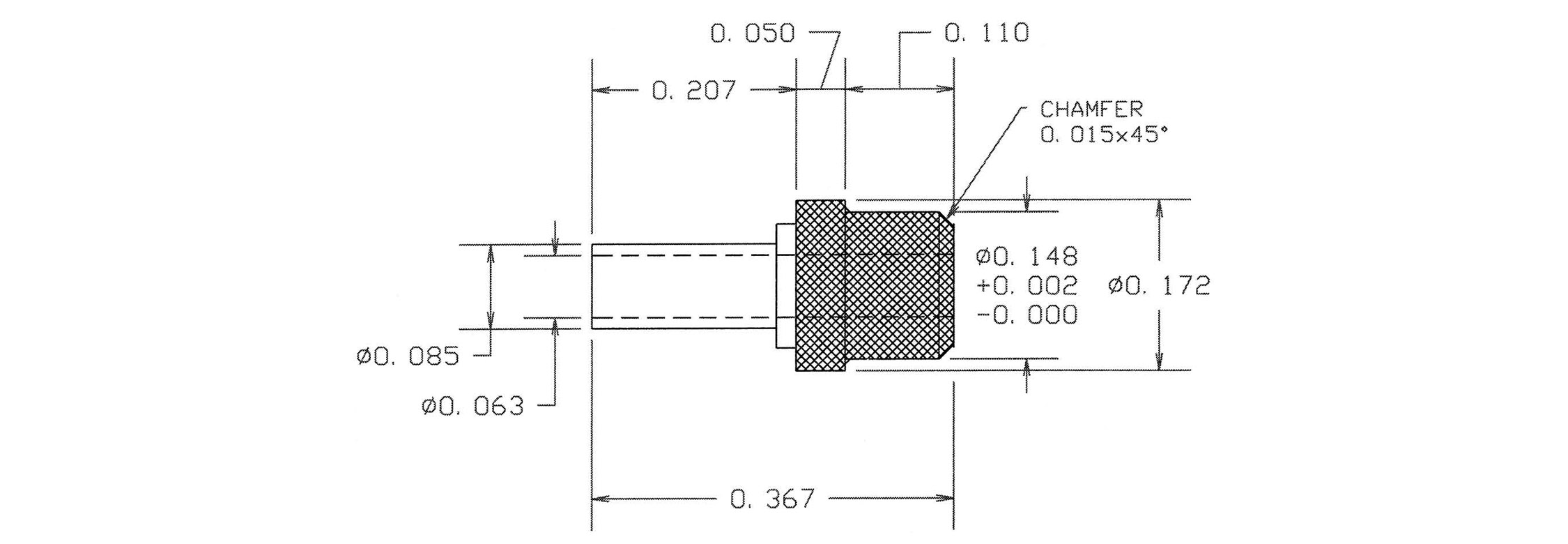

1160-13-0415
1160-13-0415
1160-13-0415
0.367" 0.085 - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Green YES

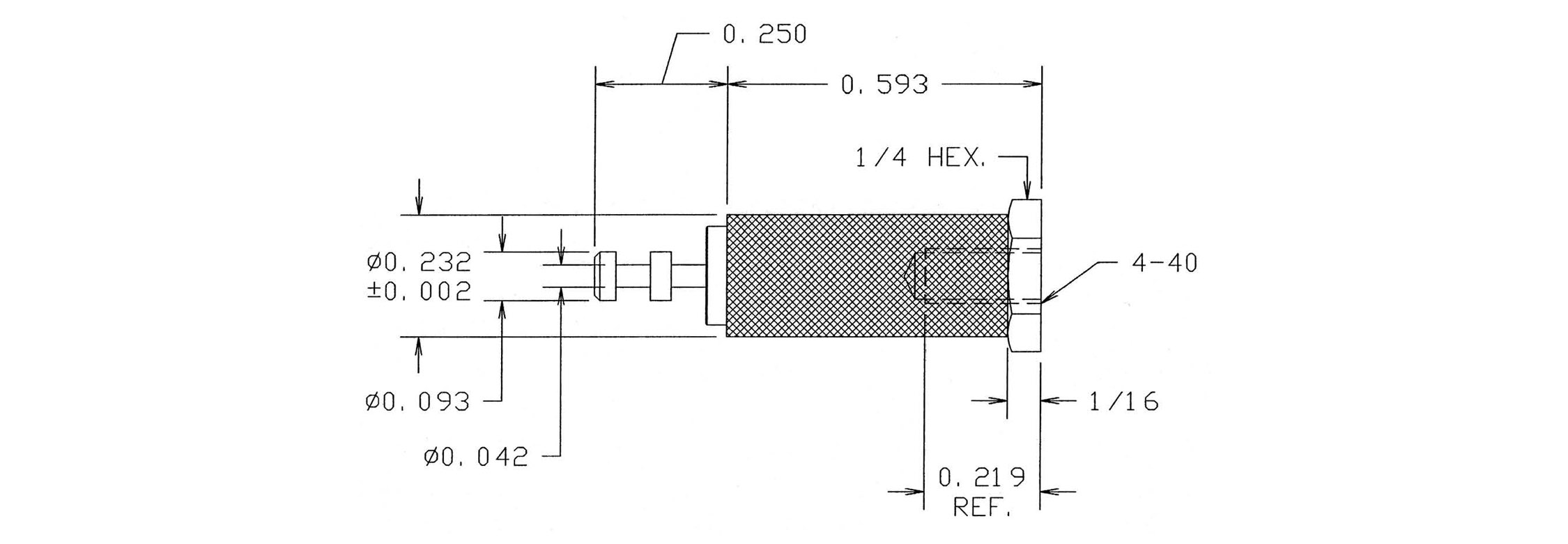

1167-20-0511
1167-20-0511
1167-20-0511
0.843" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Brown NO
1167-67-08817
1167-67-08817
1167-67-08817
0.875" - - 6-32 Nut 1/8 0.144 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Violet NO

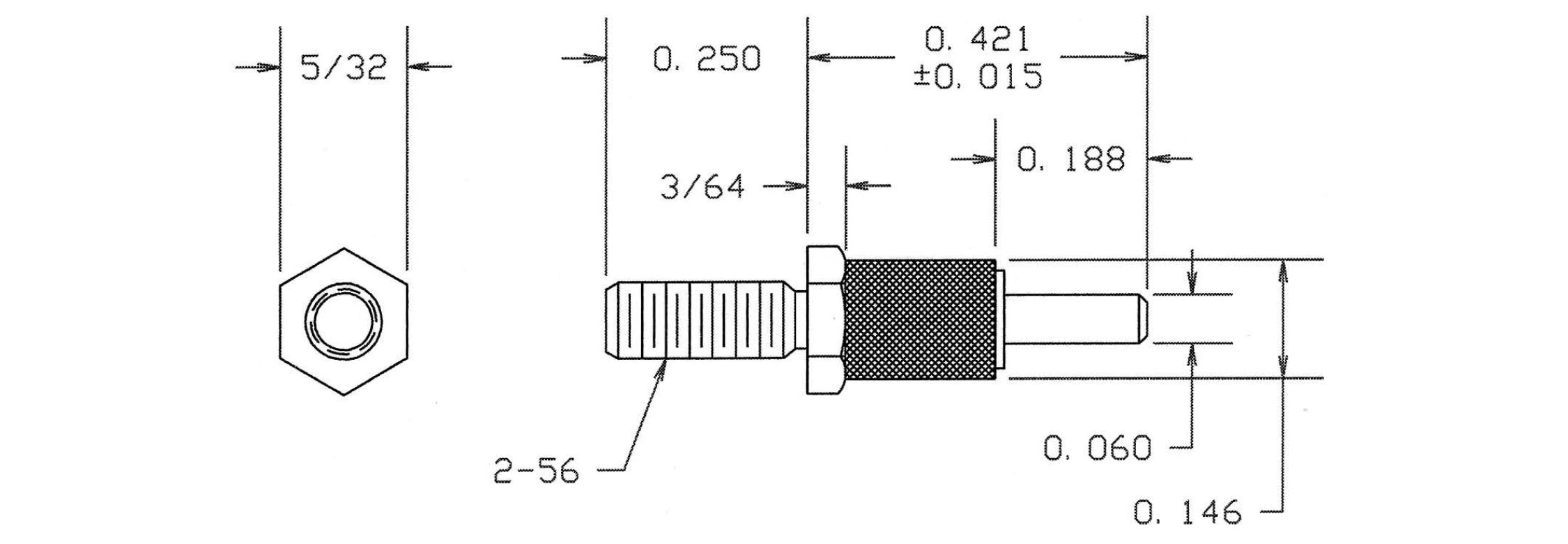

1169-30-0313
1169-30-0313
1169-30-0313
0.671" 0.060 - 2-56 Nut 1/8 0.094 Brass Gold ZINC Brass DIALLYL PHTHALATE Orange YES

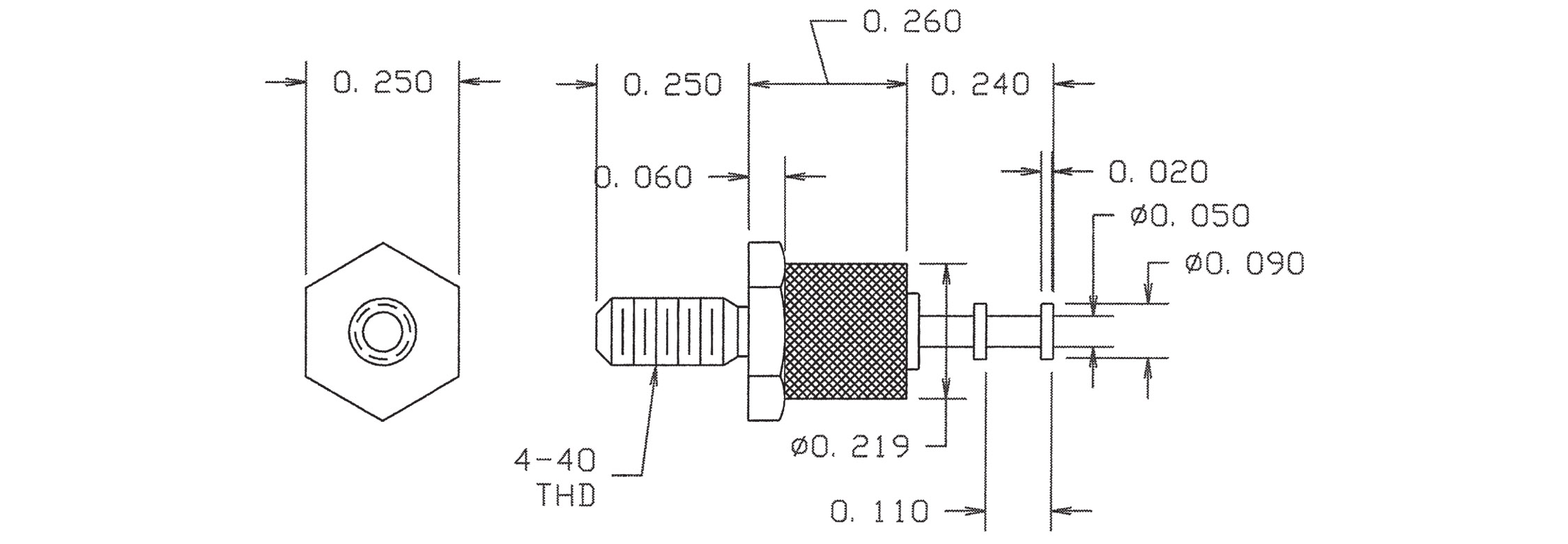

1169-37-0419
1169-37-0419
1169-37-0419
0.750" - - 4-40 Nut 1/8 0.120 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE White YES

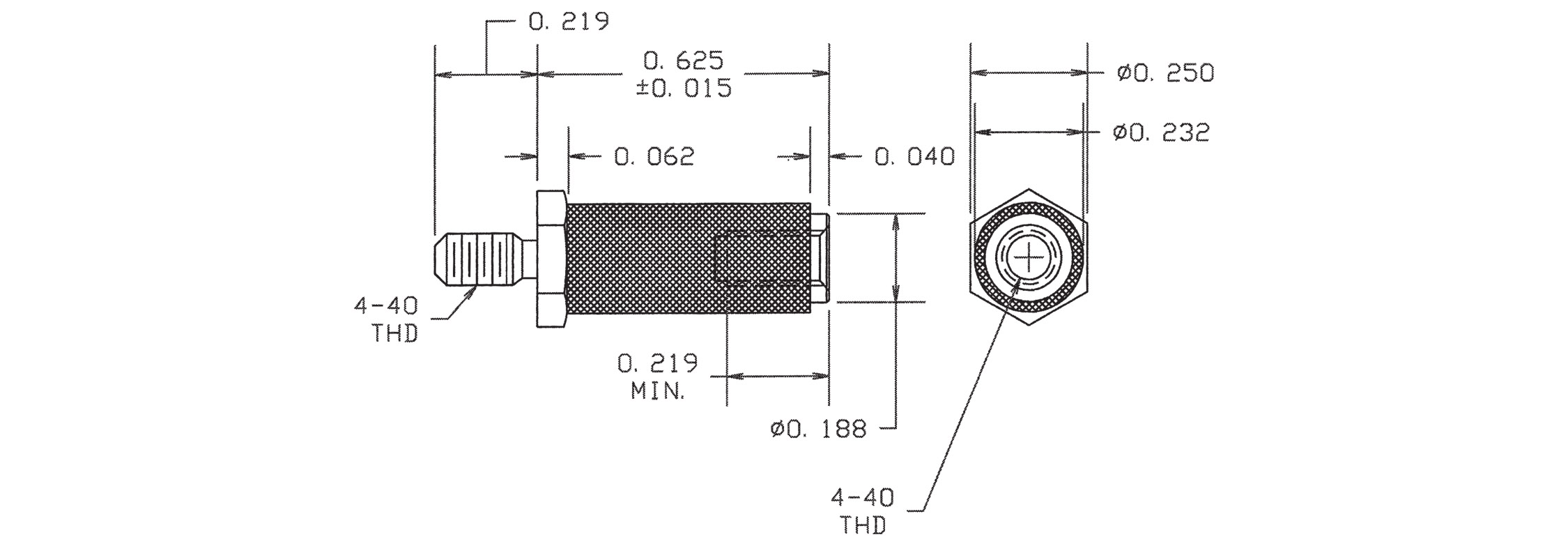

1170-05-07515
1170-05-07515
1170-05-07515
0.844" - - 4-40 Nut 3/32 0.120 Brass ZINC ZINC Brass DIALLYL PHTHALATE Green YES

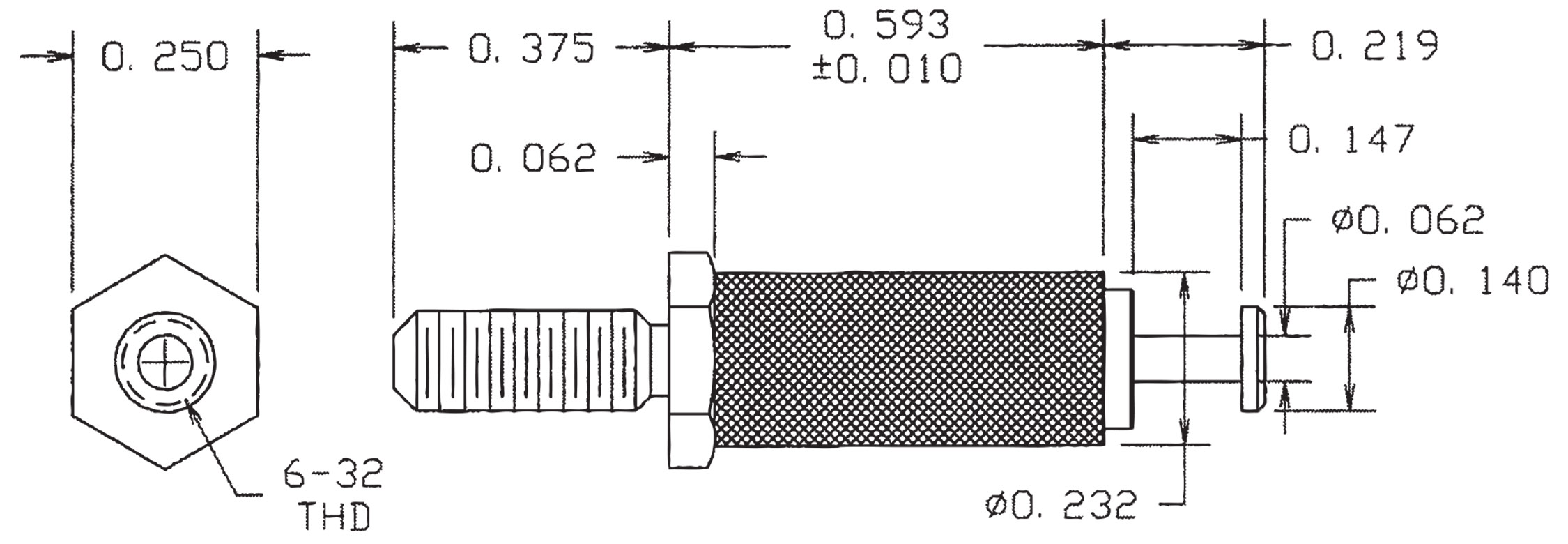

1170-22-0511
1170-22-0511
1170-22-0511
0.968" - - 6-32 Nut Up to 1/4 0.144 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Brown NO

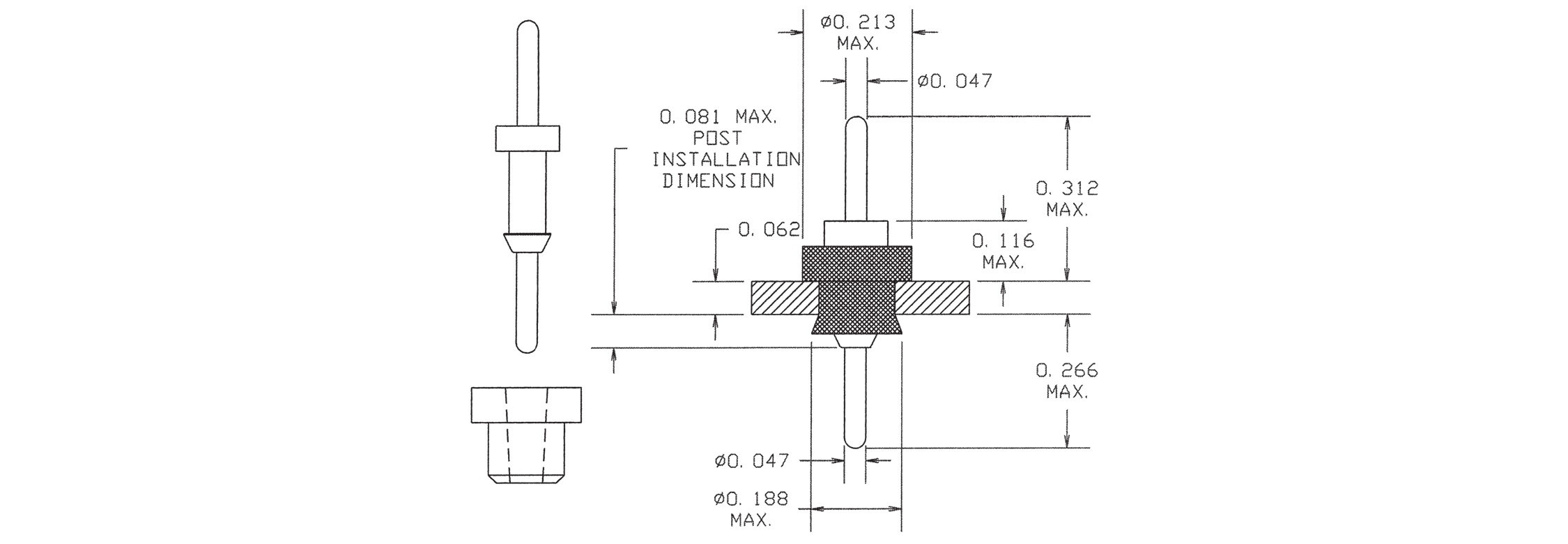

1175-012-08817
1175-012-08817
1175-012-08817
0.640" 0.047 Pin/Pin PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Violet NO
1175-301-0313
1175-301-0313
1175-301-0313
0.460" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Gold - - PTFE Orange NO

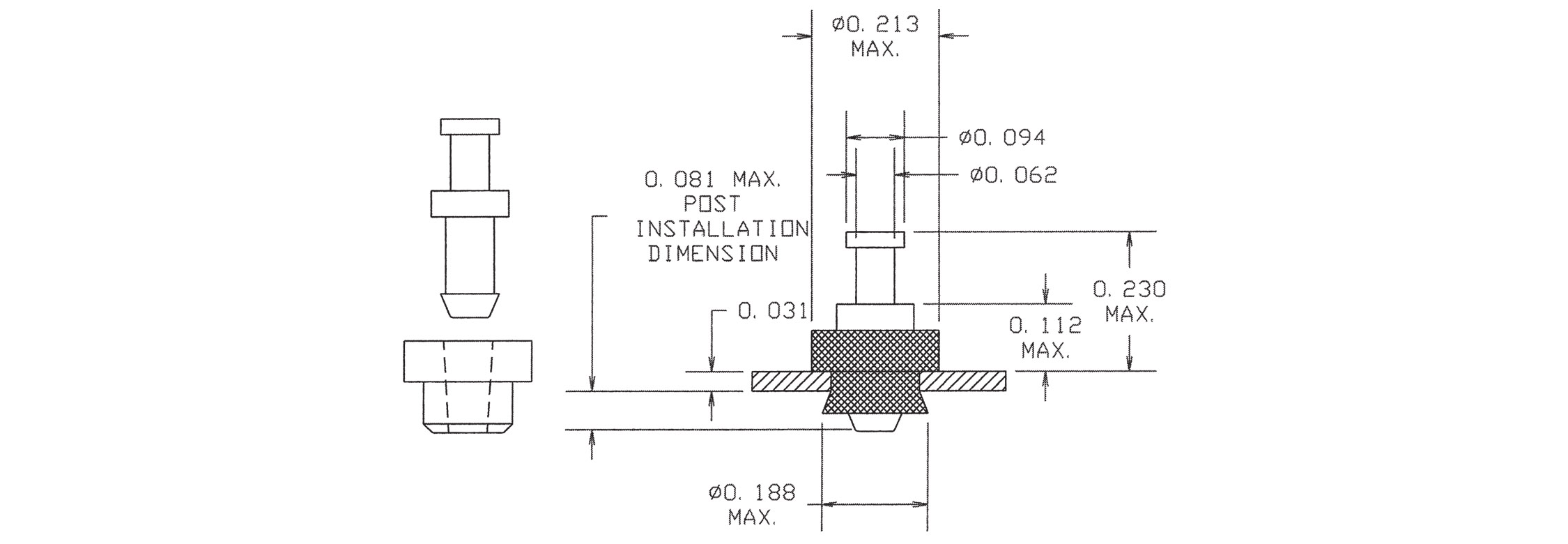

1175-351-0419
1175-351-0419
1175-351-0419
0.342" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE White YES
