Commercial
Insulated
Pin Terminals

Filter
1110-66-0515
1110-66-0515
1110-66-0515
0.890" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Green NO

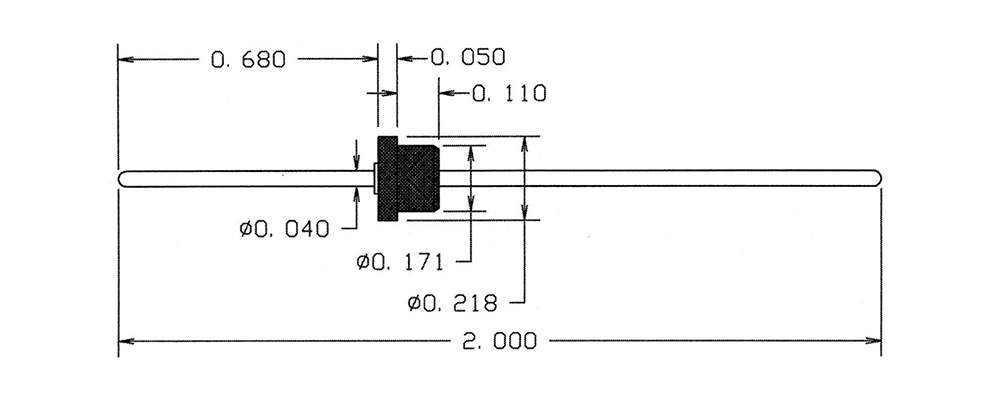

1110-71-0111
1110-71-0111
1110-71-0111
2.000" 0.040 Pin/Pin Press Fit 1/16 0.158 Brass Silver - - PTFE Brown NO
1110-76-0317
1110-76-0317
1110-76-0317
0.450" 0.018 Pin/Pin Press Fit 1/32 0.054 Brass Gold - - PTFE Violet YES
1110-93-04413
1110-93-04413
1110-93-04413
0.390" 0.035 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin - - PTFE Orange NO
1111-02-0519
1111-02-0519
1111-02-0519
0.535" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.101 Brass Electro Solder - - PTFE White NO

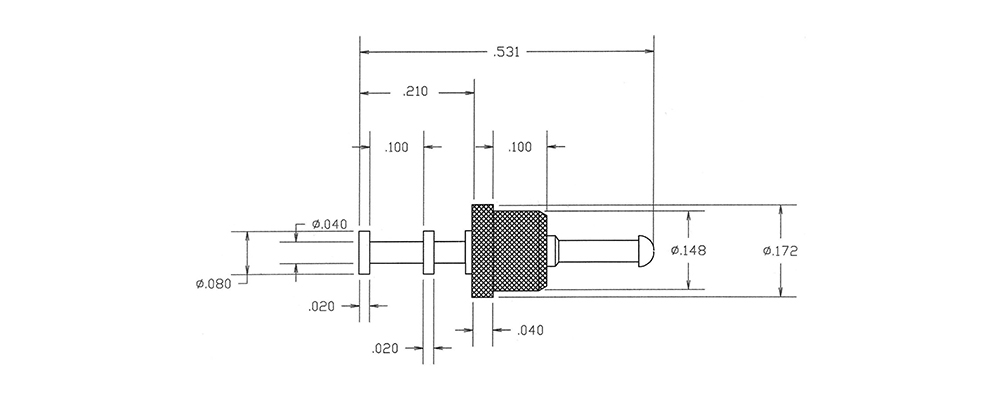

1111-11-0115
1111-11-0115
1111-11-0115
0.531" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Silver - - PTFE Green YES
1111-15-0411
1111-15-0411
1111-15-0411
0.609" 0.040 DOUBLE Turret/Tip Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Brown NO
1111-20-04417
1111-20-04417
1111-20-04417
0.836" 0.050 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Violet YES
1111-24-08813
1111-24-08813
1111-24-08813
0.500" 0.047 DOUBLE Turret/Tip Press Fit 1/8 0.140 Brass Bright Tin-Lead - - PTFE Orange NO
1111-34-0119
1111-34-0119
1111-34-0119
0.438" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.172 Brass Silver - - PTFE White YES
1111-38-0415
1111-38-0415
1111-38-0415
0.500" - DOUBLE Turret/Turret Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Green YES
1111-44-0511
1111-44-0511
1111-44-0511
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.191 Brass Electro Solder - - PTFE Brown NO
1111-50-08817
1111-50-08817
1111-50-08817
0.531" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Violet NO
1111-59-0313
1111-59-0313
1111-59-0313
0.750" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.086 Brass Gold - - PTFE Orange NO
1111R-09-0419
1111R-09-0419
1111R-09-0419
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE White YES
1111R-14-0515
1111R-14-0515
1111R-14-0515
0.609" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Green NO
1112-09-0111
1112-09-0111
1112-09-0111
0.293" - - Press Fit 1/64 0.113 Brass Silver - - PTFE Brown NO
1112-14-0317
1112-14-0317
1112-14-0317
0.293" - - Press Fit 1/16 0.136 Brass Gold - - PTFE Violet YES
1112-65-04413
1112-65-04413
1112-65-04413
0.155" - - Press Fit 1/32 0.058 Brass Bright Tin - - PTFE Orange NO
1112R-05-0519
1112R-05-0519
1112R-05-0519
0.200" - - Press Fit 1/32 0.113 Brass Electro Solder - - PTFE White NO
