Commercial
Insulated
Pin Terminals

Filter

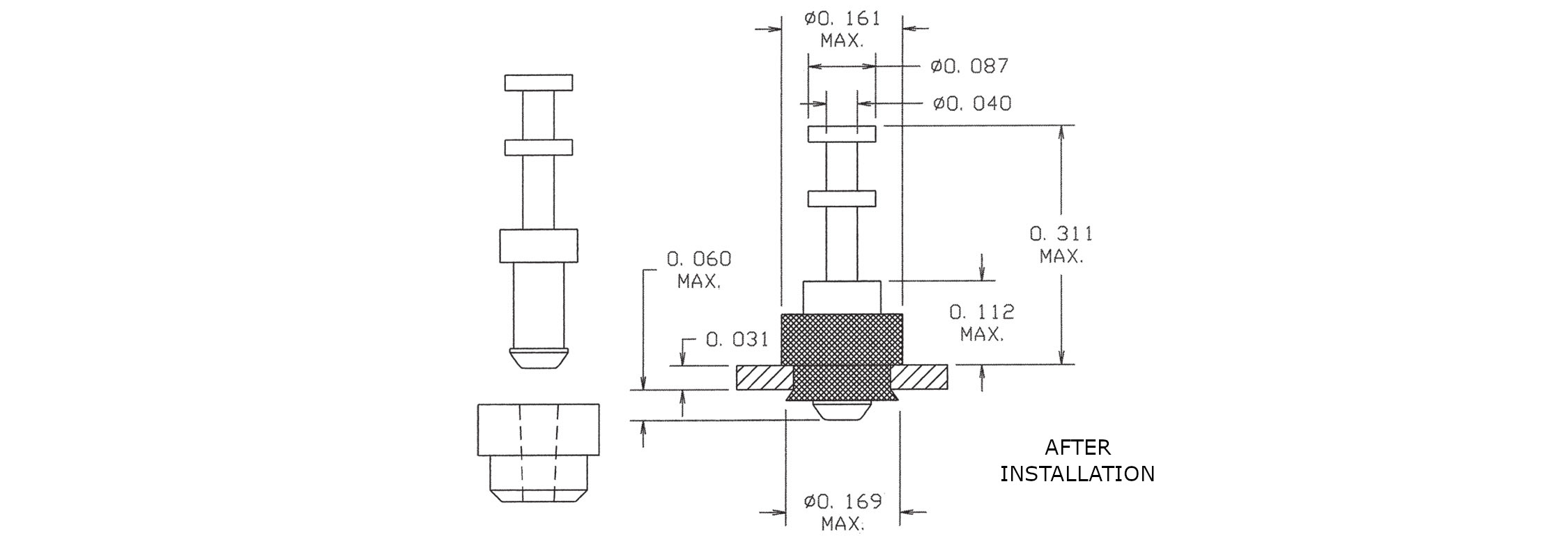

1175-821-08819
1175-821-08819
1175-821-08819
0.402" - - PRESS LOCK 1/32 0.126 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE White NO

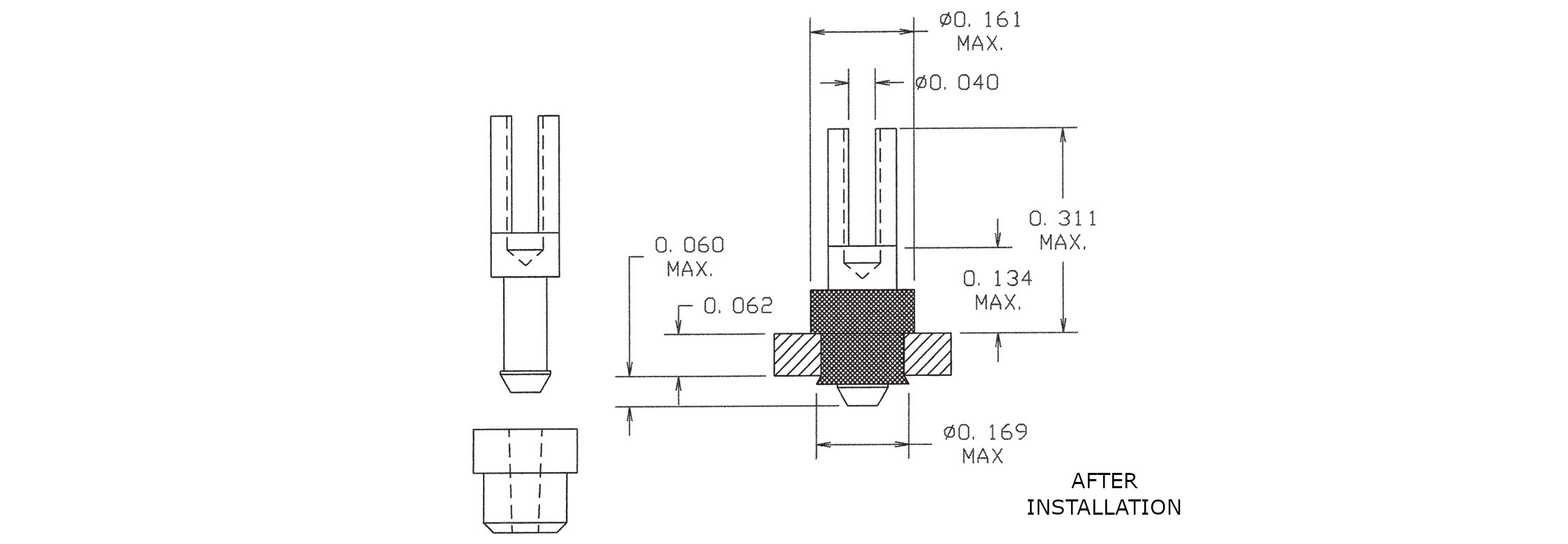

1175-842-0315
1175-842-0315
1175-842-0315
0.433" - - PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Gold - - PTFE Green YES
1175-872-04411
1175-872-04411
1175-872-04411
0.591" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/16 0.126 (+0.003/-0.001) Brass Bright Tin - - PTFE Brown NO
1177-02-0517
1177-02-0517
1177-02-0517
0.272" 0.040 - PRESS LOCK 1/32 - 1/16 0.093 Brass Electro Solder - - PTFE Violet NO
1177-13-0113
1177-13-0113
1177-13-0113
0.495" - - PRESS LOCK 1/32 - 1/16 0.136 Brass Silver - - PTFE Orange NO
1177-32-0319
1177-32-0319
1177-32-0319
0.500" 0.040 DOUBLE Turret/Tip PRESS LOCK 1/32 - 1/16 0.136 Brass Gold - - PTFE White YES
1177-41-04415
1177-41-04415
1177-41-04415
0.387" 0.040 Pin/Slotted PRESS LOCK 1/32 - 1/16 0.109 Brass Bright Tin - - PTFE Green YES
1177-52-08811
1177-52-08811
1177-52-08811
0.515" 0.040 Pin/Pin PRESS LOCK 1/32 - 1/16 0.086 Brass Bright Tin-Lead - - PTFE Brown NO
1177-57-0117
1177-57-0117
1177-57-0117
0.687" 0.050 Pin/Pin PRESS LOCK 1/32 - 1/16 0.136 Brass Silver - - PTFE Violet YES
1177-61-0413
1177-61-0413
1177-61-0413
0.446" 0.040 Pin/Pin PRESS LOCK 1/64 0.138 Brass Electro-Tin - - PTFE Orange NO
1178R-03-04419
1178R-03-04419
1178R-03-04419
0.650" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.134 Brass Bright Tin - - PTFE White YES
1178R-10-08815
1178R-10-08815
1178R-10-08815
0.470" 0.040 Pin/Slotted PRESS LOCK 1/32 - 3/32 0.086 Brass Bright Tin-Lead - - PTFE Green NO
1178R-15-0311
1178R-15-0311
1178R-15-0311
0.390" - - PRESS LOCK 1/32 - 5/64 0.134 Brass Gold - - PTFE Brown NO
1102R-95-0417
1102R-95-0417
1102R-95-0417
0.812" - - Press Fit 13/64 0.297 Brass Electro-Tin - - PTFE Violet YES
1125-02-0513
1125-02-0513
1125-02-0513
0.578" - - 2-56 Nut 7/64 0.094 Brass Electro Solder Electro-Tin Brass PTFE Orange NO
1125-06-08819
1125-06-08819
1125-06-08819
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Bright Tin-Lead Electro-Tin Brass PTFE White NO
1125-11-0315
1125-11-0315
1125-11-0315
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Gold Electro-Tin Brass PTFE Green YES
1125-15-04411
1125-15-04411
1125-15-04411
0.578" - - 4-40 Nut 7/64 0.120 Brass Bright Tin Electro-Tin Brass PTFE Brown NO
1125-19-0517
1125-19-0517
1125-19-0517
0.822" - - 6-32 Nut Up to 3/16 0.144 Brass Electro Solder Electro-Tin Brass PTFE Violet NO
1125-24-0113
1125-24-0113
1125-24-0113
0.885" - - 4-40 Nut Up to 1/4 0.120 Brass Silver Electro-Tin Brass PTFE Orange NO
