Commercial
Insulated
Pin Terminals

Filter
1153-06-04419
1153-06-04419
1153-06-04419
0.515" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE White YES
1153-31-08815
1153-31-08815
1153-31-08815
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Bright Tin-Lead - - PTFE Green NO
1154-10-0311
1154-10-0311
1154-10-0311
0.753" - - Press Fit 1/8 0.158 Brass Gold - - PTFE Brown NO
1154-44-0417
1154-44-0417
1154-44-0417
0.821" 0.050 Pin/Slotted Press Fit Up to 3/16 0.158 Brass Electro-Tin - - PTFE Violet YES
1155-01-0513
1155-01-0513
1155-01-0513
0.427" - - Press Fit Up to 3/16 0.204 Brass Electro Solder - - PTFE Orange NO
1155-07-08819
1155-07-08819
1155-07-08819
0.347" - - Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE White NO
1156-02-0315
1156-02-0315
1156-02-0315
0.500" 0.035 DOUBLE Turret/Tip Press Fit 1/16 0.086 Brass Gold - - PTFE Green YES
1156-07-04411
1156-07-04411
1156-07-04411
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Brown NO
1156-14-0517
1156-14-0517
1156-14-0517
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Violet NO

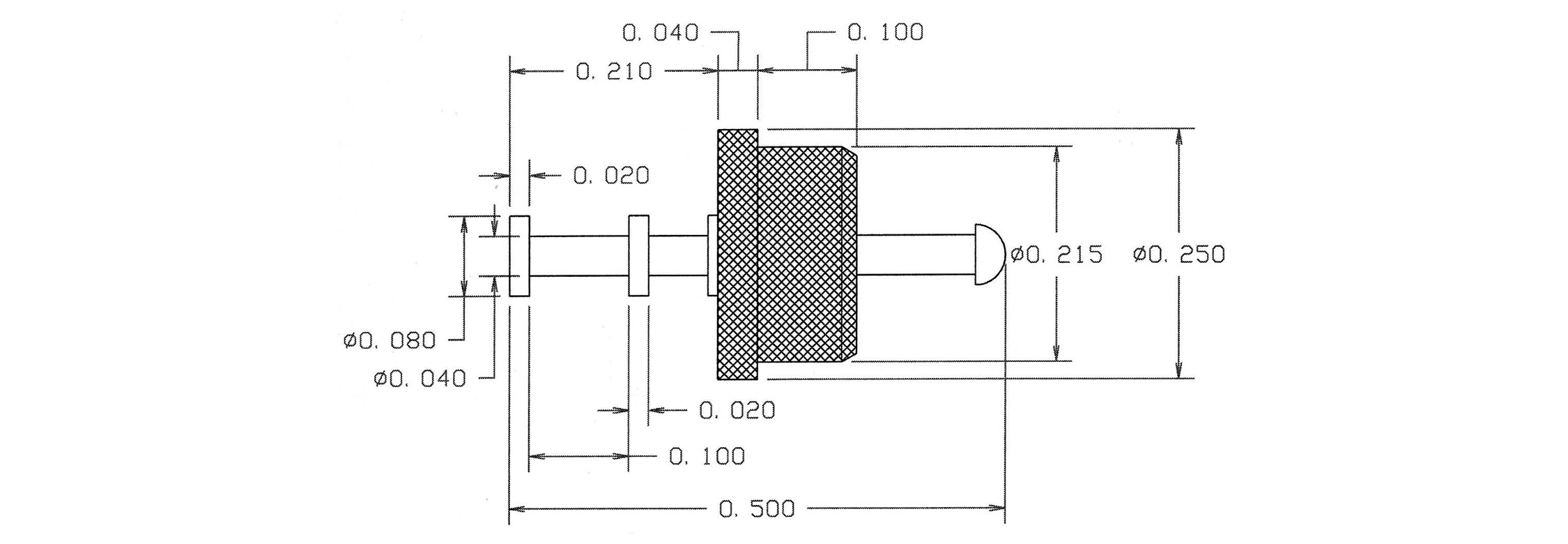

1156-19-0113
1156-19-0113
1156-19-0113
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.203 Brass Silver - - PTFE Orange NO
1156R-01-0319
1156R-01-0319
1156R-01-0319
0.460" 0.040 DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Gold - - PTFE White YES
1157-01-04415
1157-01-04415
1157-01-04415
0.350" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Green YES
1157-06-08811
1157-06-08811
1157-06-08811
1.115" 0.050 TURRET/PIN Press Fit 11/32 0.158 Brass Bright Tin-Lead - - PTFE Brown NO
1157R-05-0117
1157R-05-0117
1157R-05-0117
0.865" 0.050 TURRET/PIN Press Fit 7/32 0.158 Brass Silver - - PTFE Violet YES
1160-13-0413
1160-13-0413
1160-13-0413
0.367" 0.085 - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Orange NO
1167-20-04419
1167-20-04419
1167-20-04419
0.843" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin ZINC Brass DIALLYL PHTHALATE White YES
1167-67-08815
1167-67-08815
1167-67-08815
0.875" - - 6-32 Nut 1/8 0.144 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Green NO
1169-30-0311
1169-30-0311
1169-30-0311
0.671" 0.060 - 2-56 Nut 1/8 0.094 Brass Gold ZINC Brass DIALLYL PHTHALATE Brown YES
1169-37-0417
1169-37-0417
1169-37-0417
0.750" - - 4-40 Nut 1/8 0.120 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Violet YES

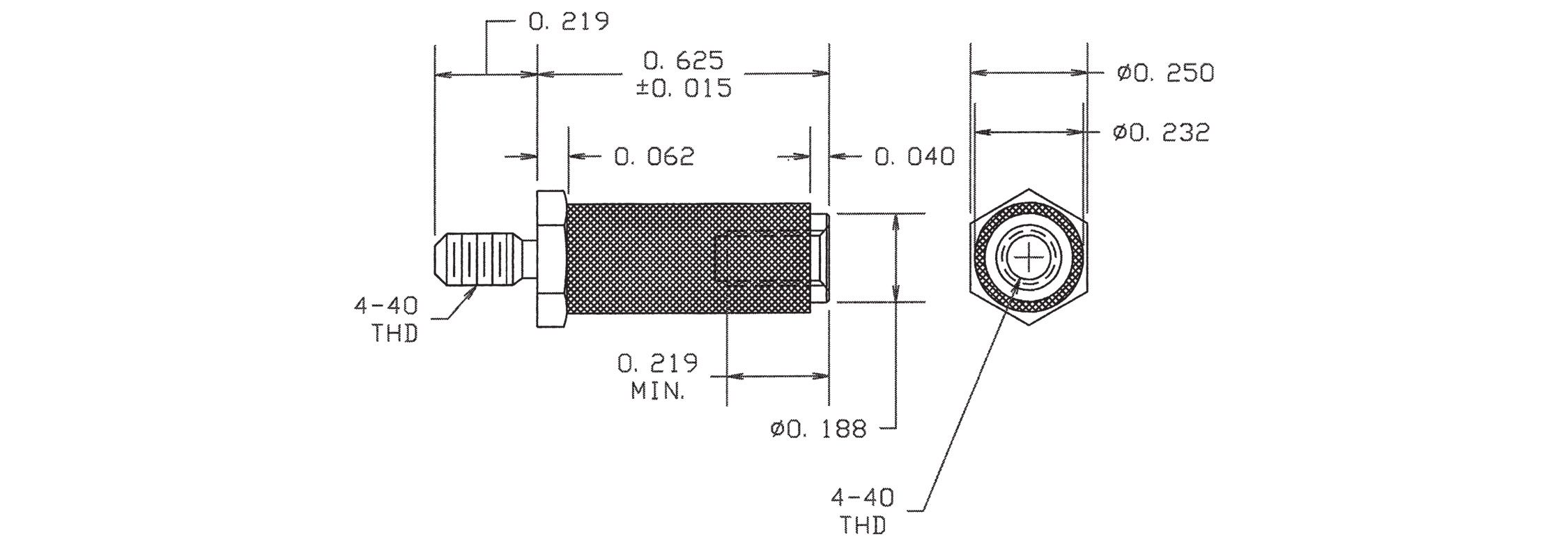

1170-05-07513
1170-05-07513
1170-05-07513
0.844" - - 4-40 Nut 3/32 0.120 Brass ZINC ZINC Brass DIALLYL PHTHALATE Orange YES
