Commercial
Insulated
Pin Terminals

Filter
1101-11-04411
1101-11-04411
1101-11-04411
0.330" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Brown NO
1101-11-04412
1101-11-04412
1101-11-04412
0.330" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Red NO
1133-11-04413
1133-11-04413
1133-11-04413
1.052" 0.040 DOUBLE TURRET/PIN Press Fit Up to 1/4 0.172 Brass Bright Tin - - PTFE Orange NO
1133-11-04410
1133-11-04410
1133-11-04410
1.052" 0.040 DOUBLE TURRET/PIN Press Fit Up to 1/4 0.172 Brass Bright Tin - - PTFE Black YES
1112-11-04411
1112-11-04411
1112-11-04411
0.238" - - Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Brown NO
1151-11-04414
1151-11-04414
1151-11-04414
0.455" - - Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Yellow NO
1106-11-04417
1106-11-04417
1106-11-04417
0.703" - - Press Fit 1/16 0.158 Brass Bright Tin - - PTFE Violet YES
1106-11-04415
1106-11-04415
1106-11-04415
0.703" - - Press Fit 1/16 0.158 Brass Bright Tin - - PTFE Green YES

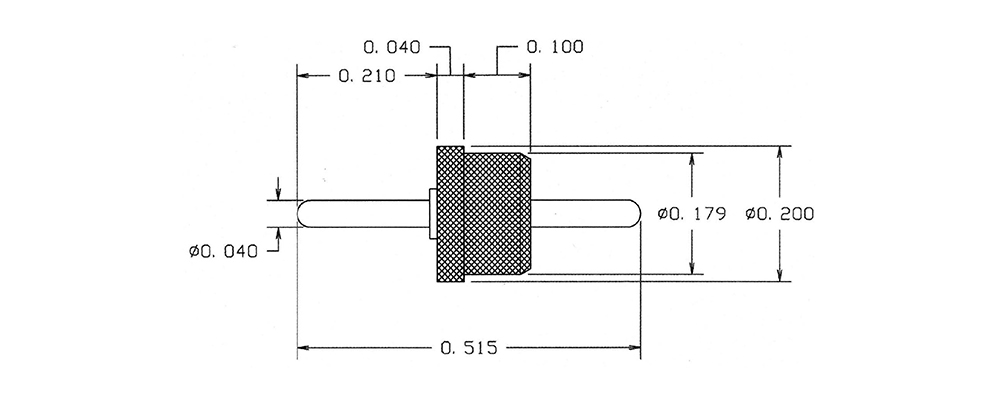

1110-11-04416
1110-11-04416
1110-11-04416
0.515" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Bright Tin - - PTFE Blue YES
1178R-11-0110
1178R-11-0110
1178R-11-0110
0.340" - - PRESS LOCK 1/32 - 5/64 0.134 Brass Silver - - PTFE Black YES
1151-11-04415
1151-11-04415
1151-11-04415
0.455" - - Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Green YES
1151-11-04417
1151-11-04417
1151-11-04417
0.455" - - Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Violet YES
1177-11-0412
1177-11-0412
1177-11-0412
0.370" - - PRESS LOCK 1/32 - 1/16 0.136 Brass Electro-Tin - - PTFE Red NO
1178R-11-0114
1178R-11-0114
1178R-11-0114
0.340" - - PRESS LOCK 1/32 - 5/64 0.134 Brass Silver - - PTFE Yellow NO
1125-11-08810
1125-11-08810
1125-11-08810
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Bright Tin-Lead Electro-Tin Brass PTFE Black NO
1121-11-0113
1121-11-0113
1121-11-0113
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Silver - - PTFE Orange NO
1121-11-0111
1121-11-0111
1121-11-0111
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Silver - - PTFE Brown NO

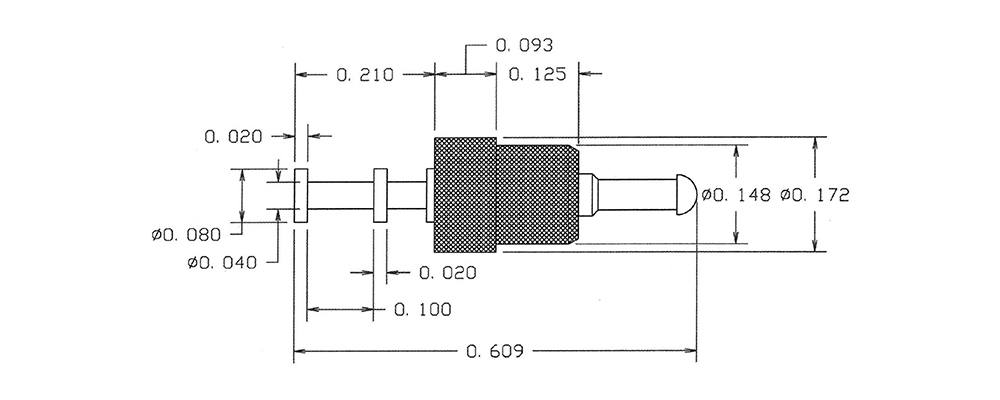

1156-11-0119
1156-11-0119
1156-11-0119
0.609" 0.040 DOUBLE TURRET/PIN Press Fit 1/8 0.136 Brass Silver - - PTFE White YES
1151-11-0512
1151-11-0512
1151-11-0512
0.455" - - Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Red NO
1151-11-0417
1151-11-0417
1151-11-0417
0.455" - - Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Violet YES
