Commercial
Insulated
Pin Terminals

Filter
1100R-52-0417
1100R-52-0417
1100R-52-0417
0.543" 0.040 - Press Fit 7/32 0.172 Brass Electro-Tin - - PTFE Violet YES
1125-52-0313
1125-52-0313
1125-52-0313
0.912" - - 6-32 Nut Up to 3/16 0.144 Brass Gold Electro-Tin Brass PTFE Orange NO
1127-52-04414
1127-52-04414
1127-52-04414
0.875" - - Swage Mount 1/8 0.147 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Yellow YES
1100R-52-0510
1100R-52-0510
1100R-52-0510
0.543" 0.040 - Press Fit 7/32 0.172 Brass Electro Solder - - PTFE Black NO
1100R-52-0514
1100R-52-0514
1100R-52-0514
0.543" 0.040 - Press Fit 7/32 0.172 Brass Electro Solder - - PTFE Yellow NO
1111-52-0518
1111-52-0518
1111-52-0518
0.828" 0.062 DOUBLE Turret/Tip Press Fit Up to 3/16 0.205 Brass Electro Solder - - PTFE Gray NO
1110-52-08810
1110-52-08810
1110-52-08810
0.560" 0.040 Pin/Pin Press Fit 1/16 0.158 Brass Bright Tin-Lead - - PTFE Black NO
1121-11-08810
1121-11-08810
1121-11-08810
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Bright Tin-Lead - - PTFE Black NO
1100R-52-0515
1100R-52-0515
1100R-52-0515
0.543" 0.040 - Press Fit 7/32 0.172 Brass Electro Solder - - PTFE Green NO
1104-52-08818
1104-52-08818
1104-52-08818
0.334" - - Press Fit 3/32 0.086 Brass Bright Tin-Lead - - PTFE Gray NO
1100R-52-0517
1100R-52-0517
1100R-52-0517
0.543" 0.040 - Press Fit 7/32 0.172 Brass Electro Solder - - PTFE Violet NO
1100R-52-0419
1100R-52-0419
1100R-52-0419
0.543" 0.040 - Press Fit 7/32 0.172 Brass Electro-Tin - - PTFE White YES
1100R-52-0519
1100R-52-0519
1100R-52-0519
0.543" 0.040 - Press Fit 7/32 0.172 Brass Electro Solder - - PTFE White NO
1125-52-0518
1125-52-0518
1125-52-0518
0.912" - - 6-32 Nut Up to 3/16 0.144 Brass Electro Solder Electro-Tin Brass PTFE Gray NO
1125-52-08817
1125-52-08817
1125-52-08817
0.912" - - 6-32 Nut Up to 3/16 0.144 Brass Bright Tin-Lead Electro-Tin Brass PTFE Violet NO
1106-52-08814
1106-52-08814
1106-52-08814
0.276" - - Press Fit 3/32 0.086 Brass Bright Tin-Lead - - PTFE Yellow NO
1177-52-0310
1177-52-0310
1177-52-0310
0.515" 0.040 Pin/Pin PRESS LOCK 1/32 - 1/16 0.086 Brass Gold - - PTFE Black YES

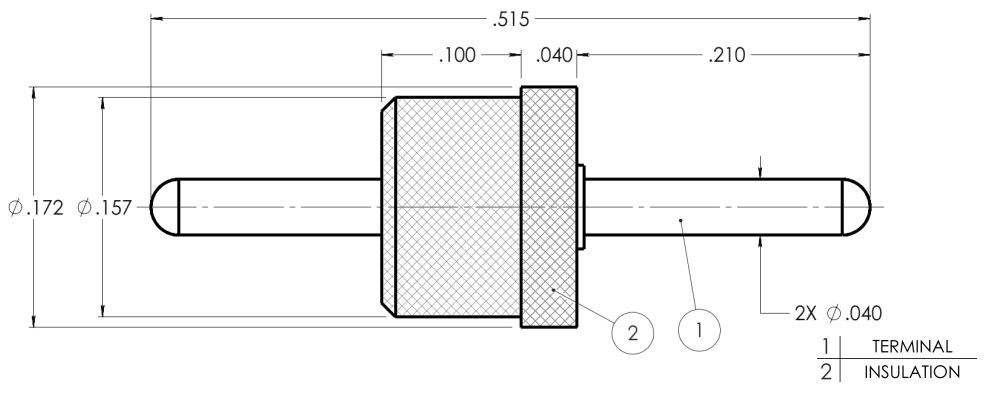

1110-39-0113
1110-39-0113
1110-39-0113
0.515" 0.040 Pin/Pin Press Fit 1/16 0.144 Brass Silver - - PTFE Orange NO
1111-11-0516
1111-11-0516
1111-11-0516
0.531" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Blue NO
1117-52-0113
1117-52-0113
1117-52-0113
0.700" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Silver Nickel Brass PTFE Orange NO
