Commercial
Insulated
Pin Terminals

Filter
1115R-02-0513
1115R-02-0513
1115R-02-0513
0.282" 0.040 - Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Orange NO
1116-26-08819
1116-26-08819
1116-26-08819
0.281" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE White NO

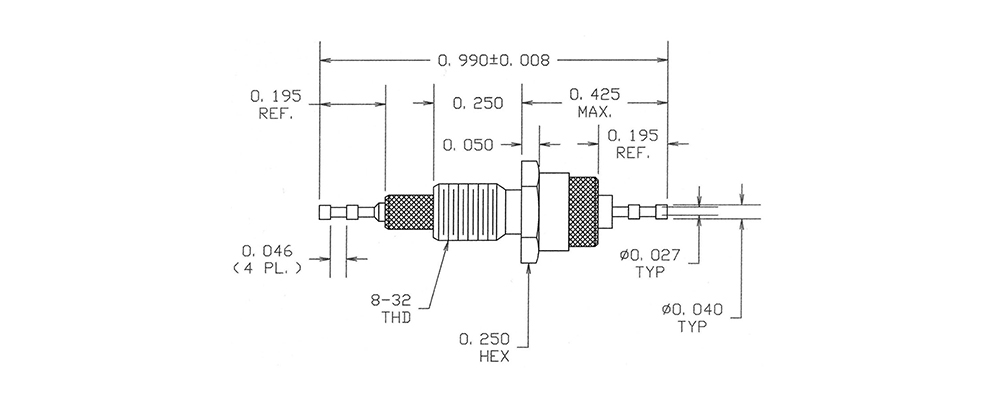

1117-16-0315
1117-16-0315
1117-16-0315
0.990" - Double Turret/Double Turret 8-32 Nut 1/8 0.169 Brass Gold Nickel Brass PTFE Green YES
1117-50-04411
1117-50-04411
1117-50-04411
0.640" 0.029 Pin/Pin 4-40 Nut 1/8 0.120 Brass Bright Tin Nickel Brass PTFE Brown NO
1117-54-0517
1117-54-0517
1117-54-0517
0.785" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Electro Solder Nickel Brass PTFE Violet NO
1118-40-0113
1118-40-0113
1118-40-0113
0.346" - TURRET/SLOTTED Press Fit 3/32 0.093 Brass Silver - - PTFE Orange NO

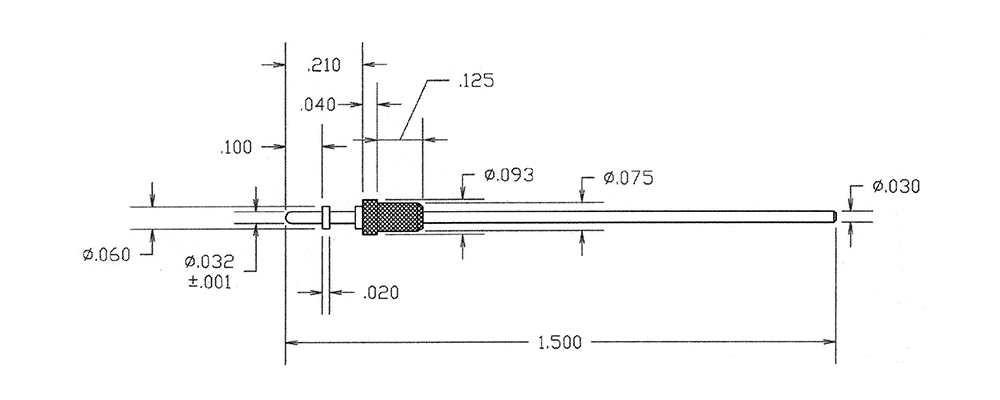

1119-25-0319
1119-25-0319
1119-25-0319
1.500" 0.030 TURRET/PIN Press Fit 3/32 0.070 Brass Gold - - PTFE White YES
1119R-20-04415
1119R-20-04415
1119R-20-04415
0.500" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Green YES
1121-02-08811
1121-02-08811
1121-02-08811
0.350" 0.040 Turret/Tip Press Fit 1/32 0.113 Brass Bright Tin-Lead - - PTFE Brown NO
1121-07-0117
1121-07-0117
1121-07-0117
0.500" 0.040 Turret/Tip Press Fit 3/32 0.136 Brass Silver - - PTFE Violet YES

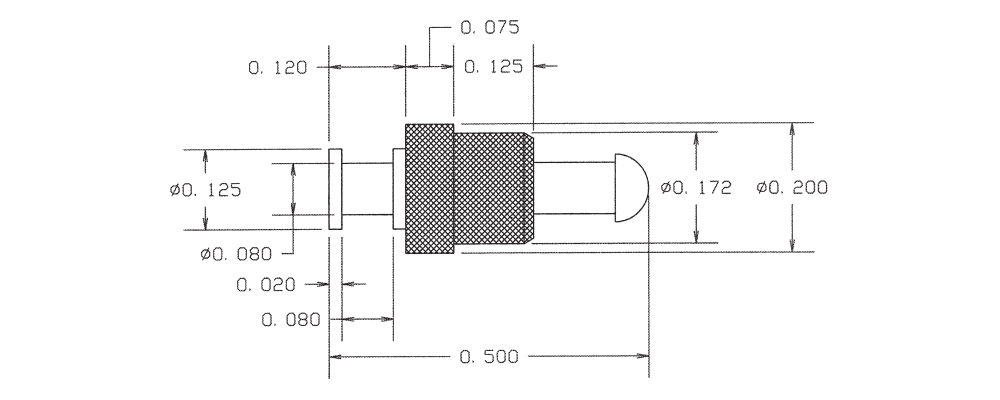

1121-12-0413
1121-12-0413
1121-12-0413
0.500" 0.080 Turret/Tip Press Fit 3/32 0.158 Brass Electro-Tin - - PTFE Orange NO
1121-16-04419
1121-16-04419
1121-16-04419
0.740" 0.050 Turret/Tip Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE White YES
1121-20-08815
1121-20-08815
1121-20-08815
1.115" 0.050 Turret/Tip Press Fit 9/32 0.158 Brass Bright Tin-Lead - - PTFE Green NO

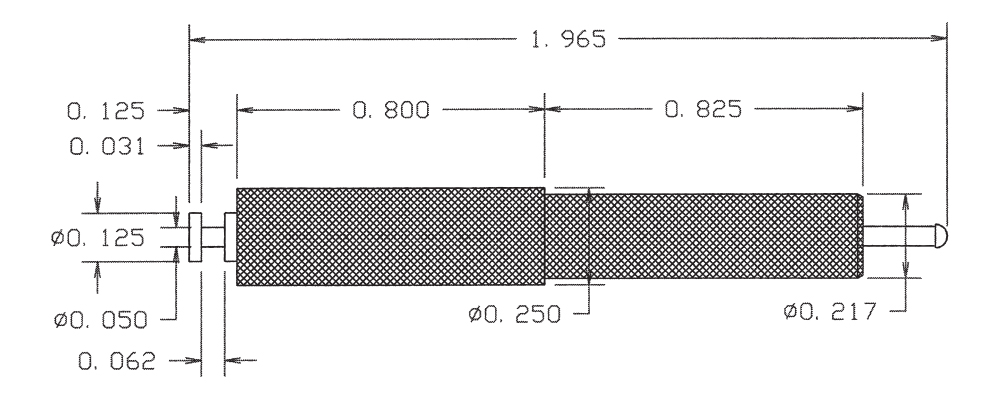

1121-26-0311
1121-26-0311
1121-26-0311
1.965" 0.050 Turret/Tip Press Fit 49/64 0.205 Brass Gold - - PTFE Brown NO
1121-31-0417
1121-31-0417
1121-31-0417
0.520" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Violet YES
1121-52-0513
1121-52-0513
1121-52-0513
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Electro Solder - - PTFE Orange NO
1121R-06-08819
1121R-06-08819
1121R-06-08819
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE White NO
1122-01-0315
1122-01-0315
1122-01-0315
0.250" - - Press Fit 1/64 0.070 Brass Gold - - PTFE Green YES

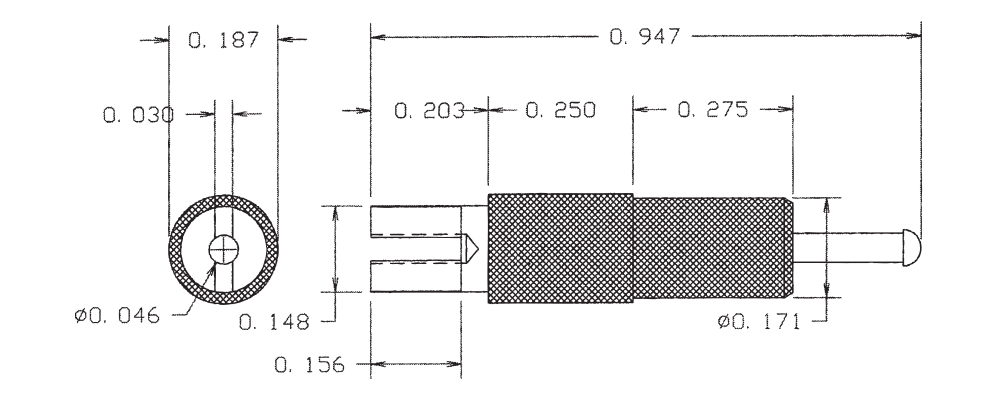

1123-04-04411
1123-04-04411
1123-04-04411
0.947" 0.050 TIP/SLOTTED Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Brown NO
1123-08-0517
1123-08-0517
1123-08-0517
1.197" 0.050 TIP/SLOTTED Press Fit 15/32 0.158 Brass Electro Solder - - PTFE Violet NO
