Commercial
Insulated
Pin Terminals

Filter

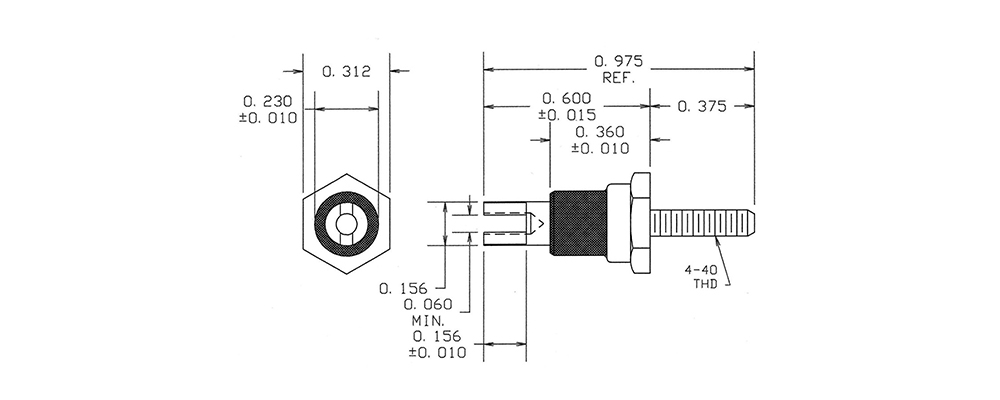

1125-41-0114
1125-41-0114
1125-41-0114
0.975" - - 4-40 Nut Up to 1/4 0.120 Brass Silver Electro-Tin Brass PTFE Yellow NO

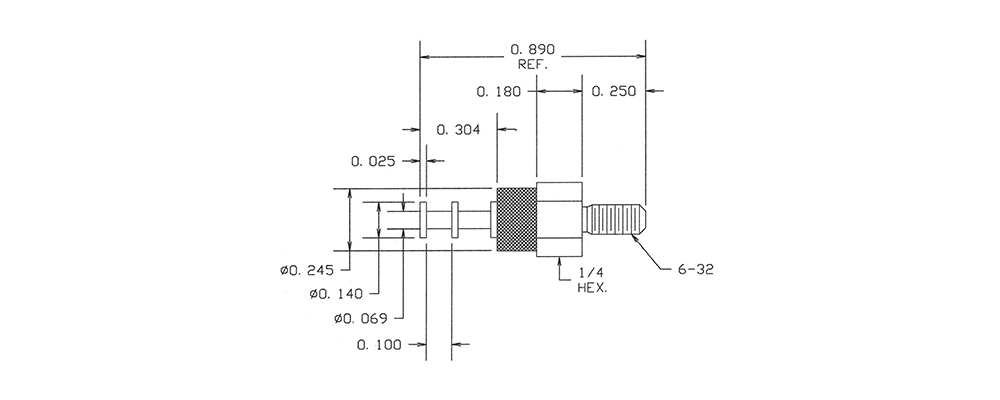

1125-45-0410
1125-45-0410
1125-45-0410
0.890" - - 6-32 Nut 1/8 0.144 Brass Electro-Tin ZINC Brass PTFE Black YES
1125-49-04416
1125-49-04416
1125-49-04416
0.437" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Bright Tin ZINC Brass PTFE Blue YES
1125-53-08812
1125-53-08812
1125-53-08812
0.975" - - 6-32 Nut Up to 1/4 0.144 Brass Bright Tin-Lead Electro-Tin Brass PTFE Red NO
1125-58-0118
1125-58-0118
1125-58-0118
1.172" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Silver ZINC Brass PTFE Gray NO
1125-63-0414
1125-63-0414
1125-63-0414
0.453" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Electro-Tin ZINC Brass PTFE Yellow NO
1125-74-0510
1125-74-0510
1125-74-0510
0.947" - - 6-32 Nut Up to 1/4 0.144 Brass Electro Solder ZINC Brass PTFE Black NO
1125-78-08816
1125-78-08816
1125-78-08816
0.697" - - Swage Mount 3/32 0.194 Brass Bright Tin-Lead ZINC Brass PTFE Blue NO

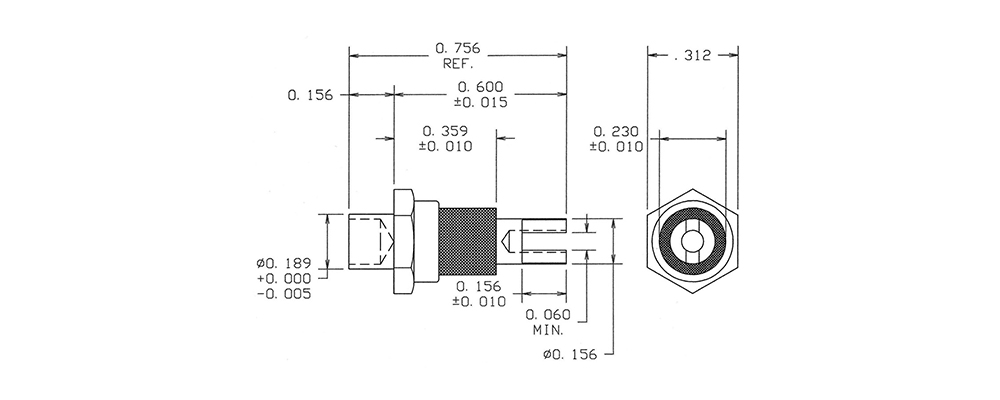

1125-84-0312
1125-84-0312
1125-84-0312
0.756" - - Swage Mount 1/8 0.191 Brass Gold Electro-Tin Brass PTFE Red NO
1125-89-0418
1125-89-0418
1125-89-0418
0.698" - - 4-40 Nut 1/16 0.120 Brass Electro-Tin Electro-Tin Brass PTFE Gray NO
1125-93-0514
1125-93-0514
1125-93-0514
0.594" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro Solder ZINC Brass PTFE Yellow NO
1125-98-0110
1125-98-0110
1125-98-0110
0.467" 0.040 - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Silver ZINC Brass PTFE Black YES
1126-30-0316
1126-30-0316
1126-30-0316
1.172" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Gold ZINC Brass PTFE Blue YES
1126-34-04412
1126-34-04412
1126-34-04412
0.766" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin ZINC Brass PTFE Red NO
1126-38-0518
1126-38-0518
1126-38-0518
1.469" - - 4-40 Nut 1/8 0.120 Brass Electro Solder ZINC Brass PTFE Gray NO

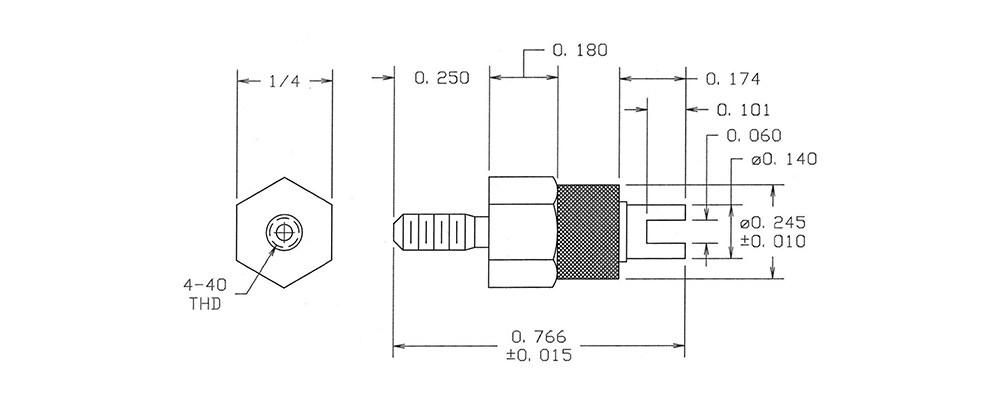

1126-43-0114
1126-43-0114
1126-43-0114
0.766" - - 4-40 Nut 1/8 0.120 Brass Silver ZINC Brass PTFE Yellow NO

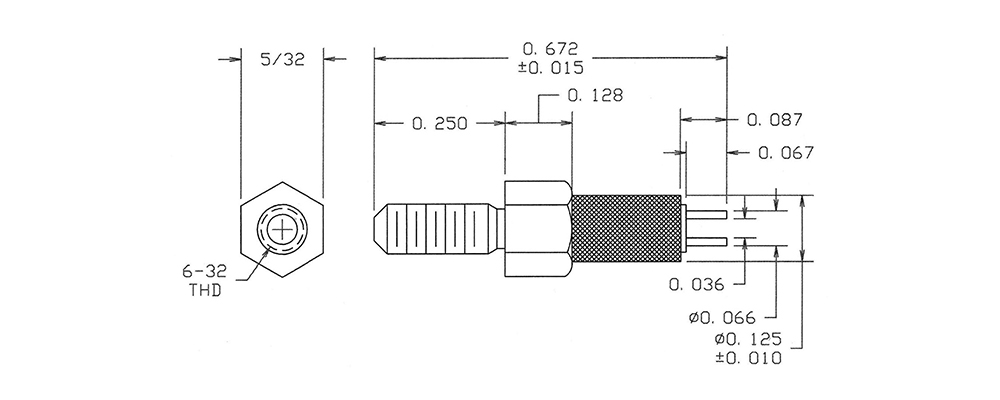

1126-47-0410
1126-47-0410
1126-47-0410
0.672" - - 6-32 Nut 1/8 0.144 Brass Electro-Tin ZINC Brass PTFE Black YES
1127-04-04416
1127-04-04416
1127-04-04416
0.719" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin Electro-Tin Brass DIALLYL PHTHALATE Blue YES
1127-08-08812
1127-08-08812
1127-08-08812
0.884" 0.070 - 4-40 Nut 3/32 0.120 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Red NO
1127-13-0118
1127-13-0118
1127-13-0118
0.899" 0.070 - Swage Mount 3/16 0.104 Brass Silver ZINC Brass DIALLYL PHTHALATE Gray YES
