Commercial
Insulated
Pin Terminals

Filter
1106-07-0514
1106-07-0514
1106-07-0514
0.602" - - Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Yellow NO

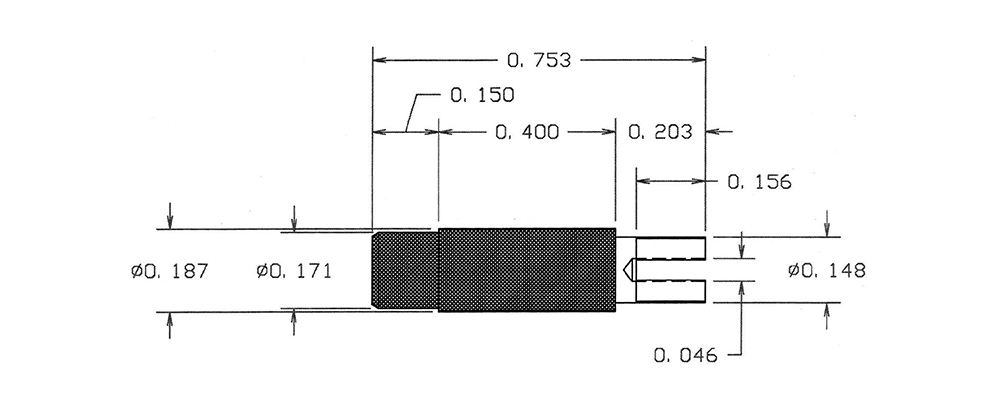

1106-12-0110
1106-12-0110
1106-12-0110
0.753" - - Press Fit 1/8 0.158 Brass Silver - - PTFE Black YES

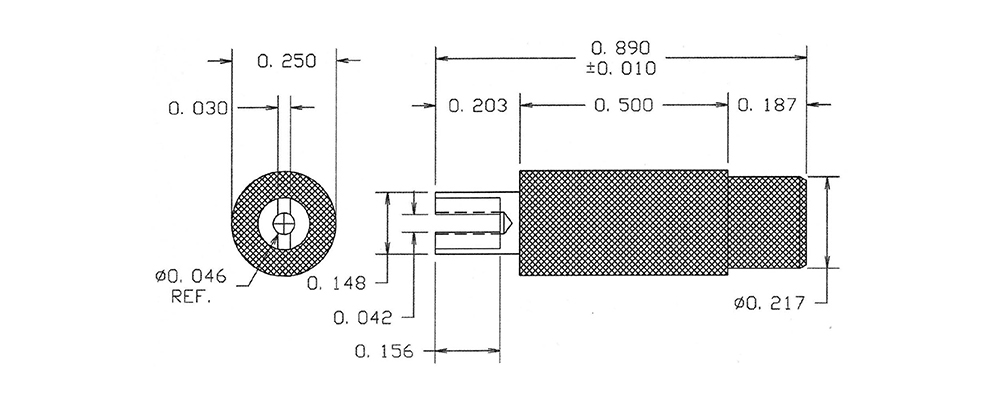

1106-16-0316
1106-16-0316
1106-16-0316
0.890" - - Press Fit 5/32 0.205 Brass Gold - - PTFE Blue YES
1106-22-04412
1106-22-04412
1106-22-04412
0.375" - - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Red NO
1106-52-0518
1106-52-0518
1106-52-0518
0.276" - - Press Fit 3/32 0.086 Brass Electro Solder - - PTFE Gray NO
1106R-24-0114
1106R-24-0114
1106R-24-0114
0.890" - - Press Fit 5/32 0.158 Brass Silver - - PTFE Yellow NO
1106R-51-0410
1106R-51-0410
1106R-51-0410
0.150" - - Press Fit 1/32 0.113 Brass Electro-Tin - - PTFE Black YES
1107-03-04416
1107-03-04416
1107-03-04416
0.819" 0.040 Pin/Pin Press Fit Up to 3/16 0.136 Brass Bright Tin - - PTFE Blue YES
1107-08-08812
1107-08-08812
1107-08-08812
0.696" 0.040 Pin/Pin Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Red NO

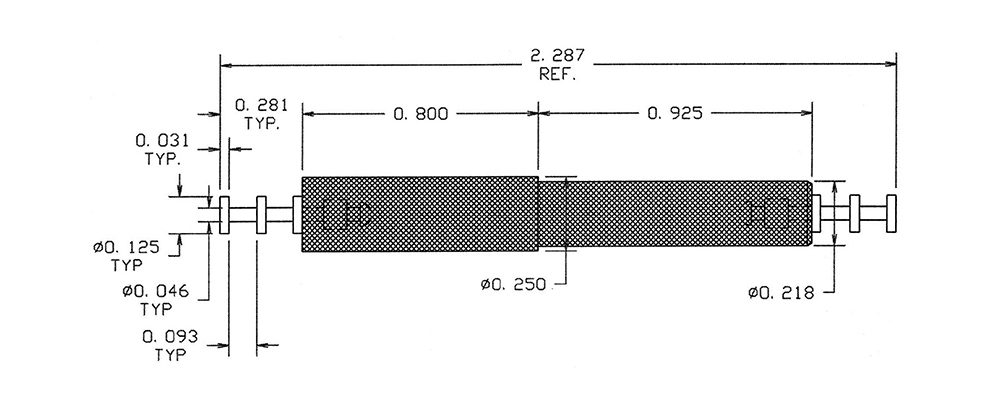

1108-02-0118
1108-02-0118
1108-02-0118
2.287" - Double Turret/Double Turret Press Fit 7/8 0.205 Brass Silver - - PTFE Gray NO
1108-06-0414
1108-06-0414
1108-06-0414
0.819" - Double Turret/Double Turret Press Fit Up to 3/16 0.174 Brass Electro-Tin - - PTFE Yellow NO
1110-02-0510
1110-02-0510
1110-02-0510
0.438" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Black NO
1110-06-08816
1110-06-08816
1110-06-08816
0.987" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Blue NO

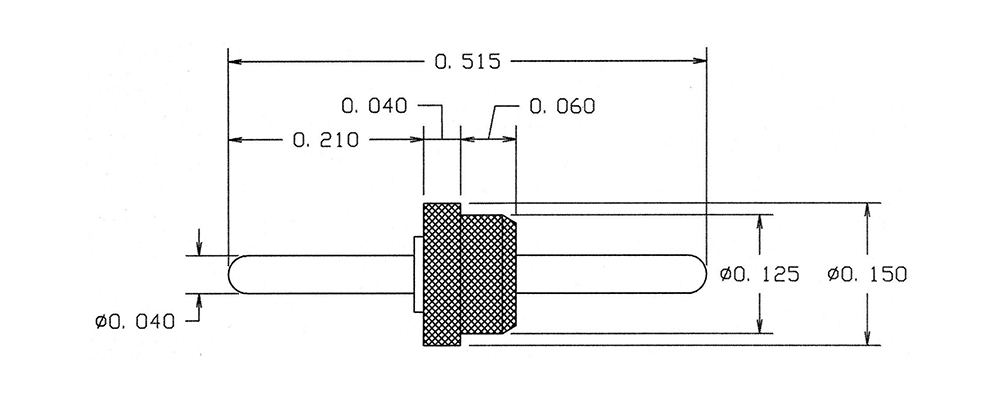

1110-11-0312
1110-11-0312
1110-11-0312
0.515" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Gold - - PTFE Red NO

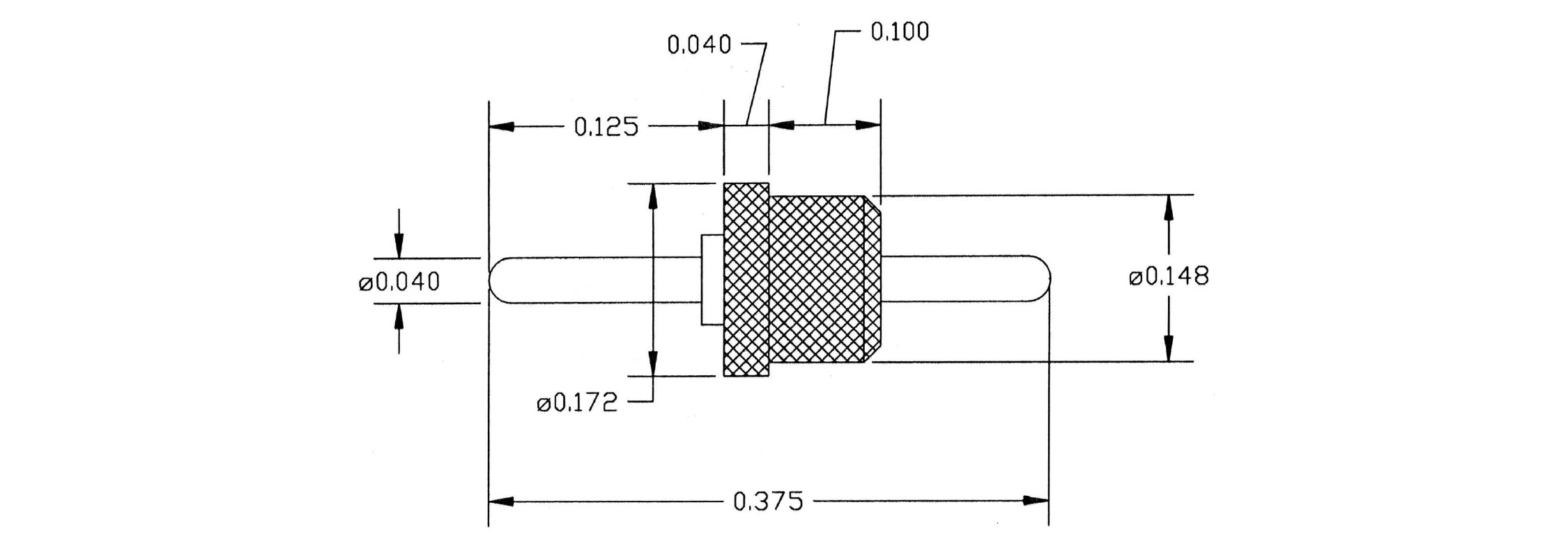

1110-16-0418
1110-16-0418
1110-16-0418
0.375" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Gray NO
1110-20-0514
1110-20-0514
1110-20-0514
0.443" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Yellow NO
1110-25-0110
1110-25-0110
1110-25-0110
0.535" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Silver - - PTFE Black YES

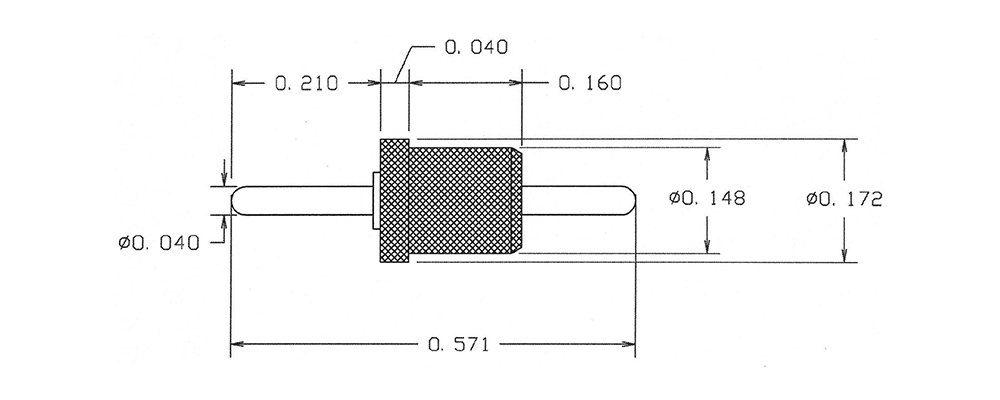

1110-29-0316
1110-29-0316
1110-29-0316
0.571" 0.040 Pin/Pin Press Fit 1/8 0.136 Brass Gold - - PTFE Blue YES
1110-33-04412
1110-33-04412
1110-33-04412
0.725" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Red NO
1110-40-0518
1110-40-0518
1110-40-0518
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Electro Solder - - PTFE Gray NO
