Commercial
Insulated
Pin Terminals

Filter

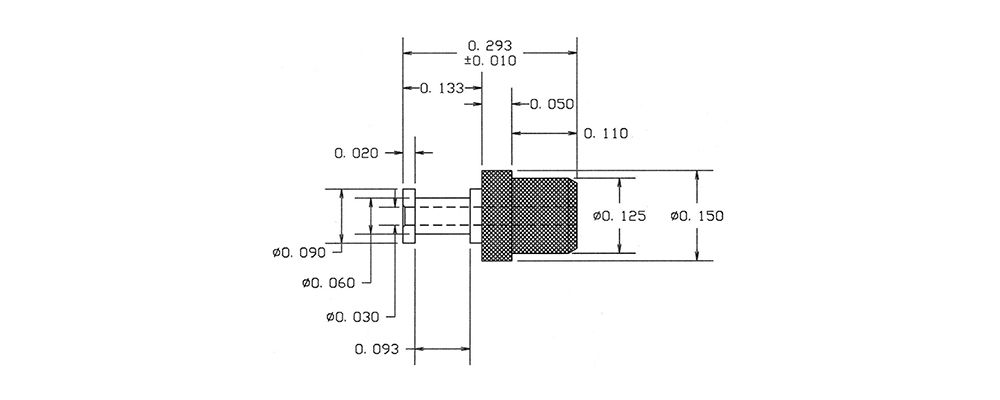

1112-09-0414
1112-09-0414
1112-09-0414
0.293" - - Press Fit 1/64 0.113 Brass Electro-Tin - - PTFE Yellow NO
1112-14-0510
1112-14-0510
1112-14-0510
0.293" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Black NO
1112-65-08816
1112-65-08816
1112-65-08816
0.155" - - Press Fit 1/32 0.058 Brass Bright Tin-Lead - - PTFE Blue NO

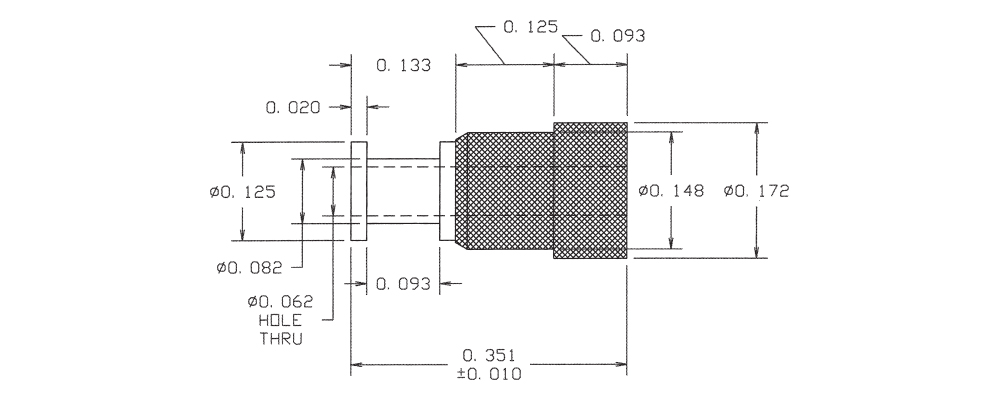

1112R-15-0312
1112R-15-0312
1112R-15-0312
0.351" - - Press Fit 3/32 0.136 Brass Gold - - PTFE Red NO
1112R-62-0418
1112R-62-0418
1112R-62-0418
0.260" - - Press Fit 3/32 0.086 Brass Electro-Tin - - PTFE Gray NO
1113-03-0514
1113-03-0514
1113-03-0514
0.333" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Yellow NO

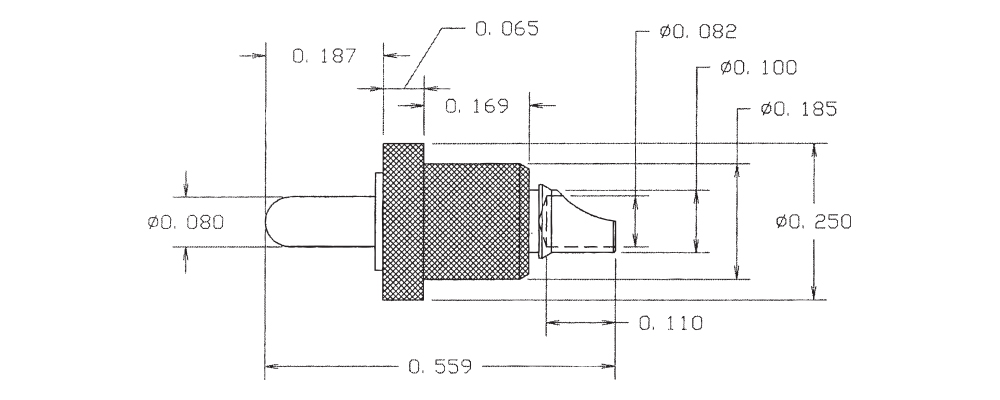

1113-58-0110
1113-58-0110
1113-58-0110
0.559" 0.080 PIN/Solder CUP Press Fit 1/8 0.172 Brass Silver - - PTFE Black YES
1114-04-0316
1114-04-0316
1114-04-0316
0.225" 0.040 - Press Fit 1/32 0.086 Brass Gold - - PTFE Blue YES
1114-08-04412
1114-08-04412
1114-08-04412
0.310" 0.040 - Press Fit 3/32 0.108 Brass Bright Tin - - PTFE Red NO
1114-50-0518
1114-50-0518
1114-50-0518
0.270" 0.060 - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Gray NO
1114-75-0114
1114-75-0114
1114-75-0114
0.367" - - Press Fit 1/16 0.158 Brass Silver - - PTFE Yellow NO
1114R-14-0410
1114R-14-0410
1114R-14-0410
0.193" 0.080 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Black YES
1114R-20-04416
1114R-20-04416
1114R-20-04416
0.310" 0.040 - Press Fit 1/64 0.136 Brass Bright Tin - - PTFE Blue YES
1114R-80-08812
1114R-80-08812
1114R-80-08812
0.380" 0.055 - Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Red NO
1115-07-0118
1115-07-0118
1115-07-0118
0.287" 0.060 - Press Fit 1/16 0.205 Brass Silver - - PTFE Gray NO
1115-51-0414
1115-51-0414
1115-51-0414
0.453" - - Press Fit 1/16 0.187 Brass Electro-Tin - - PTFE Yellow NO
1115R-02-0510
1115R-02-0510
1115R-02-0510
0.282" 0.040 - Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Black NO
1116-26-08816
1116-26-08816
1116-26-08816
0.281" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Blue NO

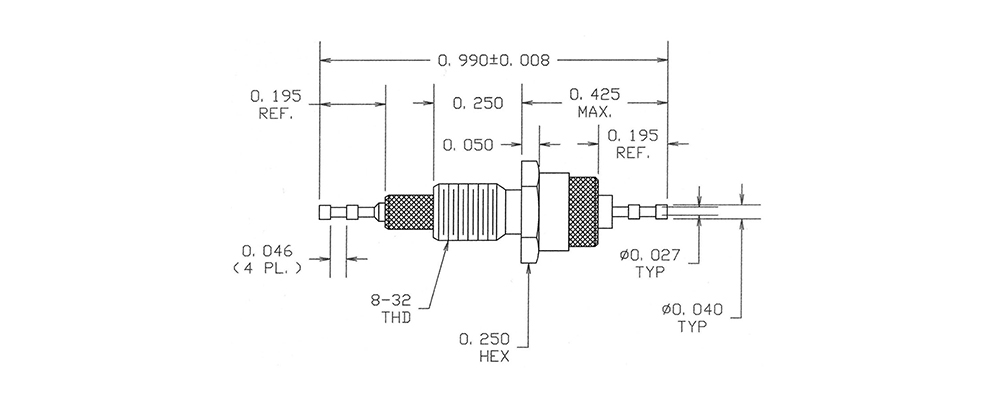

1117-16-0312
1117-16-0312
1117-16-0312
0.990" - Double Turret/Double Turret 8-32 Nut 1/8 0.169 Brass Gold Nickel Brass PTFE Red NO
1117-50-0418
1117-50-0418
1117-50-0418
0.640" 0.029 Pin/Pin 4-40 Nut 1/8 0.120 Brass Electro-Tin Nickel Brass PTFE Gray NO
