Commercial
Insulated
Pin Terminals

Filter
1130-07-0514
1130-07-0514
1130-07-0514
2.083" (0.030)/(0.050) Pin/Pin Press Fit Up to 1/4 0.172 Brass Electro Solder - - PTFE Yellow NO
1130R-06-0110
1130R-06-0110
1130R-06-0110
1.937" (0.030)/(0.050) Pin/Pin Press Fit 3/32 0.172 Brass Silver - - PTFE Black YES

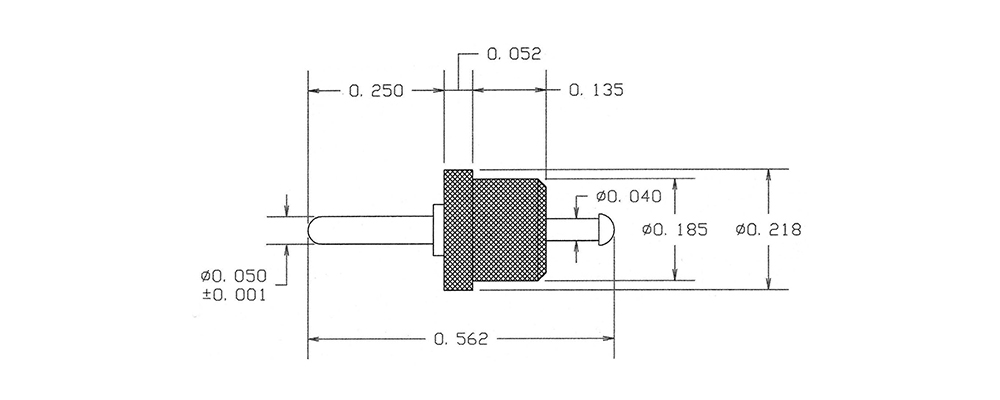

1131-03-0316
1131-03-0316
1131-03-0316
0.562" (0.040)/(0.050) Pin/Tip Press Fit 3/32 0.172 Brass Gold - - PTFE Blue YES

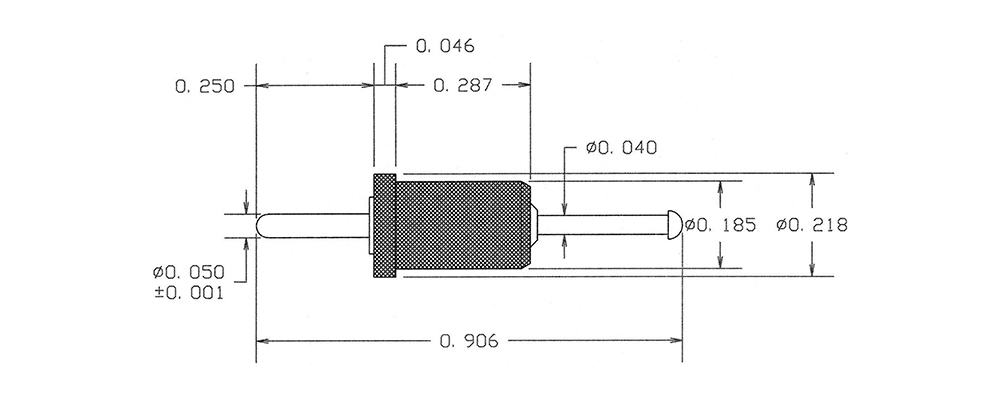

1131-07-04412
1131-07-04412
1131-07-04412
0.906" (0.040)/(0.050) Pin/Tip Press Fit Up to 1/4 0.172 Brass Bright Tin - - PTFE Red NO
1132-01-0518
1132-01-0518
1132-01-0518
0.645" 0.090 - Solder 7/32 0.0935 Brass Electro Solder - - PTFE Gray NO
1133-03-0114
1133-03-0114
1133-03-0114
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 1/16 0.086 Brass Silver - - PTFE Yellow NO

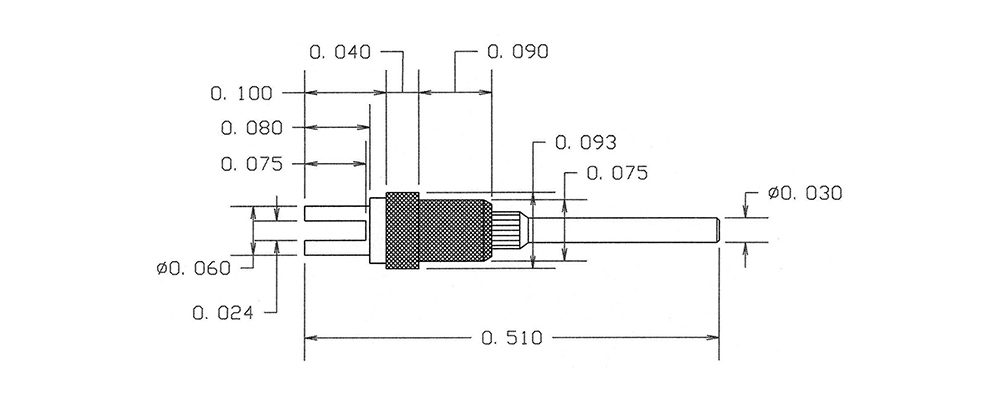

1135-01-0410
1135-01-0410
1135-01-0410
0.510" 0.030 Pin/Slotted Press Fit 1/32 0.070 Brass Electro-Tin - - PTFE Black YES
1135-05-04416
1135-05-04416
1135-05-04416
0.552" 0.030 (+0.000/-0.005) Pin/Slotted Press Fit 1/16 0.070 Brass Bright Tin - - PTFE Blue YES
1135-09-08812
1135-09-08812
1135-09-08812
0.400" 0.030 Pin/Slotted Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Red NO
1137-03-0118
1137-03-0118
1137-03-0118
0.320" 0.030 Pin/Slotted Press Fit 1/16 0.070 Brass Silver - - PTFE Gray NO

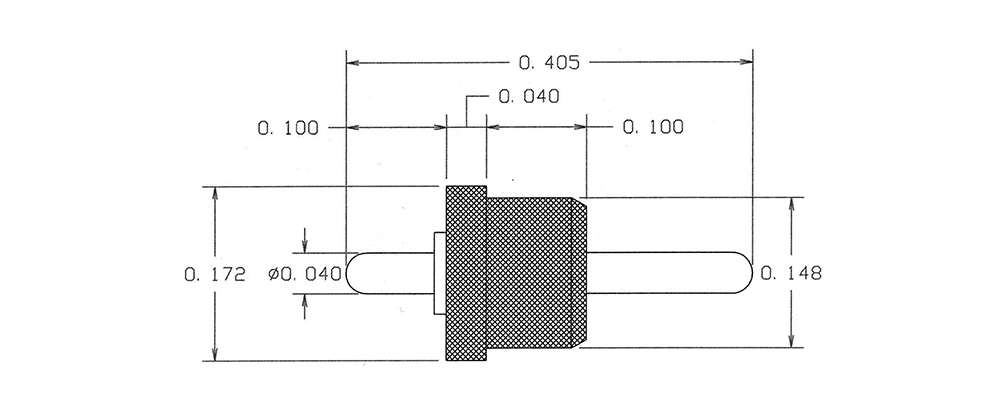

1139-04-0414
1139-04-0414
1139-04-0414
0.405" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Yellow NO
1151-05-0510
1151-05-0510
1151-05-0510
0.350" - - Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Black NO
1151-11-08816
1151-11-08816
1151-11-08816
0.455" - - Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Blue NO

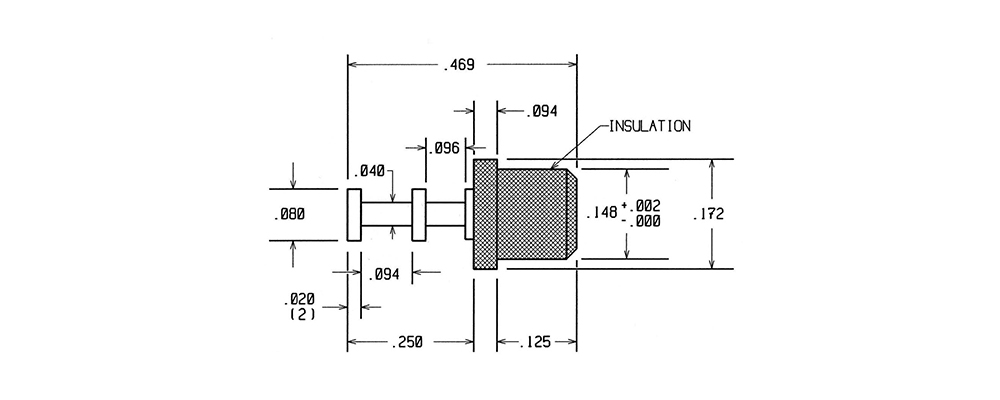

1151-20-0312
1151-20-0312
1151-20-0312
0.469" - - Press Fit 3/32 0.136 Brass Gold - - PTFE Red NO
1151-39-0418
1151-39-0418
1151-39-0418
0.525" - - Press Fit 1/8 0.158 Brass Electro-Tin - - PTFE Gray NO

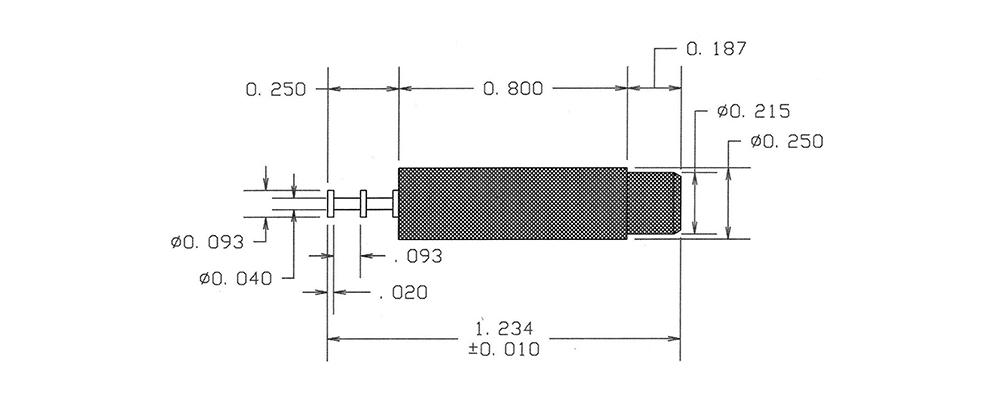

1151-51-0514
1151-51-0514
1151-51-0514
1.234" - - Press Fit 5/32 0.203 Brass Electro Solder - - PTFE Yellow NO

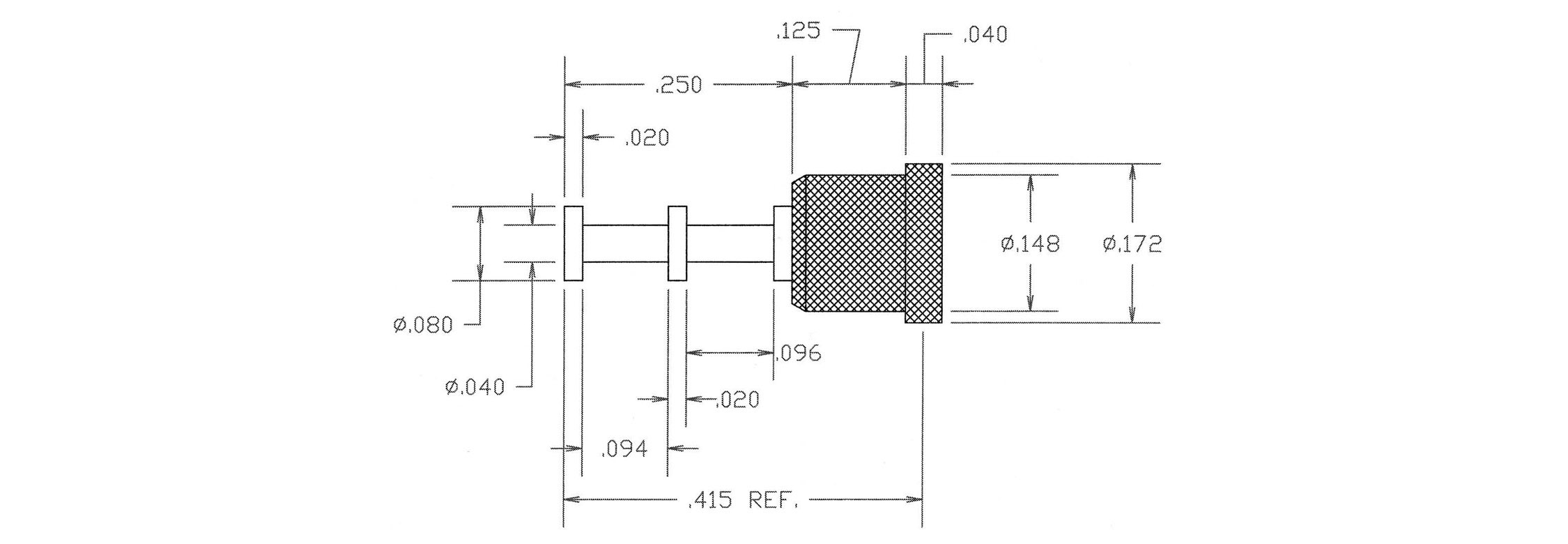

1151R-10-0110
1151R-10-0110
1151R-10-0110
0.415" - - Press Fit 3/32 0.136 Brass Silver - - PTFE Black YES

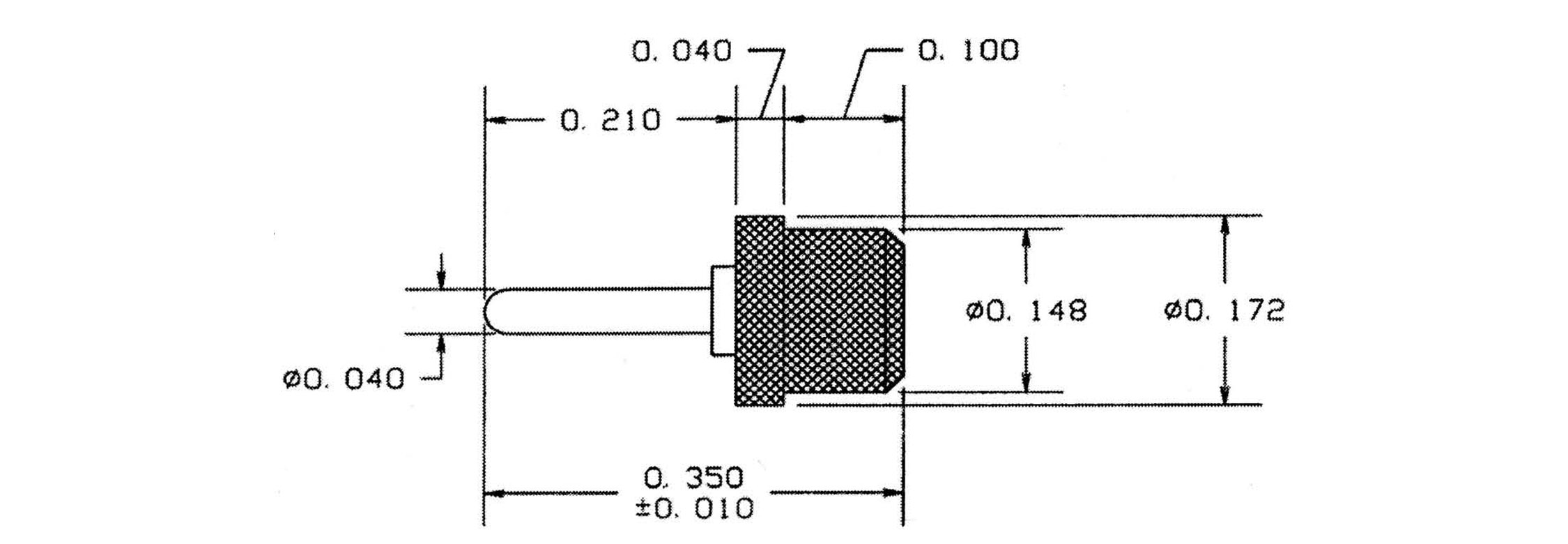

1152-01-0316
1152-01-0316
1152-01-0316
0.350" 0.040 - Press Fit 1/16 0.136 Brass Gold - - PTFE Blue YES

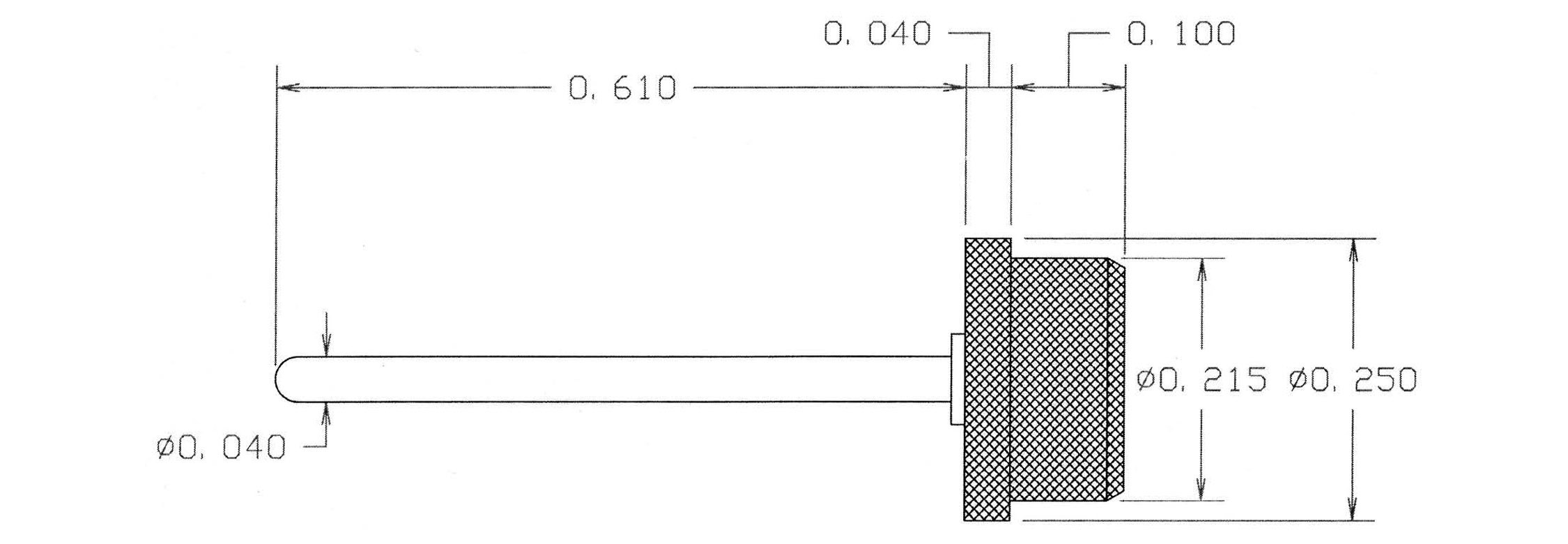

1152-31-04412
1152-31-04412
1152-31-04412
0.750" 0.040 - Press Fit 1/16 0.203 Brass Bright Tin - - PTFE Red NO
1152R-17-0518
1152R-17-0518
1152R-17-0518
0.615" 0.040 - Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Gray NO
