Commercial
Insulated
Pin Terminals

Filter

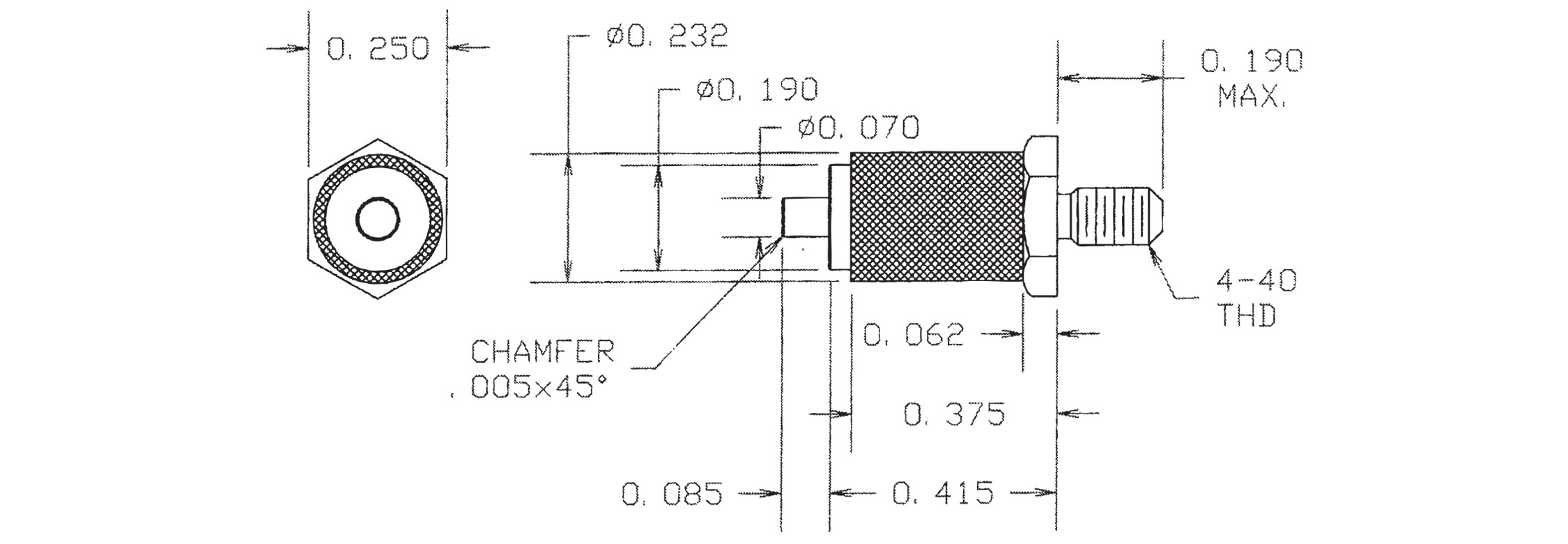

1170-23-0114
1170-23-0114
1170-23-0114
0.500" 0.070 - 4-40 Nut 1/16 0.120 Brass Silver ZINC Brass DIALLYL PHTHALATE Yellow YES
1175-013-0410
1175-013-0410
1175-013-0410
0.672" 0.047 Pin/Pin PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Black YES
1175-301-04416
1175-301-04416
1175-301-04416
0.460" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Blue YES

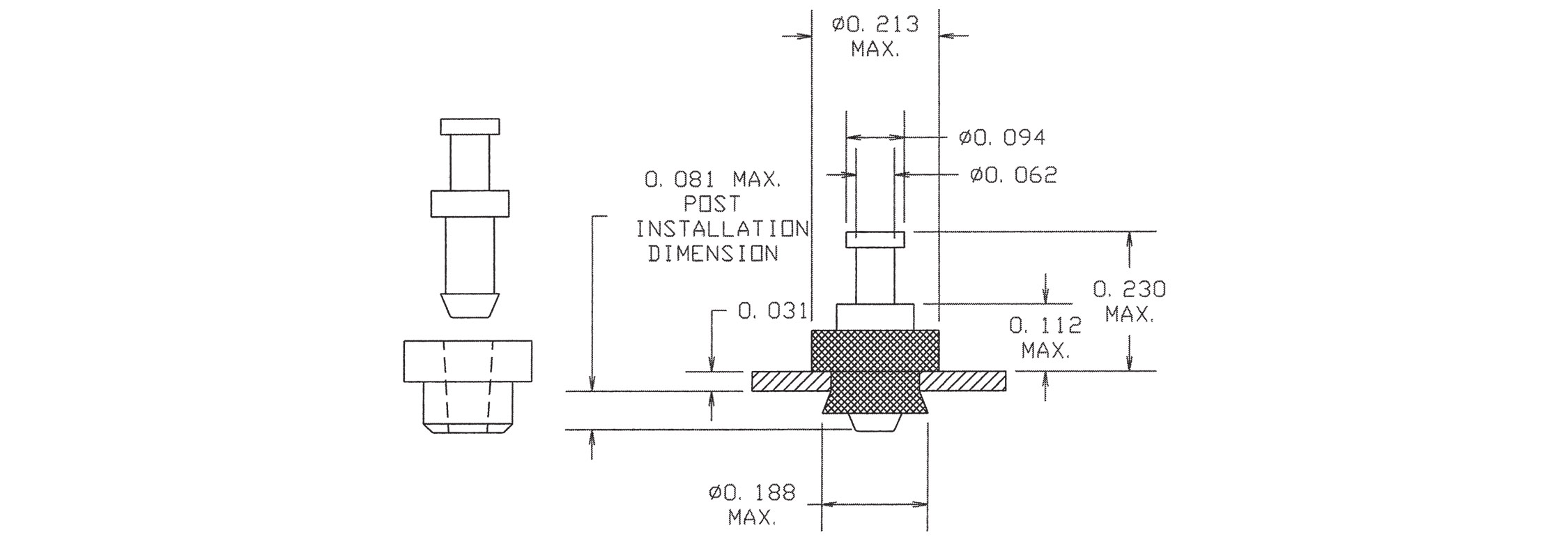

1175-351-08812
1175-351-08812
1175-351-08812
0.342" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Red NO
1175-373-0118
1175-373-0118
1175-373-0118
0.768" 0.040 DOUBLE TURRET/PIN PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Silver - - PTFE Gray NO
1175-404-0414
1175-404-0414
1175-404-0414
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Yellow NO
1175-414-0510
1175-414-0510
1175-414-0510
0.642" - DOUBLE Turret/Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Black NO
1175-424-08816
1175-424-08816
1175-424-08816
0.756" - Double Turret/Double Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Blue NO

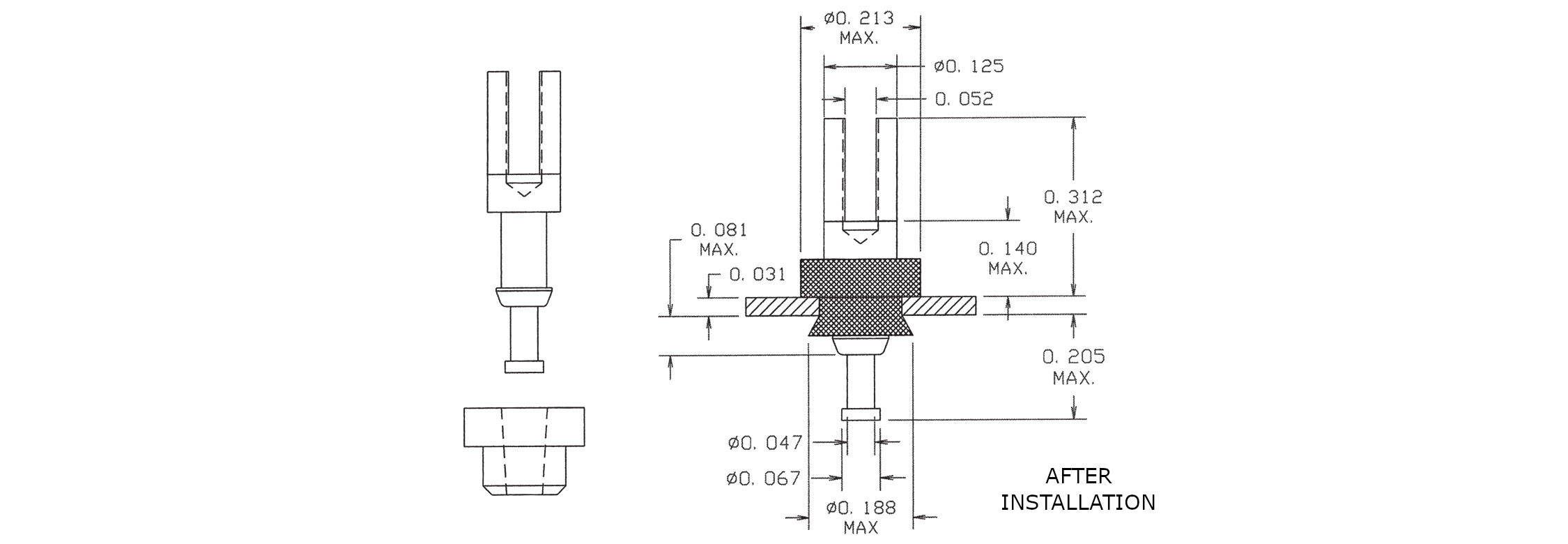

1175-441-0312
1175-441-0312
1175-441-0312
0.548" - TURRET/SLOTTED PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Gold - - PTFE Red NO
1175-451-0418
1175-451-0418
1175-451-0418
0.662" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Gray NO
1175-462-0514
1175-462-0514
1175-462-0514
0.392" - - PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Yellow NO
1175-481-0110
1175-481-0110
1175-481-0110
0.678" - DOUBLE Turret/Turret PRESS LOCK 1/32 0.188 (+0.003/-0.001) Brass Silver - - PTFE Black YES
1175-492-0316
1175-492-0316
1175-492-0316
0.831" - Double Turret/Double Turret PRESS LOCK 1/16 0.188 (+0.003/-0.001) Brass Gold - - PTFE Blue YES
1175-601-04412
1175-601-04412
1175-601-04412
0.424" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Red NO
1175-702-0518
1175-702-0518
1175-702-0518
0.474" - - PRESS LOCK 1/16 0.154 (+0.003/-0.001) Brass Electro Solder - - PTFE Gray NO
1175-713-0114
1175-713-0114
1175-713-0114
0.611" - DOUBLE Turret/Turret PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Silver - - PTFE Yellow NO

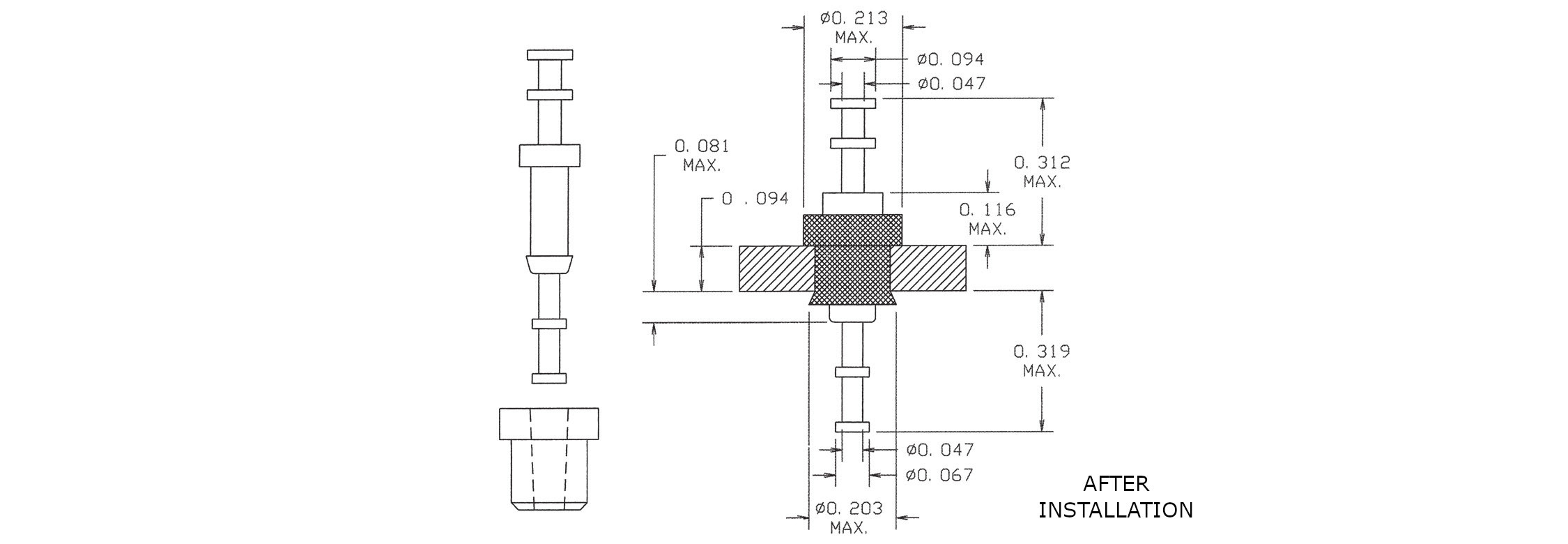

1175-723-0410
1175-723-0410
1175-723-0410
0.725" - Double Turret/Double Turret PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Electro-Tin - - PTFE Black YES

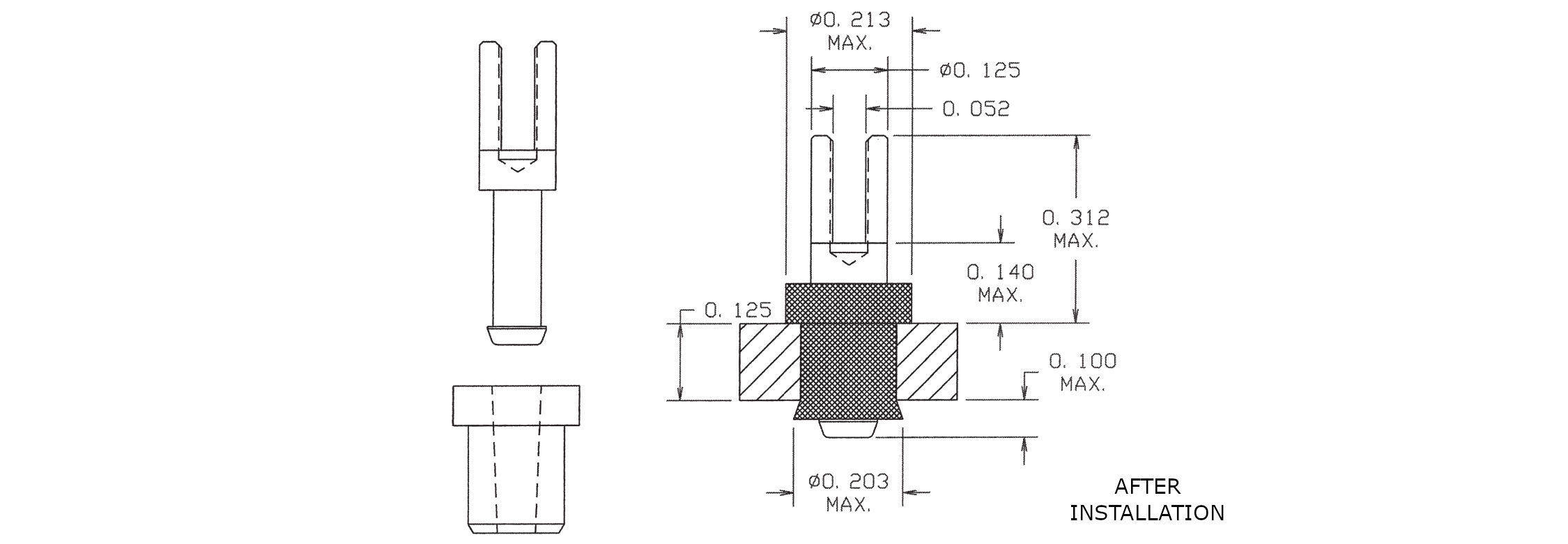

1175-734-04416
1175-734-04416
1175-734-04416
0.537" - - PRESS LOCK 1/8 0.154 (+0.003/-0.001) Brass Bright Tin - - PTFE Blue YES
1175-751-08812
1175-751-08812
1175-751-08812
0.655" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.154 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Red NO
1175-763-0118
1175-763-0118
1175-763-0118
0.419" - - PRESS LOCK 3/32 0.154 (+0.003/-0.001) Brass Silver - - PTFE Gray NO
