Commercial
Insulated
Pin Terminals

Filter
1102-44-04416
1102-44-04416
1102-44-04416
0.750" - - Press Fit 1/16 0.152 Brass Bright Tin - - PTFE Blue YES
09-2078-1-08816
09-2078-1-08816
09-2078-1-08816
0.856" 0.025 SQ. TURRET/PIN Press Fit 5/64 0.086 Brass Bright Tin-Lead - - PTFE Blue NO
1110-39-08812
1110-39-08812
1110-39-08812
0.515" 0.040 Pin/Pin Press Fit 1/16 0.144 Brass Bright Tin-Lead - - PTFE Red NO

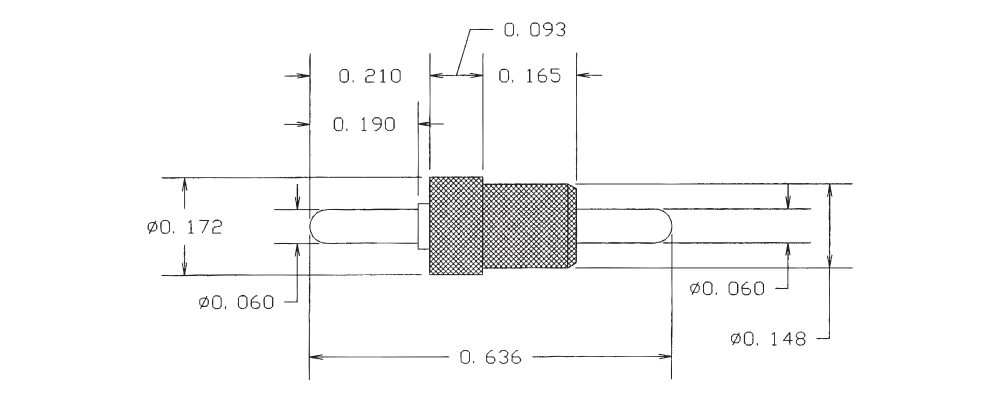

09-2095-1-0312
09-2095-1-0312
09-2095-1-0312
0.636" 0.060 ± 0.010 Pin/Pin Press Fit 1/8 0.136 Brass Gold - - PTFE Red NO

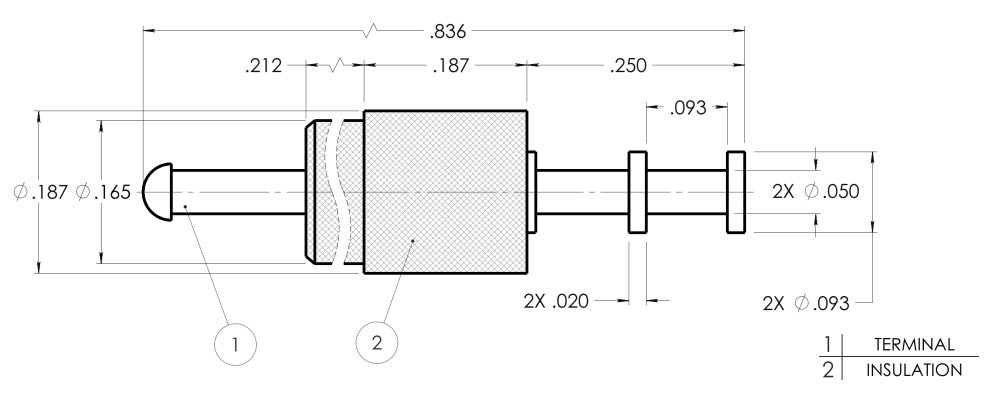

1111-25-0118
1111-25-0118
1111-25-0118
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.152 Brass Silver - - PTFE Gray NO
09-2104-1-0418
09-2104-1-0418
09-2104-1-0418
0.460" 0.036 Pin/Pin Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Gray NO

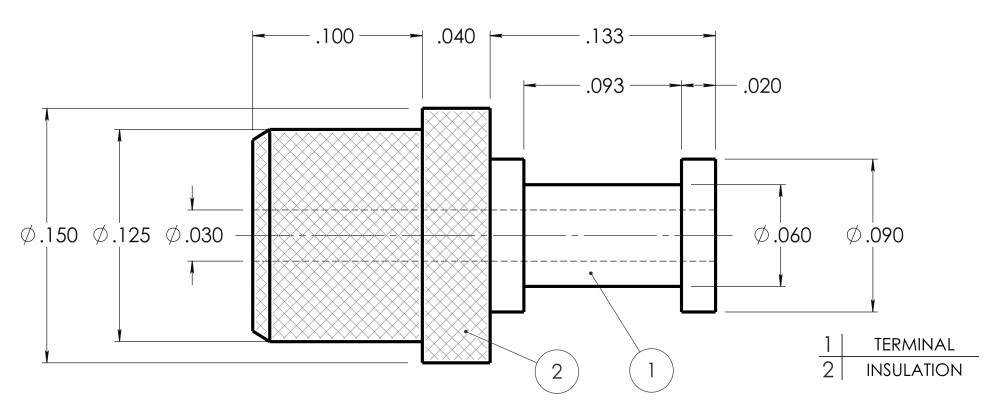

1112-07-0414
1112-07-0414
1112-07-0414
0.273" - - Press Fit 1/16 0.113 Brass Electro-Tin - - PTFE Yellow NO
09-2112-1-0514
09-2112-1-0514
09-2112-1-0514
0.838" - - 6-32 Nut 1/8 0.144 Brass Electro Solder Nickel Brass PTFE Yellow NO
1113-54-0510
1113-54-0510
1113-54-0510
0.327" 0.030 Pin/Pin Press Fit 1/16 0.070 Brass Electro Solder - - PTFE Black NO

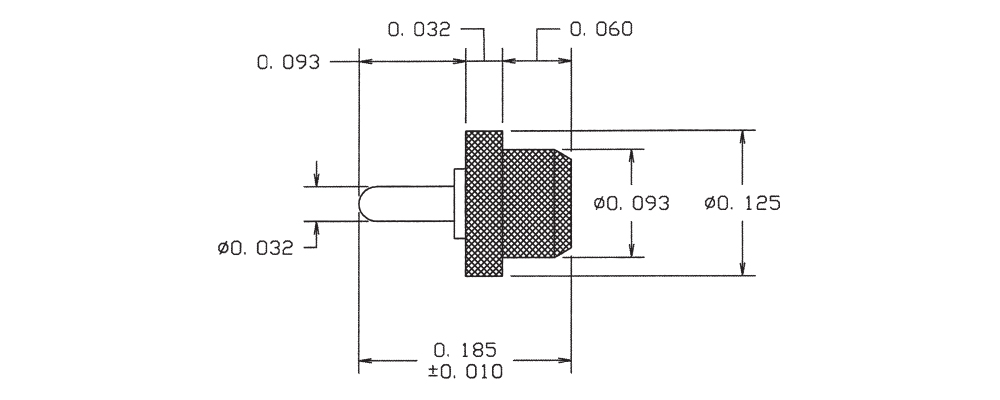

1100-01-0110
1100-01-0110
1100-01-0110
0.185" 0.032 - Press Fit 1/32 0.086 Brass Silver - - PTFE Black YES
1114-18-08816
1114-18-08816
1114-18-08816
0.250" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Blue NO
1100-05-0316
1100-05-0316
1100-05-0316
0.262" 0.040 - Press Fit 3/64 0.086 Brass Gold - - PTFE Blue YES
1114-25-0312
1114-25-0312
1114-25-0312
0.413" 0.085 - Press Fit 1/8 0.136 Brass Gold - - PTFE Red NO
1100-09-04412
1100-09-04412
1100-09-04412
0.350" 0.040 - Press Fit 3/32 0.098 Brass Bright Tin - - PTFE Red NO
1114R-16-0418
1114R-16-0418
1114R-16-0418
0.296" 0.040 - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Gray NO
1100-14-0518
1100-14-0518
1100-14-0518
0.280" 0.040 - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Gray NO
1123R-75-0514
1123R-75-0514
1123R-75-0514
0.426" - - Press Fit 1/8 0.172 Brass Electro Solder - - PTFE Yellow NO

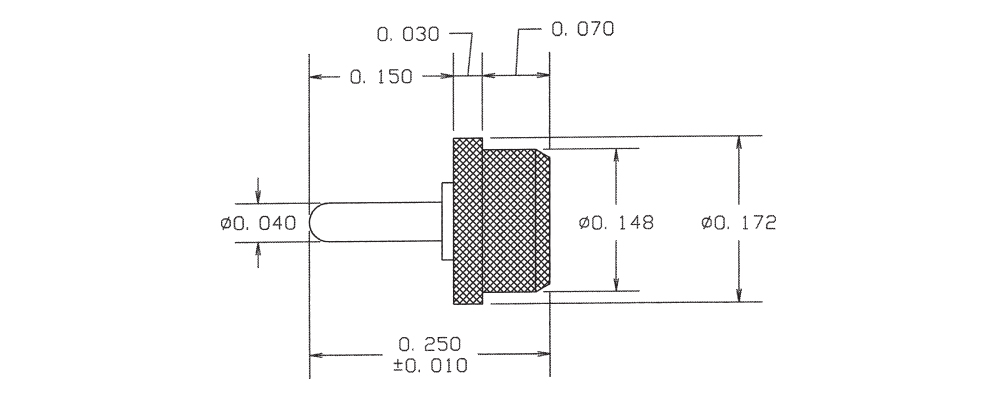

1100-19-0114
1100-19-0114
1100-19-0114
0.250" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Yellow NO

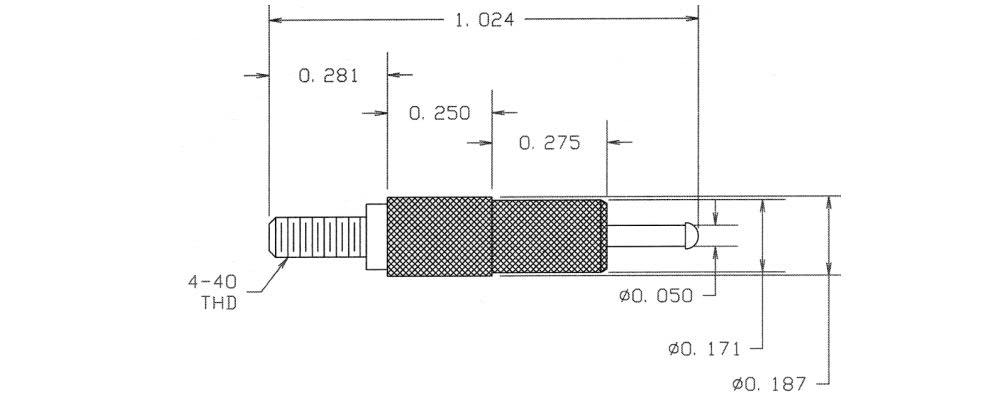

1124-11-0110
1124-11-0110
1124-11-0110
1.024" 0.050 THREAD/TIP Press Fit Up to 1/4 0.158 Brass Silver - - PTFE Black YES

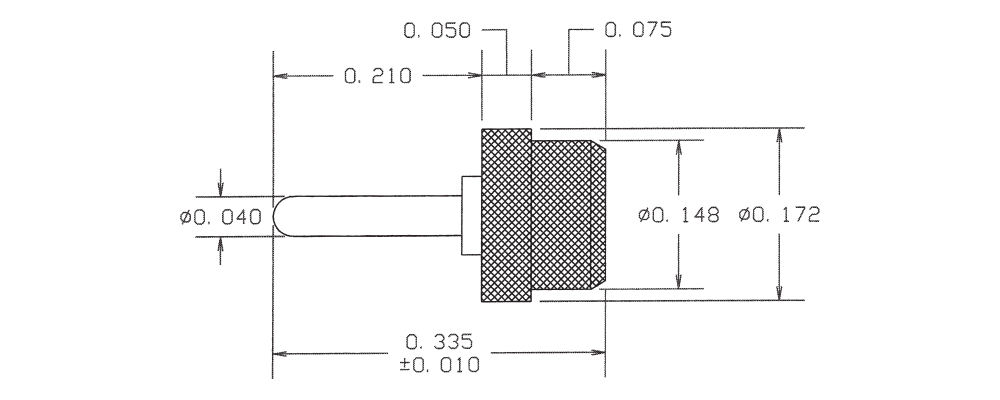

1100-24-0410
1100-24-0410
1100-24-0410
0.335" 0.040 - Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Black YES
