Commercial
Insulated
Pin Terminals

Filter
1115R-02-04418
1115R-02-04418
1115R-02-04418
0.282" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Gray NO
1116-26-08814
1116-26-08814
1116-26-08814
0.281" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO
1117-16-0310
1117-16-0310
1117-16-0310
0.990" - Double Turret/Double Turret 8-32 Nut 1/8 0.169 Brass Gold Nickel Brass PTFE Black YES
1117-50-0416
1117-50-0416
1117-50-0416
0.640" 0.029 Pin/Pin 4-40 Nut 1/8 0.120 Brass Electro-Tin Nickel Brass PTFE Blue YES
1117-54-0512
1117-54-0512
1117-54-0512
0.785" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Electro Solder Nickel Brass PTFE Red NO
1118-32-08818
1118-32-08818
1118-32-08818
0.346" - TURRET/SLOTTED Press Fit 3/32 0.093 Brass Bright Tin-Lead - - PTFE Gray NO
1119-25-0314
1119-25-0314
1119-25-0314
1.500" 0.030 TURRET/PIN Press Fit 3/32 0.070 Brass Gold - - PTFE Yellow NO
1119R-20-04410
1119R-20-04410
1119R-20-04410
0.500" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Black YES
1121-02-0516
1121-02-0516
1121-02-0516
0.350" 0.040 Turret/Tip Press Fit 1/32 0.113 Brass Electro Solder - - PTFE Blue NO
1121-07-0112
1121-07-0112
1121-07-0112
0.500" 0.040 Turret/Tip Press Fit 3/32 0.136 Brass Silver - - PTFE Red NO

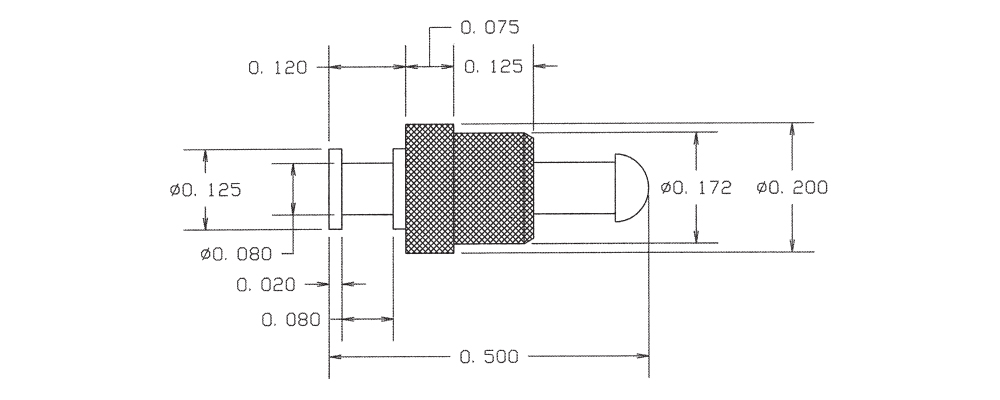

1121-12-0318
1121-12-0318
1121-12-0318
0.500" 0.080 Turret/Tip Press Fit 3/32 0.158 Brass Gold - - PTFE Gray NO
1121-16-04414
1121-16-04414
1121-16-04414
0.740" 0.050 Turret/Tip Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Yellow NO
1121-20-08810
1121-20-08810
1121-20-08810
1.115" 0.050 Turret/Tip Press Fit 9/32 0.158 Brass Bright Tin-Lead - - PTFE Black NO

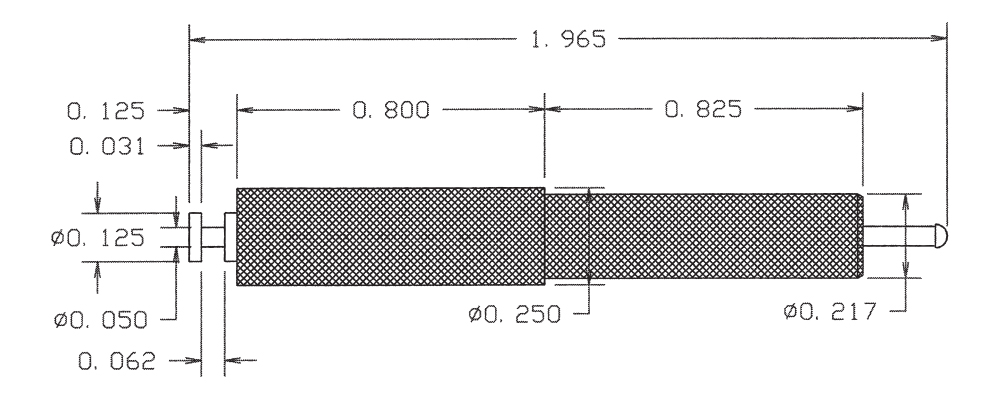

1121-26-0116
1121-26-0116
1121-26-0116
1.965" 0.050 Turret/Tip Press Fit 49/64 0.205 Brass Silver - - PTFE Blue YES

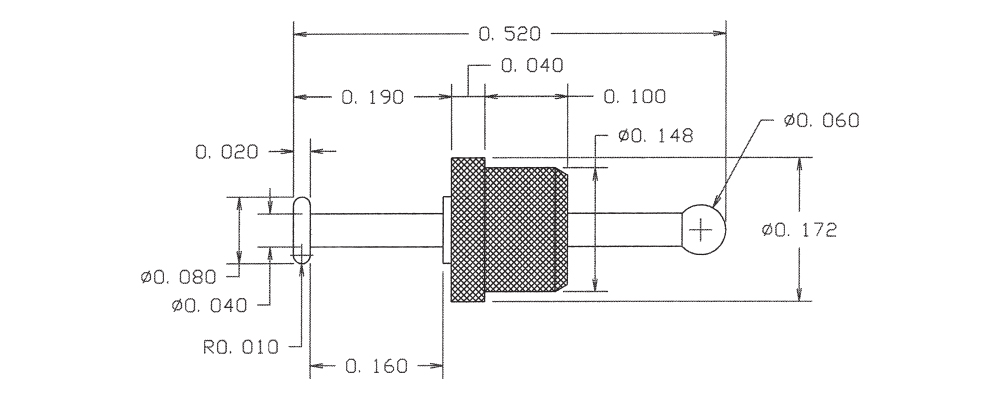

1121-31-0412
1121-31-0412
1121-31-0412
0.520" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Red NO
1121-52-04418
1121-52-04418
1121-52-04418
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Bright Tin - - PTFE Gray NO
1121R-06-08814
1121R-06-08814
1121R-06-08814
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE Yellow NO
1122-01-0310
1122-01-0310
1122-01-0310
0.250" - - Press Fit 1/64 0.070 Brass Gold - - PTFE Black YES
1123-04-0416
1123-04-0416
1123-04-0416
0.947" 0.050 TIP/SLOTTED Press Fit Up to 3/16 0.158 Brass Electro-Tin - - PTFE Blue YES
1123-08-0512
1123-08-0512
1123-08-0512
1.197" 0.050 TIP/SLOTTED Press Fit 15/32 0.158 Brass Electro Solder - - PTFE Red NO
