Insulated
PC Jacks

Filter
1128-59-03515
1128-59-03515
1128-59-03515
0.080 0.280 " 0.650" Jack/Pin Solder 0.052  1/32 - 3/32 Vertical - - PTFE Green -
1128-59-03514
1128-59-03514
1128-59-03514
0.080 0.280 " 0.650" Jack/Pin Solder 0.052  1/32 - 3/32 Vertical - - PTFE Yellow -
09-9175-1-0410
09-9175-1-0410
09-9175-1-0410
0.060 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Black -
09-9192-1-0415
09-9192-1-0415
09-9192-1-0415
0.040 0.190 " 0.452" Jack/Pin Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Green -
09-9302-1-03511
09-9302-1-03511
09-9302-1-03511
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 3/32 Horizontal - - Nylon Brown -
09-9012-1-0410
09-9012-1-0410
09-9012-1-0410
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Black -
1128-54-03512
1128-54-03512
1128-54-03512
0.080 0.250 " 0.586" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Red -
09-9012-1-03519
09-9012-1-03519
09-9012-1-03519
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE White -
09-9010-1-03519
09-9010-1-03519
09-9010-1-03519
0.040 0.195 " 0.343" Jack/Pin Solder 0.027 1/32 - 1/16 Vertical Brass Gold Polyolefin White -
09-9175-1-06311
09-9175-1-06311
09-9175-1-06311
0.060 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Brown -
09-9401-1-03516
09-9401-1-03516
09-9401-1-03516
0.080 0.500 " 0.530" Jack/Pin Press Fit 0.177 1/64 - 1/16 Vertical Brass Gold PTFE Blue -
09-9175-1-06312
09-9175-1-06312
09-9175-1-06312
0.060 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Red -
09-9221-1-03511
09-9221-1-03511
09-9221-1-03511
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Gold Nylon Brown -
1128-72-0318
1128-72-0318
1128-72-0318
0.080 0.600 " 0.794" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Gray -
09-9216-1-03516
09-9216-1-03516
09-9216-1-03516
0.060 0.250 " 0.287" - Solder 0.102  1/32 - 3/32 Vertical Brass Gold PTFE Blue -
09-9201-1-03511
09-9201-1-03511
09-9201-1-03511
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Brown M39024/11-04G

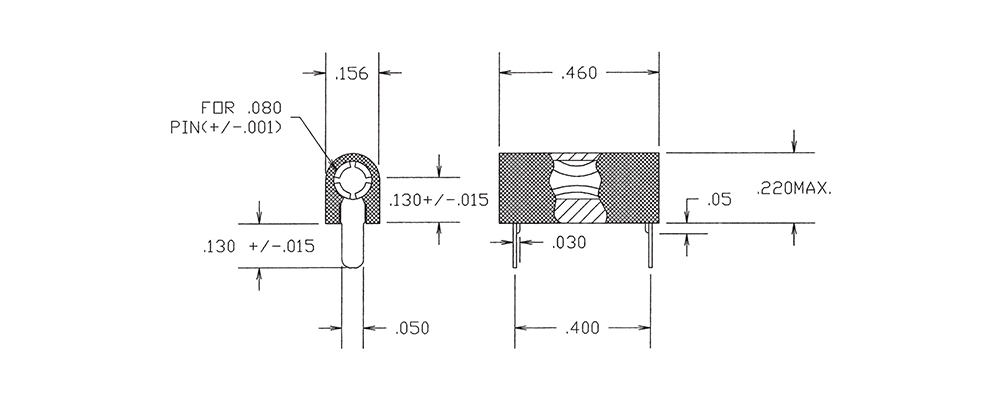

09-9252-1-0311
09-9252-1-0311
09-9252-1-0311
0.080 0.400 " 0.460" - Solder 0.052  1/32 Horizontal - - Nylon Brown -
09-9307-1-0313
09-9307-1-0313
09-9307-1-0313
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Orange -
1128-01-0318
1128-01-0318
1128-01-0318
0.040 0.078 " 0.203" Jack/Turret Press Fit 0.108 1/32 - 1/16 Vertical - - PTFE Gray -
1138-03-03510
1138-03-03510
1138-03-03510
0.080 0.250 " 0.441" - Swage Mount 0.114 1/32 Vertical - - PTFE Black -
