Insulated
PC Jacks

Filter

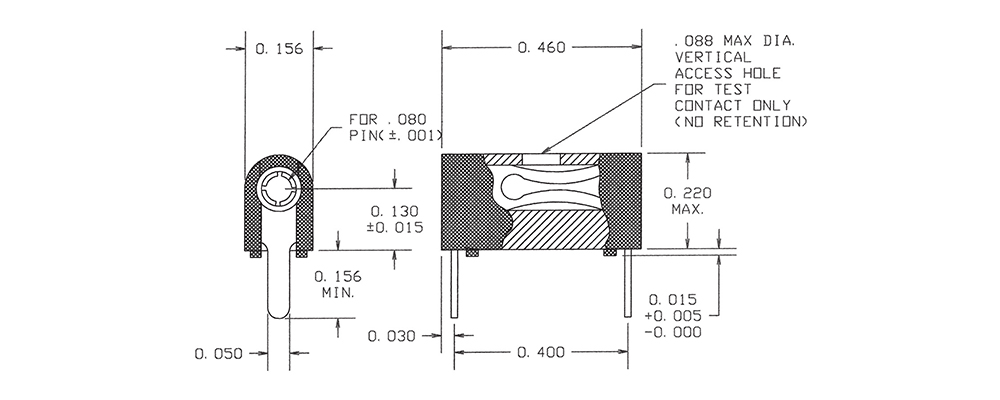

09-9307-1-04417
09-9307-1-04417
09-9307-1-04417
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Violet -

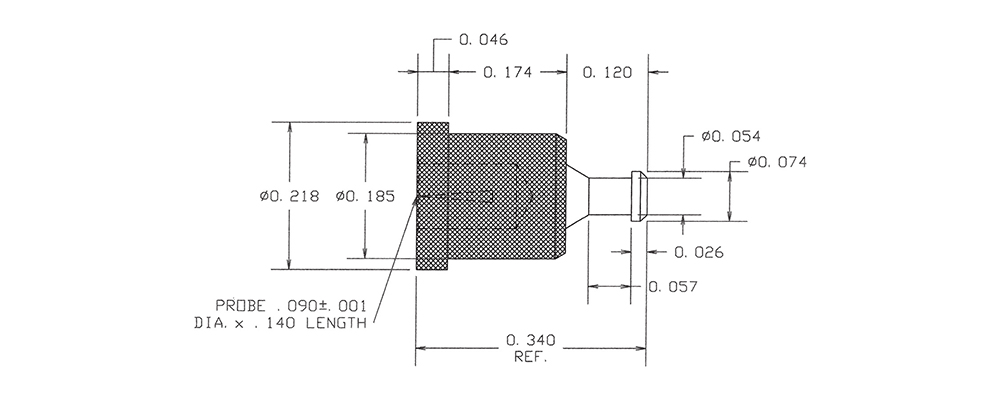

1128-12-0313
1128-12-0313
1128-12-0313
0.090 0.140 " 0.340" Jack/Turret Press Fit 0.172 1/32 - 1/8 Vertical - - PTFE Orange -

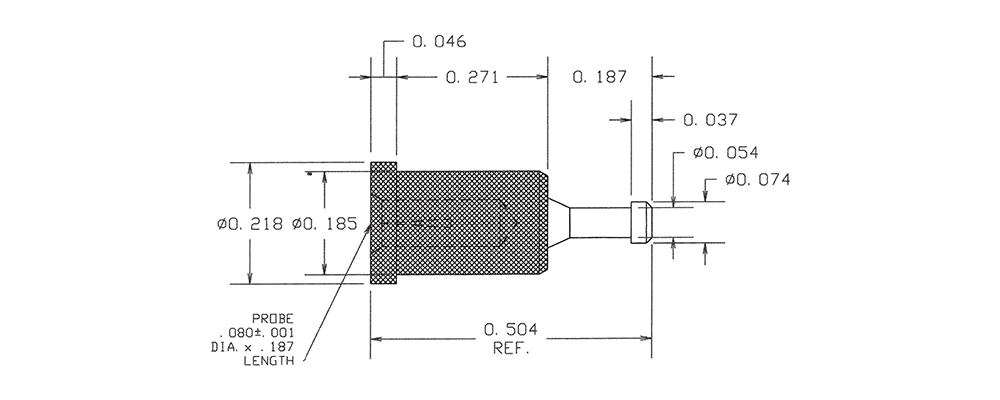

1128-31-0319
1128-31-0319
1128-31-0319
0.080 0.187 " 0.504" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE White -

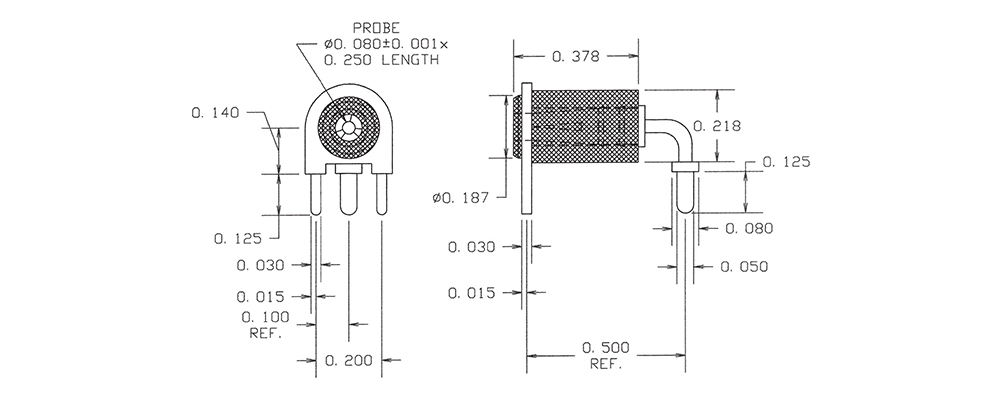

1128-54-0315
1128-54-0315
1128-54-0315
0.080 0.250 " 0.586" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Green -

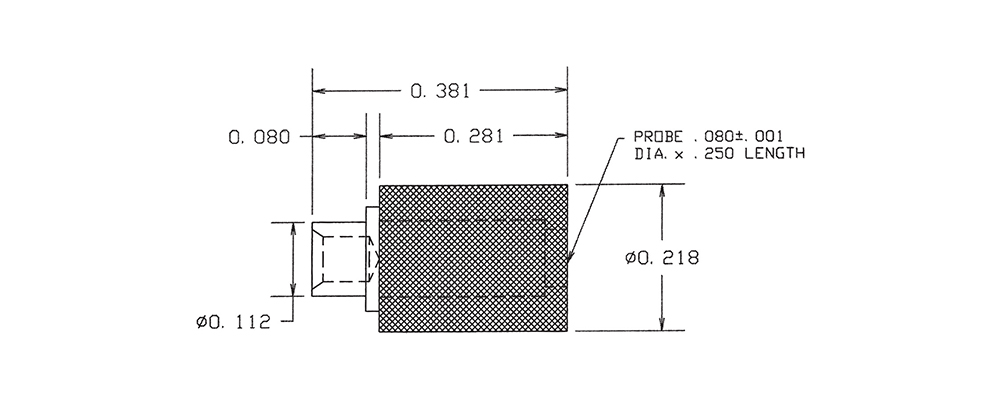

1138-02-0311
1138-02-0311
1138-02-0311
0.080 0.250 " 0.381" - Swage Mount 0.114 1/16 Vertical - - PTFE Brown -

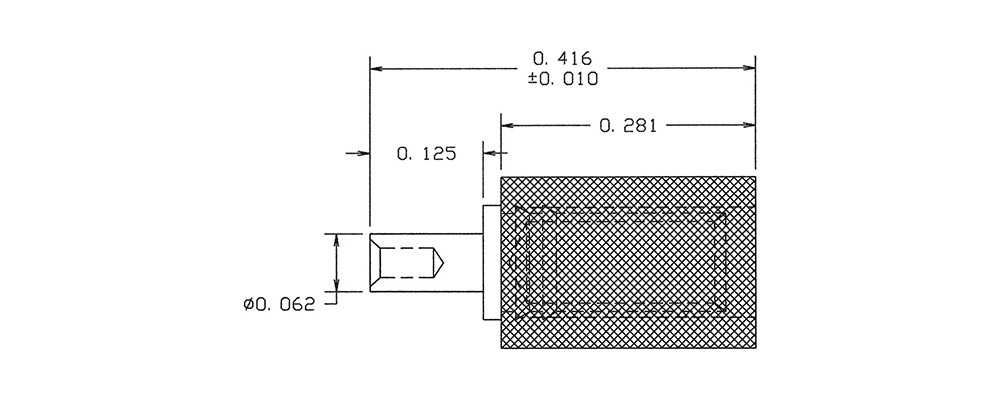

1138-34-03517
1138-34-03517
1138-34-03517
0.080 0.250 " 0.416" - Swage Mount 0.064 3/32 Vertical - - PTFE Violet -

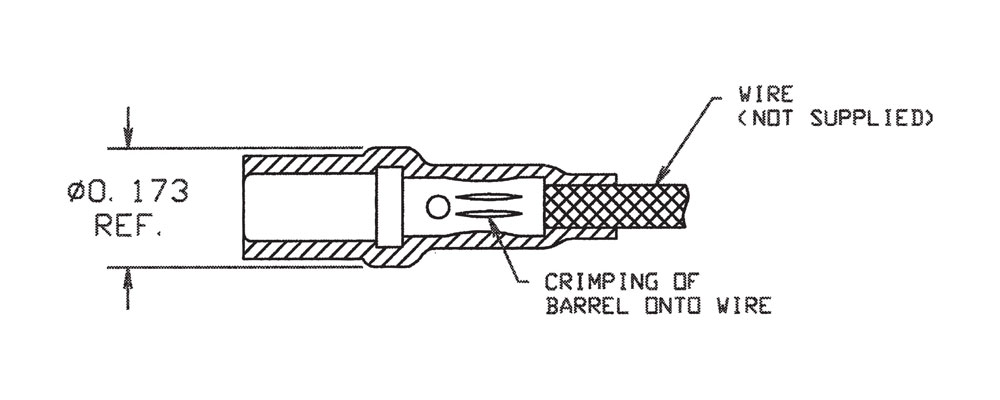

09-9071-1-08814
09-9071-1-08814
09-9071-1-08814
0.061 0.190 " 0.656" - - - - - Brass Bright Tin-Lead Polyolefin Yellow -

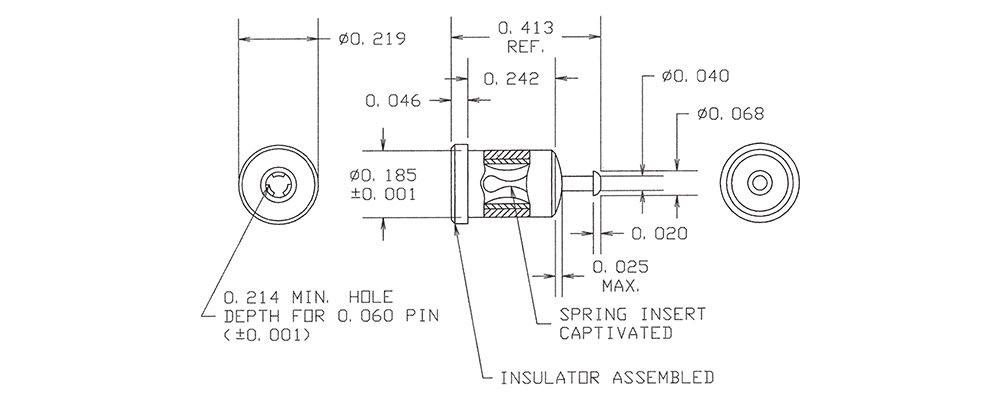

09-9175-1-0616
09-9175-1-0616
09-9175-1-0616
0.060 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Blue -

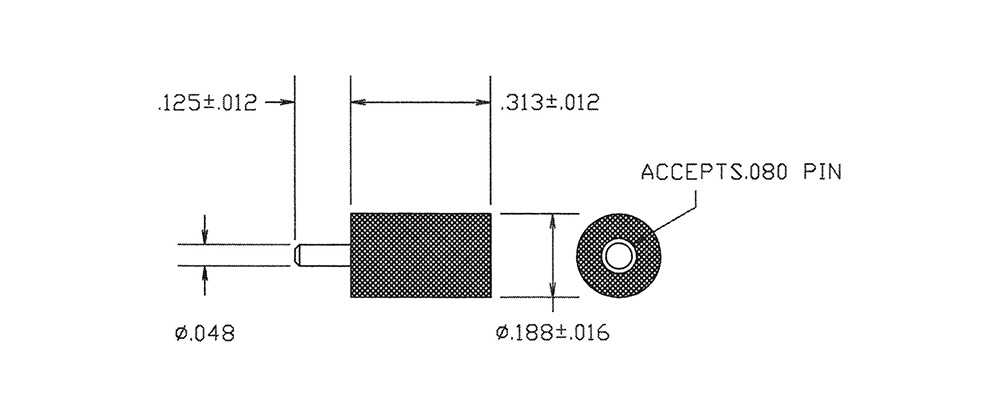

09-9221-1-0312
09-9221-1-0312
09-9221-1-0312
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Gold Nylon Red -

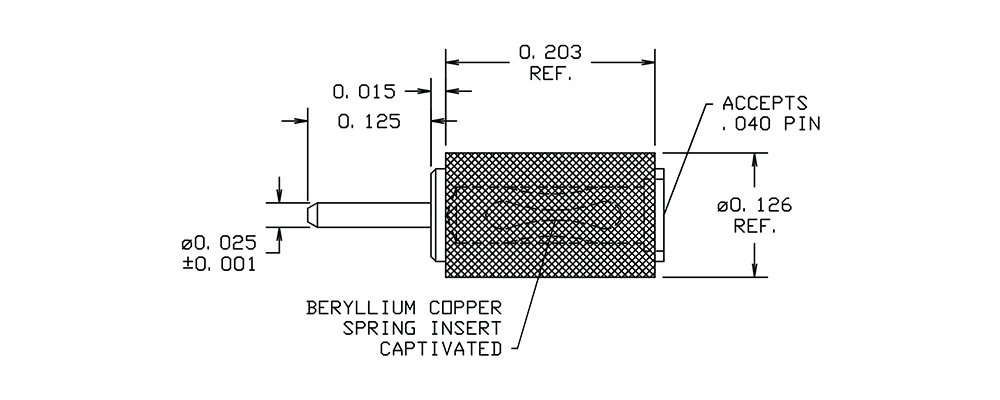

09-9010-1-03510
09-9010-1-03510
09-9010-1-03510
0.040 0.195 " 0.343" Jack/Pin Solder 0.027 1/32 - 1/16 Vertical Brass Gold Polyolefin Black -
09-9307-1-04418
09-9307-1-04418
09-9307-1-04418
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Gray -
1128-12-0314
1128-12-0314
1128-12-0314
0.090 0.140 " 0.340" Jack/Turret Press Fit 0.172 1/32 - 1/8 Vertical - - PTFE Yellow -
1128-31-03510
1128-31-03510
1128-31-03510
0.080 0.187 " 0.504" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Black -
1128-54-0316
1128-54-0316
1128-54-0316
0.080 0.250 " 0.586" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Blue -
1138-02-0312
1138-02-0312
1138-02-0312
0.080 0.250 " 0.381" - Swage Mount 0.114 1/16 Vertical - - PTFE Red -
1138-34-03518
1138-34-03518
1138-34-03518
0.080 0.250 " 0.416" - Swage Mount 0.064 3/32 Vertical - - PTFE Gray -
09-9071-1-08815
09-9071-1-08815
09-9071-1-08815
0.061 0.190 " 0.656" - - - - - Brass Bright Tin-Lead Polyolefin Green -
09-9175-1-0617
09-9175-1-0617
09-9175-1-0617
0.060 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Violet -
09-9221-1-0313
09-9221-1-0313
09-9221-1-0313
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Gold Nylon Orange -
09-9010-1-03512
09-9010-1-03512
09-9010-1-03512
0.040 0.195 " 0.343" Jack/Pin Solder 0.027 1/32 - 1/16 Vertical Brass Gold Polyolefin Red -
