Insulated
PC Jacks

Filter

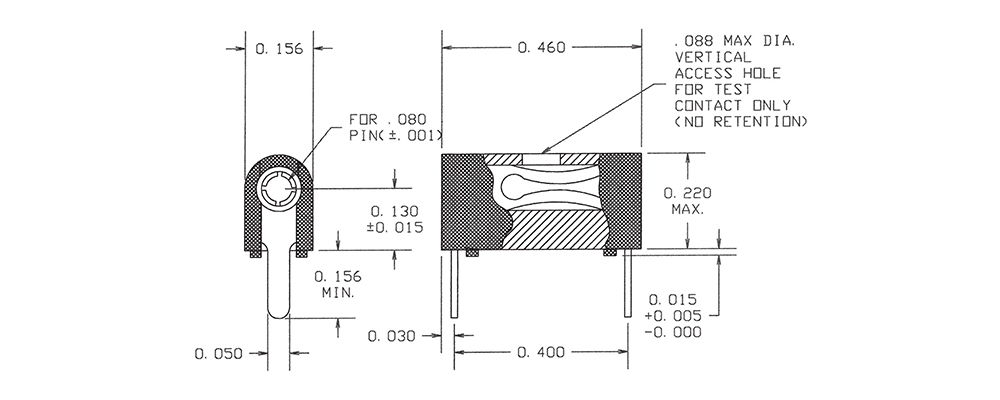

09-9307-1-03517
09-9307-1-03517
09-9307-1-03517
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Violet M39024/11-70

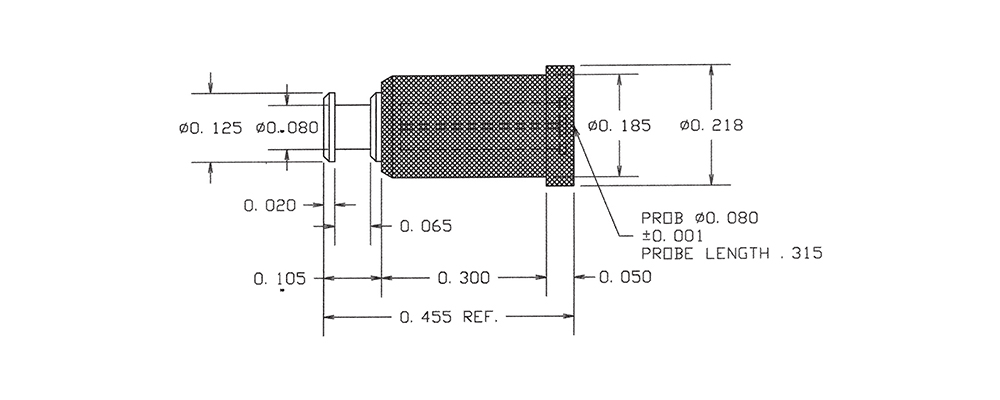

1128-11-03513
1128-11-03513
1128-11-03513
0.080 0.315 " 0.455" Jack/Turret Press Fit 0.172 1/32 - 1/4 Vertical - - PTFE Orange -

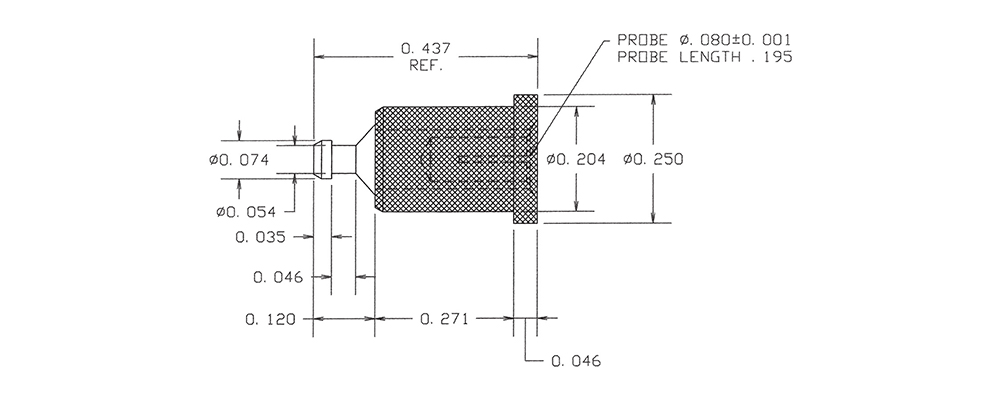

1128-30-03519
1128-30-03519
1128-30-03519
0.080 0.195 " 0.437" Jack/Turret Press Fit 0.191 1/32 - 15/64 Vertical - - PTFE White -
1128-53-03515
1128-53-03515
1128-53-03515
0.080 0.250 " 0.484" - Solder 0.047 1/32 - 1/16 Horizontal - - PTFE Green -

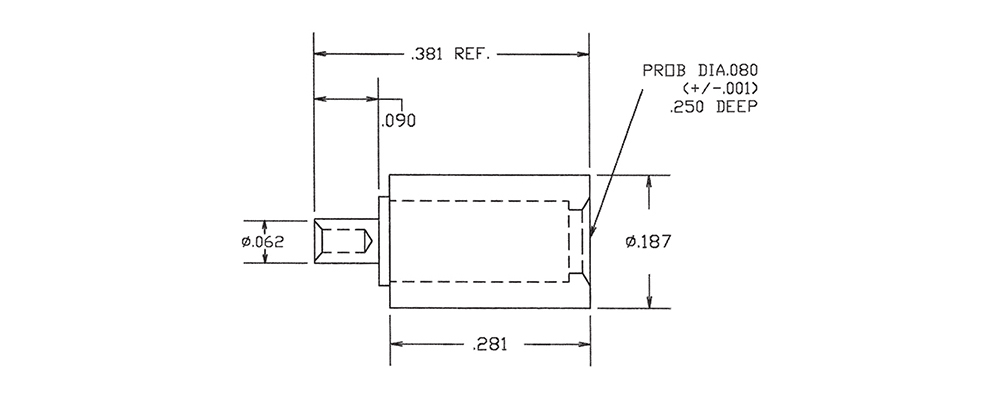

1138-01-03511
1138-01-03511
1138-01-03511
0.080 0.250 " 0.381" - Swage Mount 0.064 1/16 Vertical - - PTFE Brown -

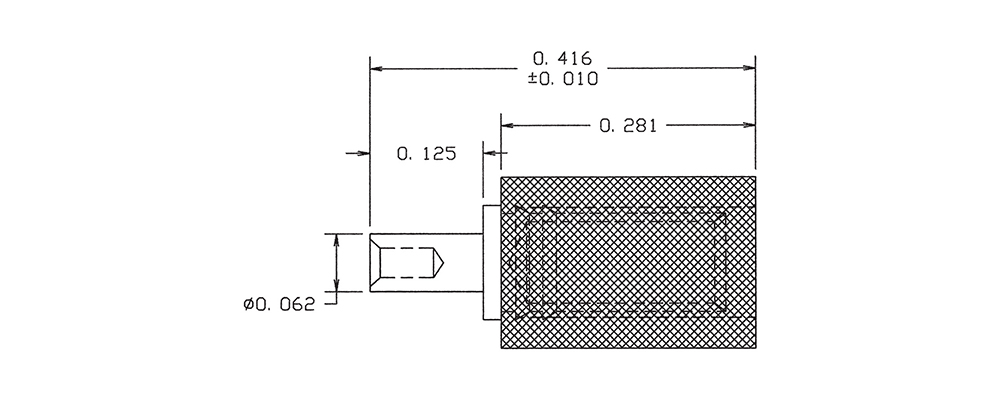

1138-34-0317
1138-34-0317
1138-34-0317
0.080 0.250 " 0.416" - Swage Mount 0.064 3/32 Vertical - - PTFE Violet -

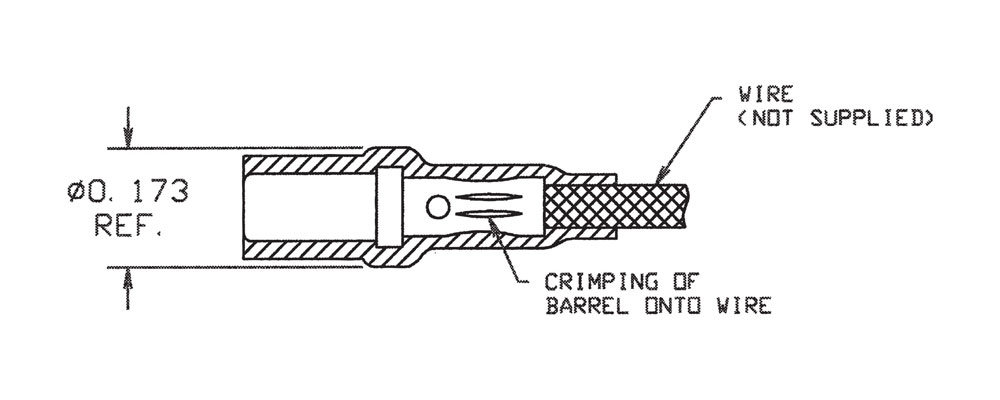

09-9071-1-0616
09-9071-1-0616
09-9071-1-0616
0.061 0.190 " 0.656" - - - - - Brass Electro-Tin Polyolefin Blue -

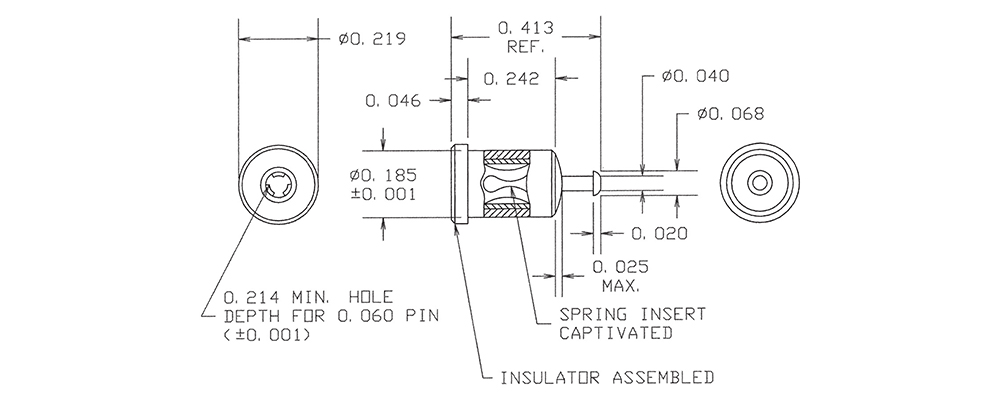

09-9175-1-0416
09-9175-1-0416
09-9175-1-0416
0.060 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Blue -

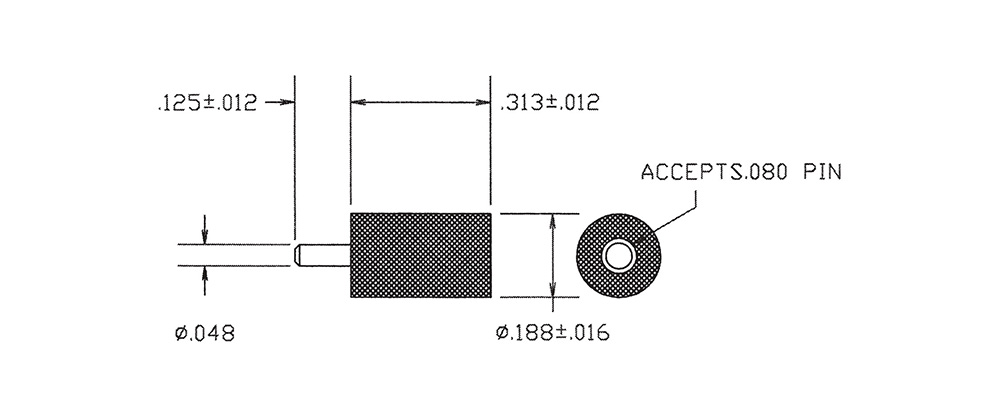

09-9221-1-0112
09-9221-1-0112
09-9221-1-0112
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Silver Nylon Red -
09-9011-1-08810
09-9011-1-08810
09-9011-1-08810
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Black -
09-9307-1-03518
09-9307-1-03518
09-9307-1-03518
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Gray M39024/11-69
1128-11-03514
1128-11-03514
1128-11-03514
0.080 0.315 " 0.455" Jack/Turret Press Fit 0.172 1/32 - 1/4 Vertical - - PTFE Yellow -

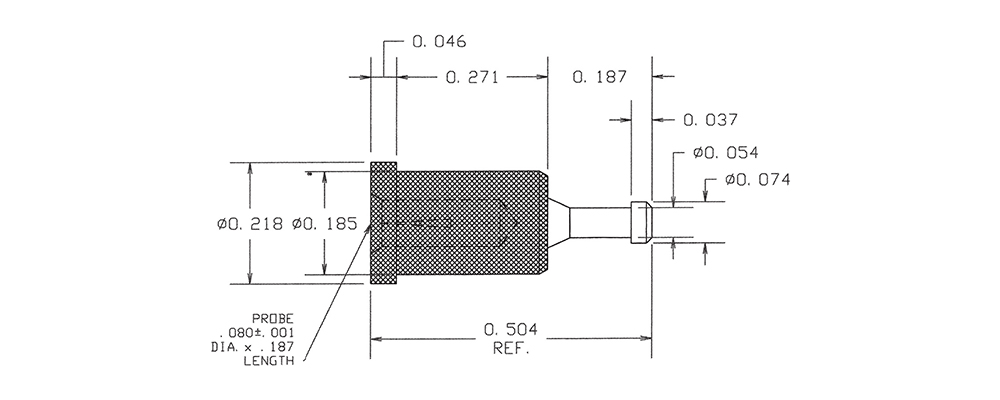

1128-31-0310
1128-31-0310
1128-31-0310
0.080 0.187 " 0.504" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Black -

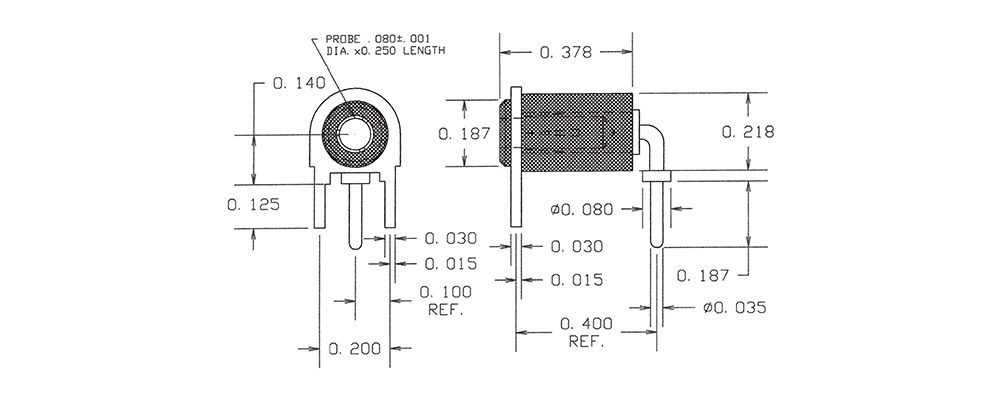

1128-53-03516
1128-53-03516
1128-53-03516
0.080 0.250 " 0.484" - Solder 0.047 1/32 - 1/16 Horizontal - - PTFE Blue -
1138-01-03512
1138-01-03512
1138-01-03512
0.080 0.250 " 0.381" - Swage Mount 0.064 1/16 Vertical - - PTFE Red -
1138-34-0318
1138-34-0318
1138-34-0318
0.080 0.250 " 0.416" - Swage Mount 0.064 3/32 Vertical - - PTFE Gray -
09-9071-1-0619
09-9071-1-0619
09-9071-1-0619
0.061 0.190 " 0.656" - - - - - Brass Electro-Tin Polyolefin White -
09-9175-1-0417
09-9175-1-0417
09-9175-1-0417
0.060 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Violet -
09-9221-1-0113
09-9221-1-0113
09-9221-1-0113
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Silver Nylon Orange -
09-9011-1-08811
09-9011-1-08811
09-9011-1-08811
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Brown -
