Insulated
PC Jacks

Filter

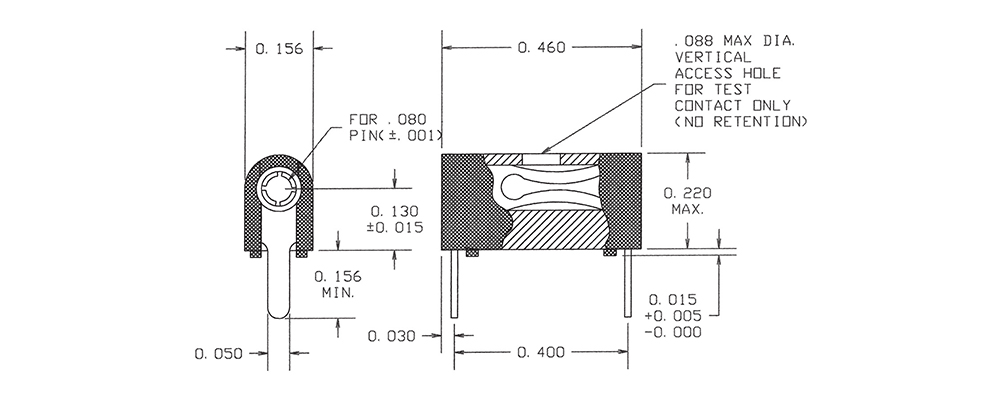

09-9307-1-04419
09-9307-1-04419
09-9307-1-04419
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon White -

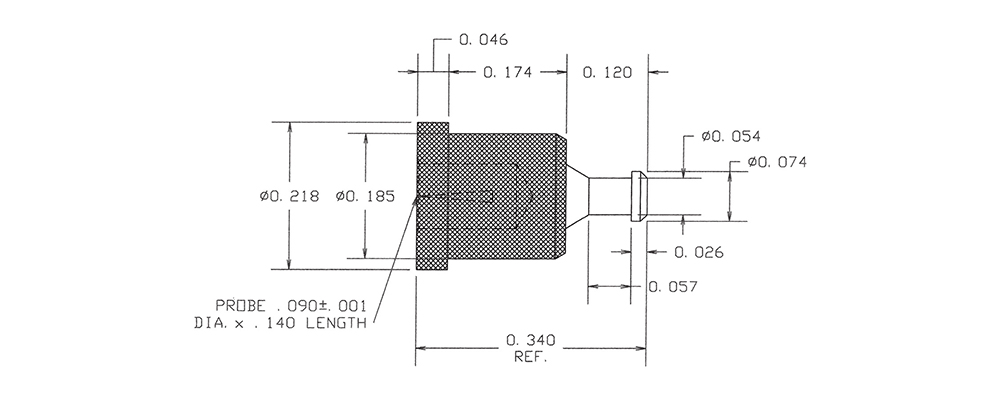

1128-12-0315
1128-12-0315
1128-12-0315
0.090 0.140 " 0.340" Jack/Turret Press Fit 0.172 1/32 - 1/8 Vertical - - PTFE Green -

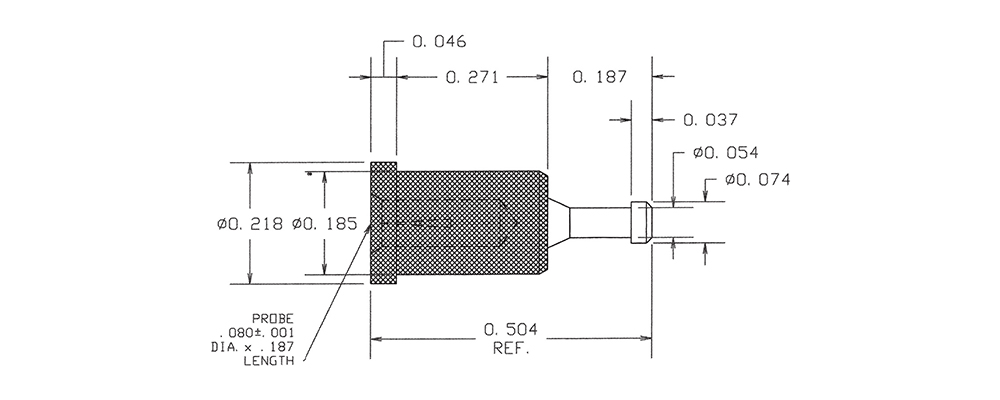

1128-31-03511
1128-31-03511
1128-31-03511
0.080 0.187 " 0.504" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Brown -
1128-54-0317
1128-54-0317
1128-54-0317
0.080 0.250 " 0.586" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Violet -

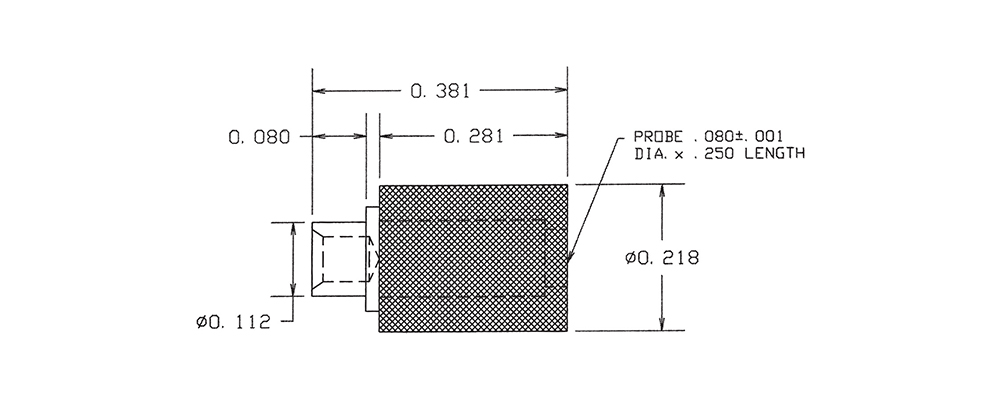

1138-02-0313
1138-02-0313
1138-02-0313
0.080 0.250 " 0.381" - Swage Mount 0.114 1/16 Vertical - - PTFE Orange -

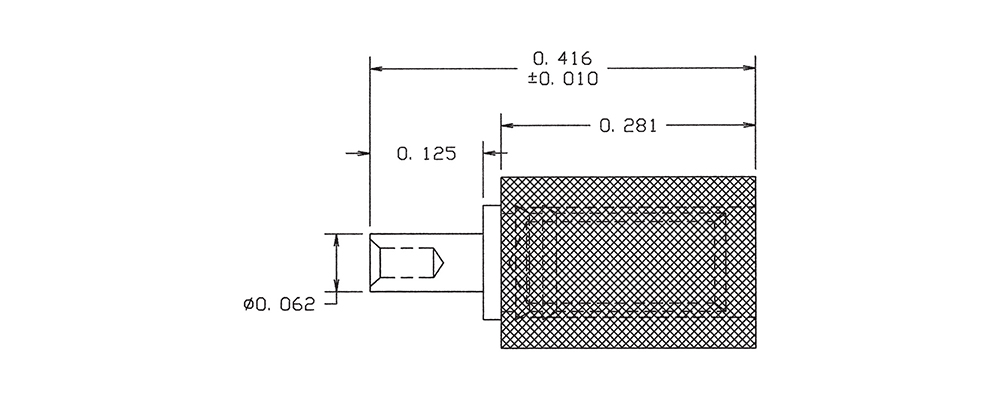

1138-34-03519
1138-34-03519
1138-34-03519
0.080 0.250 " 0.416" - Swage Mount 0.064 3/32 Vertical - - PTFE White -
09-9071-1-08816
09-9071-1-08816
09-9071-1-08816
0.061 0.190 " 0.656" - - - - - Brass Bright Tin-Lead Polyolefin Blue -
09-9175-1-0618
09-9175-1-0618
09-9175-1-0618
0.060 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Gray -
09-9221-1-0314
09-9221-1-0314
09-9221-1-0314
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Gold Nylon Yellow -

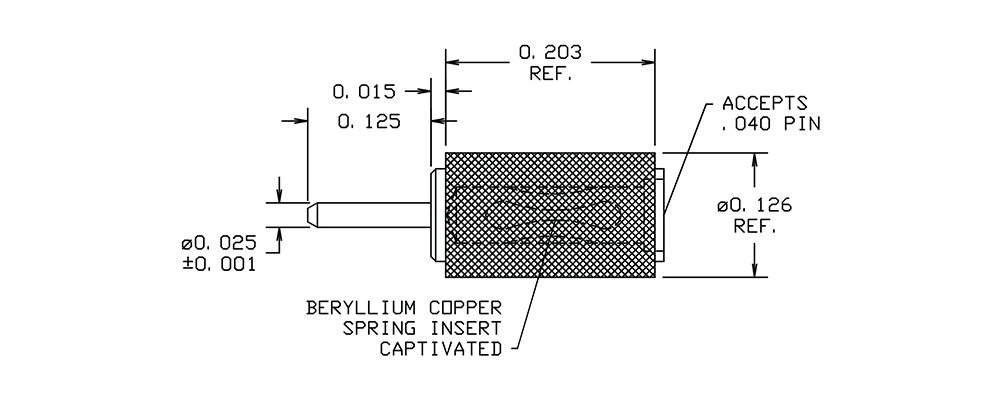

09-9010-1-03514
09-9010-1-03514
09-9010-1-03514
0.040 0.195 " 0.343" Jack/Pin Solder 0.027 1/32 - 1/16 Vertical Brass Gold Polyolefin Yellow -

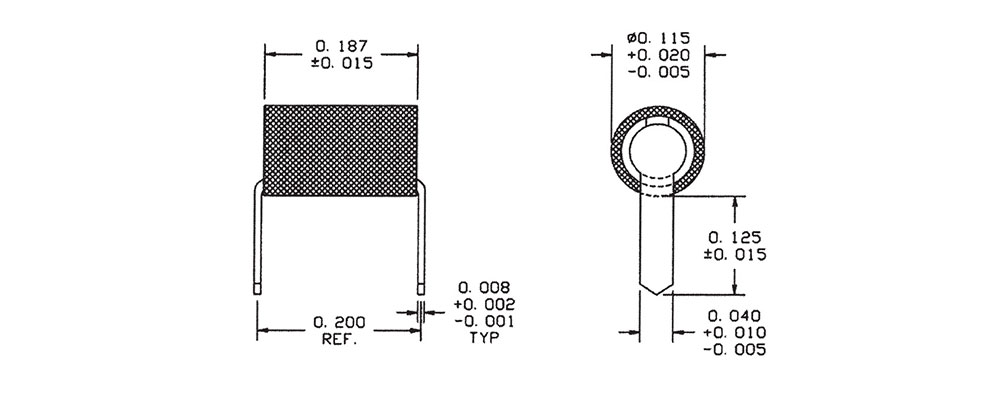

09-9350-1-0310
09-9350-1-0310
09-9350-1-0310
0.080 0.187 " 0.200" - Solder 0.052 1/32 - 1/16 Horizontal - - PTFE Black -
1128-12-0316
1128-12-0316
1128-12-0316
0.090 0.140 " 0.340" Jack/Turret Press Fit 0.172 1/32 - 1/8 Vertical - - PTFE Blue -
1128-31-03512
1128-31-03512
1128-31-03512
0.080 0.187 " 0.504" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Red -
1128-54-0318
1128-54-0318
1128-54-0318
0.080 0.250 " 0.586" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Gray -
1138-02-0314
1138-02-0314
1138-02-0314
0.080 0.250 " 0.381" - Swage Mount 0.114 1/16 Vertical - - PTFE Yellow -

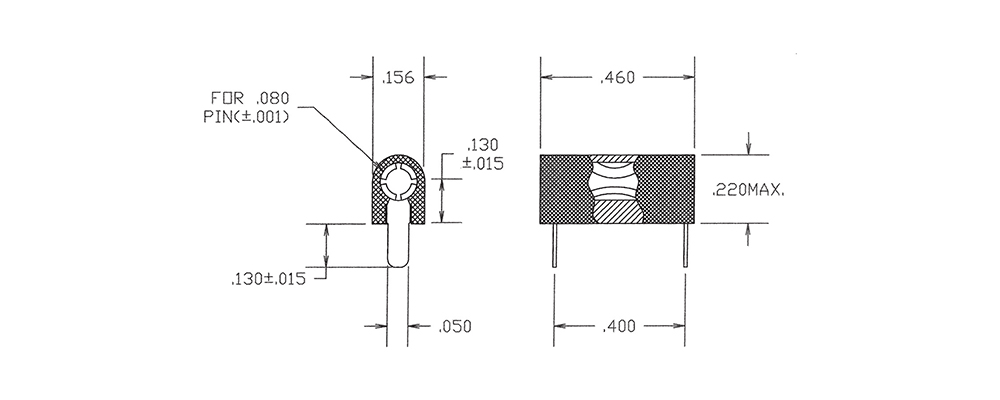

20-9201-1-0310
20-9201-1-0310
20-9201-1-0310
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Black -
09-9071-1-08819
09-9071-1-08819
09-9071-1-08819
0.061 0.190 " 0.656" - - - - - Brass Bright Tin-Lead Polyolefin White -
09-9175-1-0619
09-9175-1-0619
09-9175-1-0619
0.060 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE White -
09-9221-1-0315
09-9221-1-0315
09-9221-1-0315
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Gold Nylon Green -
09-9012-1-0312
09-9012-1-0312
09-9012-1-0312
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Gold PTFE Red -
