Insulated
PC Jacks

Filter

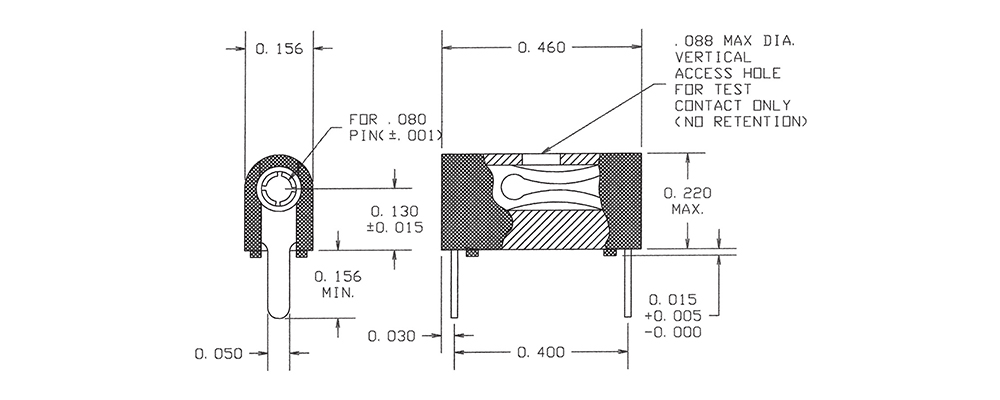

09-9307-1-04411
09-9307-1-04411
09-9307-1-04411
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Brown -

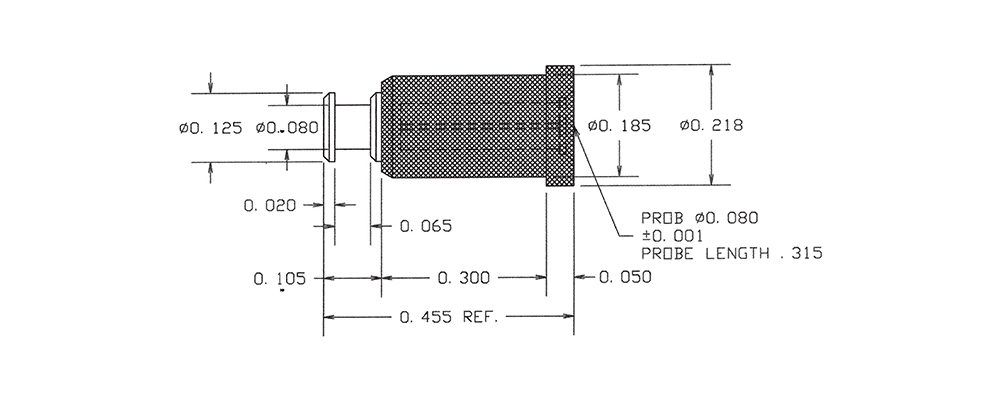

1128-11-03517
1128-11-03517
1128-11-03517
0.080 0.315 " 0.455" Jack/Turret Press Fit 0.172 1/32 - 1/4 Vertical - - PTFE Violet -

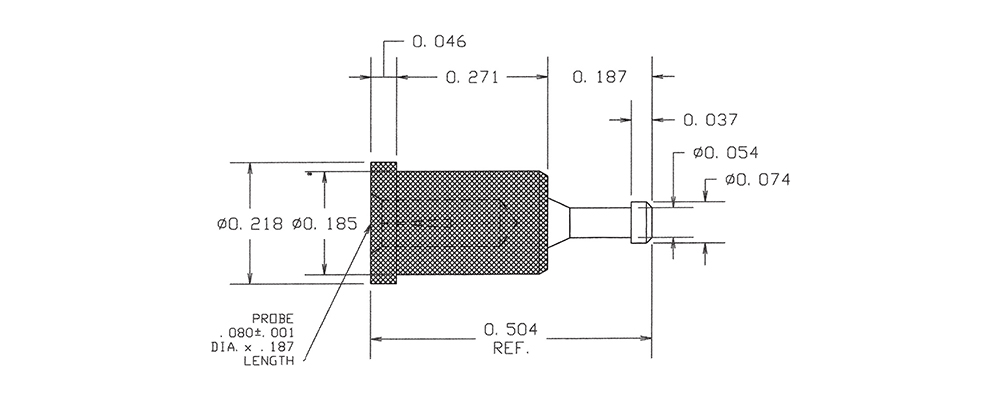

1128-31-0313
1128-31-0313
1128-31-0313
0.080 0.187 " 0.504" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Orange -

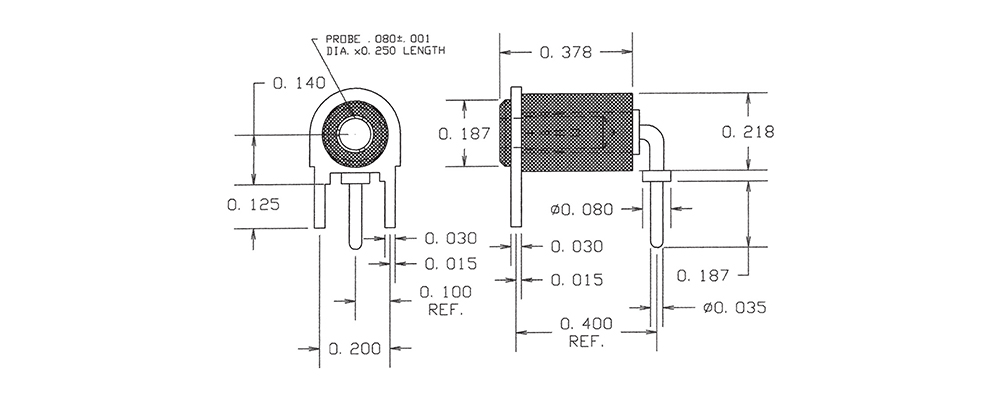

1128-53-03519
1128-53-03519
1128-53-03519
0.080 0.250 " 0.484" - Solder 0.047 1/32 - 1/16 Horizontal - - PTFE White -

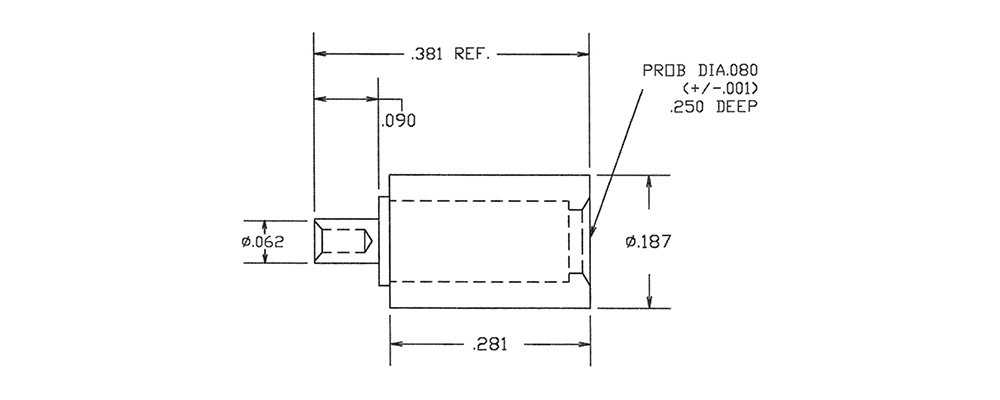

1138-01-03515
1138-01-03515
1138-01-03515
0.080 0.250 " 0.381" - Swage Mount 0.064 1/16 Vertical - - PTFE Green -

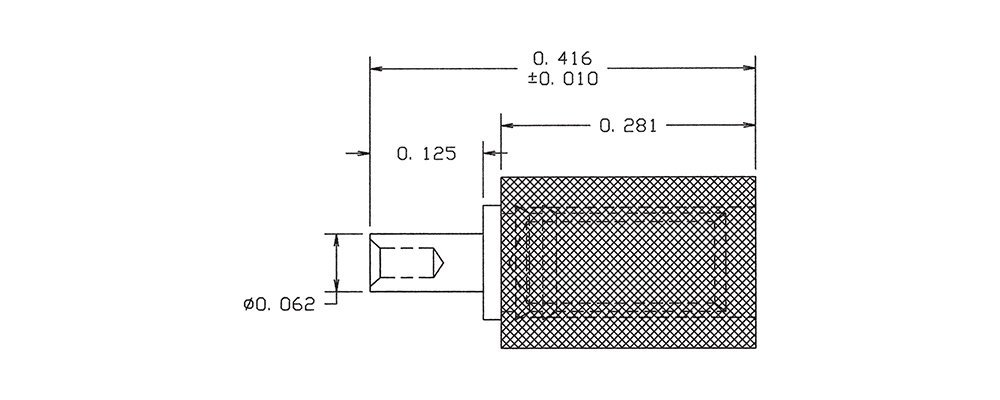

1138-34-03511
1138-34-03511
1138-34-03511
0.080 0.250 " 0.416" - Swage Mount 0.064 3/32 Vertical - - PTFE Brown -
09-9071-1-06314
09-9071-1-06314
09-9071-1-06314
0.061 0.190 " 0.656" - - - - - Brass Bright Tin-Lead Polyolefin Yellow -
09-9175-1-0610
09-9175-1-0610
09-9175-1-0610
0.060 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Black -
09-9221-1-0116
09-9221-1-0116
09-9221-1-0116
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Silver Nylon Blue -
09-9011-1-08814
09-9011-1-08814
09-9011-1-08814
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Yellow -
09-9307-1-04412
09-9307-1-04412
09-9307-1-04412
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Red -
1128-11-03518
1128-11-03518
1128-11-03518
0.080 0.315 " 0.455" Jack/Turret Press Fit 0.172 1/32 - 1/4 Vertical - - PTFE Gray -
1128-31-0314
1128-31-0314
1128-31-0314
0.080 0.187 " 0.504" Jack/Turret Press Fit 0.172 1/32 - 15/64 Vertical - - PTFE Yellow -
1128-54-0310
1128-54-0310
1128-54-0310
0.080 0.250 " 0.586" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Black -
1138-01-03516
1138-01-03516
1138-01-03516
0.080 0.250 " 0.381" - Swage Mount 0.064 1/16 Vertical - - PTFE Blue -
1138-34-03512
1138-34-03512
1138-34-03512
0.080 0.250 " 0.416" - Swage Mount 0.064 3/32 Vertical - - PTFE Red -
09-9071-1-06315
09-9071-1-06315
09-9071-1-06315
0.061 0.190 " 0.656" - - - - - Brass Bright Tin-Lead Polyolefin Green -
09-9175-1-0611
09-9175-1-0611
09-9175-1-0611
0.060 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Electro-Tin PTFE Brown -
09-9221-1-0117
09-9221-1-0117
09-9221-1-0117
0.080 0.233 " 0.438" Jack/Pin Solder 0.050 1/32 - 1/16 Vertical Brass Silver Nylon Violet -
09-9011-1-08815
09-9011-1-08815
09-9011-1-08815
0.040 0.190 " 0.390" Jack/Turret Press Fit 0.137 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE Green -
