Insulated
PC Jacks

Filter
09-9158-1-06310
09-9158-1-06310
09-9158-1-06310
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Bright Tin-Lead PTFE Black -
09-9063-1-0616
09-9063-1-0616
09-9063-1-0616
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Electro-Tin Polyolefin Blue -
1138-27-03518
1138-27-03518
1138-27-03518
0.062 0.187 " 0.437" Jack/Solder Cup Press Fit 0.158 1/32 - 3/16 Vertical - - PTFE Gray -
09-9299-1-03516
09-9299-1-03516
09-9299-1-03516
0.080 0.360 " 0.466" - Solder 0.062  1/32 - 5/32 Horizontal Brass Gold PTFE Blue -
09-9063-1-06312
09-9063-1-06312
09-9063-1-06312
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Bright Tin-Lead Polyolefin Red -
1138-06-03510
1138-06-03510
1138-06-03510
0.080 0.200 " 0.376" - Swage Mount 0.068 1/16 Vertical - - PTFE Black -
09-9201-1-04419
09-9201-1-04419
09-9201-1-04419
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon White -
1138-06-03516
1138-06-03516
1138-06-03516
0.080 0.200 " 0.376" - Swage Mount 0.068 1/16 Vertical - - PTFE Blue -
1128-52-03517
1128-52-03517
1128-52-03517
0.080 0.250 " 0.472" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Violet -

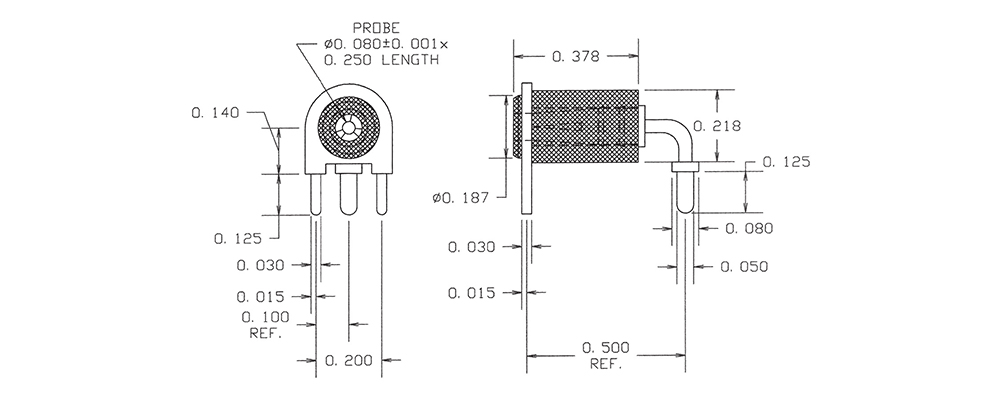

1128-54-03516
1128-54-03516
1128-54-03516
0.080 0.250 " 0.586" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Blue -
1128-51-03514
1128-51-03514
1128-51-03514
0.080 0.500 " 0.898" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Yellow -
1138-01-03515
1138-01-03515
1138-01-03515
0.080 0.250 " 0.381" - Swage Mount 0.064 1/16 Vertical - - PTFE Green -
1138-01-03511
1138-01-03511
1138-01-03511
0.080 0.250 " 0.381" - Swage Mount 0.064 1/16 Vertical - - PTFE Brown -
1128-54-03513
1128-54-03513
1128-54-03513
0.080 0.250 " 0.586" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Orange -
09-9063-1-0614
09-9063-1-0614
09-9063-1-0614
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Electro-Tin Polyolefin Yellow -
09-9063-1-0610
09-9063-1-0610
09-9063-1-0610
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Electro-Tin Polyolefin Black -
1128-06-0312
1128-06-0312
1128-06-0312
0.040 0.078 " 0.190" Jack/Turret Press Fit 0.136 1/32 - 1/16 Vertical - - PTFE Red -
1128-06-0314
1128-06-0314
1128-06-0314
0.040 0.078 " 0.190" Jack/Turret Press Fit 0.136 1/32 - 1/16 Vertical - - PTFE Yellow -
09-9092-1-08819
09-9092-1-08819
09-9092-1-08819
0.050 0.214 " 0.413" Jack/Turret Press Fit 0.172 1/32 - 3/16 Vertical Brass Bright Tin-Lead PTFE White -
1128-06-0319
1128-06-0319
1128-06-0319
0.040 0.078 " 0.190" Jack/Turret Press Fit 0.136 1/32 - 1/16 Vertical - - PTFE White -
