Panel Jacks / Terminals
Thread Mount

Filter
09-9072-1-0311
09-9072-1-0311
09-9072-1-0311
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold Nylon   Brown -
09-9112-1-03512
09-9112-1-03512
09-9112-1-03512
1.172" - 1/4-32 Nut - 0.257 Up to 3/16 Turret/Turret Brass Gold - - Nylon   Red -
09-9112-1-03514
09-9112-1-03514
09-9112-1-03514
1.172" - 1/4-32 Nut - 0.257 Up to 3/16 Turret/Turret Brass Gold - - Nylon   Yellow -
09-9112-1-03513
09-9112-1-03513
09-9112-1-03513
1.172" - 1/4-32 Nut - 0.257 Up to 3/16 Turret/Turret Brass Gold - - Nylon   Orange -
09-9074-1-0318
09-9074-1-0318
09-9074-1-0318
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Gray -
09-9251-1-0210
09-9251-1-0210
09-9251-1-0210
0.922" 0.080 1/4-32 Nut 0.650 " 0.257 Up to 3/16 Jack/Turret Brass Nickel Beryllium Copper Gold Nylon   Black -
09-9228-1-03514
09-9228-1-03514
09-9228-1-03514
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold WITH Solder COATED TIP Beryllium Copper Gold Nylon   Yellow MIL-DTL-39024/10
09-9228-1-03510
09-9228-1-03510
09-9228-1-03510
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold WITH Solder COATED TIP Beryllium Copper Gold Nylon   Black MIL-DTL-39024/10
09-9072-1-03510
09-9072-1-03510
09-9072-1-03510
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold Nylon   Black MIL-DTL-39024/10
09-9074-1-0316
09-9074-1-0316
09-9074-1-0316
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Blue -
09-9111-1-04412
09-9111-1-04412
09-9111-1-04412
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Bright Tin Beryllium Copper Bright Tin Nylon   Red -
09-9111-1-04410
09-9111-1-04410
09-9111-1-04410
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Bright Tin Beryllium Copper Bright Tin Nylon   Black -
09-9112-1-04414
09-9112-1-04414
09-9112-1-04414
1.172" - 1/4-32 Nut - 0.257 Up to 3/16 Turret/Turret Brass Bright Tin - - Nylon   Yellow -
09-9111-1-04419
09-9111-1-04419
09-9111-1-04419
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Bright Tin Beryllium Copper Bright Tin Nylon   White -
09-9111-1-04416
09-9111-1-04416
09-9111-1-04416
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Bright Tin Beryllium Copper Bright Tin Nylon   Blue -

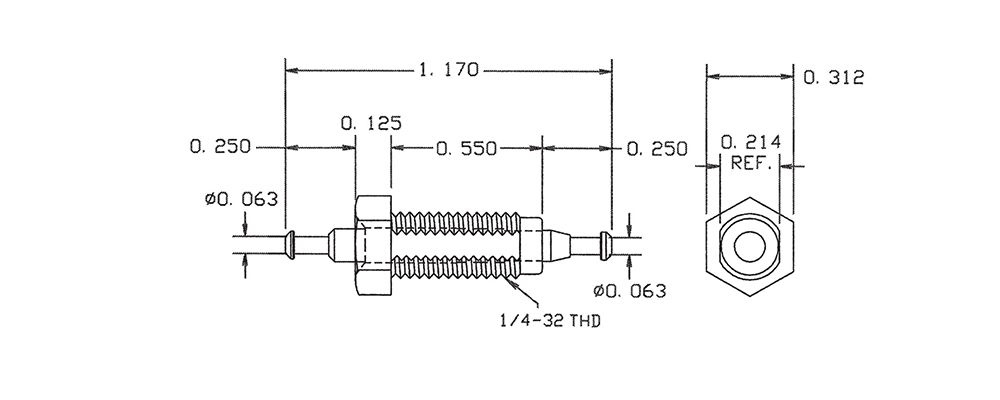

09-9152-1-04410
09-9152-1-04410
09-9152-1-04410
1.170" - 1/4-32 Nut - 0.257 Up to 3/16 Turret/Turret Brass Bright Tin - - Nylon   Black -

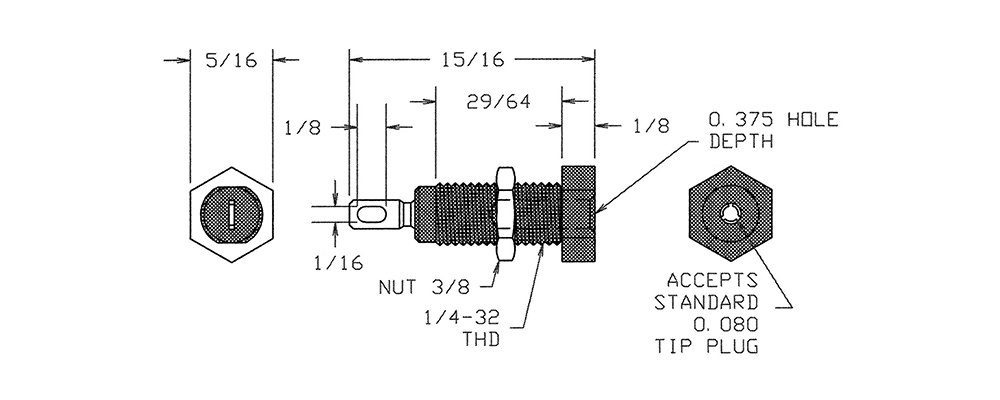

09-9150-1-0319
09-9150-1-0319
09-9150-1-0319
0.9375" 0.080 1/4-32 Nut 0.370 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   White -
09-9183-1-0310
09-9183-1-0310
09-9183-1-0310
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Black -
09-9184-1-0311
09-9184-1-0311
09-9184-1-0311
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold Nylon   Brown -
09-9150-1-03513
09-9150-1-03513
09-9150-1-03513
0.9375" 0.080 1/4-32 Nut 0.370 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Orange -
