Panel Jacks / Terminals
Thread Mount

Filter
09-9183-1-04414
09-9183-1-04414
09-9183-1-04414
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Turret Brass Bright Tin Beryllium Copper Bright Tin Nylon   Yellow -
09-9184-1-04419
09-9184-1-04419
09-9184-1-04419
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Eyelet Brass Bright Tin Beryllium Copper Bright Tin Nylon   White -
09-9183-1-04410
09-9183-1-04410
09-9183-1-04410
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Turret Brass Bright Tin Beryllium Copper Bright Tin Nylon   Black -
09-9183-1-04412
09-9183-1-04412
09-9183-1-04412
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Turret Brass Bright Tin Beryllium Copper Bright Tin Nylon   Red -

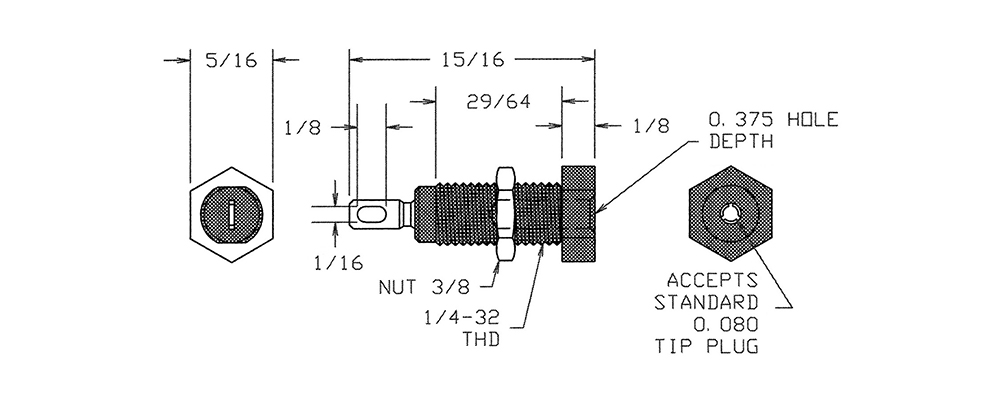

09-9151-1-03516
09-9151-1-03516
09-9151-1-03516
0.9375" 0.080 1/4-32 Nut 0.375 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold Nylon   Blue -
20-2124-1-03511
20-2124-1-03511
20-2124-1-03511
0.905" 0.060 5/16-32 Nut 0.500 " 0.323 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Brown -
20-2124-1-03519
20-2124-1-03519
20-2124-1-03519
0.905" 0.060 5/16-32 Nut 0.500 " 0.323 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   White -
20-2124-1-0310
20-2124-1-0310
20-2124-1-0310
0.905" 0.060 5/16-32 Nut 0.500 " 0.323 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Black -
20-2124-1-0312
20-2124-1-0312
20-2124-1-0312
0.905" 0.060 5/16-32 Nut 0.500 " 0.323 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Red -
20-2124-1-0316
20-2124-1-0316
20-2124-1-0316
0.905" 0.060 5/16-32 Nut 0.500 " 0.323 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Blue -
20-2124-1-0318
20-2124-1-0318
20-2124-1-0318
0.905" 0.060 5/16-32 Nut 0.500 " 0.323 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Gray -
20-2124-1-04411
20-2124-1-04411
20-2124-1-04411
0.905" 0.060 5/16-32 Nut 0.500 " 0.323 Up to 3/16 Jack/Turret Brass Bright Tin Beryllium Copper Bright Tin Nylon   Brown -

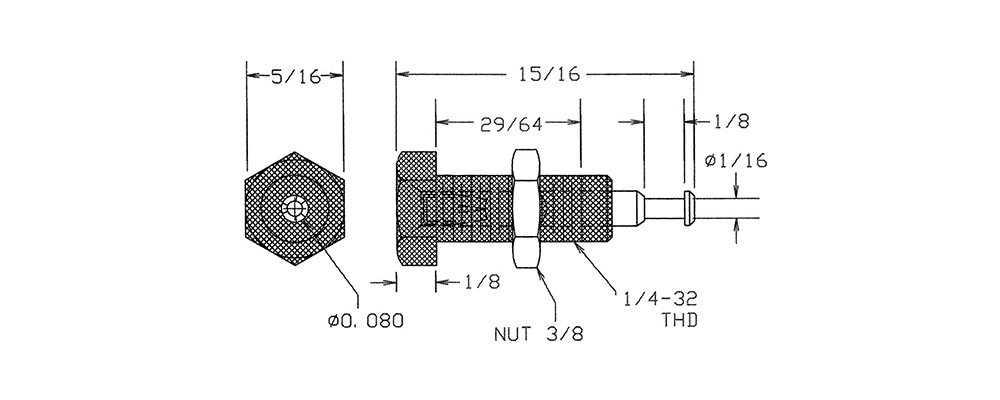

09-9150-1-03516
09-9150-1-03516
09-9150-1-03516
0.9375" 0.080 1/4-32 Nut 0.370 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Blue -
09-9183-1-03517
09-9183-1-03517
09-9183-1-03517
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Violet -
09-9183-1-03516
09-9183-1-03516
09-9183-1-03516
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Blue -
09-9112-1-0311
09-9112-1-0311
09-9112-1-0311
1.172" - 1/4-32 Nut - 0.257 Up to 3/16 Turret/Turret Brass Gold - - Nylon   Brown -
09-9072-1-0317
09-9072-1-0317
09-9072-1-0317
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold Nylon   Violet -
09-9243-1-0315
09-9243-1-0315
09-9243-1-0315
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold WITH Solder COATED TIP Beryllium Copper Gold Nylon   Green -
09-9074-1-0311
09-9074-1-0311
09-9074-1-0311
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Brown -
09-9228-1-0310
09-9228-1-0310
09-9228-1-0310
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold WITH Solder COATED TIP Beryllium Copper Gold Nylon   Black -
