Panel Jacks / Terminals
Thread Mount

Filter

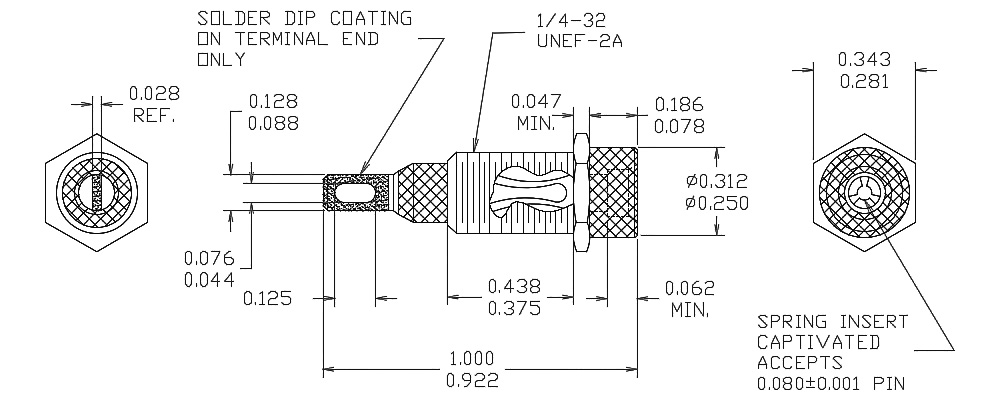

09-9243-1-03513
09-9243-1-03513
09-9243-1-03513
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold WITH Solder COATED TIP Beryllium Copper Gold Nylon   Orange MIL-DTL-39024/10

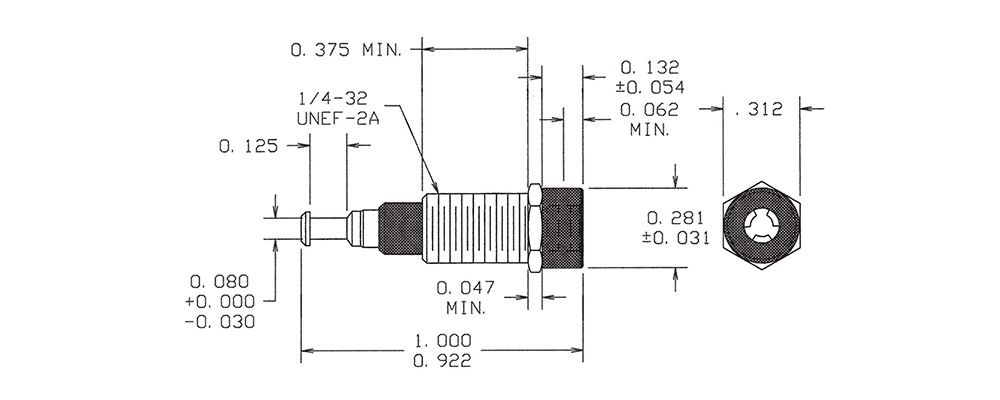

09-9075-1-04410
09-9075-1-04410
09-9075-1-04410
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Bright Tin Beryllium Copper Bright Tin PTFE Black -
09-9243-1-03514
09-9243-1-03514
09-9243-1-03514
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold WITH Solder COATED TIP Beryllium Copper Gold Nylon   Yellow MIL-DTL-39024/10
09-9075-1-04411
09-9075-1-04411
09-9075-1-04411
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Bright Tin Beryllium Copper Bright Tin PTFE Brown -
09-9243-1-03515
09-9243-1-03515
09-9243-1-03515
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold WITH Solder COATED TIP Beryllium Copper Gold Nylon   Green MIL-DTL-39024/10
09-9075-1-04412
09-9075-1-04412
09-9075-1-04412
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Bright Tin Beryllium Copper Bright Tin PTFE Red -
09-9243-1-03516
09-9243-1-03516
09-9243-1-03516
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold WITH Solder COATED TIP Beryllium Copper Gold Nylon   Blue MIL-DTL-39024/10
09-9075-1-04413
09-9075-1-04413
09-9075-1-04413
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Bright Tin Beryllium Copper Bright Tin PTFE Orange -
09-9243-1-03517
09-9243-1-03517
09-9243-1-03517
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold WITH Solder COATED TIP Beryllium Copper Gold Nylon   Violet MIL-DTL-39024/10
09-9075-1-04414
09-9075-1-04414
09-9075-1-04414
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Bright Tin Beryllium Copper Bright Tin PTFE Yellow -
09-9243-1-03518
09-9243-1-03518
09-9243-1-03518
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold WITH Solder COATED TIP Beryllium Copper Gold Nylon   Gray MIL-DTL-39024/10
09-9075-1-04415
09-9075-1-04415
09-9075-1-04415
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Bright Tin Beryllium Copper Bright Tin PTFE Green -
09-9243-1-03519
09-9243-1-03519
09-9243-1-03519
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold WITH Solder COATED TIP Beryllium Copper Gold Nylon   White MIL-DTL-39024/10
09-9075-1-04416
09-9075-1-04416
09-9075-1-04416
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Bright Tin Beryllium Copper Bright Tin PTFE Blue -

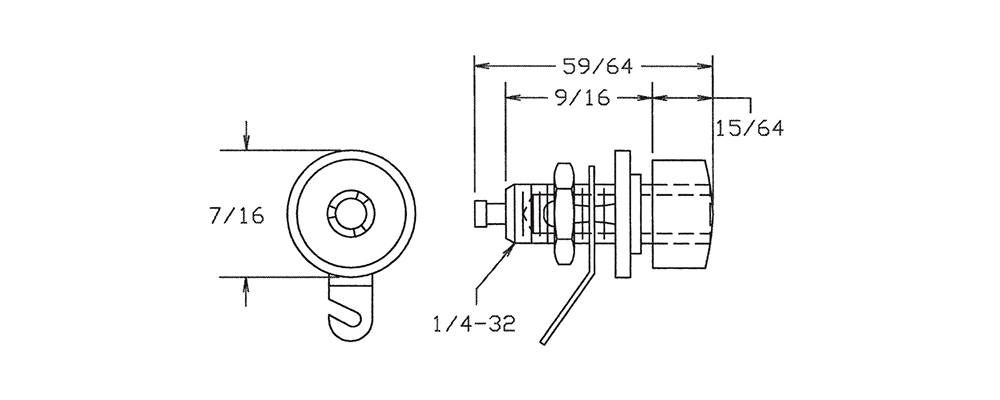

09-9251-1-0210
09-9251-1-0210
09-9251-1-0210
0.922" 0.080 1/4-32 Nut 0.650 " 0.257 Up to 3/16 Jack/Turret Brass Nickel Beryllium Copper Gold Nylon   Black -
09-9075-1-04417
09-9075-1-04417
09-9075-1-04417
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Bright Tin Beryllium Copper Bright Tin PTFE Violet -
09-9251-1-0212
09-9251-1-0212
09-9251-1-0212
0.922" 0.080 1/4-32 Nut 0.650 " 0.257 Up to 3/16 Jack/Turret Brass Nickel Beryllium Copper Gold Nylon   Red -
09-9075-1-04418
09-9075-1-04418
09-9075-1-04418
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Bright Tin Beryllium Copper Bright Tin PTFE Gray -

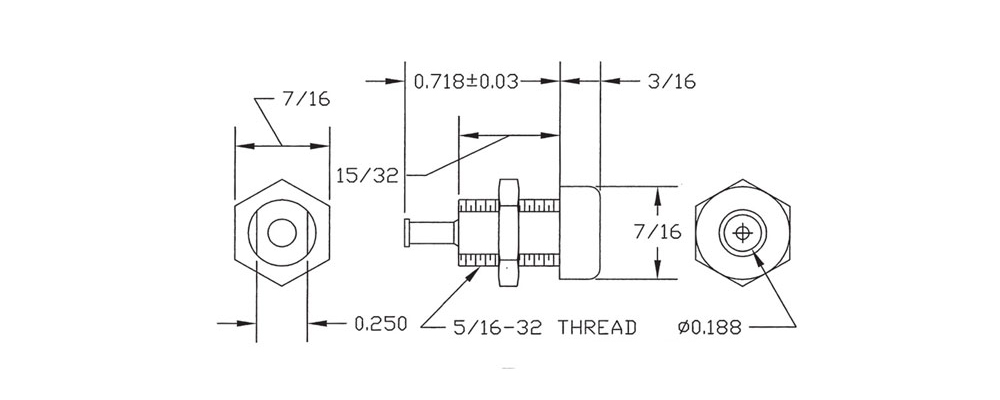

20-2124-1-0310
20-2124-1-0310
20-2124-1-0310
0.905" 0.060 5/16-32 Nut 0.500 " 0.323 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Black -
09-9075-1-04419
09-9075-1-04419
09-9075-1-04419
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Bright Tin Beryllium Copper Bright Tin PTFE White -
