Panel Jacks / Terminals
Thread Mount

Filter
09-9184-1-0310
09-9184-1-0310
09-9184-1-0310
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold Nylon   Black -
09-9183-1-03519
09-9183-1-03519
09-9183-1-03519
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   White -
09-9151-1-0310
09-9151-1-0310
09-9151-1-0310
0.9375" 0.080 1/4-32 Nut 0.375 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold Nylon   Black -
09-9184-1-0318
09-9184-1-0318
09-9184-1-0318
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold Nylon   Gray -
09-9184-1-0312
09-9184-1-0312
09-9184-1-0312
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold Nylon   Red -
09-9150-1-03518
09-9150-1-03518
09-9150-1-03518
0.9375" 0.080 1/4-32 Nut 0.370 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Gray -
09-9151-1-0314
09-9151-1-0314
09-9151-1-0314
0.9375" 0.080 1/4-32 Nut 0.375 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold Nylon   Yellow -
09-9151-1-04416
09-9151-1-04416
09-9151-1-04416
0.9375" 0.080 1/4-32 Nut 0.375 " 0.257 Up to 3/16 Jack/Eyelet Brass Bright Tin Beryllium Copper Bright Tin Nylon   Blue -
09-9151-1-0313
09-9151-1-0313
09-9151-1-0313
0.9375" 0.080 1/4-32 Nut 0.375 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold Nylon   Orange -

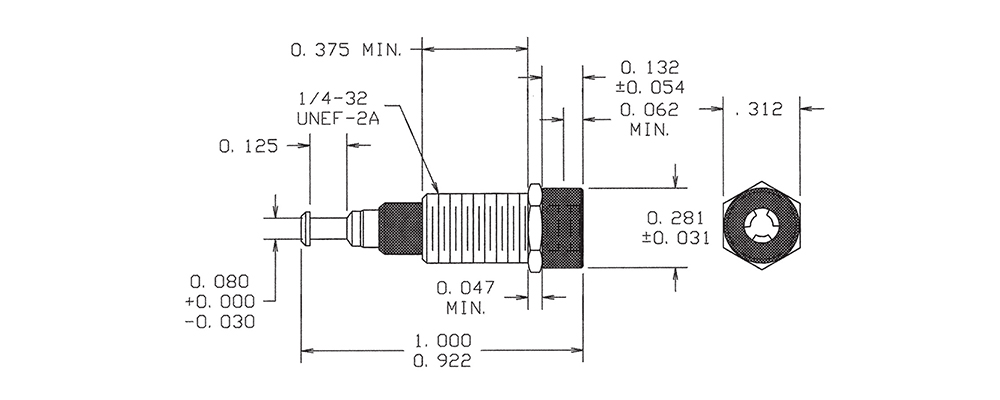

09-9075-1-03511
09-9075-1-03511
09-9075-1-03511
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold PTFE Brown -
09-9075-1-04416
09-9075-1-04416
09-9075-1-04416
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Bright Tin Beryllium Copper Bright Tin PTFE Blue -
09-9073-1-04419
09-9073-1-04419
09-9073-1-04419
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Bright Tin Beryllium Copper Bright Tin PTFE White -
09-9073-1-03517
09-9073-1-03517
09-9073-1-03517
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold PTFE Violet -
09-9150-1-0315
09-9150-1-0315
09-9150-1-0315
0.9375" 0.080 1/4-32 Nut 0.370 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Green -
09-9075-1-0314
09-9075-1-0314
09-9075-1-0314
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold PTFE Yellow -
09-9184-1-04414
09-9184-1-04414
09-9184-1-04414
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Eyelet Brass Bright Tin Beryllium Copper Bright Tin Nylon   Yellow -
09-9150-1-04411
09-9150-1-04411
09-9150-1-04411
0.9375" 0.080 1/4-32 Nut 0.370 " 0.257 Up to 3/16 Jack/Turret Brass Bright Tin Beryllium Copper Bright Tin Nylon   Brown -
09-9151-1-04415
09-9151-1-04415
09-9151-1-04415
0.9375" 0.080 1/4-32 Nut 0.375 " 0.257 Up to 3/16 Jack/Eyelet Brass Bright Tin Beryllium Copper Bright Tin Nylon   Green -
09-9151-1-0312
09-9151-1-0312
09-9151-1-0312
0.9375" 0.080 1/4-32 Nut 0.375 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold Nylon   Red -
09-9112-1-03510
09-9112-1-03510
09-9112-1-03510
1.172" - 1/4-32 Nut - 0.257 Up to 3/16 Turret/Turret Brass Gold - - Nylon   Black -
