Panel Jacks / Terminals
Thread Mount

Filter
09-9150-1-03512
09-9150-1-03512
09-9150-1-03512
0.9375" 0.080 1/4-32 Nut 0.370 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Red -

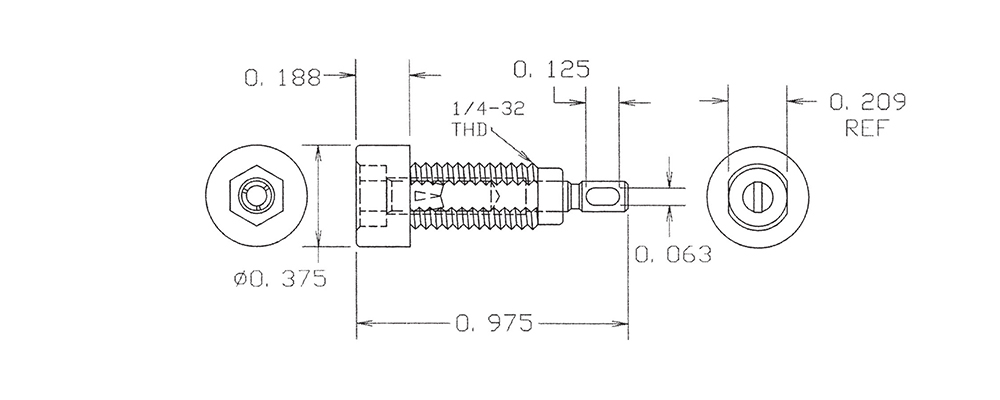

09-9183-1-03510
09-9183-1-03510
09-9183-1-03510
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Black -

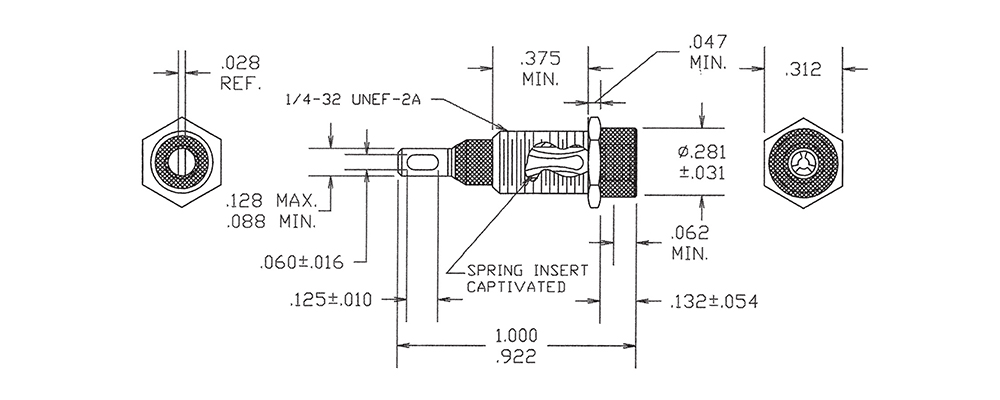

09-9073-1-0312
09-9073-1-0312
09-9073-1-0312
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold PTFE Red -
09-9228-1-0319
09-9228-1-0319
09-9228-1-0319
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold WITH Solder COATED TIP Beryllium Copper Gold Nylon   White -
09-9073-1-04417
09-9073-1-04417
09-9073-1-04417
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Bright Tin Beryllium Copper Bright Tin PTFE Violet -
09-9243-1-0312
09-9243-1-0312
09-9243-1-0312
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold WITH Solder COATED TIP Beryllium Copper Gold Nylon   Red -
09-9112-1-04417
09-9112-1-04417
09-9112-1-04417
1.172" - 1/4-32 Nut - 0.257 Up to 3/16 Turret/Turret Brass Bright Tin - - Nylon   Violet -
09-9111-1-04417
09-9111-1-04417
09-9111-1-04417
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Bright Tin Beryllium Copper Bright Tin Nylon   Violet -
09-9072-1-0313
09-9072-1-0313
09-9072-1-0313
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold Nylon   Orange -
09-9111-1-04418
09-9111-1-04418
09-9111-1-04418
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Bright Tin Beryllium Copper Bright Tin Nylon   Gray -
09-9073-1-0314
09-9073-1-0314
09-9073-1-0314
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold PTFE Yellow -
09-9243-1-0318
09-9243-1-0318
09-9243-1-0318
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold WITH Solder COATED TIP Beryllium Copper Gold Nylon   Gray -
09-9243-1-0314
09-9243-1-0314
09-9243-1-0314
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold WITH Solder COATED TIP Beryllium Copper Gold Nylon   Yellow -
09-9074-1-0313
09-9074-1-0313
09-9074-1-0313
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Orange -
09-9112-1-03518
09-9112-1-03518
09-9112-1-03518
1.172" - 1/4-32 Nut - 0.257 Up to 3/16 Turret/Turret Brass Gold - - Nylon   Gray -
09-9110-1-04410
09-9110-1-04410
09-9110-1-04410
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Phosphor Bronze Bright Tin - - Nylon   Black -
09-9152-1-03517
09-9152-1-03517
09-9152-1-03517
1.170" - 1/4-32 Nut - 0.257 Up to 3/16 Turret/Turret Brass Gold - - Nylon   Violet -
09-9074-1-0317
09-9074-1-0317
09-9074-1-0317
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Violet -
09-9152-1-04411
09-9152-1-04411
09-9152-1-04411
1.170" - 1/4-32 Nut - 0.257 Up to 3/16 Turret/Turret Brass Bright Tin - - Nylon   Brown -
09-9112-1-03510
09-9112-1-03510
09-9112-1-03510
1.172" - 1/4-32 Nut - 0.257 Up to 3/16 Turret/Turret Brass Gold - - Nylon   Black -
