Panel Jacks / Terminals
Thread Mount

Filter
09-9243-1-0310
09-9243-1-0310
09-9243-1-0310
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold WITH Solder COATED TIP Beryllium Copper Gold Nylon   Black -
09-9072-1-0310
09-9072-1-0310
09-9072-1-0310
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold Nylon   Black -

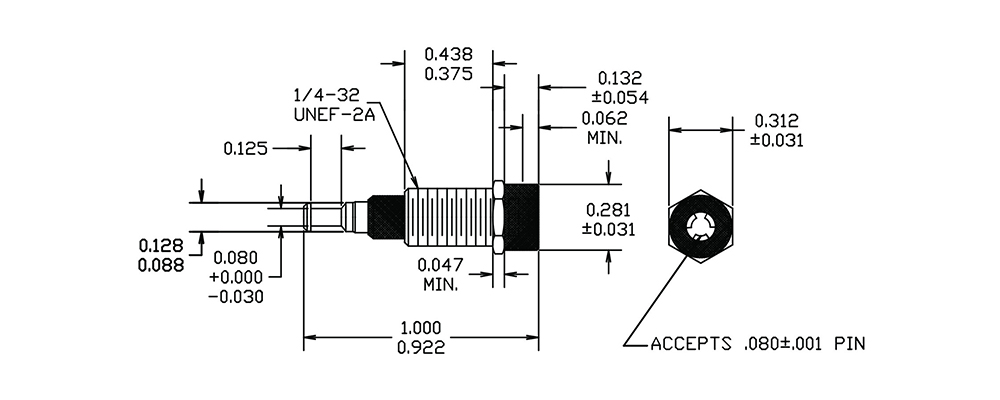

09-9074-1-0312
09-9074-1-0312
09-9074-1-0312
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Red -
09-9243-1-0319
09-9243-1-0319
09-9243-1-0319
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold WITH Solder COATED TIP Beryllium Copper Gold Nylon   White -

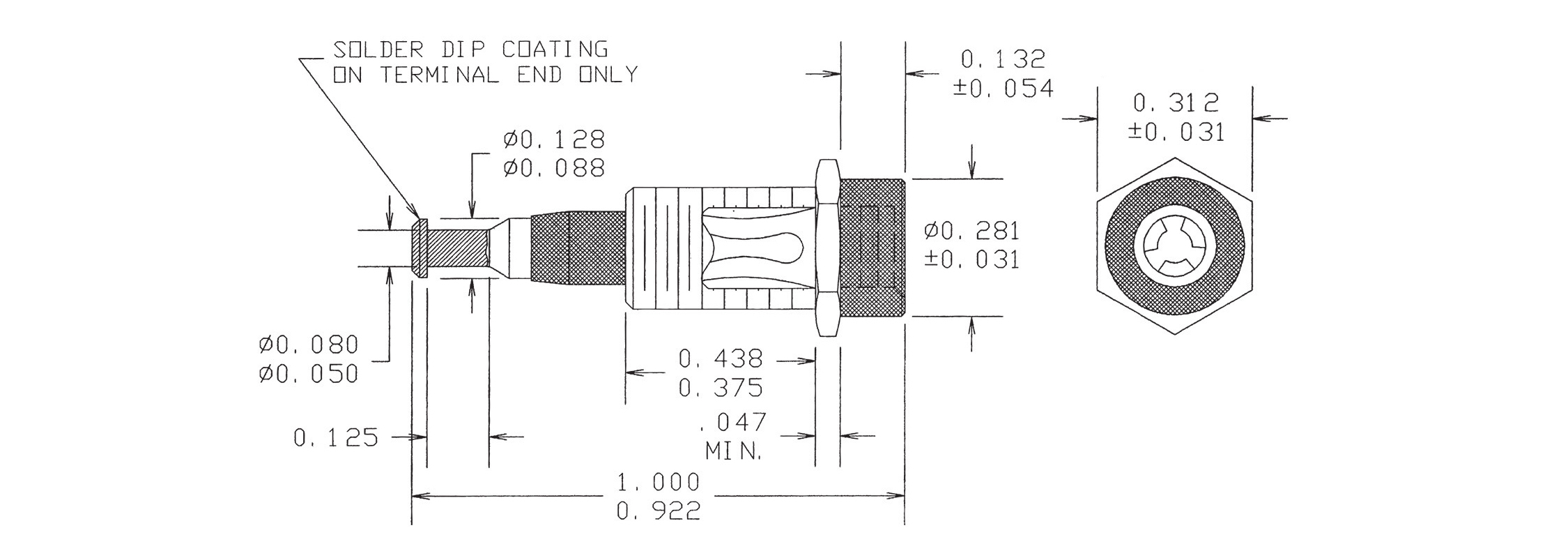

09-9228-1-0313
09-9228-1-0313
09-9228-1-0313
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold WITH Solder COATED TIP Beryllium Copper Gold Nylon   Orange -
09-9228-1-0314
09-9228-1-0314
09-9228-1-0314
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Turret Brass Gold WITH Solder COATED TIP Beryllium Copper Gold Nylon   Yellow -
09-9073-1-03516
09-9073-1-03516
09-9073-1-03516
0.922" 0.080 1/4-32 Nut 0.420 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold PTFE Blue -
09-9151-1-03514
09-9151-1-03514
09-9151-1-03514
0.9375" 0.080 1/4-32 Nut 0.375 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold Nylon   Yellow -
09-9184-1-0315
09-9184-1-0315
09-9184-1-0315
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold Nylon   Green -
09-9184-1-03515
09-9184-1-03515
09-9184-1-03515
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold Nylon   Green -
09-9184-1-03516
09-9184-1-03516
09-9184-1-03516
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold Nylon   Blue -
09-9184-1-03518
09-9184-1-03518
09-9184-1-03518
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold Nylon   Gray -
09-9151-1-03519
09-9151-1-03519
09-9151-1-03519
0.9375" 0.080 1/4-32 Nut 0.375 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold Nylon   White -
09-9151-1-03511
09-9151-1-03511
09-9151-1-03511
0.9375" 0.080 1/4-32 Nut 0.375 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold Nylon   Brown -
09-9184-1-03519
09-9184-1-03519
09-9184-1-03519
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold Nylon   White -
09-9183-1-03518
09-9183-1-03518
09-9183-1-03518
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Turret Brass Gold Beryllium Copper Gold Nylon   Gray -
09-9151-1-0316
09-9151-1-0316
09-9151-1-0316
0.9375" 0.080 1/4-32 Nut 0.375 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold Nylon   Blue -
09-9184-1-03512
09-9184-1-03512
09-9184-1-03512
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold Nylon   Red -
09-9184-1-0314
09-9184-1-0314
09-9184-1-0314
0.975" 0.080 1/4-32 Nut 0.620 " 0.257 Up to 3/16 Jack/Eyelet Brass Gold Beryllium Copper Gold Nylon   Yellow -
09-9112-1-03510
09-9112-1-03510
09-9112-1-03510
1.172" - 1/4-32 Nut - 0.257 Up to 3/16 Turret/Turret Brass Gold - - Nylon   Black -
