Commercial
Non-Insulated
Terminals

Filter

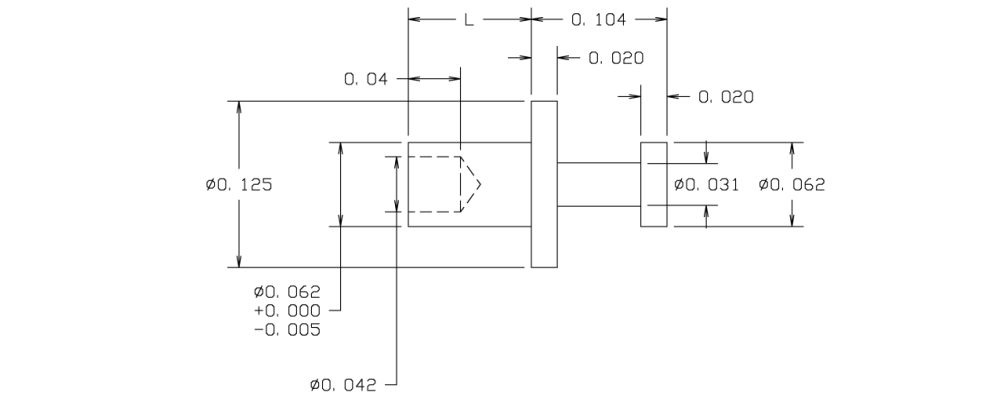

10-930-2-03
10-930-2-03
10-930-2-03
0.198" - - Swage Mount 0.094" 1/16 0.0635 Brass Gold YES

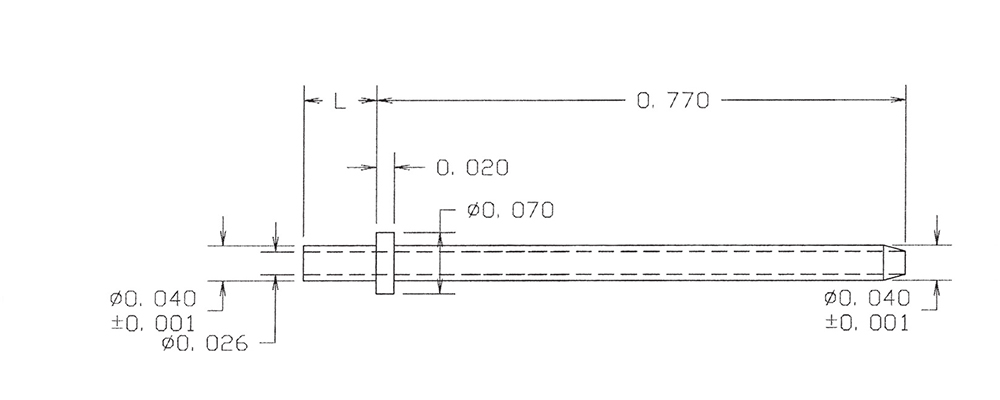

10-973-1-035
10-973-1-035
10-973-1-035
0.821" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES
14-351-4-088
14-351-4-088
14-351-4-088
0.497" - - Swage Mount 0.172" 1/8 0.196 LEADED Red Brass Bright Tin-Lead NO
09-0301-2-088
09-0301-2-088
09-0301-2-088
0.244" - - Swage Mount 0.087" 1/16 0.063 Brass Bright Tin-Lead NO
10-414-2-04
10-414-2-04
10-414-2-04
0.238" - - Swage Mount 0.082" 1/16 0.052 Brass Electro-Tin YES
10-449-11-01
10-449-11-01
10-449-11-01
0.193" - - Swage Mount 0.037" 1/64 0.064 Brass Silver YES
10-471-3-044
10-471-3-044
10-471-3-044
0.271" - - Swage Mount 0.115" 3/32 0.067 Brass Bright Tin YES
14-414-1-03
14-414-1-03
14-414-1-03
0.208" - - Swage Mount 0.051" 1/32 0.052 LEADED Red Brass Gold YES
09-0050-3-01
09-0050-3-01
09-0050-3-01
0.453" - - Swage Mount 0.141" 3/32 0.140 Brass Silver YES
09-0114-2-088
09-0114-2-088
09-0114-2-088
0.281" - - Swage Mount 0.094" 1/16 0.076 Brass Bright Tin-Lead NO

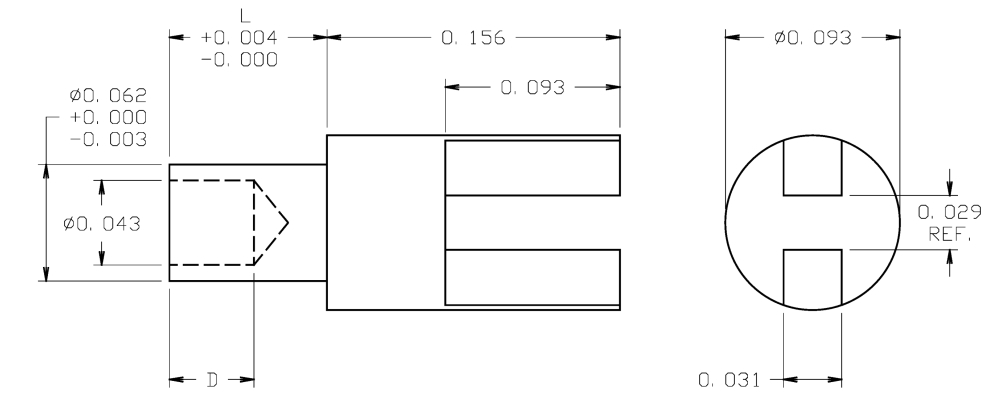

09-0175-4-01
09-0175-4-01
09-0175-4-01
0.305" - - Swage Mount 0.150" 1/8 0.063 Brass Silver YES

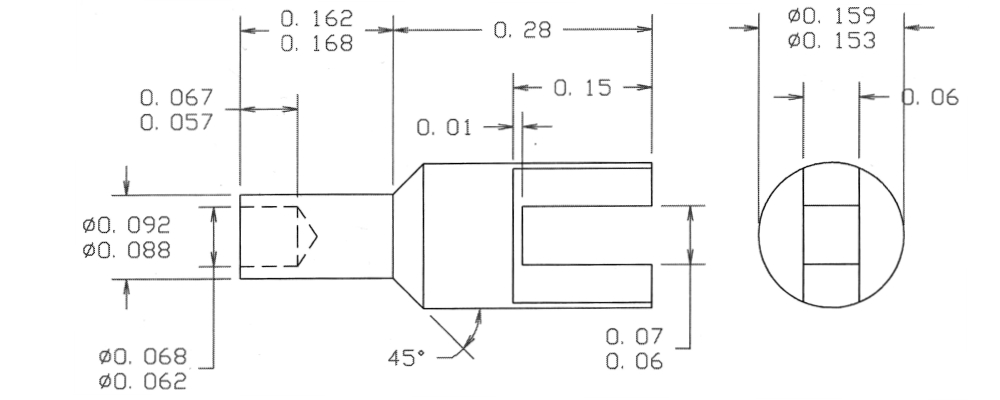

09-0217-5-01
09-0217-5-01
09-0217-5-01
0.445" - - Swage Mount 0.165" 1/8 0.094 Brass Silver YES
09-0260-1-044
09-0260-1-044
09-0260-1-044
0.376" (0.040 (+0.000/-0.003))/(0.040) Pin/Pin Solder 0.064" 1/32 0.070 Brass Bright Tin YES
09-0310-11-035
09-0310-11-035
09-0310-11-035
0.193" - - Swage Mount 0.037" 1/64 0.043 Brass Gold YES

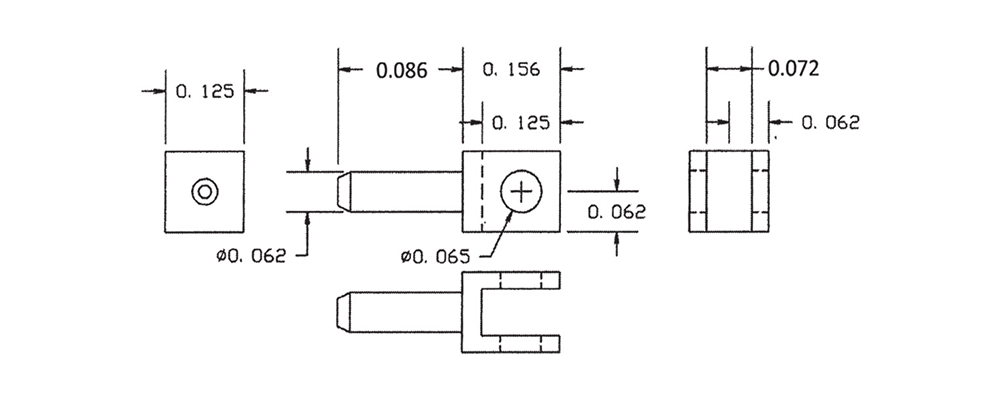

09-0375-2-088
09-0375-2-088
09-0375-2-088
0.242" 0.062 - 0-80 Screw - 1/16 CLEARANCE FOR #0 Screw Brass Bright Tin-Lead NO
09-7017-3-035
09-7017-3-035
09-7017-3-035
0.285" - - Swage Mount 0.125" 3/32 0.055 LEADED Red Brass Gold YES

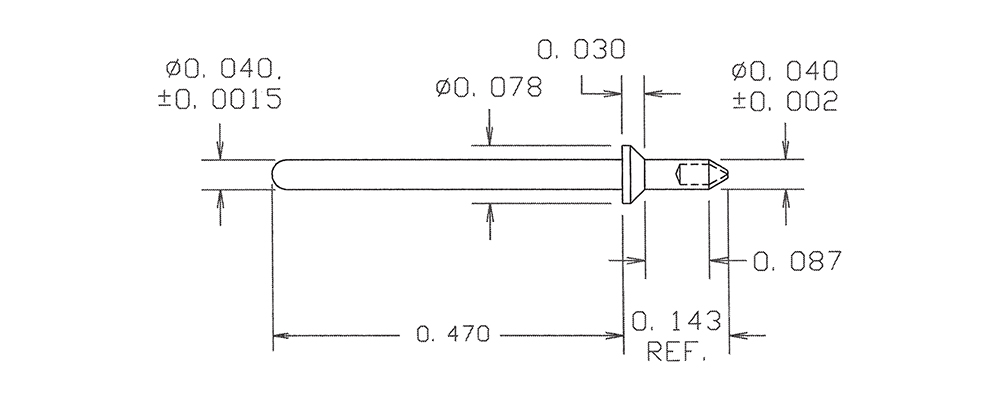

09-7131-2-044
09-7131-2-044
09-7131-2-044
0.613" 0.0405 - RIVET MOUNT 0.087" 1/16 0.044 Brass Bright Tin YES
09-7159-2-03
09-7159-2-03
09-7159-2-03
0.318" 0.040 - RIVET MOUNT 0.095" 1/16 0.0625 Brass Gold YES
09-7192-2-05
09-7192-2-05
09-7192-2-05
0.251" - - RIVET MOUNT 0.100" 1/16 0.073 Brass Electro Solder NO

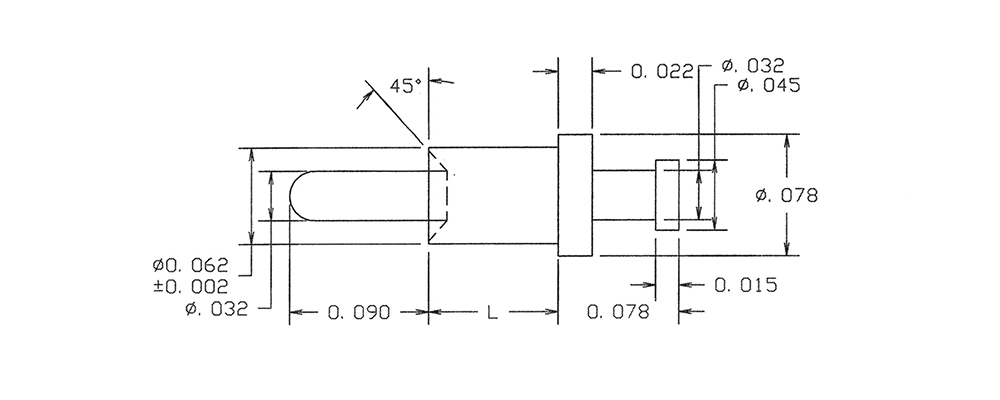

09-8041-2-035
09-8041-2-035
09-8041-2-035
0.252" 0.032 TURRET/PC PIN Swage Mount 0.084" 1/16 0.067 Brass Gold YES
