Commercial
Non-Insulated
Terminals

Filter
10-203-2-04
10-203-2-04
10-203-2-04
0.390" - - Swage Mount 0.109" 1/16 0.094 Brass Electro-Tin YES
09-8064-4-044
09-8064-4-044
09-8064-4-044
0.250" 0.020 (+0.000/-0.001) - Swage Mount 0.051" 1/32 0.033 Brass Bright Tin YES
14-350-6-01
14-350-6-01
14-350-6-01
0.751" - - Swage Mount 0.230" 3/16 0.196 LEADED Red Brass Silver YES
10-8023-3-05
10-8023-3-05
10-8023-3-05
0.321" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Electro Solder NO
09-7128-1-044
09-7128-1-044
09-7128-1-044
0.782" 0.0405 - RIVET MOUNT 0.056" 1/32 0.044 Brass Bright Tin YES
09-8173-1-05
09-8173-1-05
09-8173-1-05
0.651" 0.025 (+0.000/-0.005) - Swage Mount 0.051" 1/32 0.043 Brass Electro Solder NO
10-441-5-088
10-441-5-088
10-441-5-088
0.539" - - Swage Mount 0.195" 5/32 0.1405 Brass Bright Tin-Lead NO
10-203-1-095
10-203-1-095
10-203-1-095
0.359" - - Swage Mount 0.078" 1/32 0.094 Brass Hot Solder Dip NO
10-203-1-035
10-203-1-035
10-203-1-035
0.359" - - Swage Mount 0.078" 1/32 0.094 Brass Gold YES

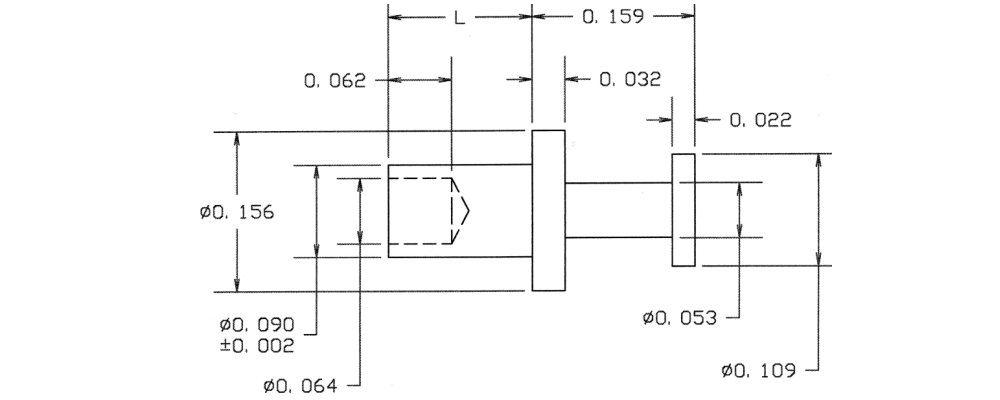

10-137-4-01
10-137-4-01
10-137-4-01
0.331" - - Swage Mount 0.172" 1/8 0.094 Brass Silver YES
10-137-4-04
10-137-4-04
10-137-4-04
0.331" - - Swage Mount 0.172" 1/8 0.094 Brass Electro-Tin YES
09-8811-1-04
09-8811-1-04
09-8811-1-04
0.760" 0.040 - Swage Mount 0.053" 1/32 0.043 Brass Electro-Tin YES
10-530-5-05
10-530-5-05
10-530-5-05
0.664" - TURRET/DOUBLE TURRET Swage Mount 0.195" 5/32 0.159 Brass Electro Solder NO
09-8529-1-05
09-8529-1-05
09-8529-1-05
0.171" - - Swage Mount 0.051" 1/32 0.043 Brass Electro Solder NO
10-8021-2-04
10-8021-2-04
10-8021-2-04
0.402" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Electro-Tin YES
09-8480-2-035
09-8480-2-035
09-8480-2-035
0.232" 0.025 - Swage Mount 0.082" 1/16 0.0465 Brass Gold YES
10-549-5-088
10-549-5-088
10-549-5-088
0.874" - Double Turret/Double Turret Swage Mount 0.195" 5/32 0.206 Brass Bright Tin-Lead NO
14-414-3-04
14-414-3-04
14-414-3-04
0.270" - - Swage Mount 0.113" 3/32 0.052 LEADED Red Brass Electro-Tin YES
09-0234-4-095
09-0234-4-095
09-0234-4-095
0.490" - - Swage Mount 0.180" 5/32 0.067 Brass Hot Solder Dip NO
10-232-1-035
10-232-1-035
10-232-1-035
0.277" - - Swage Mount 0.047" 1/32 0.052 Brass Gold YES
