Commercial
Non-Insulated
Terminals

Filter

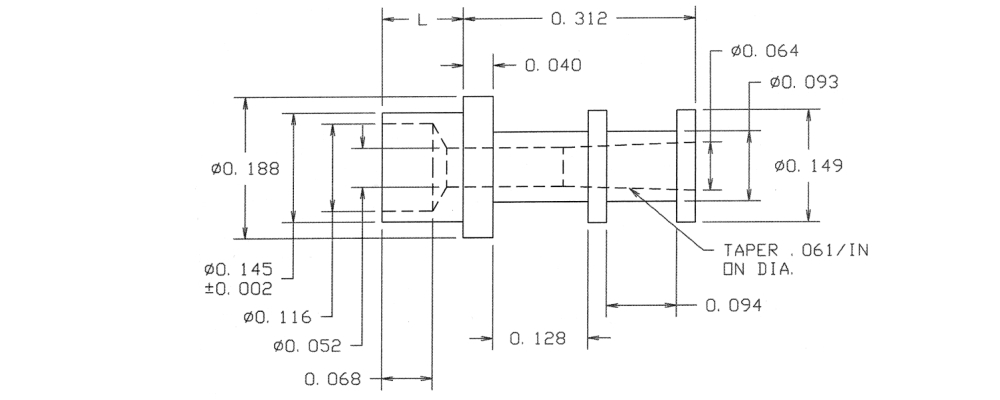

10-811-2-035
10-811-2-035
10-811-2-035
0.421" - - Swage Mount 0.109" 1/16 0.1495 Brass Gold YES
10-820-2-05
10-820-2-05
10-820-2-05
0.278" 0.040 - Swage Mount 0.105" 1/16 0.094 Brass Electro Solder NO
10-831-2-044
10-831-2-044
10-831-2-044
0.282" 0.050 - Swage Mount 0.094" 1/16 0.064 Brass Bright Tin YES
10-839-1-03
10-839-1-03
10-839-1-03
0.781" 0.050 Pin/Pin Swage Mount 0.063" 1/32 0.111 Brass Gold YES

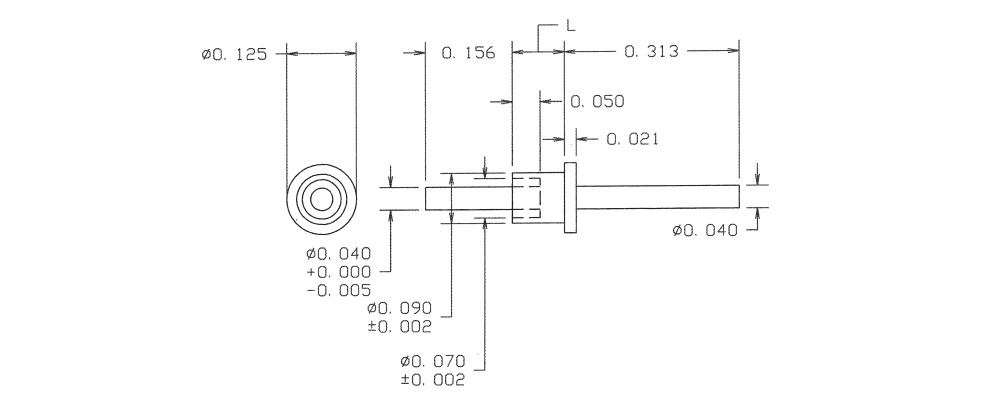

10-858-4-05
10-858-4-05
10-858-4-05
0.625" 0.040 Pin/Pin Swage Mount 0.156" 1/8 0.094 Brass Electro Solder NO
10-877-2-04
10-877-2-04
10-877-2-04
0.424" 0.032 - Swage Mount 0.082" 1/16 0.055 Brass Electro-Tin YES
10-895-8-04
10-895-8-04
10-895-8-04
0.600" 0.040 - - - - - Brass Electro-Tin YES
10-915-2A-03
10-915-2A-03
10-915-2A-03
0.244" 0.025 - Swage Mount 0.094" 1/16 0.043 Brass Gold YES
10-928-1-05
10-928-1-05
10-928-1-05
0.531" - TURRET/PIN Press Fit/Solder 0.375" 9/64 TO 5/16 0.096 Brass Electro Solder NO
10-972-1-05
10-972-1-05
10-972-1-05
0.831" 0.040 - Swage Mount 0.061" 1/32 0.043 Brass Electro Solder NO
14-351-2-035
14-351-2-035
14-351-2-035
0.434" - - Swage Mount 0.109" 1/16 0.196 LEADED Red Brass Gold YES
09-0279-2-035
09-0279-2-035
09-0279-2-035
0.344" - - Swage Mount 0.105" 1/16 0.094 Brass Gold YES
10-413-8-088
10-413-8-088
10-413-8-088
0.426" - - Swage Mount 0.270" 1/4 0.052 Brass Bright Tin-Lead NO
10-448-3-04
10-448-3-04
10-448-3-04
0.427" - - Swage Mount 0.115" 3/32 0.063 Brass Electro-Tin YES
10-471-11-01
10-471-11-01
10-471-11-01
0.193" - - Swage Mount 0.037" 1/64 0.067 Brass Silver YES
10-948-2-044
10-948-2-044
10-948-2-044
0.267" - - Swage Mount 0.094" 1/16 0.0635 Brass Bright Tin YES

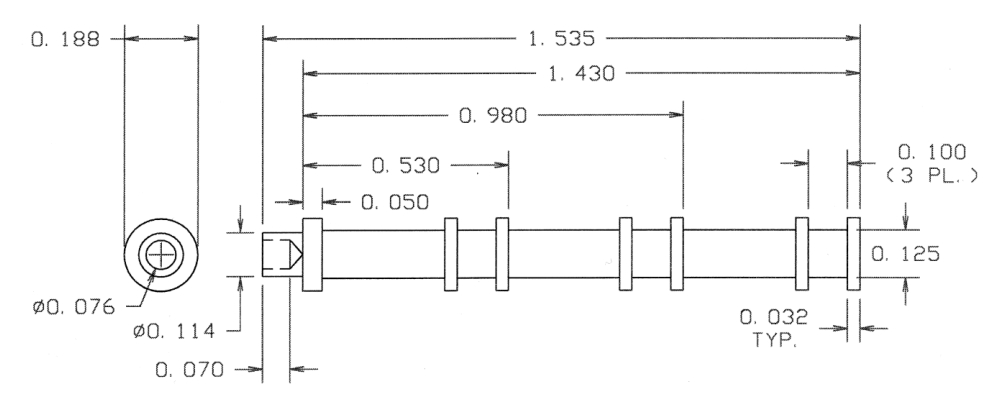

09-0047-2-044
09-0047-2-044
09-0047-2-044
1.535" - - Swage Mount 0.105" 1/16 0.116 Brass Bright Tin YES
09-0112-2-035
09-0112-2-035
09-0112-2-035
0.448" - TURRET/THREAD Swage Mount 0.094" 1/16 0.154 Brass Gold YES
09-0175-11-088
09-0175-11-088
09-0175-11-088
0.193" - - Swage Mount 0.037" 1/64 0.063 Brass Bright Tin-Lead NO
09-0212-2-088
09-0212-2-088
09-0212-2-088
0.270" - - Swage Mount 0.084" 1/16 0.076 Brass Bright Tin-Lead NO

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
