Commercial
Non-Insulated
Terminals

Filter
09-8311-3-088
09-8311-3-088
09-8311-3-088
0.299" 0.040 - Swage Mount 0.113" 3/32 0.076 Brass Bright Tin-Lead NO
09-0242-1-088
09-0242-1-088
09-0242-1-088
0.907" 0.040 Pin/Pin Swage Mount 0.060" 1/32 0.076 Brass Bright Tin-Lead NO
10-201-4-088
10-201-4-088
10-201-4-088
0.331" - - Swage Mount 0.145" 1/8 0.076 Brass Bright Tin-Lead NO
10-506-2-088
10-506-2-088
10-506-2-088
0.375" - Turret/Turret Swage Mount 0.094" 1/16 0.120 Brass Bright Tin-Lead NO
10-714-4-088
10-714-4-088
10-714-4-088
0.727" - DOUBLE TURRET/THREAD Swage Mount 0.165" 1/8 0.204 Brass Bright Tin-Lead NO
09-8171-2-088
09-8171-2-088
09-8171-2-088
0.924" 0.040 - Swage Mount 0.082" 1/16 0.076 Brass Bright Tin-Lead NO
10-201-1-088
10-201-1-088
10-201-1-088
0.237" - - Swage Mount 0.051" 1/32 0.076 Brass Bright Tin-Lead NO
10-603-1-088
10-603-1-088
10-603-1-088
0.496" - - Swage Mount 0.075" 1/32 0.116 Brass Bright Tin-Lead NO
10-576-4-088
10-576-4-088
10-576-4-088
0.446" - Turret/Turret Swage Mount 0.165" 1/8 0.120 Brass Bright Tin-Lead NO
10-522-6-088
10-522-6-088
10-522-6-088
0.699" - Turret/Turret Swage Mount 0.230" 3/16 0.206 Brass Bright Tin-Lead NO
10-416-3-088
10-416-3-088
10-416-3-088
0.271" - - Swage Mount 0.115" 3/32 0.064 Brass Bright Tin-Lead NO
10-221-3-035
10-221-3-035
10-221-3-035
0.328" - - Swage Mount 0.115" 3/32 0.076 Brass Gold YES
09-0167-2-095
09-0167-2-095
09-0167-2-095
0.268" - - Swage Mount 0.082" 1/16 0.076 Brass Hot Solder Dip NO
09-8136-2-04
09-8136-2-04
09-8136-2-04
0.447" 0.040 TURRET/PIN Swage Mount 0.093" 1/16 0.125 Brass Electro-Tin YES
10-803-6-01
10-803-6-01
10-803-6-01
0.582" 0.040 TURRET/PIN Swage Mount 0.207" 3/16 0.076 Brass Silver YES
10-505-1-05
10-505-1-05
10-505-1-05
0.385" - TURRET/DOUBLE TURRET Swage Mount 0.062" 1/32 0.094 Brass Electro Solder NO
14-348-3A-01
14-348-3A-01
14-348-3A-01
0.480" - - Swage Mount 0.152" 7/64 0.082 LEADED Red Brass Silver YES

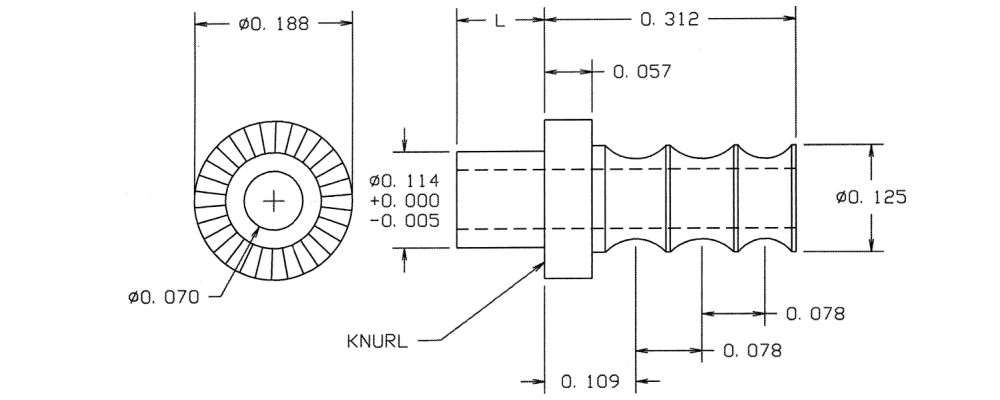

10-317-1-088
10-317-1-088
10-317-1-088
0.387" - - Swage Mount 0.075" 1/32 0.116 Brass Bright Tin-Lead NO
10-247-4-01
10-247-4-01
10-247-4-01
0.531" - - Swage Mount 0.172" 1/8 0.116 Brass Silver YES
10-231-3-01
10-231-3-01
10-231-3-01
0.290" - - Swage Mount 0.135" 3/32 0.116 Brass Silver YES
