Commercial
Non-Insulated
Terminals

Filter

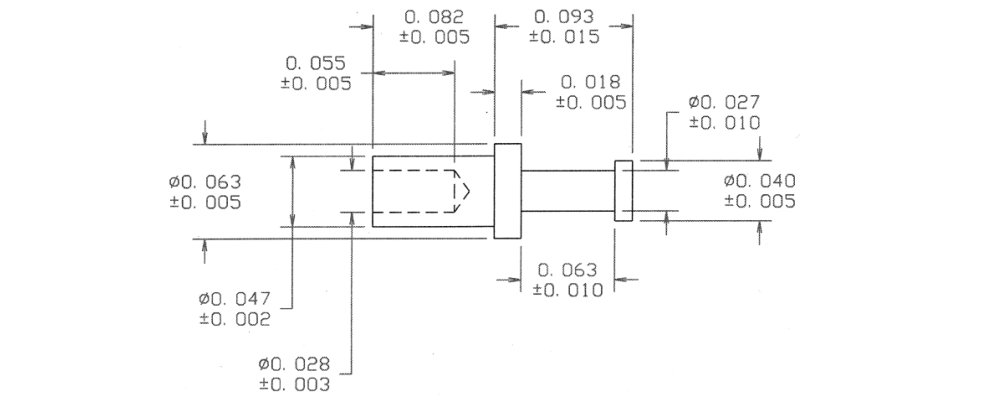

09-0249-2-095
09-0249-2-095
09-0249-2-095
0.175" - - Swage Mount 0.082" 1/16 0.070 Brass Hot Solder Dip NO
09-0295-2-05
09-0295-2-05
09-0295-2-05
0.152" 0.030 - Solder 0.090" 1/64 TO 1/16 0.032 Brass Electro Solder NO
09-0357-4-05
09-0357-4-05
09-0357-4-05
0.210" - - 2-56 - - 2-56 THREAD Brass Electro Solder NO
09-7013-4-01
09-7013-4-01
09-7013-4-01
0.310" - - Swage Mount 0.150" 1/8 0.067 LEADED Red Brass Silver YES

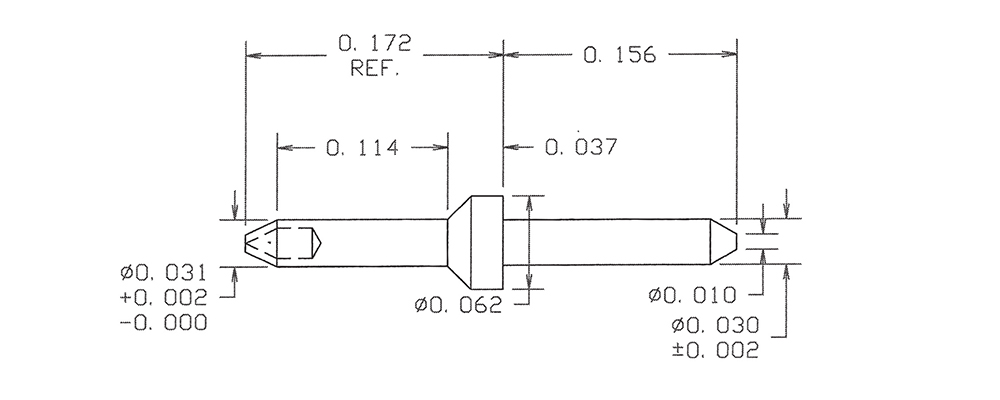

09-7123-3-035
09-7123-3-035
09-7123-3-035
0.328" 0.030 - RIVET MOUNT 0.114" 3/32 0.035 Brass Gold YES

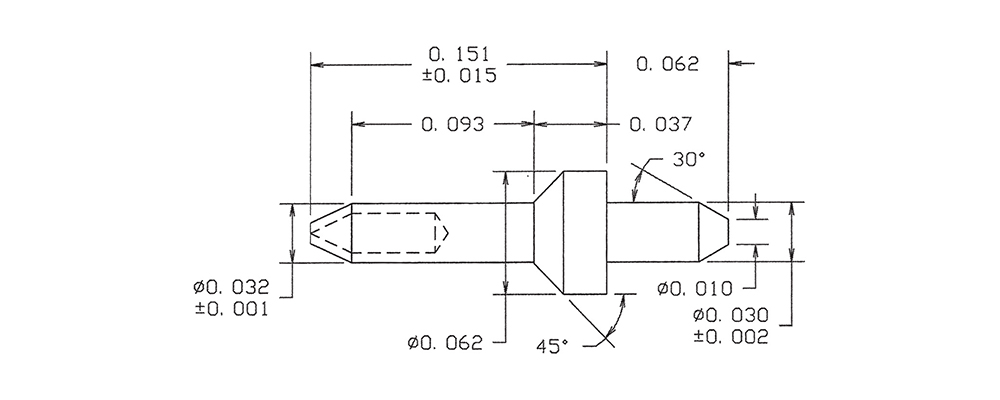

09-7152-2-088
09-7152-2-088
09-7152-2-088
0.213" 0.030 - RIVET MOUNT 0.093" 1/16 0.035 Brass Bright Tin-Lead NO
09-7186-1-04
09-7186-1-04
09-7186-1-04
0.206" - - RIVET MOUNT 0.056" 1/32 0.044 Brass Electro-Tin YES
09-8030-1-01
09-8030-1-01
09-8030-1-01
0.551" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Silver YES
09-8061-2-04
09-8061-2-04
09-8061-2-04
1.142" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Electro-Tin YES
09-8113-3-01
09-8113-3-01
09-8113-3-01
0.233" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Silver YES
09-8157-2-044
09-8157-2-044
09-8157-2-044
0.540" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin YES
09-8186-2A-03
09-8186-2A-03
09-8186-2A-03
0.130" 0.025 - Swage Mount 0.060" 3/64 0.035 Brass Gold YES

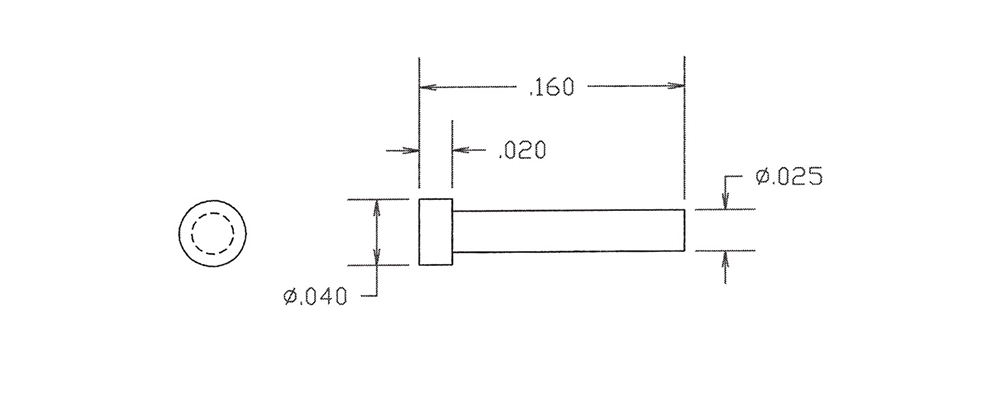

09-8404-1-01
09-8404-1-01
09-8404-1-01
0.160" 0.025 - - - - - Brass Silver YES
09-8622-3-035
09-8622-3-035
09-8622-3-035
0.390" 0.040 - Swage Mount 0.140" 1/8 0.043 Brass Gold YES
09-8730-1-01
09-8730-1-01
09-8730-1-01
0.343" 0.040 TURRET/PIN Press Fit/Solder 0.195" 7/32 TO 9/32 0.052 Brass Silver YES

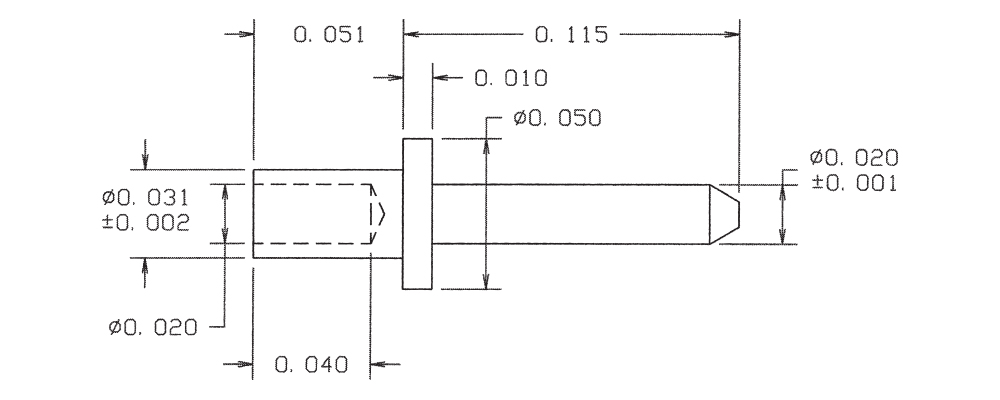

09-8828-1-088
09-8828-1-088
09-8828-1-088
0.166" 0.020 - Swage Mount 0.051" 1/32 0.035 Brass Bright Tin-Lead NO

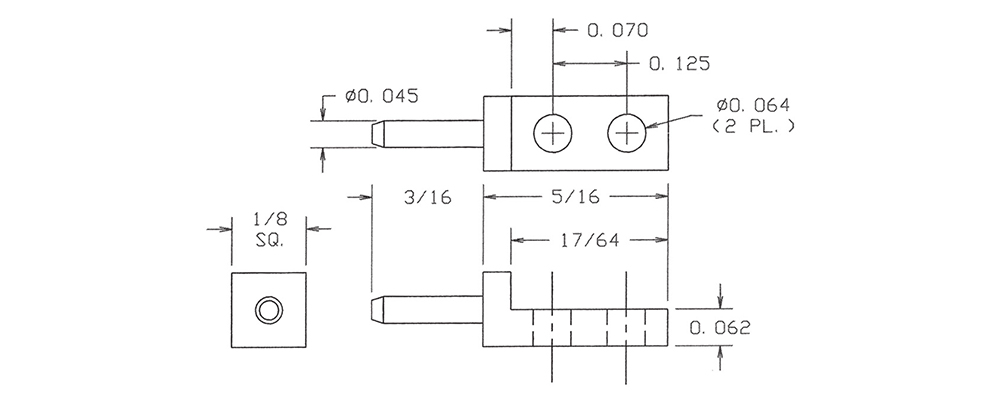

09-9505-1-01
09-9505-1-01
09-9505-1-01
0.444" 0.045 - 0-80 Screw - 1/32 TO 1/16 CLEARANCE FOR #0 Screw Brass Silver YES
10-106-4-05
10-106-4-05
10-106-4-05
0.346" - - Swage Mount 0.165" 1/8 0.094 Brass Electro Solder NO
10-114-4-035
10-114-4-035
10-114-4-035
0.241" - - Swage Mount 0.147" 1/8 0.043 Brass Gold YES
10-135-4-044
10-135-4-044
10-135-4-044
0.530" - - Swage Mount 0.171" 1/8 0.116 Brass Bright Tin YES
