Commercial
Non-Insulated
Terminals

Filter

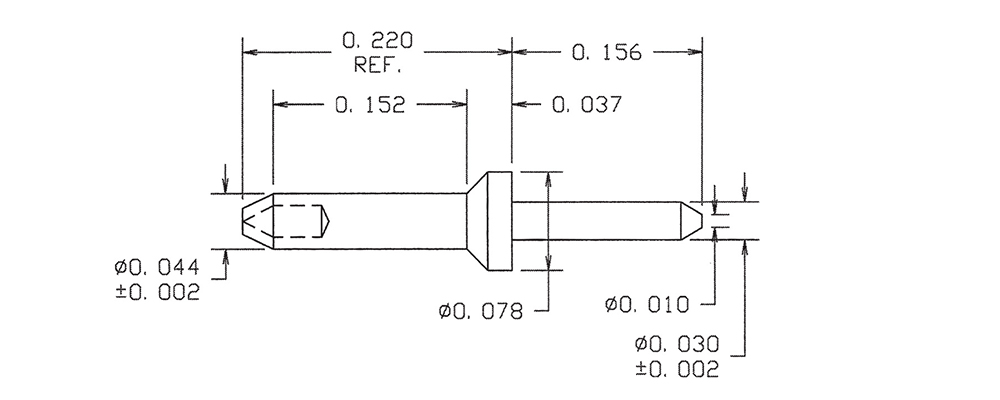

09-7146-4-088
09-7146-4-088
09-7146-4-088
0.376" 0.030 - RIVET MOUNT 0.152" 1/8 0.048 Brass Bright Tin-Lead NO
09-7173-2-04
09-7173-2-04
09-7173-2-04
0.315" - - RIVET MOUNT 0.082" 1/16 0.035 Brass Electro-Tin YES

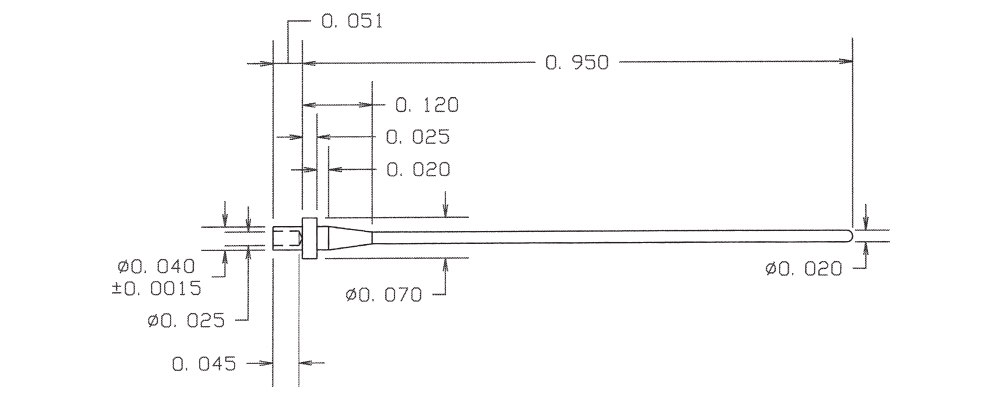

09-8015-1-01
09-8015-1-01
09-8015-1-01
1.001" 0.020 - Swage Mount 0.051" 1/32 0.043 Brass Silver YES

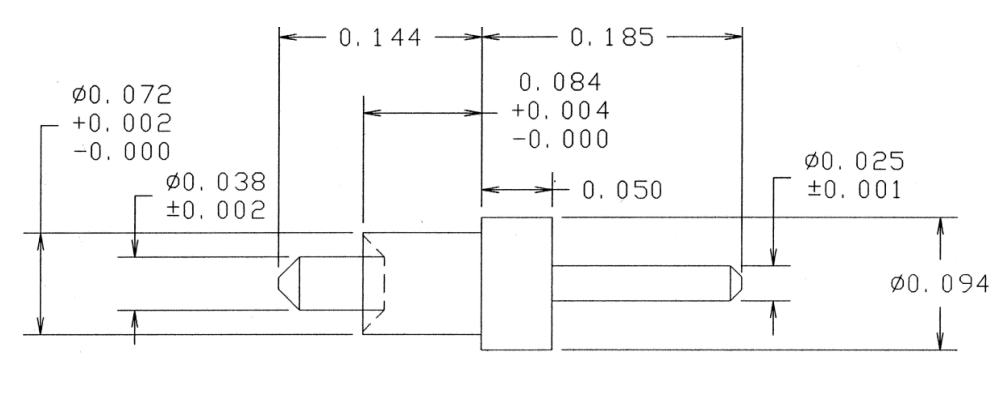

09-8051-2-044
09-8051-2-044
09-8051-2-044
0.329" 0.025 Pin/Pin Swage Mount 0.084" 1/16 0.076 Brass Bright Tin YES
09-8094-1-01
09-8094-1-01
09-8094-1-01
0.162" 0.025 - Swage Mount 0.062" 1/32 0.035 Brass Silver YES
09-8149-1-044
09-8149-1-044
09-8149-1-044
0.226" 0.030 - Swage Mount 0.050" 1/32 0.052 Brass Bright Tin YES

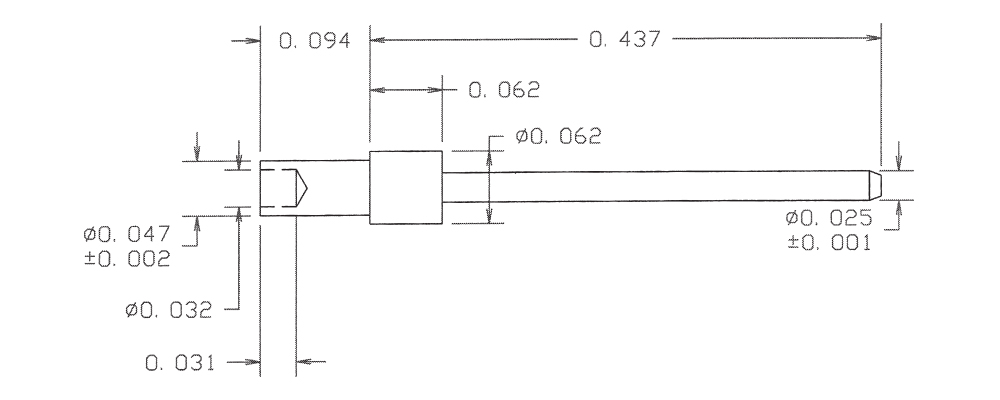

09-8178-2-03
09-8178-2-03
09-8178-2-03
0.531" 0.025 - Swage Mount 0.094" 1/16 0.052 Brass Gold YES

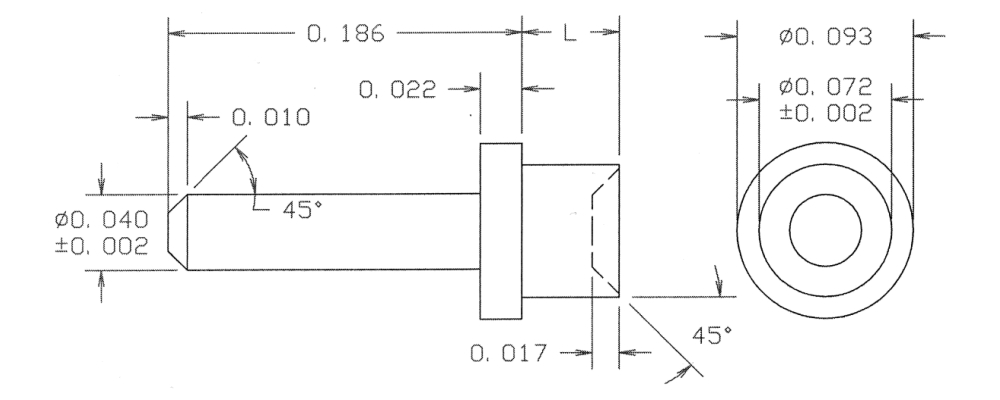

09-8311-4-03
09-8311-4-03
09-8311-4-03
0.331" 0.040 - Swage Mount 0.145" 1/8 0.076 Brass Gold YES

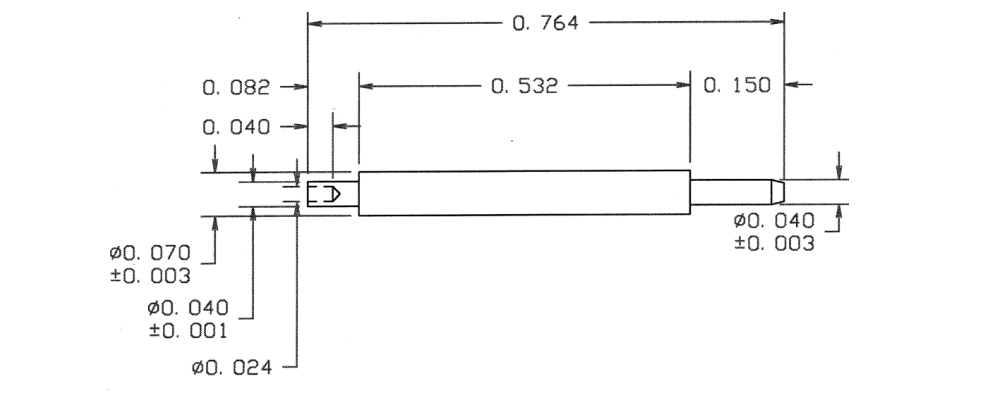

09-8572-2-01
09-8572-2-01
09-8572-2-01
0.764" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Silver YES

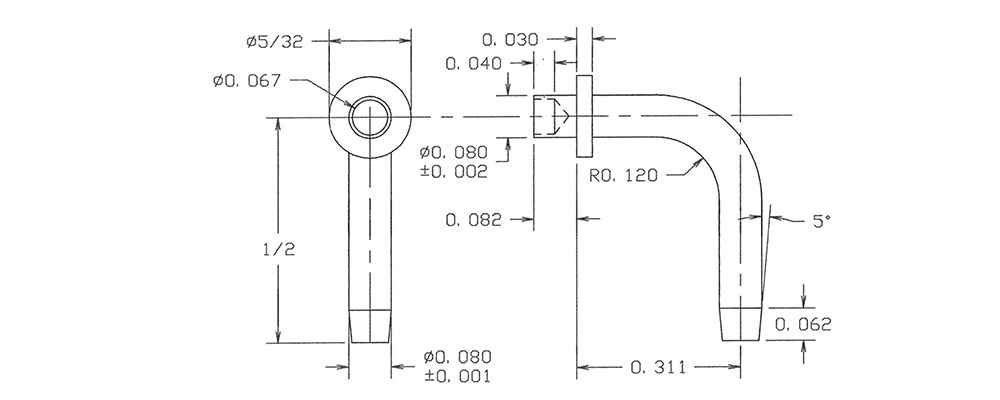

09-8699-1-01
09-8699-1-01
09-8699-1-01
0.578" 0.080 - Swage Mount 0.082" 1/16 0.086 Brass Silver YES

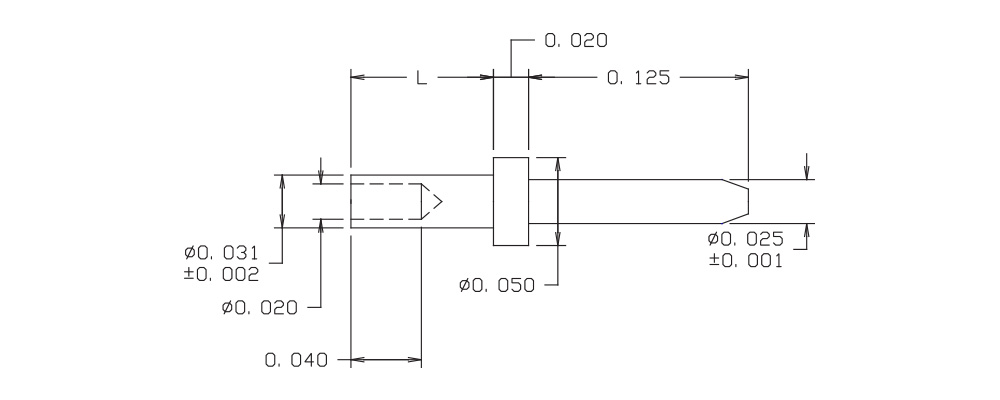

09-8807-2-05
09-8807-2-05
09-8807-2-05
0.226" 0.025 - Swage Mount 0.081" 1/16 0.035 Brass Electro Solder NO

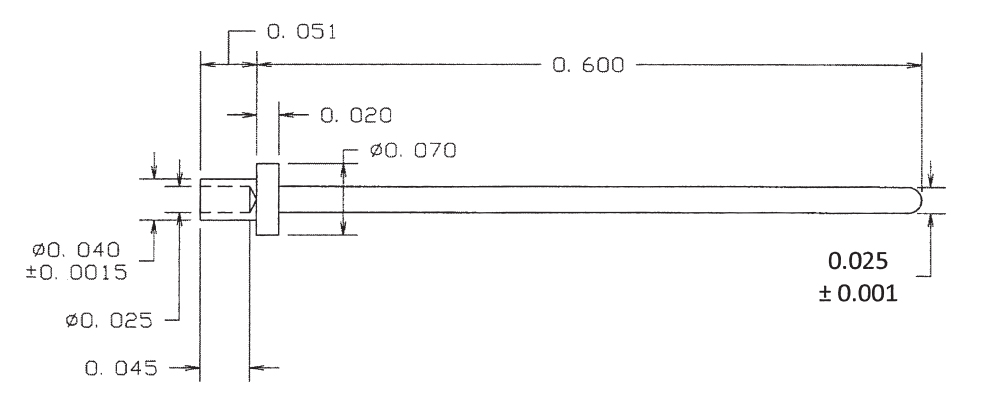

09-8871-1-03
09-8871-1-03
09-8871-1-03
0.651" 0.025 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES
10-104-3-05
10-104-3-05
10-104-3-05
0.207" - - Swage Mount 0.113" 3/32 0.052 Brass Electro Solder NO
10-111-4-05
10-111-4-05
10-111-4-05
0.346" - - Swage Mount 0.165" 1/8 0.094 Brass Electro Solder NO
10-133-11-095
10-133-11-095
10-133-11-095
0.077" - - Swage Mount 0.037" 1/64 0.033 Brass Hot Solder Dip NO
10-203-8-05
10-203-8-05
10-203-8-05
0.578" - - Swage Mount 0.297" 1/4 0.094 Brass Electro Solder NO
10-211-4-095
10-211-4-095
10-211-4-095
0.672" - - Swage Mount 0.172" 1/8 0.266 Brass Hot Solder Dip NO
10-218-1-03
10-218-1-03
10-218-1-03
0.312" - - Swage Mount 0.075" 1/32 0.094 Brass Gold YES
10-229-1-095
10-229-1-095
10-229-1-095
0.123" - - Swage Mount 0.053" 1/32 0.035 Brass Hot Solder Dip NO
10-248-2-035
10-248-2-035
10-248-2-035
0.417" - - Swage Mount 0.105" 1/16 0.073 Brass Gold YES
