Commercial
Non-Insulated
Terminals

Filter
10-482-2-088
10-482-2-088
10-482-2-088
0.437" - - Swage Mount 0.109" 1/16 0.116 Brass Bright Tin-Lead NO
10-503-1-044
10-503-1-044
10-503-1-044
0.401" - Double Turret/Double Turret Swage Mount 0.051" 1/32 0.076 Brass Bright Tin YES
10-509-2-044
10-509-2-044
10-509-2-044
0.751" - Double Turret/Double Turret Swage Mount 0.094" 1/16 0.204 Brass Bright Tin YES
10-515-4-044
10-515-4-044
10-515-4-044
0.931" 0.094 TURRET/PIN Swage Mount 0.165" 1/8 0.185 Brass Bright Tin YES
10-530-1-044
10-530-1-044
10-530-1-044
0.544" - TURRET/DOUBLE TURRET Swage Mount 0.075" 1/32 0.159 Brass Bright Tin YES
10-544-4-044
10-544-4-044
10-544-4-044
0.397" - Turret/Turret Swage Mount 0.156" 1/8 0.094 Brass Bright Tin YES
10-562-5-044
10-562-5-044
10-562-5-044
0.663" - Double Turret/Double Turret Swage Mount 0.195" 5/32 0.159 Brass Bright Tin YES
10-607-1-01
10-607-1-01
10-607-1-01
0.496" - - Swage Mount 0.075" 1/32 0.116 Brass Silver YES
10-714-1-04
10-714-1-04
10-714-1-04
0.637" - DOUBLE TURRET/THREAD Swage Mount 0.075" 1/32 0.204 Brass Electro-Tin YES
10-8015-4-04
10-8015-4-04
10-8015-4-04
0.520" 0.040 TURRET/PIN Swage Mount 0.145" 1/8 0.076 Brass Electro-Tin YES
10-8025-4-03
10-8025-4-03
10-8025-4-03
0.442" 0.040 TURRET/PIN Swage Mount 0.145" 1/8 0.076 Brass Gold YES
10-808-3-095
10-808-3-095
10-808-3-095
0.612" - - Swage Mount 0.141" 3/32 0.094 Brass Hot Solder Dip NO
10-815-4-01
10-815-4-01
10-815-4-01
0.365" - - Swage Mount 0.165" 1/8 0.1495 Brass Silver YES
10-825-2-04
10-825-2-04
10-825-2-04
0.433" - - Swage Mount 0.105" 1/16 0.081 Brass Electro-Tin YES
10-835-3-035
10-835-3-035
10-835-3-035
0.563" 0.050 - Swage Mount 0.125" 3/32 0.064 Brass Gold YES
10-846-3-088
10-846-3-088
10-846-3-088
0.463" - - Swage Mount 0.135" 3/32 0.116 Brass Bright Tin-Lead NO

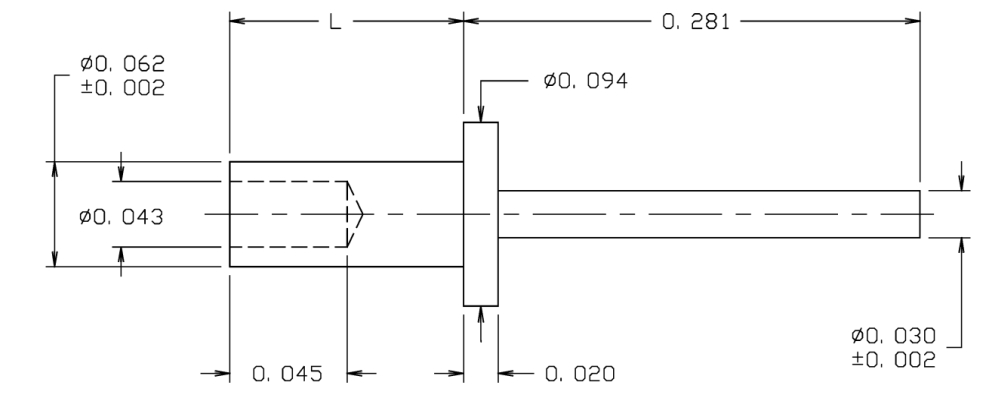

10-869-4-04
10-869-4-04
10-869-4-04
0.428" 0.030 - Swage Mount 0.147" 1/8 0.067 Brass Electro-Tin YES
10-893-2-03
10-893-2-03
10-893-2-03
0.982" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Gold YES
10-906-1-088
10-906-1-088
10-906-1-088
0.198" - - Swage Mount 0.062" 1/32 0.0635 Brass Bright Tin-Lead NO
10-921-2-088
10-921-2-088
10-921-2-088
0.302" 0.045 - Swage Mount 0.094" 1/16 0.064 Brass Bright Tin-Lead NO
