Commercial
Insulated
Pin Terminals

Filter
1114R-20-04412
1114R-20-04412
1114R-20-04412
0.310" 0.040 - Press Fit 1/64 0.136 Brass Bright Tin - - PTFE Red NO
1114R-80-0518
1114R-80-0518
1114R-80-0518
0.380" 0.055 - Press Fit 1/32 0.136 Brass Electro Solder - - PTFE Gray NO

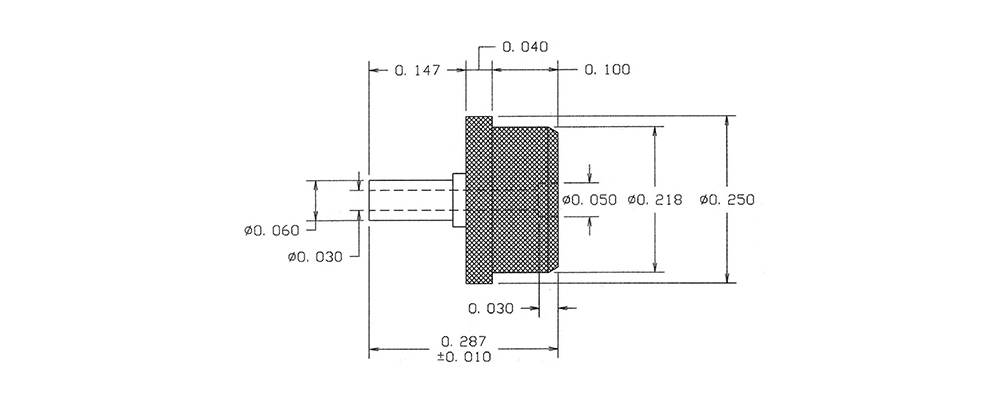

1115-07-0114
1115-07-0114
1115-07-0114
0.287" 0.060 - Press Fit 1/16 0.205 Brass Silver - - PTFE Yellow NO
1115-51-0410
1115-51-0410
1115-51-0410
0.453" - - Press Fit 1/16 0.187 Brass Electro-Tin - - PTFE Black YES
1115R-02-04416
1115R-02-04416
1115R-02-04416
0.282" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Blue YES
1116-26-08812
1116-26-08812
1116-26-08812
0.281" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Red NO
1117-16-0118
1117-16-0118
1117-16-0118
0.990" - Double Turret/Double Turret 8-32 Nut 1/8 0.169 Brass Silver Nickel Brass PTFE Gray NO
1117-50-0414
1117-50-0414
1117-50-0414
0.640" 0.029 Pin/Pin 4-40 Nut 1/8 0.120 Brass Electro-Tin Nickel Brass PTFE Yellow NO
1117-54-0510
1117-54-0510
1117-54-0510
0.785" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Electro Solder Nickel Brass PTFE Black NO
1118-32-08816
1118-32-08816
1118-32-08816
0.346" - TURRET/SLOTTED Press Fit 3/32 0.093 Brass Bright Tin-Lead - - PTFE Blue NO
1119-25-0312
1119-25-0312
1119-25-0312
1.500" 0.030 TURRET/PIN Press Fit 3/32 0.070 Brass Gold - - PTFE Red NO
1119R-20-0418
1119R-20-0418
1119R-20-0418
0.500" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Gray NO
1121-02-0514
1121-02-0514
1121-02-0514
0.350" 0.040 Turret/Tip Press Fit 1/32 0.113 Brass Electro Solder - - PTFE Yellow NO

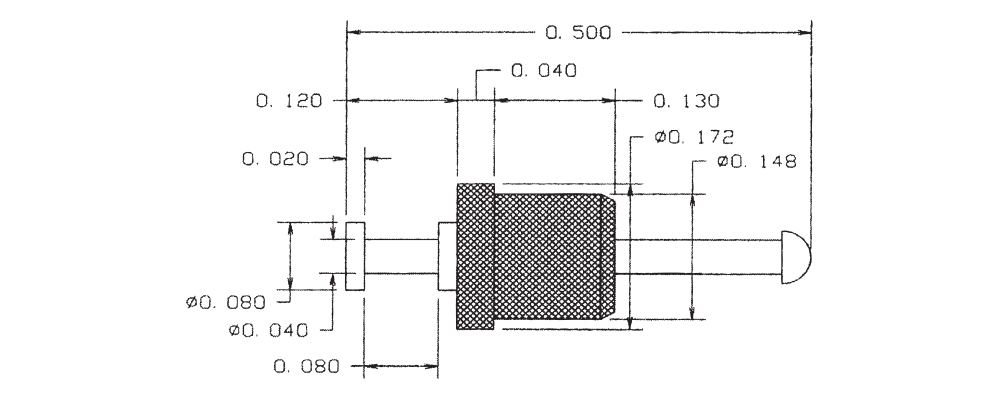

1121-07-0110
1121-07-0110
1121-07-0110
0.500" 0.040 Turret/Tip Press Fit 3/32 0.136 Brass Silver - - PTFE Black YES

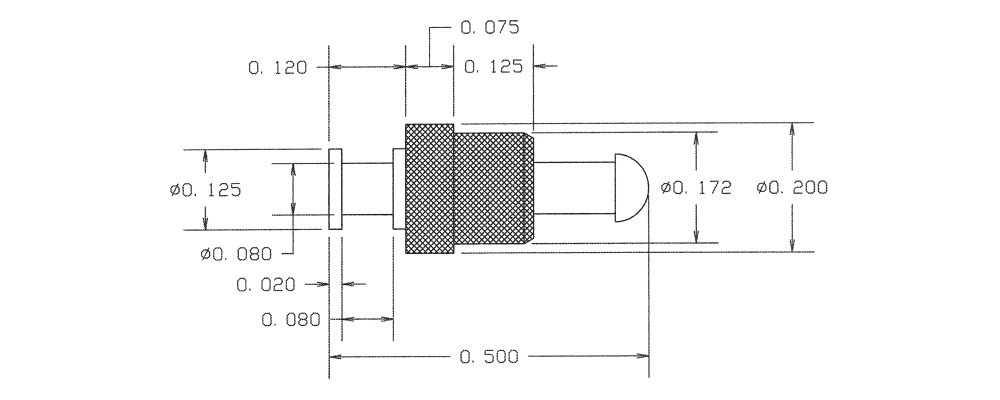

1121-12-0316
1121-12-0316
1121-12-0316
0.500" 0.080 Turret/Tip Press Fit 3/32 0.158 Brass Gold - - PTFE Blue YES
1121-16-04412
1121-16-04412
1121-16-04412
0.740" 0.050 Turret/Tip Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Red NO
1121-20-0518
1121-20-0518
1121-20-0518
1.115" 0.050 Turret/Tip Press Fit 9/32 0.158 Brass Electro Solder - - PTFE Gray NO

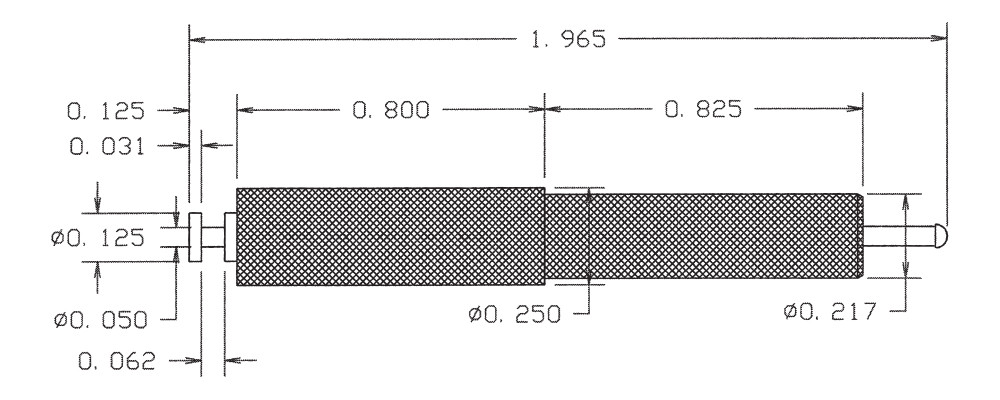

1121-26-0114
1121-26-0114
1121-26-0114
1.965" 0.050 Turret/Tip Press Fit 49/64 0.205 Brass Silver - - PTFE Yellow NO
1121-31-0410
1121-31-0410
1121-31-0410
0.520" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Black YES
1121-52-04416
1121-52-04416
1121-52-04416
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Bright Tin - - PTFE Blue YES
