Commercial
Insulated
Pin Terminals

Filter
1178R-15-0412
1178R-15-0412
1178R-15-0412
0.390" - - PRESS LOCK 1/32 - 5/64 0.134 Brass Electro-Tin - - PTFE Red NO
1102R-95-04418
1102R-95-04418
1102R-95-04418
0.812" - - Press Fit 13/64 0.297 Brass Bright Tin - - PTFE Gray NO
1125-02-08814
1125-02-08814
1125-02-08814
0.578" - - 2-56 Nut 7/64 0.094 Brass Bright Tin-Lead Electro-Tin Brass PTFE Yellow NO

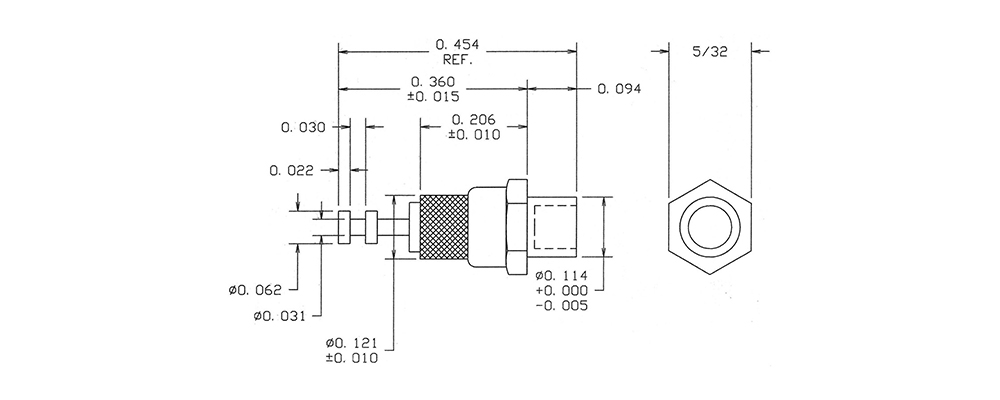

1125-07-0310
1125-07-0310
1125-07-0310
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Gold Electro-Tin Brass PTFE Black YES
1125-11-0416
1125-11-0416
1125-11-0416
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Electro-Tin Electro-Tin Brass PTFE Blue YES
1125-15-0512
1125-15-0512
1125-15-0512
0.578" - - 4-40 Nut 7/64 0.120 Brass Electro Solder Electro-Tin Brass PTFE Red NO
1125-19-08818
1125-19-08818
1125-19-08818
0.822" - - 6-32 Nut Up to 3/16 0.144 Brass Bright Tin-Lead Electro-Tin Brass PTFE Gray NO
1125-24-0314
1125-24-0314
1125-24-0314
0.885" - - 4-40 Nut Up to 1/4 0.120 Brass Gold Electro-Tin Brass PTFE Yellow NO
1125-28-04410
1125-28-04410
1125-28-04410
0.615" - - Swage Mount 1/16 0.116 ±0.001 Brass Bright Tin Electro-Tin Brass PTFE Black YES
09-2128-1-0516
09-2128-1-0516
09-2128-1-0516
0.443" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Electro Solder - - PTFE Blue NO

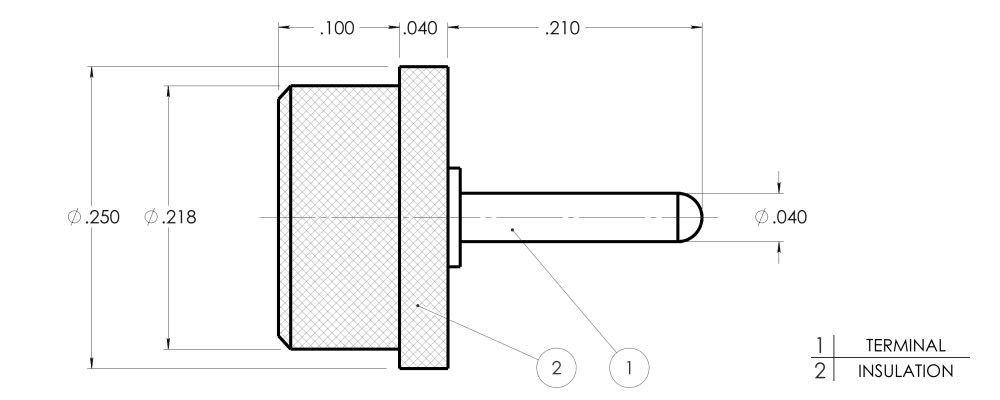

1100-49-0112
1100-49-0112
1100-49-0112
0.350" 0.040 - Press Fit 1/16 0.205 Brass Silver - - PTFE Red NO
1100R-23A-0318
1100R-23A-0318
1100R-23A-0318
0.330" 0.040 - Press Fit 1/32 0.136 Brass Gold - - PTFE Gray NO
1100R-36-04414
1100R-36-04414
1100R-36-04414
0.390" 0.040 - Press Fit 3/32 0.136 Brass Bright Tin - - PTFE Yellow NO
1100R-53-08810
1100R-53-08810
1100R-53-08810
0.756" 0.040 - Press Fit 15/32 0.172 Brass Bright Tin-Lead - - PTFE Black NO

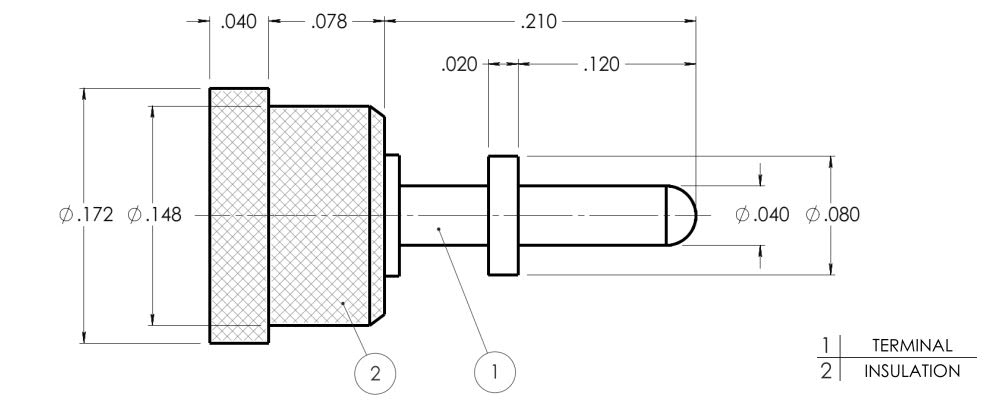

1101R-01-0116
1101R-01-0116
1101R-01-0116
0.328" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Blue YES
09-2010-1-0417
09-2010-1-0417
09-2010-1-0417
0.436" 0.040 Pin/Tip Press Fit 1/16 0.086 Brass Electro-Tin - - PTFE Violet YES

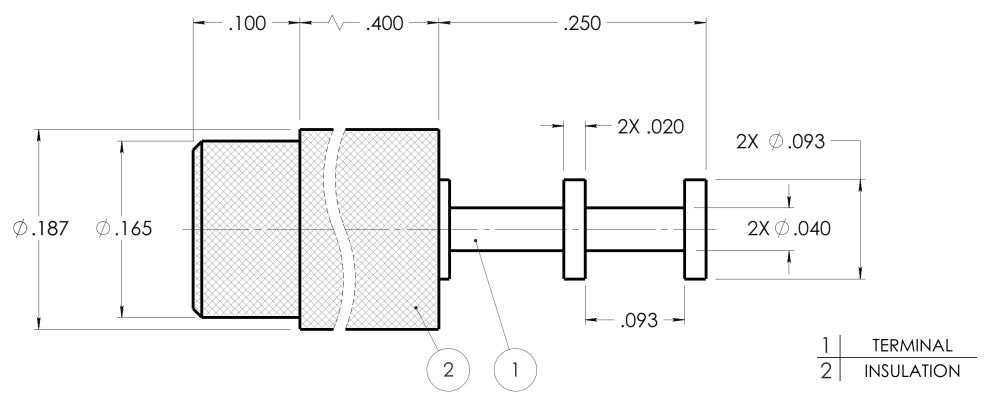

1102-44-0413
1102-44-0413
1102-44-0413
0.750" - - Press Fit 1/16 0.152 Brass Electro-Tin - - PTFE Orange NO

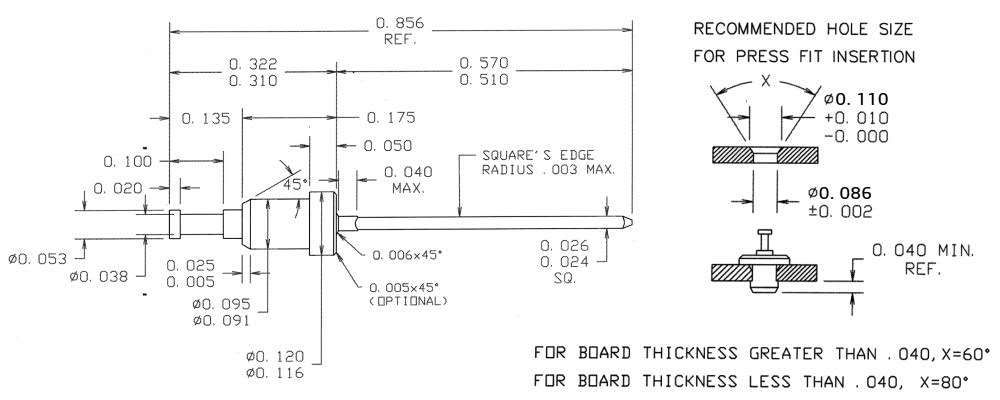

09-2078-1-0513
09-2078-1-0513
09-2078-1-0513
0.856" 0.025 SQ. TURRET/PIN Press Fit 5/64 0.086 Brass Electro Solder - - PTFE Orange NO
1110-39-04419
1110-39-04419
1110-39-04419
0.515" 0.040 Pin/Pin Press Fit 1/16 0.144 Brass Bright Tin - - PTFE White YES
09-2094-1-08819
09-2094-1-08819
09-2094-1-08819
0.593" 0.050 ± 0.010 Pin/Hook Press Fit 3/32 0.191 Brass Bright Tin-Lead - - PTFE White NO
