Commercial
Insulated
Pin Terminals

Filter

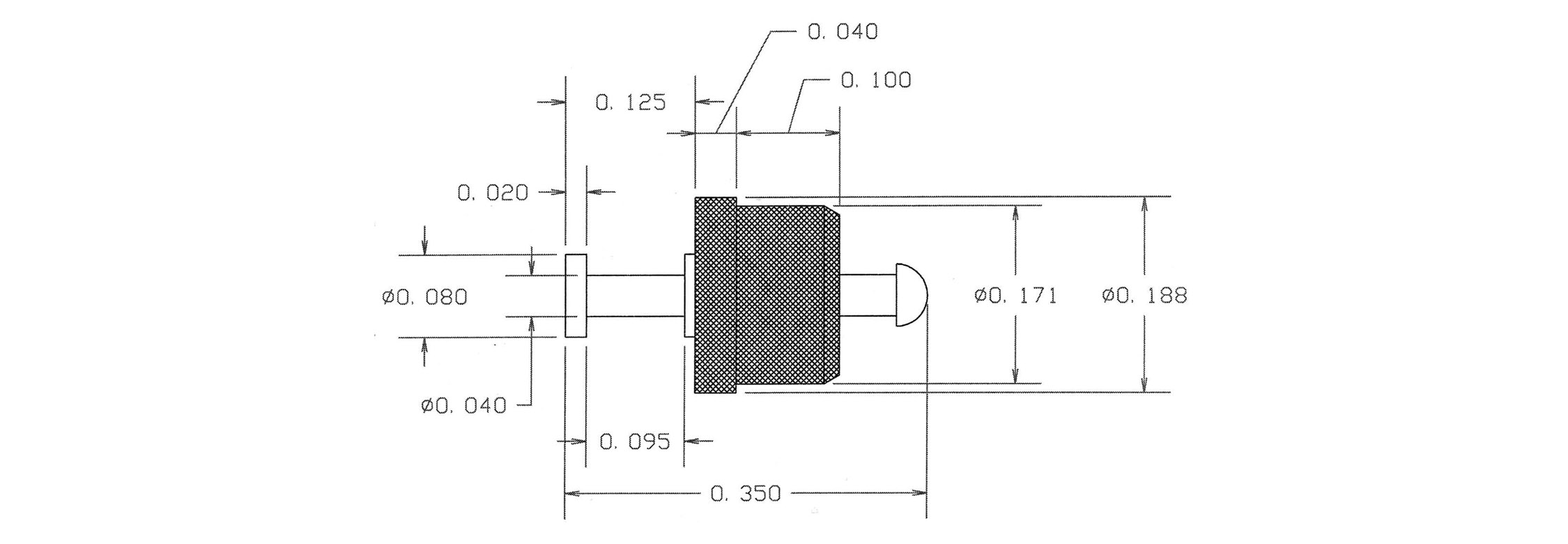

1157-07-0112
1157-07-0112
1157-07-0112
0.350" 0.040 Turret/Tip Press Fit 1/16 0.158 Brass Silver - - PTFE Red NO
1157R-05-0318
1157R-05-0318
1157R-05-0318
0.865" 0.050 TURRET/PIN Press Fit 7/32 0.158 Brass Gold - - PTFE Gray NO
1160-13-04414
1160-13-04414
1160-13-04414
0.367" 0.085 - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Yellow NO
1167-20-08810
1167-20-08810
1167-20-08810
0.843" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Black NO
1167-75-0116
1167-75-0116
1167-75-0116
0.905" - - 6-32 Nut Up to 3/16 0.144 Brass Silver ZINC Brass DIALLYL PHTHALATE Blue YES
1169-30-0412
1169-30-0412
1169-30-0412
0.671" 0.060 - 2-56 Nut 1/8 0.094 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Red YES
1169-37-04418
1169-37-04418
1169-37-04418
0.750" - - 4-40 Nut 1/8 0.120 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Gray YES

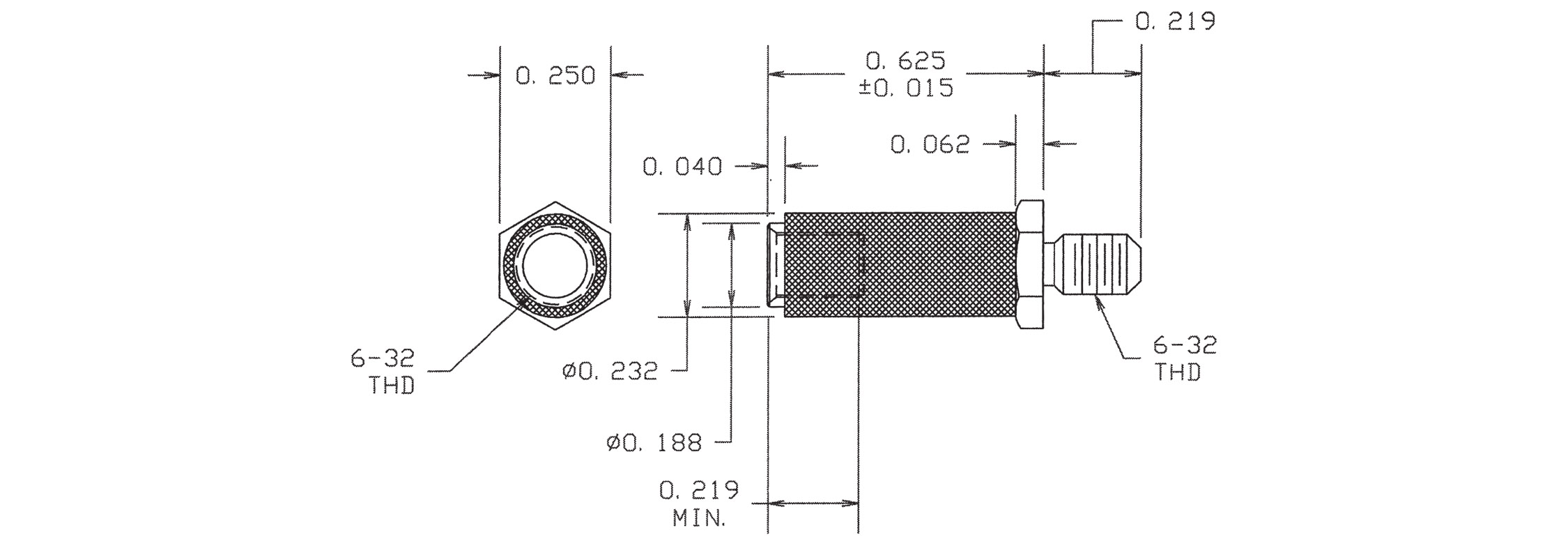

1170-06-07514
1170-06-07514
1170-06-07514
0.844" - - 6-32 Nut 3/32 0.144 Brass ZINC ZINC Brass DIALLYL PHTHALATE Yellow YES
1170-22-08810
1170-22-08810
1170-22-08810
0.968" - - 6-32 Nut Up to 1/4 0.144 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Black NO

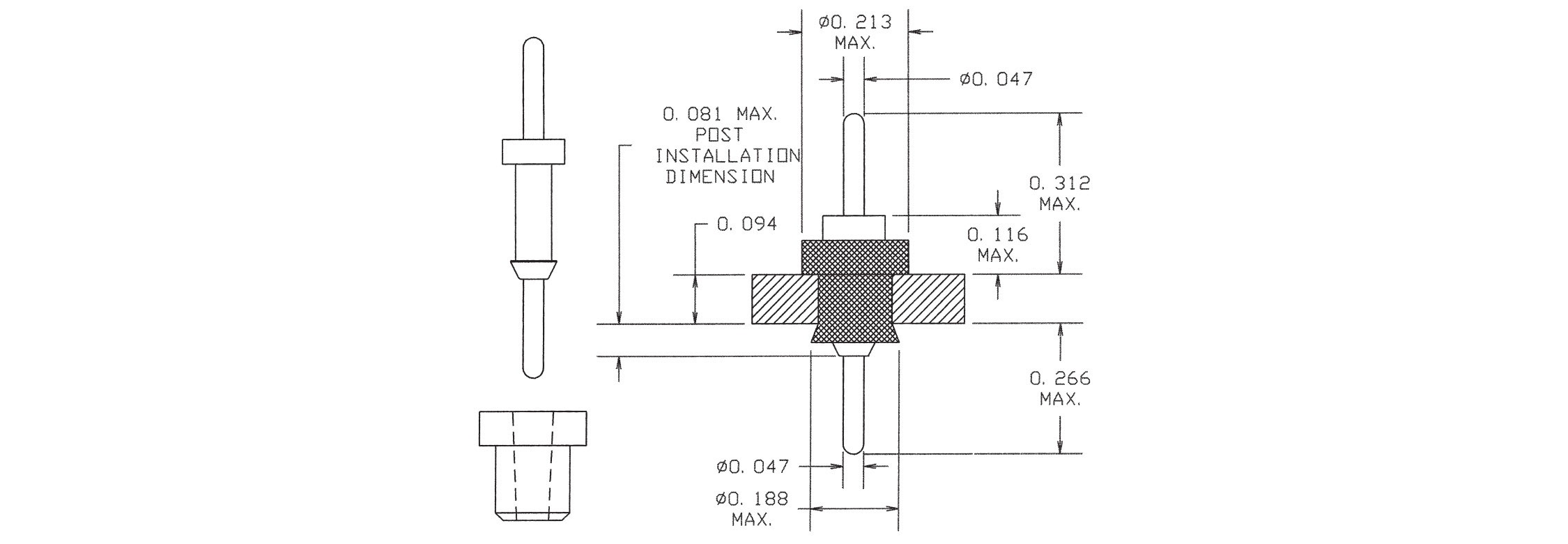

1175-013-0116
1175-013-0116
1175-013-0116
0.672" 0.047 Pin/Pin PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Silver - - PTFE Blue YES
1175-301-0412
1175-301-0412
1175-301-0412
0.460" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Red NO
1175-351-04418
1175-351-04418
1175-351-04418
0.342" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Gray NO
1175-372-08814
1175-372-08814
1175-372-08814
0.736" 0.040 DOUBLE TURRET/PIN PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Yellow NO
1175-404-0310
1175-404-0310
1175-404-0310
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Gold - - PTFE Black YES
1175-414-0416
1175-414-0416
1175-414-0416
0.642" - DOUBLE Turret/Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE Blue YES
1175-424-0512
1175-424-0512
1175-424-0512
0.756" - Double Turret/Double Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Red NO
1175-434-08818
1175-434-08818
1175-434-08818
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Gray NO

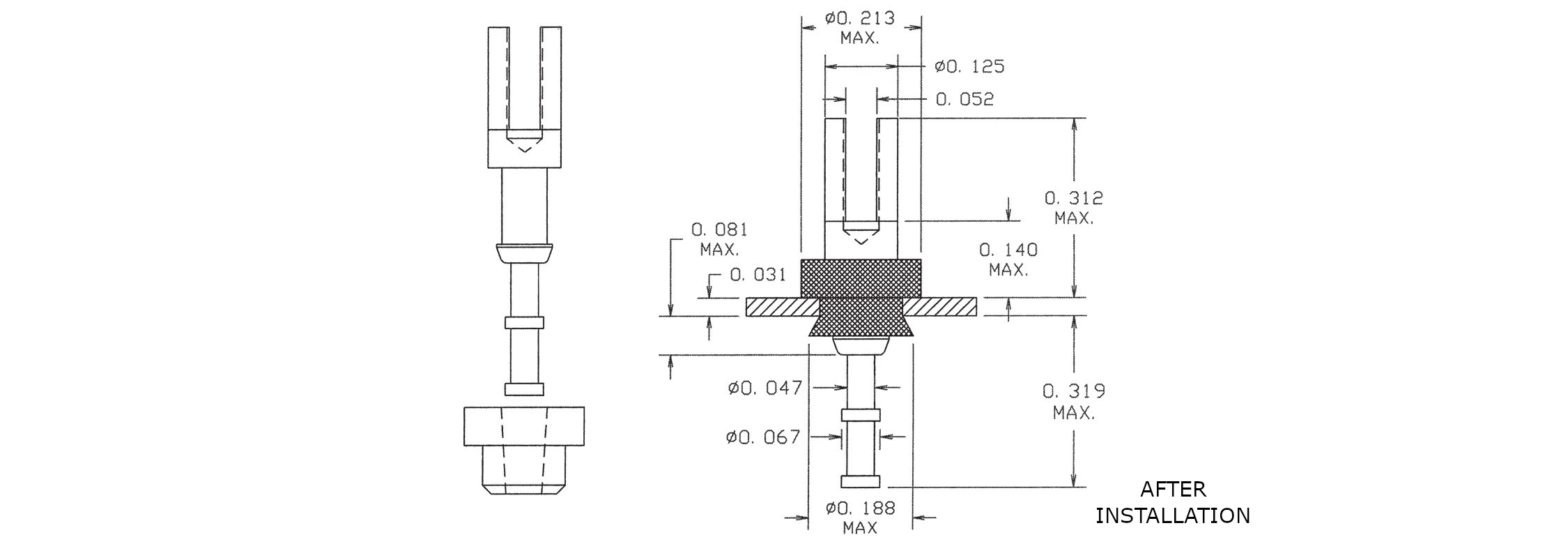

1175-451-0314
1175-451-0314
1175-451-0314
0.662" - DOUBLE TURRET/SLOTTED PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Gold - - PTFE Yellow NO

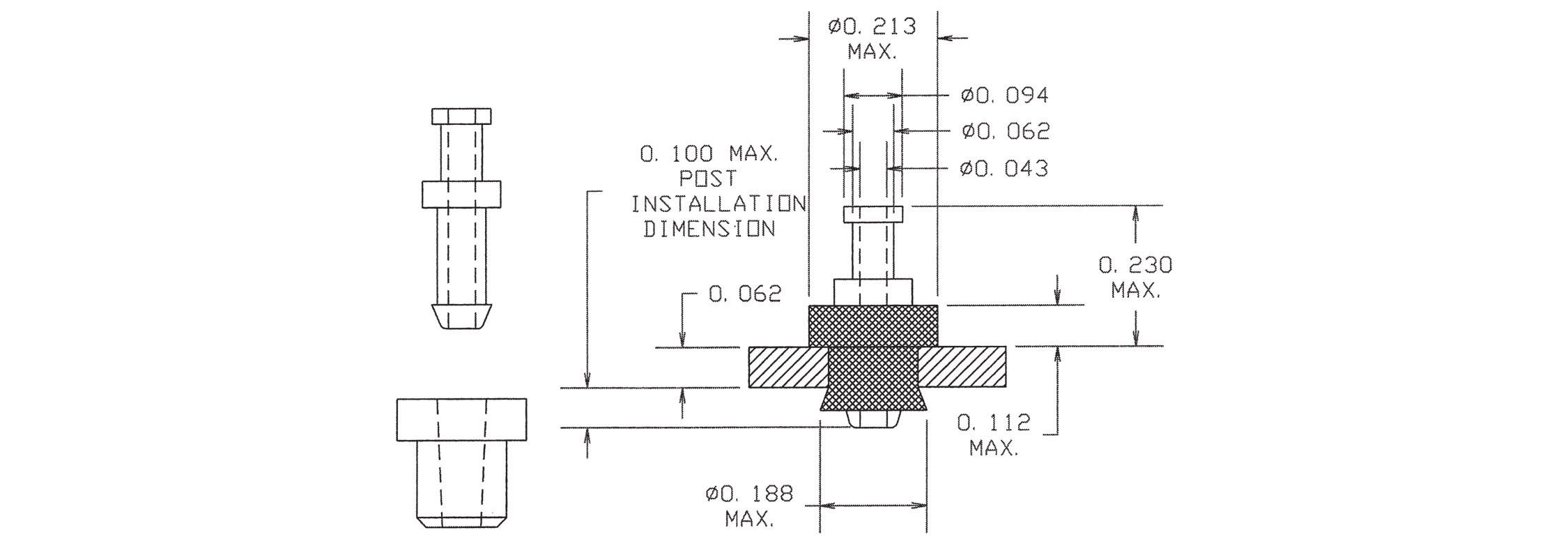

1175-462-04410
1175-462-04410
1175-462-04410
0.392" - - PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Black YES
1175-473-0516
1175-473-0516
1175-473-0516
0.575" - - PRESS LOCK 3/32 0.188 (+0.003/-0.001) Brass Electro Solder - - PTFE Blue NO
