Commercial
Insulated
Pin Terminals

Filter
1126-30-0112
1126-30-0112
1126-30-0112
1.172" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Silver ZINC Brass PTFE Red NO
1126-34-0318
1126-34-0318
1126-34-0318
0.766" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Gold ZINC Brass PTFE Gray NO
1126-38-04414
1126-38-04414
1126-38-04414
1.469" - - 4-40 Nut 1/8 0.120 Brass Bright Tin ZINC Brass PTFE Yellow NO
1126-42-08810
1126-42-08810
1126-42-08810
0.766" - - 6-32 Nut 1/8 0.144 Brass Bright Tin-Lead ZINC Brass PTFE Black NO
1126-47-0116
1126-47-0116
1126-47-0116
0.672" - - 6-32 Nut 1/8 0.144 Brass Silver ZINC Brass PTFE Blue YES
1127-04-0412
1127-04-0412
1127-04-0412
0.719" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro-Tin Electro-Tin Brass DIALLYL PHTHALATE Red YES
1127-08-04418
1127-08-04418
1127-08-04418
0.884" 0.070 - 4-40 Nut 3/32 0.120 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Gray YES
1127-12-08814
1127-12-08814
1127-12-08814
0.821" 0.070 - Swage Mount 1/8 0.104 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Yellow NO

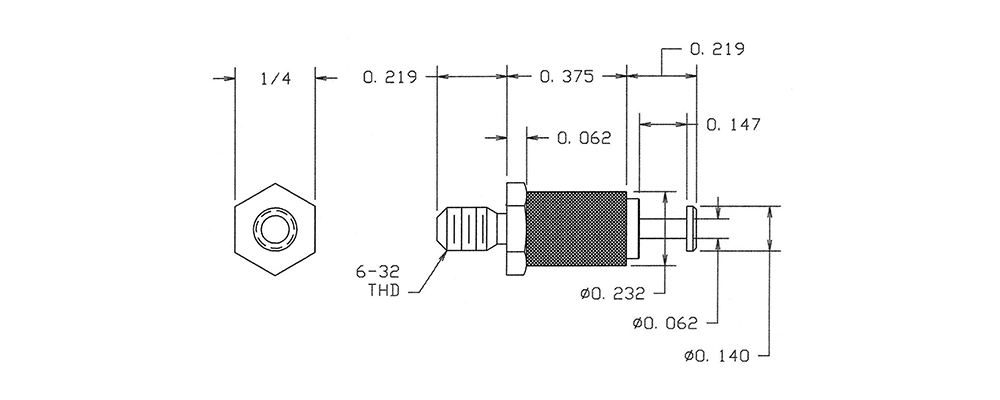

1127-17-0310
1127-17-0310
1127-17-0310
0.813" - - 6-32 Nut 3/32 0.144 Brass Gold ZINC Brass DIALLYL PHTHALATE Black YES
1127-21-0416
1127-21-0416
1127-21-0416
0.938" - - Swage Mount 3/32 0.104 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Blue YES
1127-25-0512
1127-25-0512
1127-25-0512
0.938" - - Swage Mount 3/32 0.147 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Red NO
1127-30-08818
1127-30-08818
1127-30-08818
0.813" - - 4-40 Nut 3/32 0.120 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Gray NO

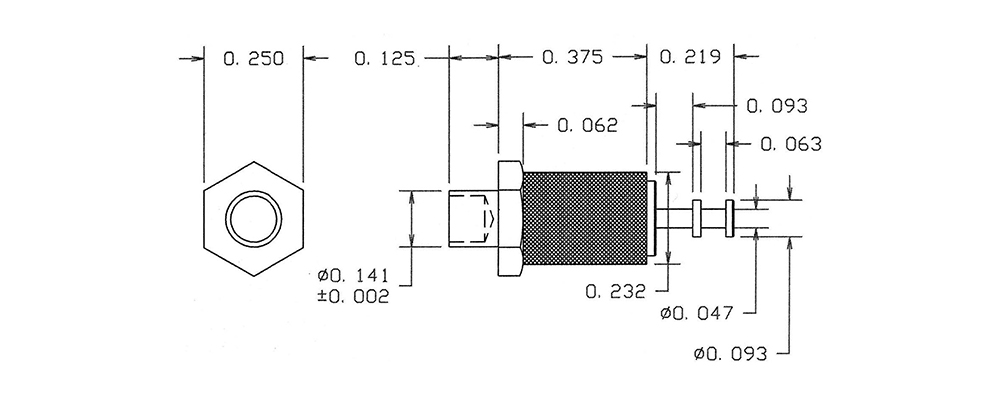

1127-35-0314
1127-35-0314
1127-35-0314
0.719" - - Swage Mount 3/32 0.147 Brass Gold ZINC Brass DIALLYL PHTHALATE Yellow YES
1127-39-04410
1127-39-04410
1127-39-04410
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Black YES
1127-43-0516
1127-43-0516
1127-43-0516
0.969" - - 6-32 Nut 1/8 0.144 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Blue NO
1127-48-0112
1127-48-0112
1127-48-0112
0.875" - - Swage Mount 1/8 0.104 Brass Silver ZINC Brass DIALLYL PHTHALATE Red YES
1127-52-0318
1127-52-0318
1127-52-0318
0.875" - - Swage Mount 1/8 0.147 Brass Gold ZINC Brass DIALLYL PHTHALATE Gray YES
1127-57-04414
1127-57-04414
1127-57-04414
0.579" - - 2-56 Nut 1/16 0.094 Brass Bright Tin ZINC Brass DIALLYL PHTHALATE Yellow YES
1127-61-08810
1127-61-08810
1127-61-08810
0.704" - - 2-56 Nut 1/8 0.094 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Black NO
1127-66-0116
1127-66-0116
1127-66-0116
0.454" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Silver ZINC Brass DIALLYL PHTHALATE Blue YES
